Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

Quantity:
  • Shenzhen, China
  • 10000set/Week
  • T/T, Paypal, Money Gram
  • DL-12600
  • 600ah
  • 12V
  • Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
  • Li-ion
  • >2000 Times
  • 2 Year
  • T/T, Paypal
  • OEM
  • Export Carton
  • 680*510*170mm
  • China
  • 8507600090
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • Medium Discharge Rate
  • Medium
  • Battery

Delong Factory Offer you:

1:ORIGINAL FACTORY DIRECT LOWEST PRICE.
2:NICE QUALITY. PASS CERTIFICATION
3:WITHOUT MOQ. SMALL SAMPLE ORDER WELCOME.
4:QUICK SHIPPING WITHIN 15 DAYS.
5:ONLINE PAYMENT
6:FACTORY 3 YEAR WARRANTY, SUPPORT 7 DAYS REFUND.
7:AFTER SALES SERVICES 24 HOURS.


Specs:

Pro Description
Lifepo4 Battery Pack 12v 600ah for RV Camping Caravan AGV UPS Storage Battery
Nominal voltage
12.8V
Nominal capacity
200ah/300ah/400ah/500ah/600ah(OEM)
Battery type
Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell
Model
DL-12200/4S2P DL-12300/4S3P DL-12400/4S4P DL-12500/4S5P DL-12600/4S6P
Battery configation
4S2P 4S3P 4S4P 4S5P 4S6P
Internal resistance
≤420mΩ
End of charge voltage
14.6V
End of charge current
200mA
End of discharge voltage
9.2V
Charge method
CC/CV(constant current/constant voltage)
Max continuous charge current
 50A ( suggetsion), 100A also ok
Max continuous discharge current
100A
Max pulse discharge current
200A/10S
Net weight
200ah:around 26kg ,300ah: 40kg, 400ah: 45kg, 500ah: 56kg, 600ah: 80kg
Case material
ABS or metal case or stainless steel case
Case dimension
600ah :680*510*170mm
  ( all dimension can be customized )
Warranty
2 years. 3 years for seller
Built-in BMS
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc
Terminal Type
M8 or anderson or another bolt screw
Lifecycle
Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod
Charge temperature
0~45ºC
Discharge temperature
 -20~60ºC
Storage temperature
-10~45ºC
Certificate
CE, RoHS ,MSDS and UN38.3 certification
Parallel assembly
up to 10 items (48V-1000Ah)
Enclosure Protection
IP56 or customized IP67 available

Lithium Battery Advantage:
( Reasons for Why you choose Lithium battery to replace lead acid battery )

1. Long cycle life than lead acid Battery
-at least 2000 times - 8000 times 40% dod
2.Less half the weight of similar-capacity than lead-acid batteries
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A)
5.No maintenance required

6. No battery memory
7.Almost no temperature derating effects
8. 95% energy efficient

  •

Photos example:

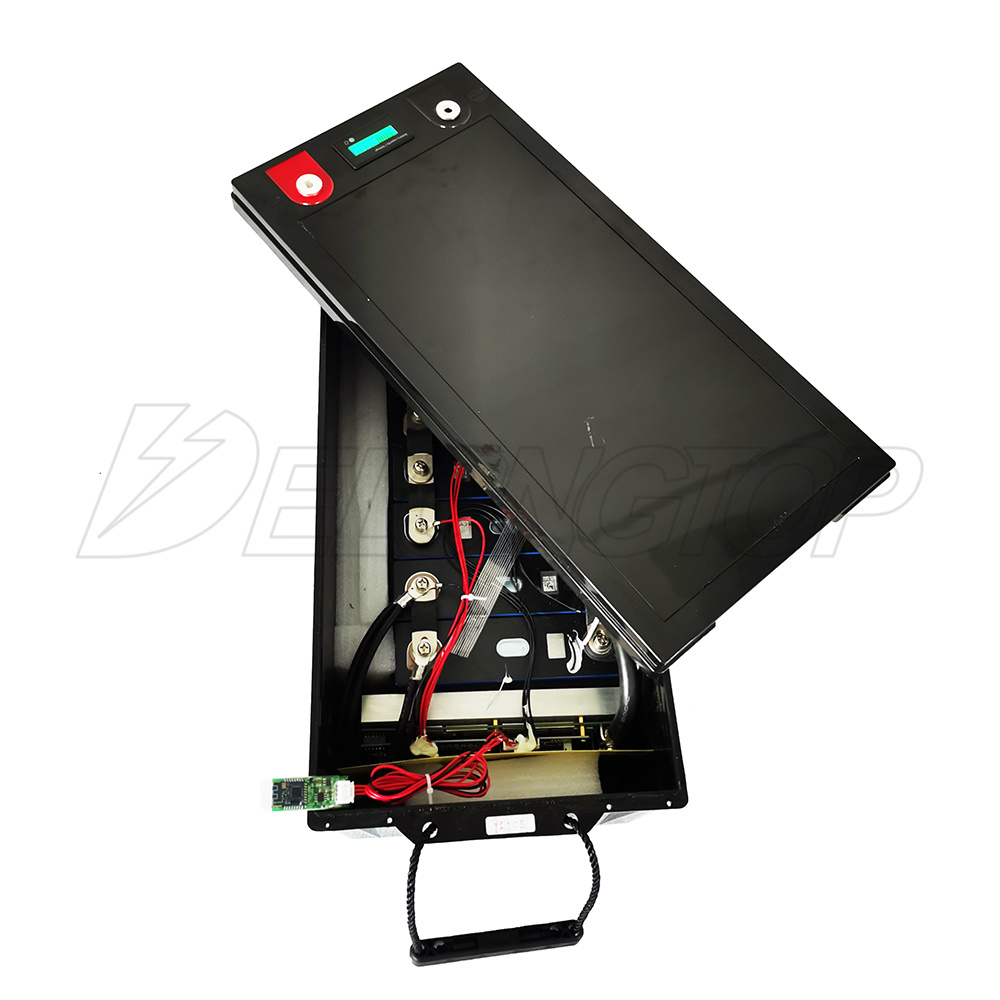

Photos of 12v 200ah lifepo4 battery ( welcome to contact for more detail)

Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

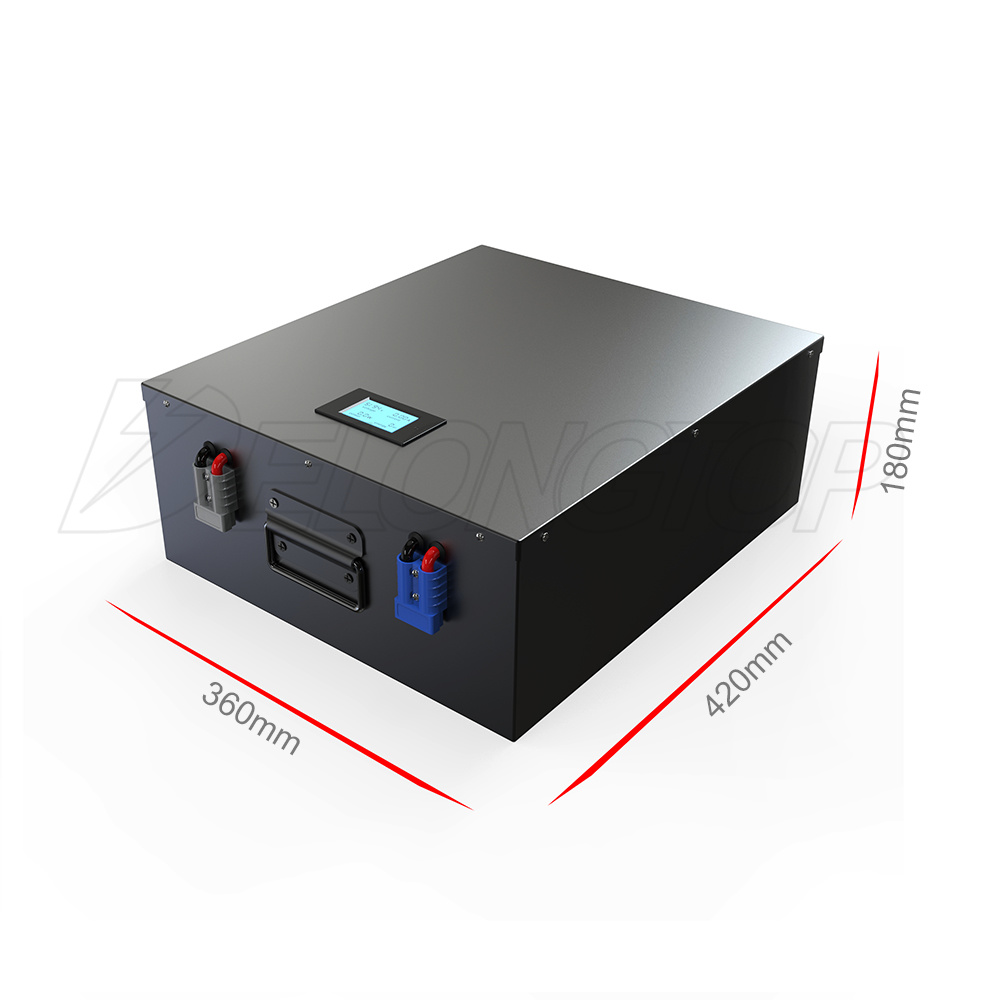

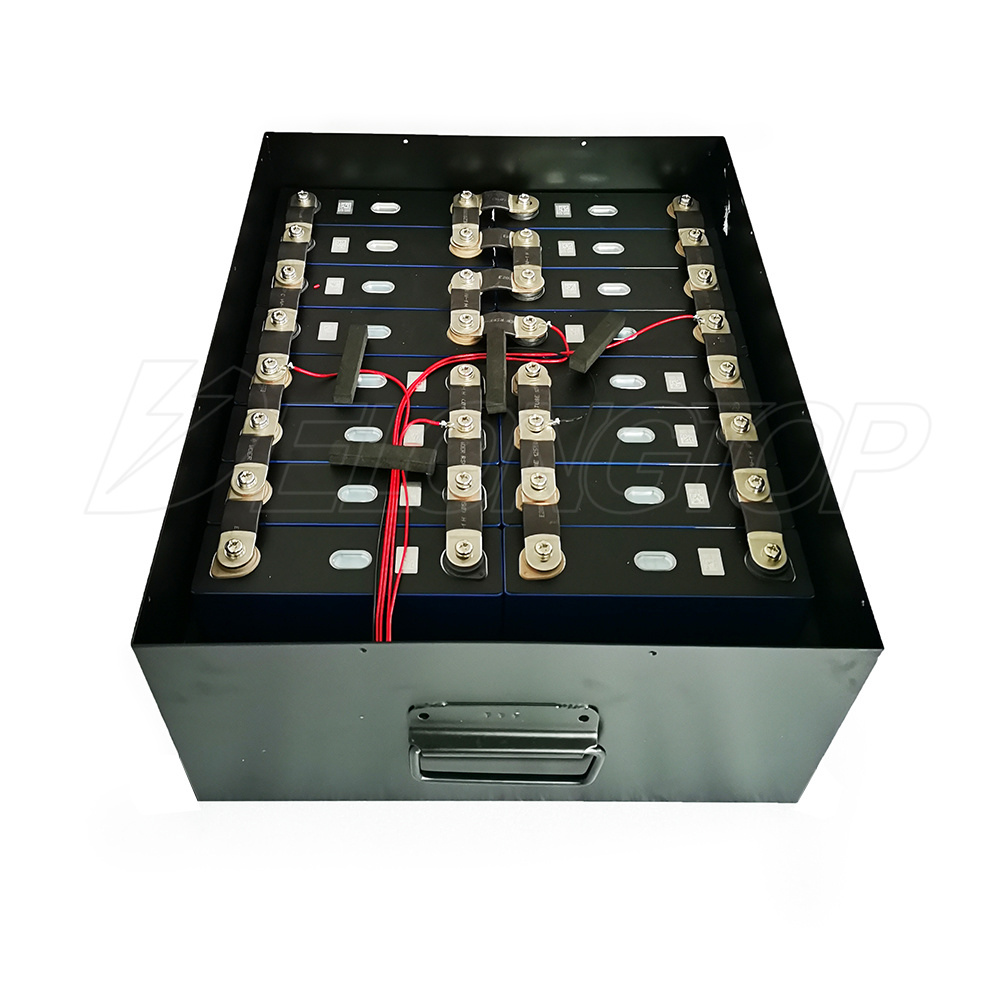

Photos of 12v 300ah lifepo4 battery

Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

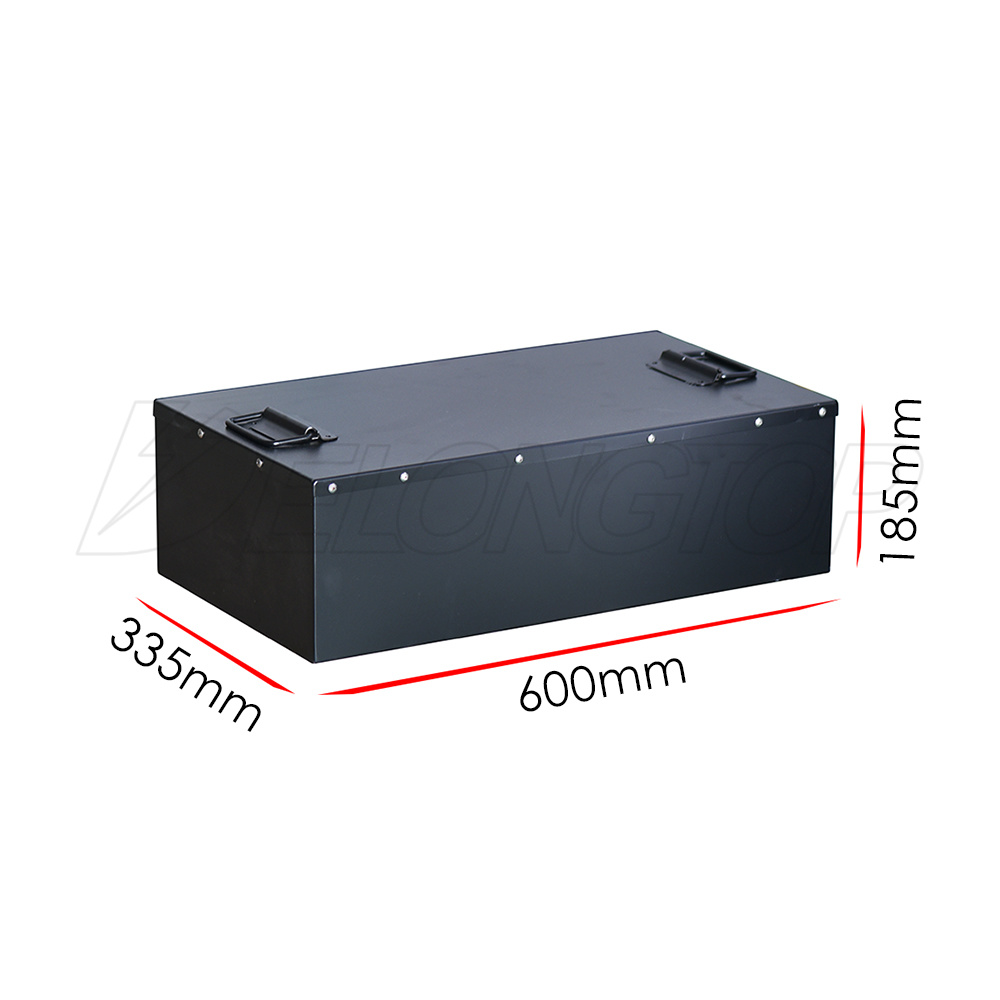

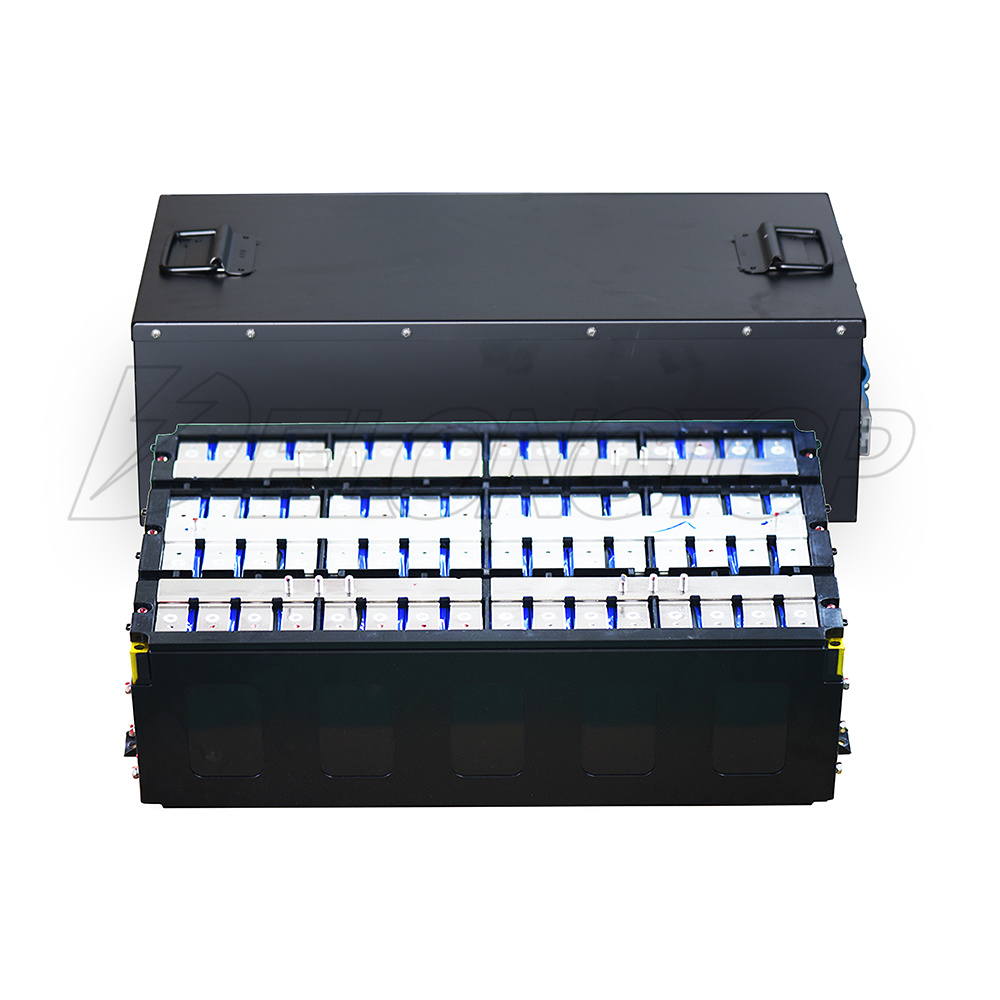

Photos of 12v 400ah lifepo4 battery
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System





Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

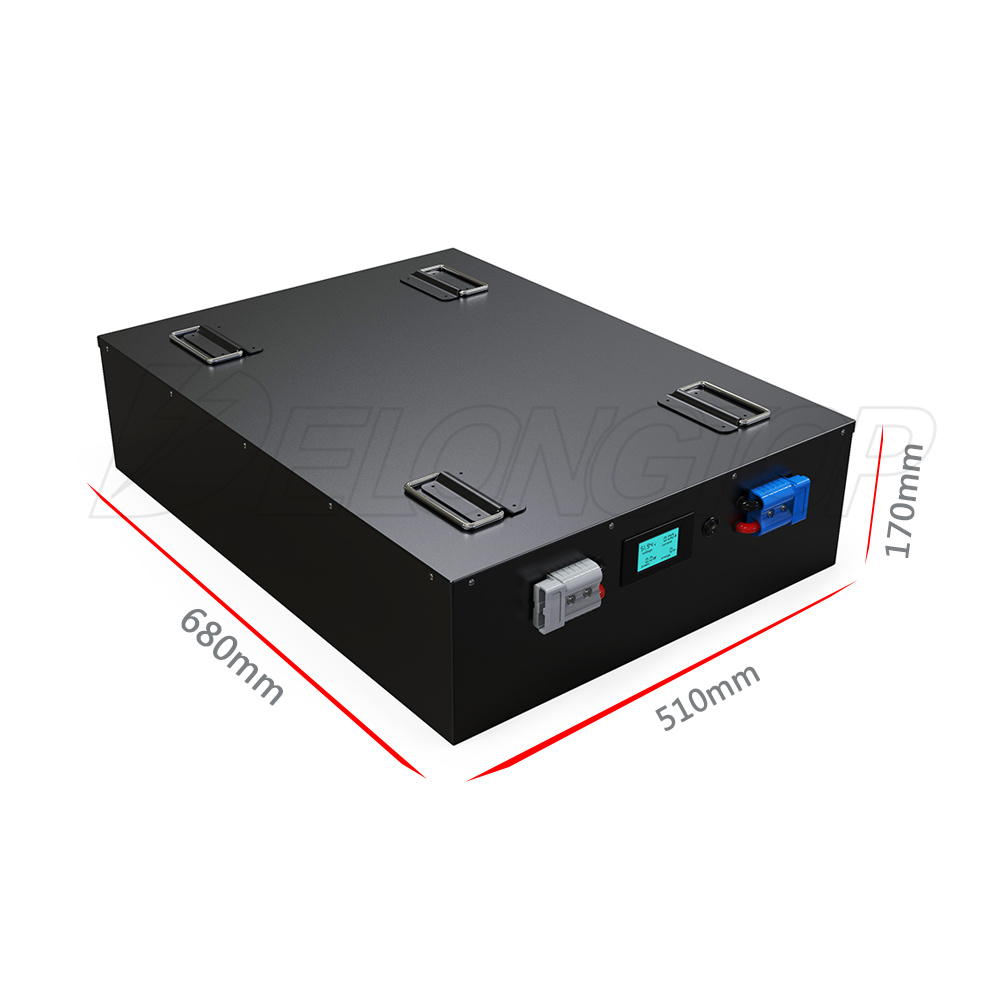

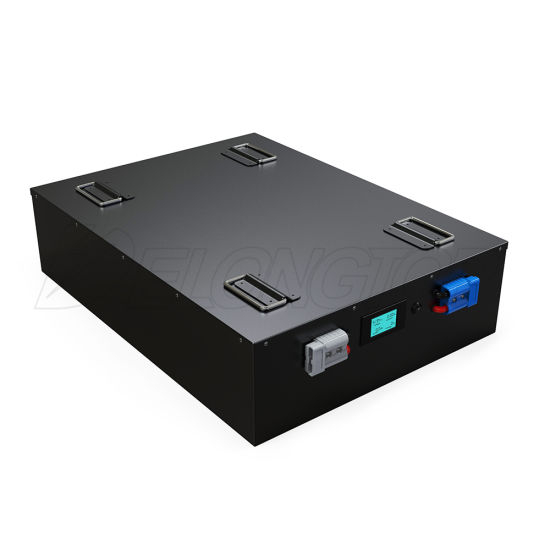

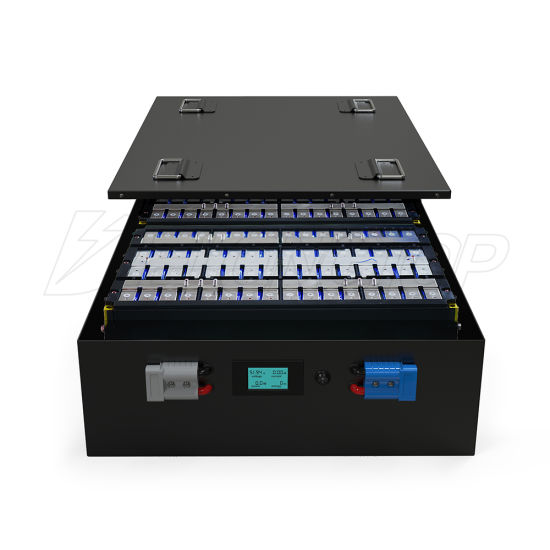

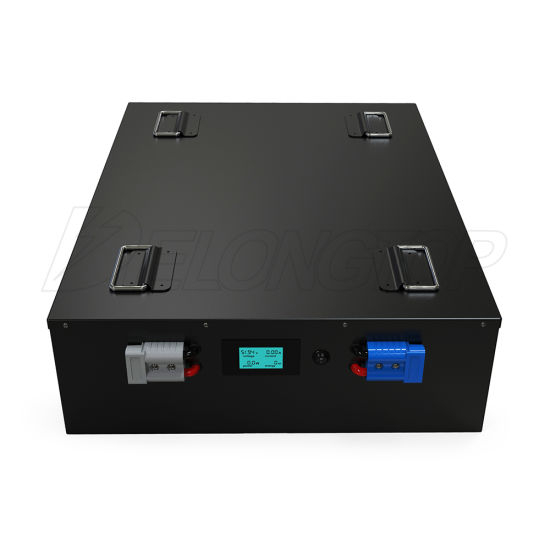

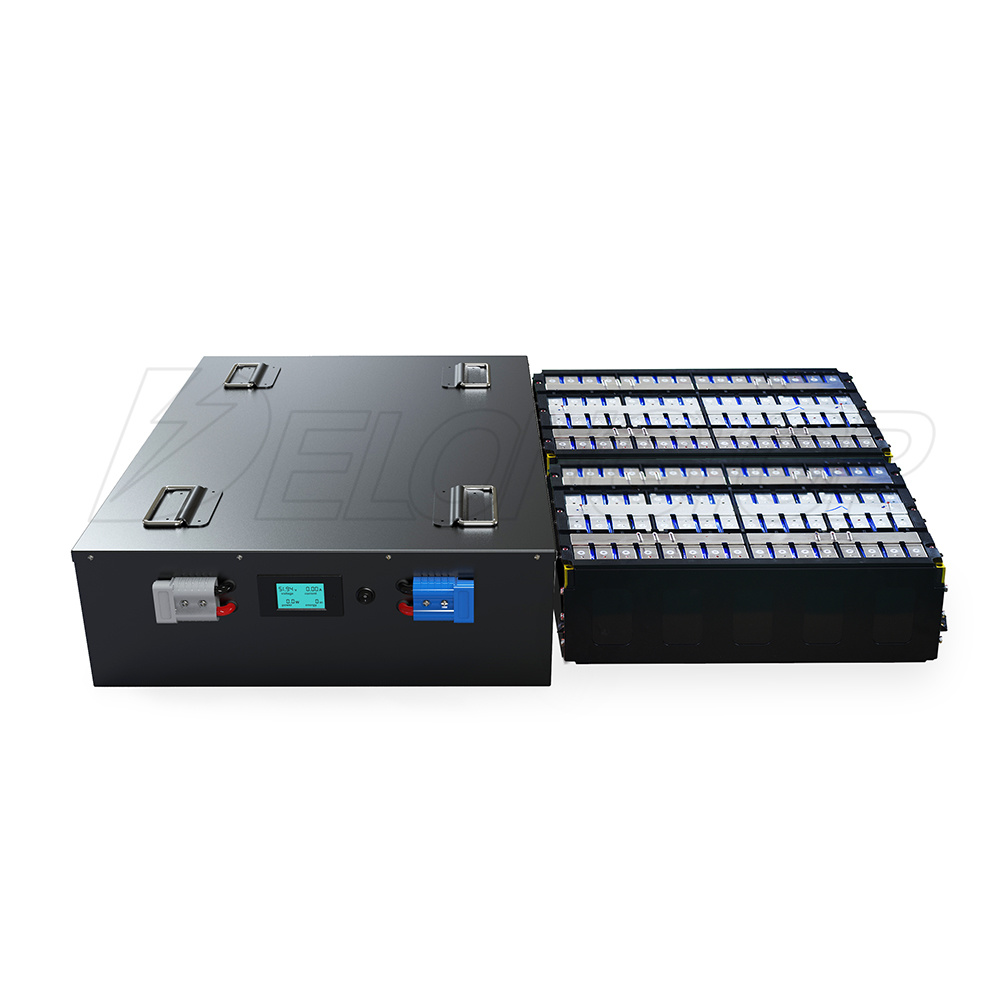

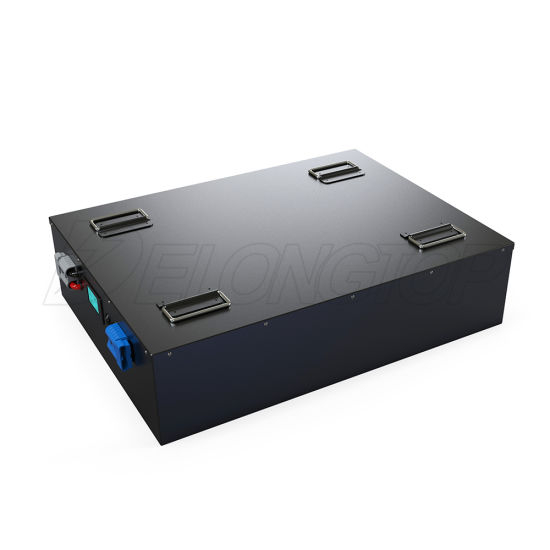

Photos of 12V 600ah lifepo4 battery:
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

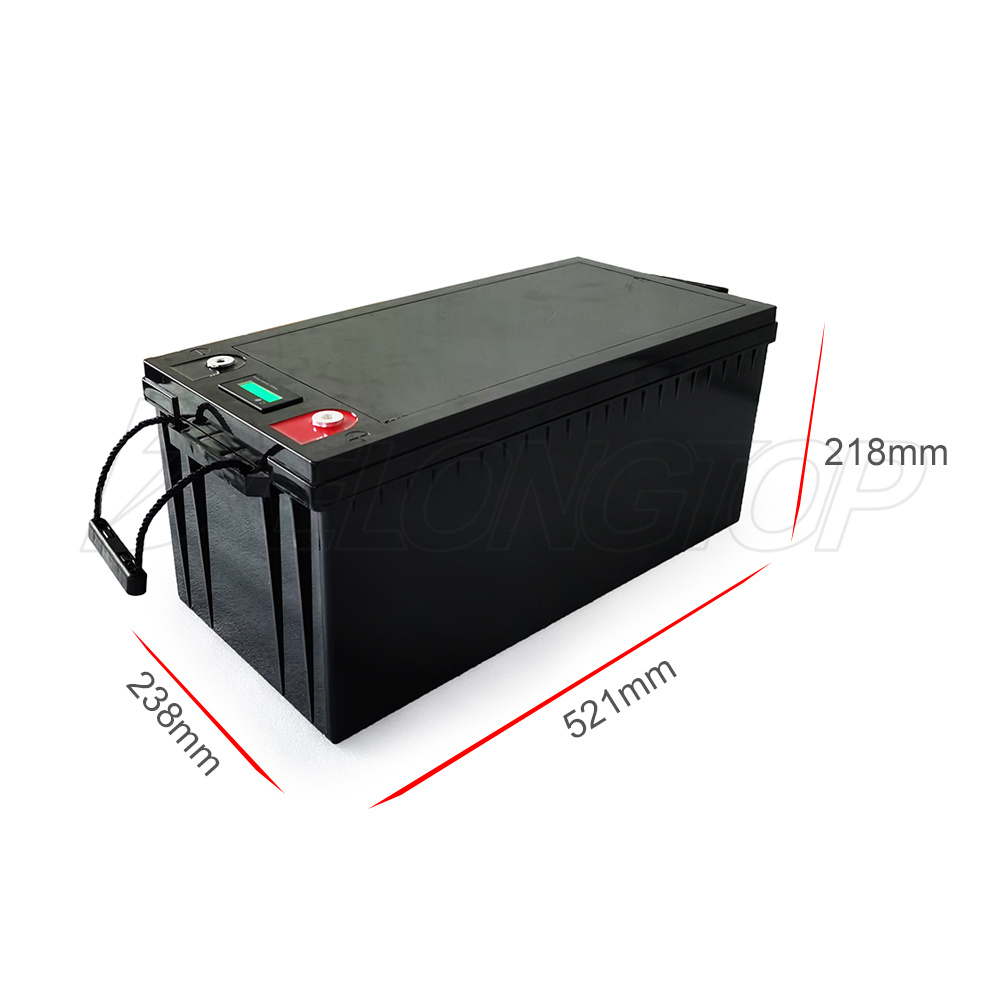

Other Lifepo4 battery pack for 12v 200ah battery:
Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System






Product Applications
Applications of 12V lifepo4 battery :
♦ Solar-Wind Power System
♦ City Grid (On/Off) Back-up solar System and UPS
♦ Power tools: electric drills, toys Energy Storage


    •
     Electric Propelling Applications

     ♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.

     ♦ Intellectual Robots

     ♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment Other Applications

     ♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

    Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System

    Packing&Shipping
    Delivery time :

    Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to quanity or other reason.
    Payment:
    1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
    2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
    3. FOB , EXW and CIF all are available
    4. Samples can accept Paypal
    5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.



    ★ Delong company has focused on research,manufacture and sales of lithium battery industrial over 8 years
    Original factory+Competitive price+ Reliable after-sales services +Complete quality management system+Real certificate(CE,RoHs, UN38.3, MSDS ETC)+ Cooperated with many big distributors in many countries, such as USA, CA, UK, France, Italy and so on

    Solar Deep Cycle LiFePO4 Battery 12V 600ah 24V 300ah for 5kw Solar Power System



    Company Introductio


    Other on-line contact way:


    WA: +86 17325986629
    Customer Feedback

    FAQ
    Q: Are you trading company or manufacturer?
    A: We are DELONG original factory.

    Q: Can I have samples to test? And what is lead time for sample order?
    A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

    Q: Do you provide after-sales serive?
    A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

    Q: Do you accept OEM/ODM?
    A: Yes,it is avaliable.

    Q:Are you battery real capacity?
    A: All of our battery cells with Grade A,100% new and real capacity.

    Q: What kind of certificates do you have?
    A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

    Q:Do you have MOQ ?
    A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

    Q: What is your term of payment?
    A: We adopt T/T,Paypal,Alibaba payment way and so on.
