Deep Long Lifepo4 24v 75Ah lithium ion Storage Battery Pack for Car/Solar system/RV/Yacht/Golf carts
Specification:
| Model | DL-2475/8S3P |
| Nominal voltage | 24V |
| Voltage of single battery cell | 3.2V |
| Battery type | 3.2V 25Ah LifePO4 battery cell |
| Nominal capacity | 75Ah |
| Standard charge current | 20A |
| Continous discharge current | 50A |
| Max discharge current | 75A |
| Charge voltage | 29.2V |
| Discharge cut off voltage | 19V |
| End of charge current | 100mA |
| Charge method | CC/CV |
| Battery configation | 8S3P |
| Net weight | around 18KG |
| Case dimension | 260*172*225mm |
| Charge temperature | 0~45ºC |
| Discharge temperature | -10~55ºC |
| Storage temperature | -10~45ºC |
| Warranty | 2 years |
| Lifecycle | 2000 times |
| BMS protection | over-charge,over-discharge,over-current,short circuit |
Advantages of 24V 75Ah LifePO4 battery pack:
1, High safety,builit-in BMS
2, High working voltage for single battery cells
3, Environement friendly
4, Long cycle life,1500-2000 times
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Good performance under high temperature
9, Good consistency, low self discharge
10, The capacity of single battery cell is big
11, Stable discharge platform , it is can support large current and high power to charging and discharging.
12, Support fast charging
Features:
1, Longer storage life than NiMH Batteries
2, Light weight and higher energy density than any rechargeable battery
3, Installed IC chip will prevent the battery pack from over charge and over discharge.
It helps protect battery chemistry integrity and prolongs battery life.
4,Perfect for building up battery pack for medical equipment Back-up,solar energy storage or UPS Emergency Power
5, Supply which requires compact size and lighter weight

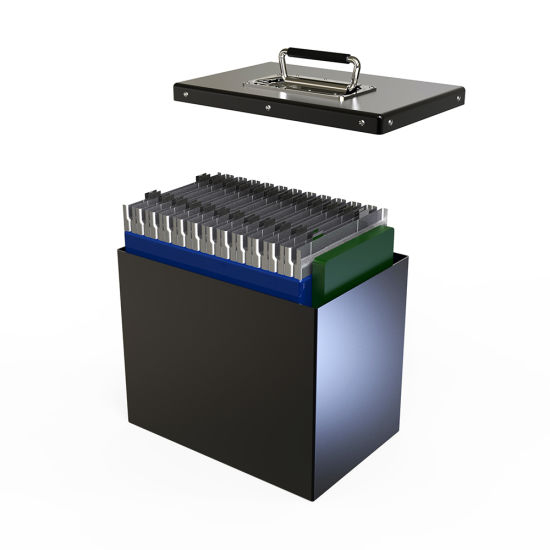

6, The battery module is wrap by metal casing
Payment and shipping:
1.We accept T/T, Paypal, Alibaba and HSBS payment methods.
2.Within 2-3 days after receiving payment
3.Tracking NO. will be sent to you after delivery, and we will track the goods for you until you receive all of them.
1. Ship by EXPRESS (UPS DHL FEDEX TNT EMS) door to door.
2. Ship to your airport.
3. Ship to your sea port.
4. Ship by special line( including tax and in charge of customs clearance)
Take the most cost-effective way based on your quantity or do as you requirements.
Why choose Delong?
Advantages:
Q: Are you trading company or manufacturer
A: We are DELONG original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
