LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 24V LiFePO4 Battery / LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid

Port:
Shenzhen, China
Production Capacity:
1000/Wk
Payment Terms:
T/T, Western Union, Paypal
Model NO.:
DL-24200
Rated Capacity:
200ah
Standard Voltage:
24V
Usage:
Remote Control Boat, Remote Control Car, Electronic Equipment,Boat,Yacht
Electrolyte:
Li-ion
Available Certificates:
RoHS, Ce, FCC,etc
Certification:
Ce RoHS MSDS Un38.3
Weight:
50kg
Cycle Life:
Over 2000times
BMS:
100A or 200A
Composed Type:
7s2p
Warranty:
4 Years
Product Name:
24V 200ah Battery Pack
Trademark:
DelongTop
Transport Package:
Standard Export Package
Specification:
420* 360*180mm
Origin:
Guangdong, China
HS Code:
8507600090
Type:
LiFePO4 Lithium Ion Battery
Connection Mode:
Series and Parallel
Rechargeable:
Rechargeable
Discharge Rate:
High Discharge Rate
Size:
420* 360*180mm
Accessories Type:
Battery

Product Description

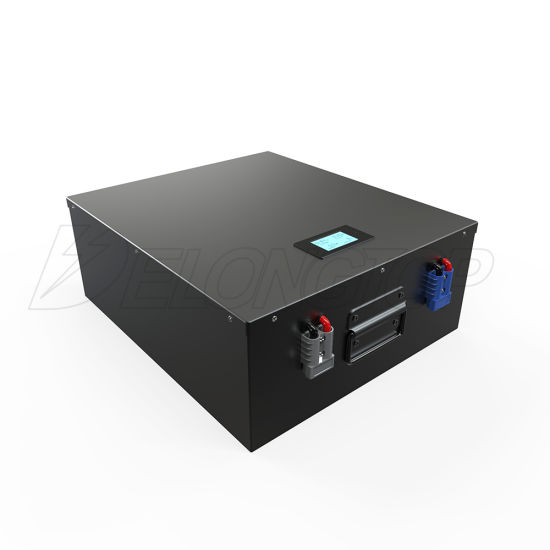

LiFePO4 24V 25.6V 200Ah Lithium Iron Phosphate Battery Pack for RV Solar Marine Off-Grid

Specification:
Why choose Delong:
1. DELONG original factory. Factory price
2. 2 years long Warranty
3. OEM/ODM is acceptable
4. No MOQ Request
5. Fast delivery time
6. Nice quantity with certication
7.ONLINE PAYMENT

Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life.
2000 Cycle Times 85% DOD
5000 Cycle Times 65% DOD
8000 Cycle Times 40% DOD
3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

How Application Case
1.Electric vehicle
- Golf cart battery/Low-speed electric car battery/ Tricycle Battery /Motorcycle battery/Ebike Battery

2.Energy Storage
-Solar-Wind Power System / City Grid (On/Off) / Telcom Base / Computer Server Center

3. Intelligent Equipment & Special Equipment
-Robert Battery/ AGV battery/Forklift battery/ Tow truck battery/Sweeper battery

4.Other Applications
-Drone battery / Electric tools battery / Emergency Light battery/ Starter battery/Medical instruments battery

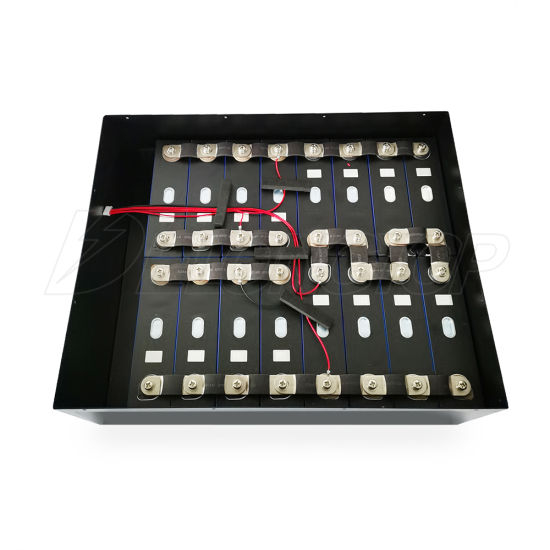

Battery type	Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell
Model	DL-24200

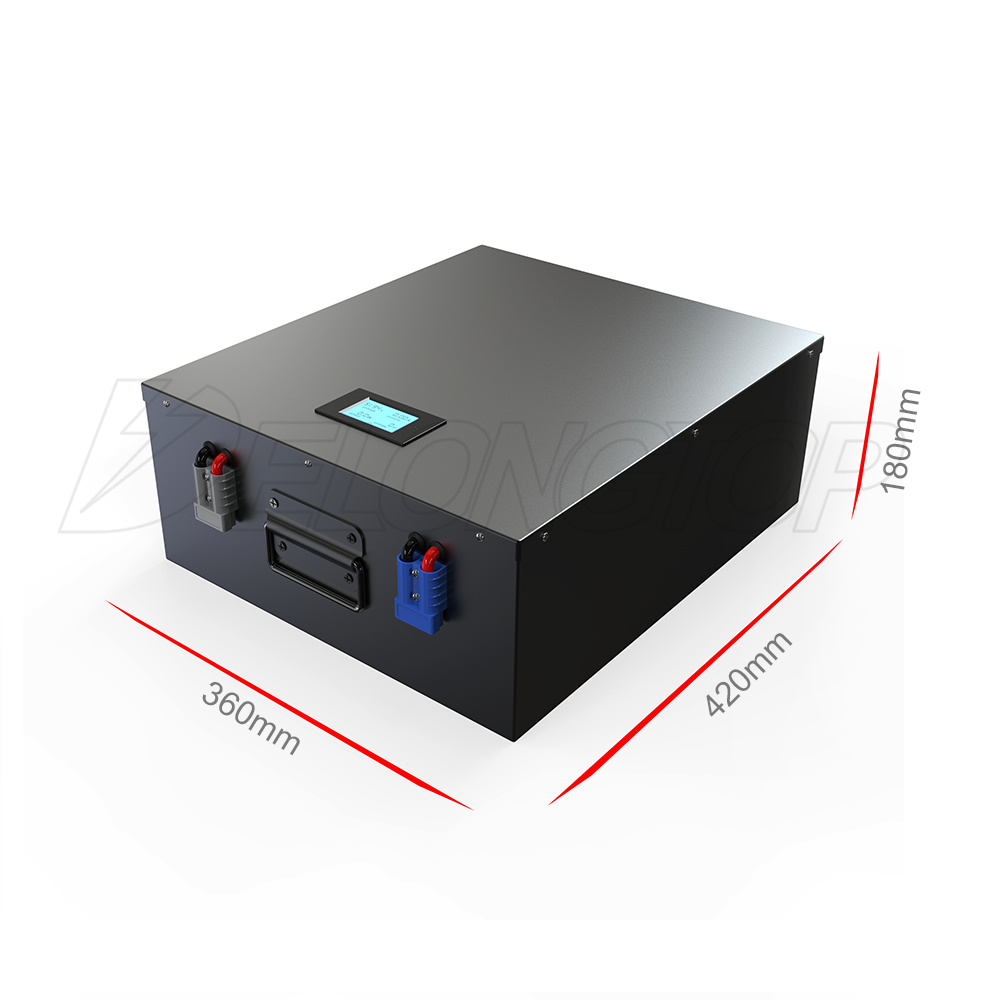

Dimension	420360180mm
End of charge voltage	33.6V
End of charge current	200mA
End of discharge voltage	18.4V
Charge method	CC/CV(constant current/constant voltage)
Max continuous charge current	100A
Max continuous discharge current	100A
Max pulse discharge current	200A/10S
Net weight	48kg
Case material	metal case or stainless steel case
Warranty	2 years
BMS protect	Overcharge,Balance, Over-discharge,Over-current, Short-circuit etc

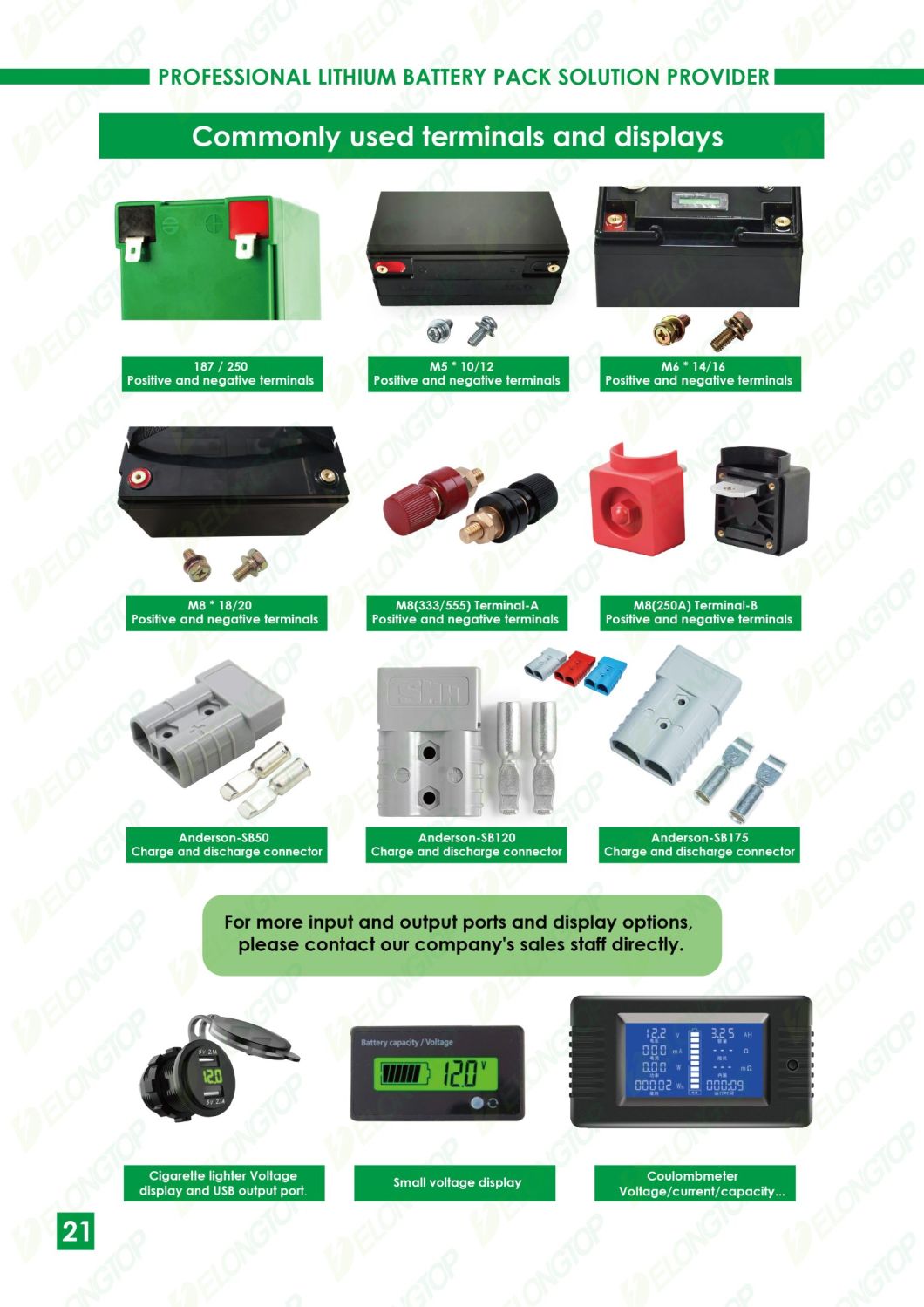

Terminal Type	M8 or anderson or another bolt screw
Lifecycle	2000 times, 85%dod, 3000 times, 80%dod 5000 times , 65% dod, 8000 times, 40% dod
Charge temperature	0~45ºC
Discharge temperature	-20~60ºC
Storage temperature	-10~45ºC
Certificate	CE, RoHS ,MSDS and UN38.3 certification
Parallel assembly	up to 10 items
Enclosure Protection	IP56
Net weight	46KG

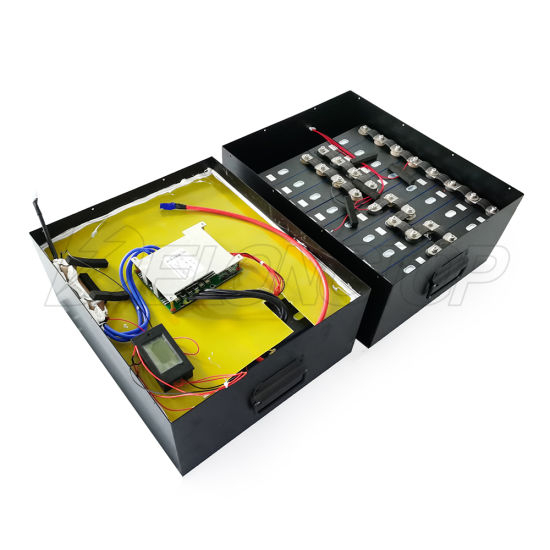

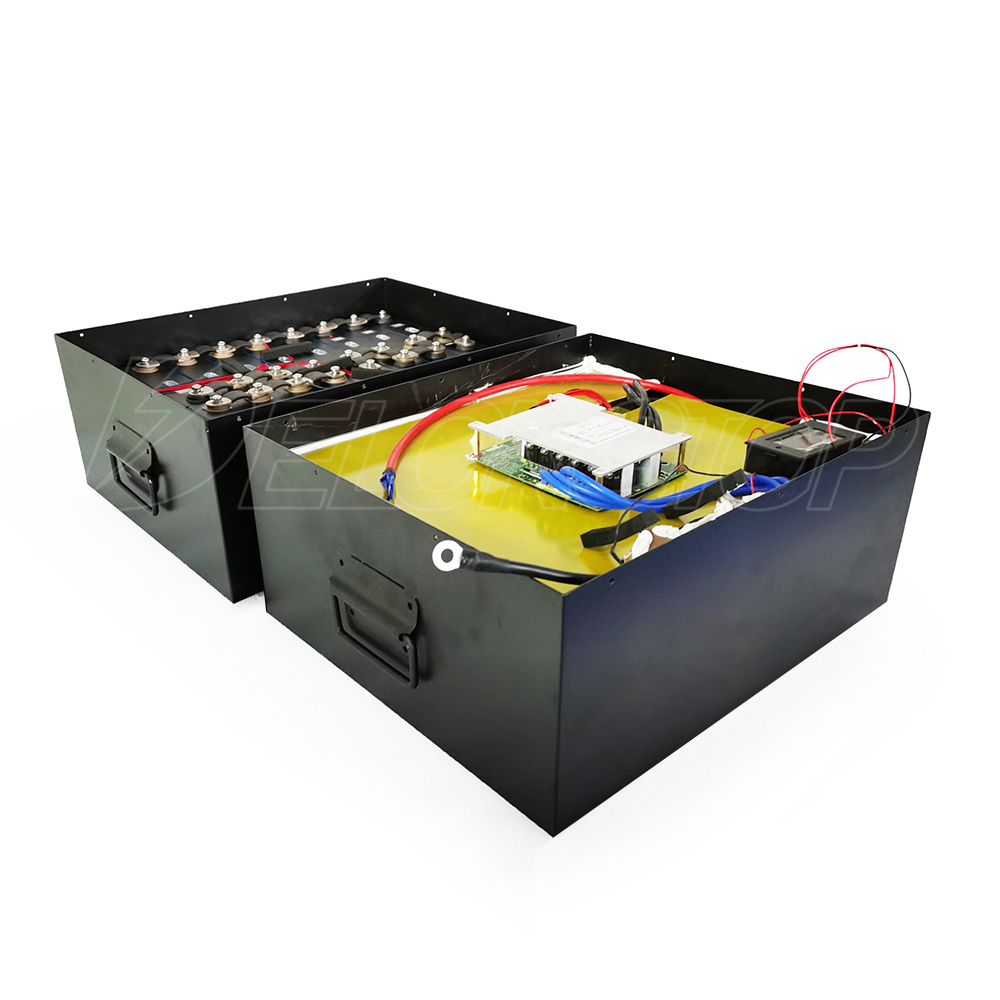

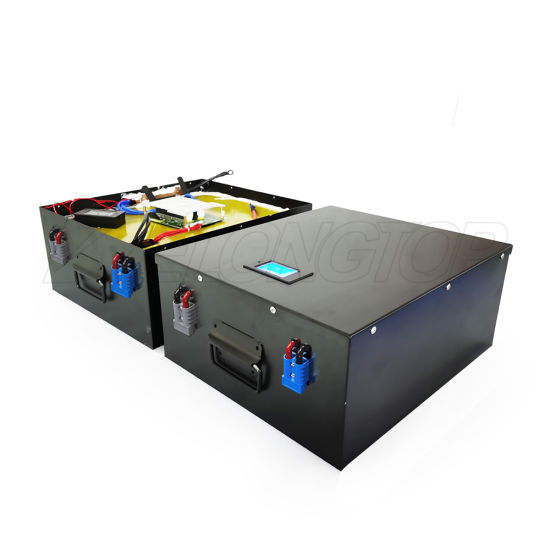

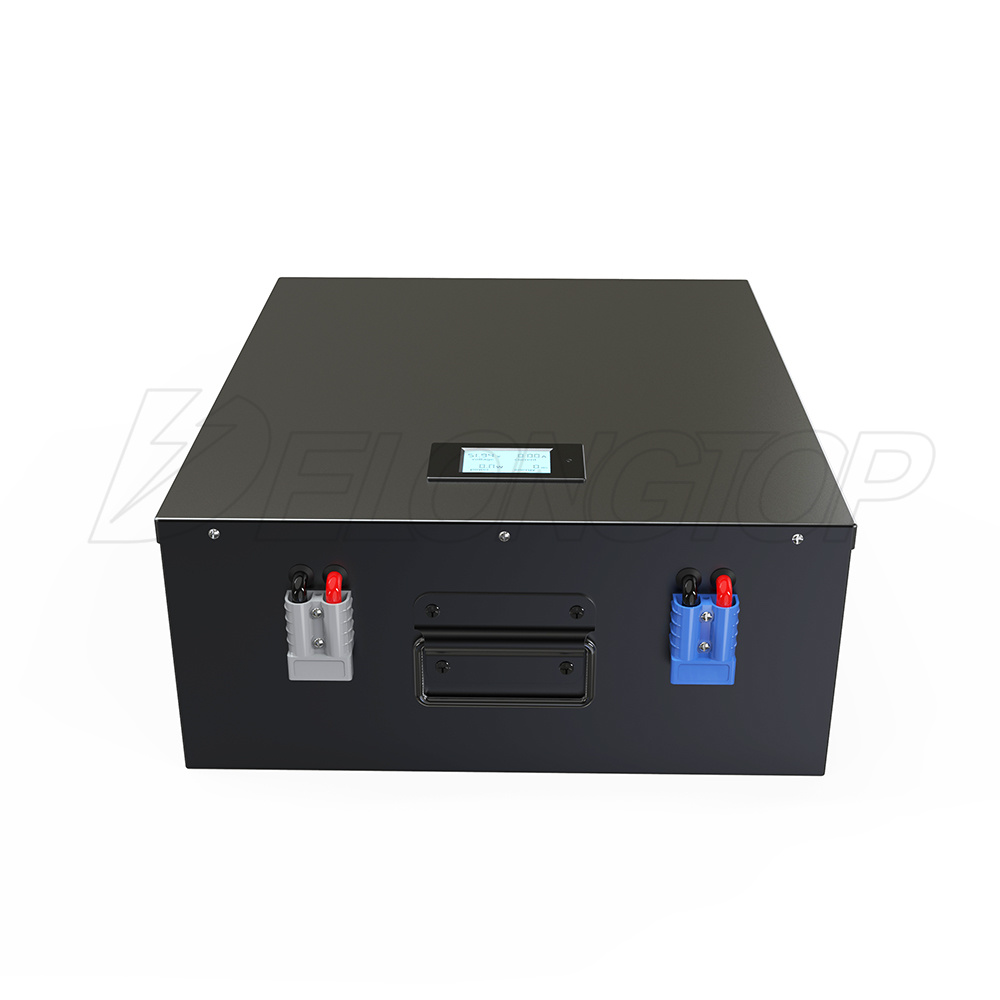

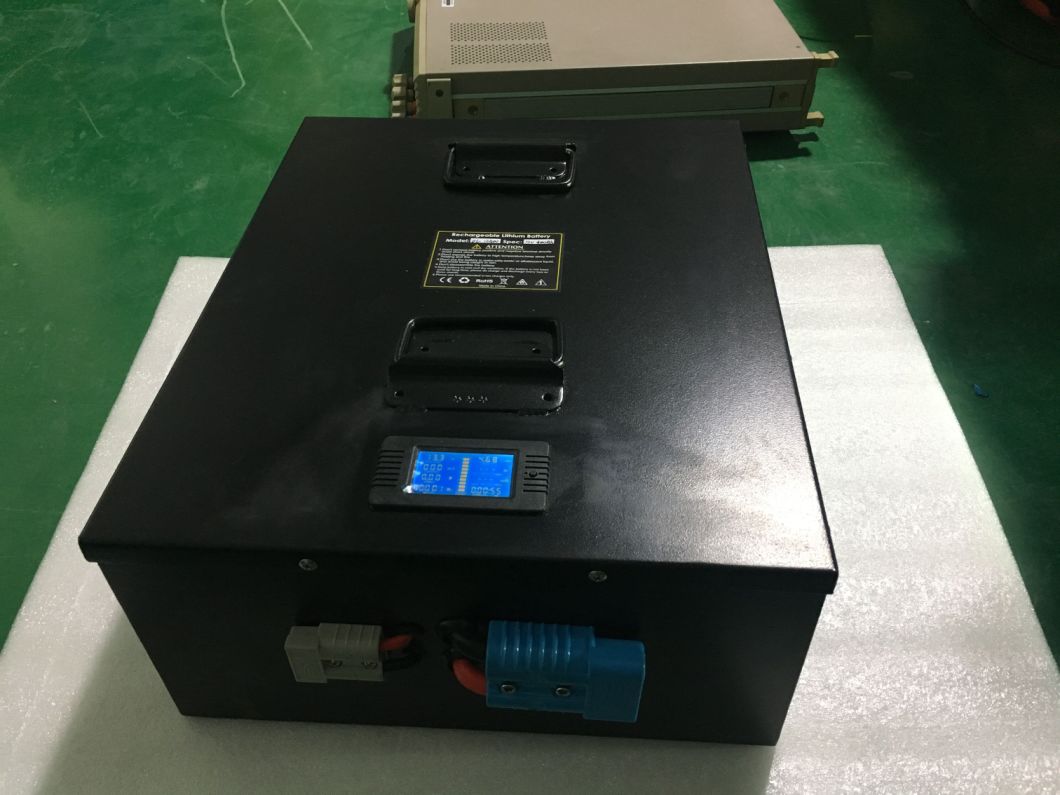

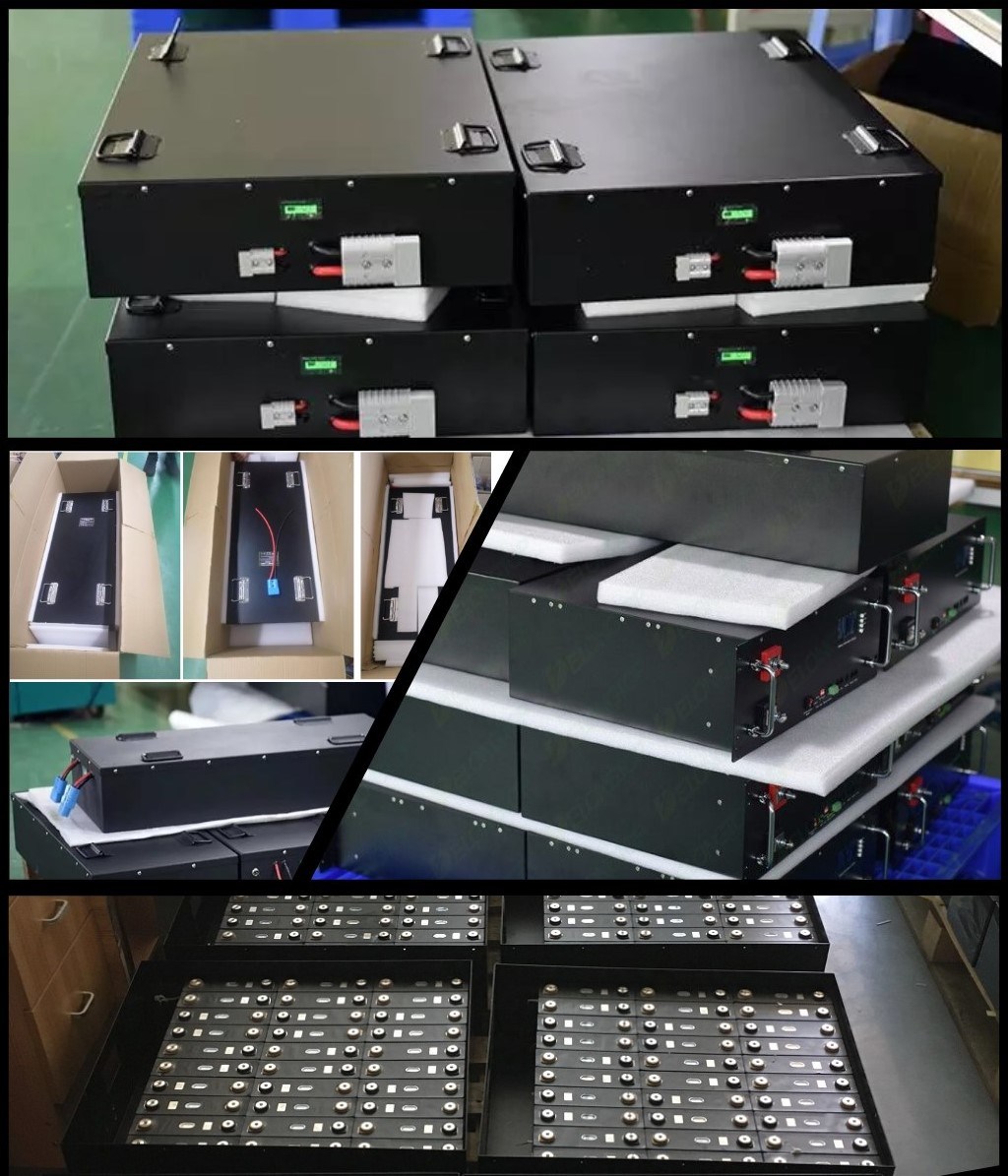

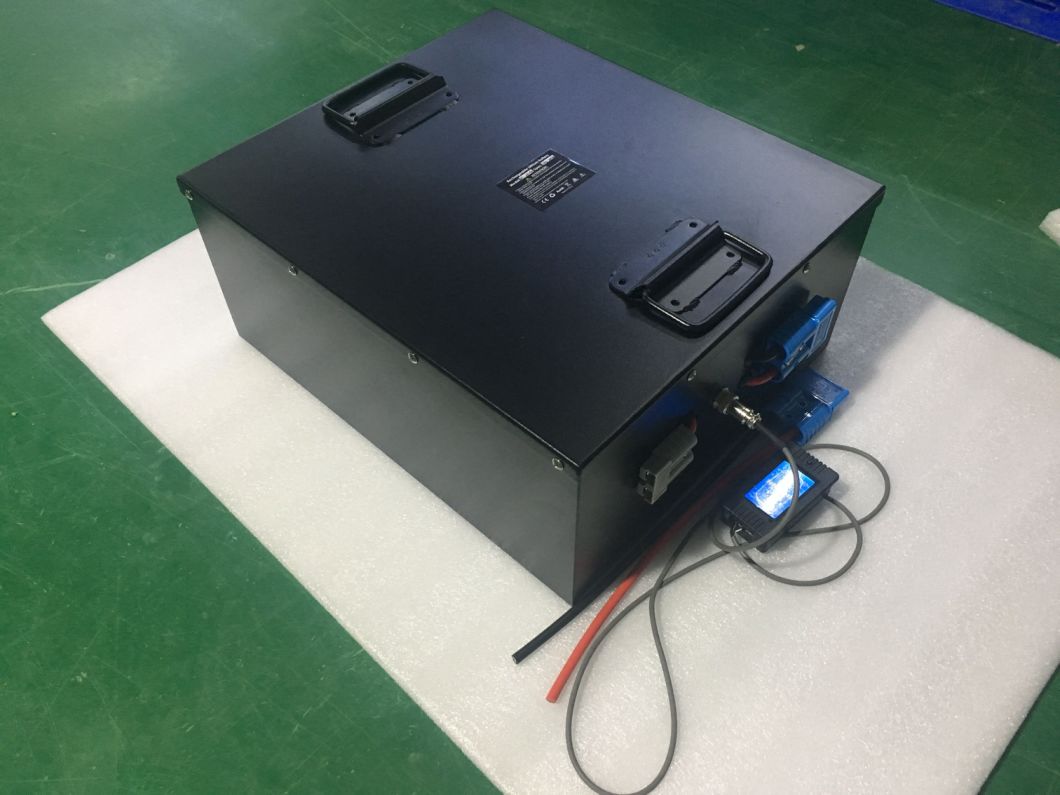

Product Show:

LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid

More details:

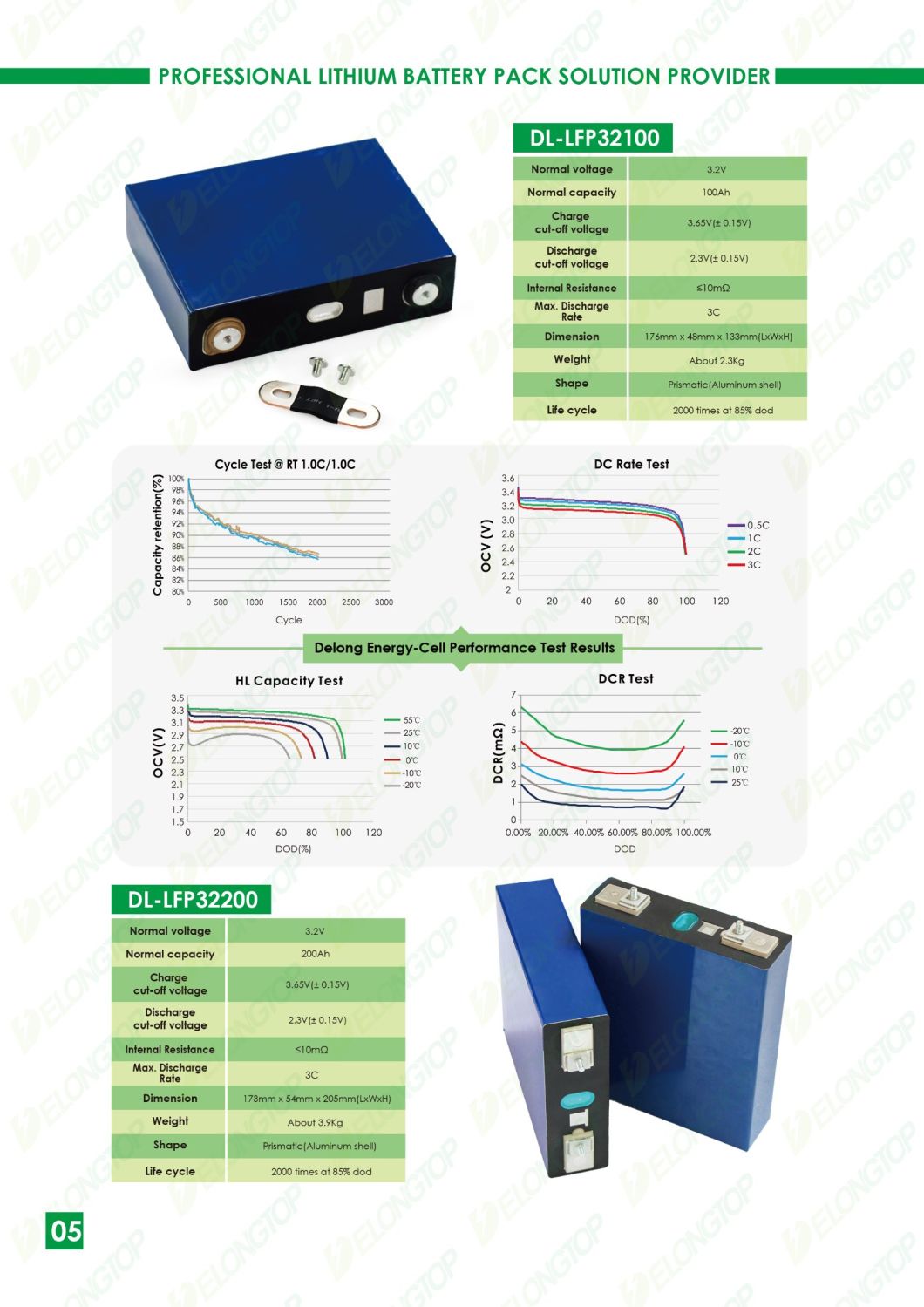

Battery Type: 3.2V 100AHLiFePO4 cell Voltage customized:

12V, 24V, 36V, 48V. 72v . 96V

Capacity customized: 100Ah/200Ah/300Ah/400Ah/500Ah/ 600Ah..

Net weight: 2.3KG

Dimension: 176mm*133mm*148mm Cycle Life: 2000 times

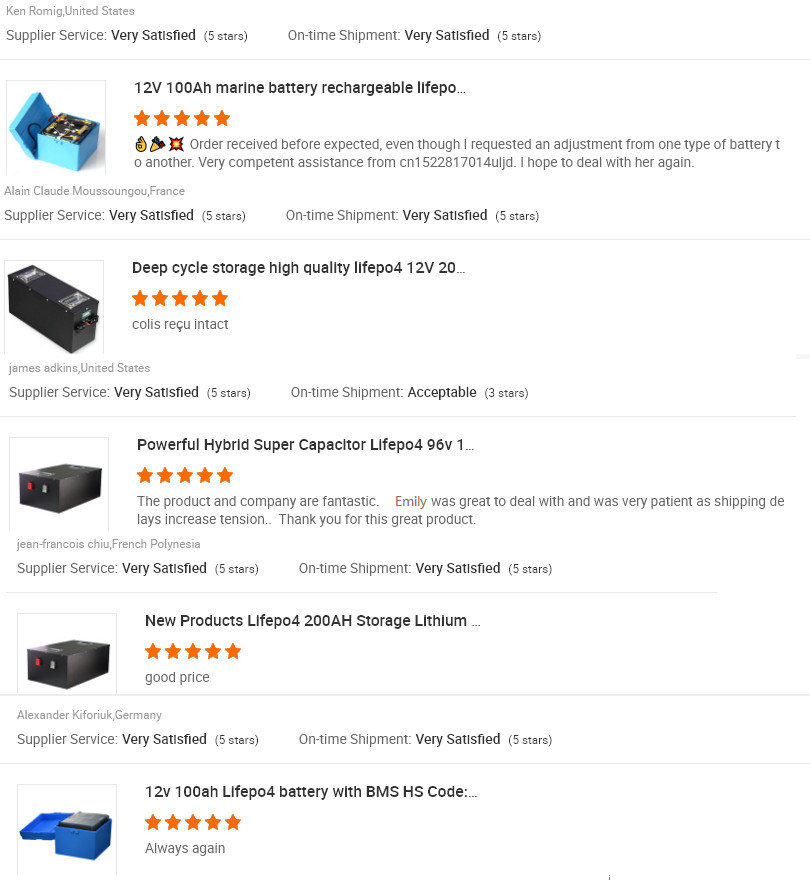

Feedback:
LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid

Applications:

^{Military power
Wind & Solar energy storage
Communication power
Transmission and distribution backup
UPS power supply
Electric Golf Car
Electric forklifts and so on}
LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid

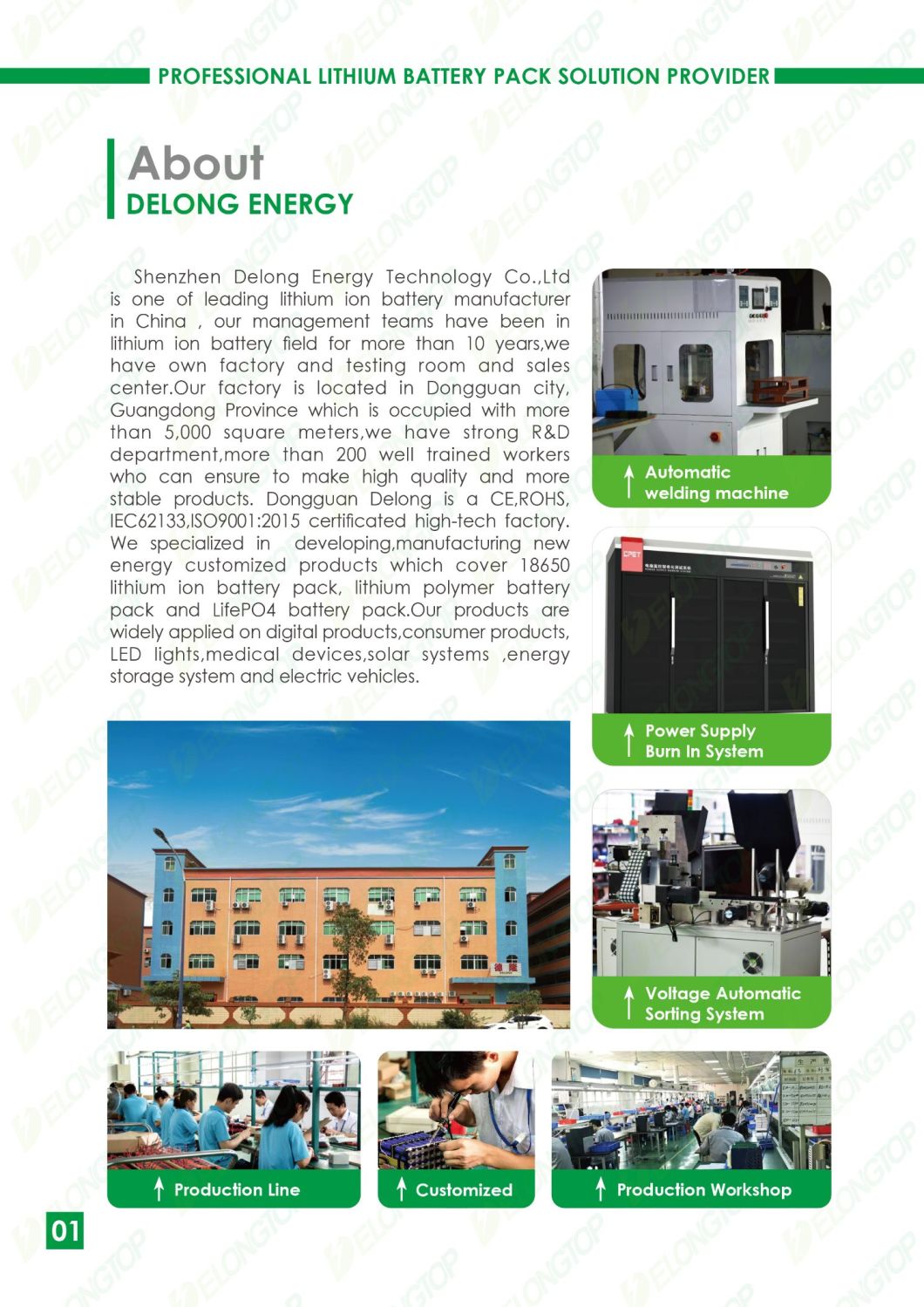

Shenzhen Delong Energy Technology Co.,Ltd

It was established in 2006 and have been in lithium ion battery field over 10 years.

Our Main products is 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
LiFePO4 24V 25.6V 200ah Lithium Iron Phosphate Battery Pack for RV Solar Marine off-Grid

Packing&Shipping

Delivery time :

7-15days, but could be changed according to the quantity or other things.
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

Packaging:
Per battery per carton, Standard export pakcage

Shippment:

DHL, UPS, Fedex, Special Line, Sea shipping, Customer

RFQ:

Q: Are you trading company or manufacturer?
A: We are DELONG original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
