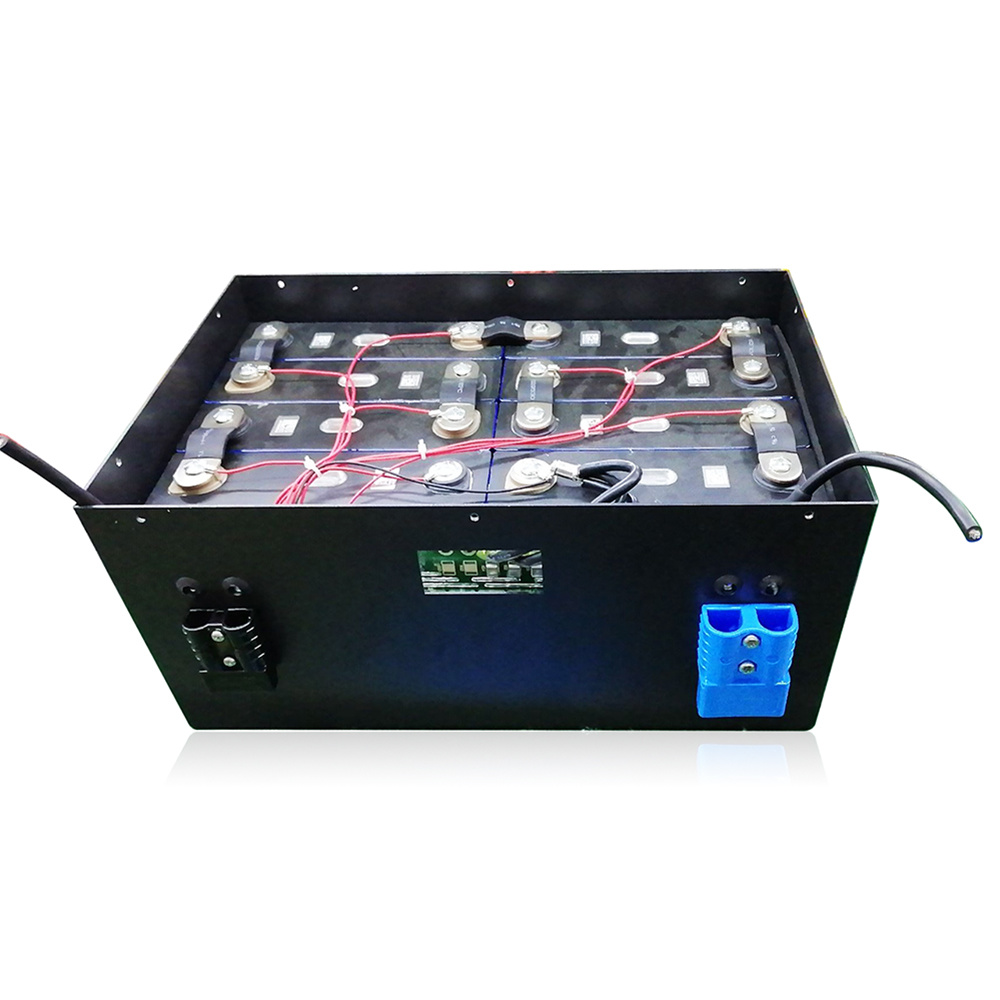

High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery

Quantity:
  • Shenzhen, China
  • 10000PCS/Month
  • T/T, Paypal
  • 100ah
  • 24V
  • Solar Storage
  • LiFePO4 Battery
  • Lithium Iron Phosphate LiFePO4 Battery
  • 24V
  • 100ah
  • 680*510*170mm
  • Built in Battery Protection System (BPS)
  • 2000 Times at 85% Dod/ 5000 Times at 65% Dod
  • 3 Years
  • 3.2V 100ah LiFePO4 Battery Cells
  • ABS Case or Metal Case
  • Standard Export Package Per Pieces
  • Tt/Paypal
  • DELONGTOP
  • Standard Packing
  • Customed
  • China
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • High Discharge Rate
  • Customerized
  • Battery
24v 100Ah Lithium Iron Phosphate  LiFePO4 Battery for Electric Vehicles, Golf Trolley, Golf Buggy, Mobility Scooter

Product Description

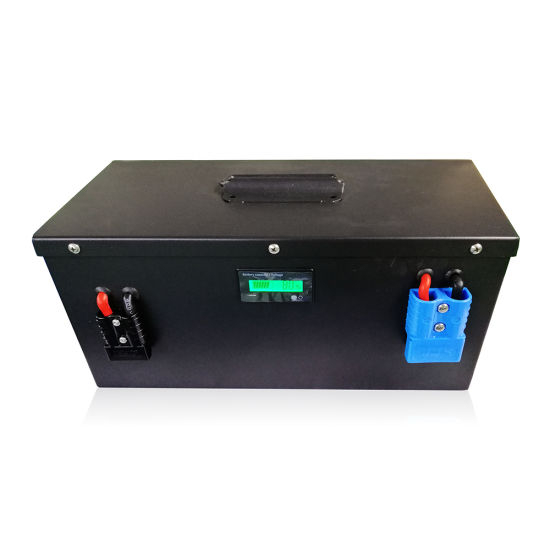

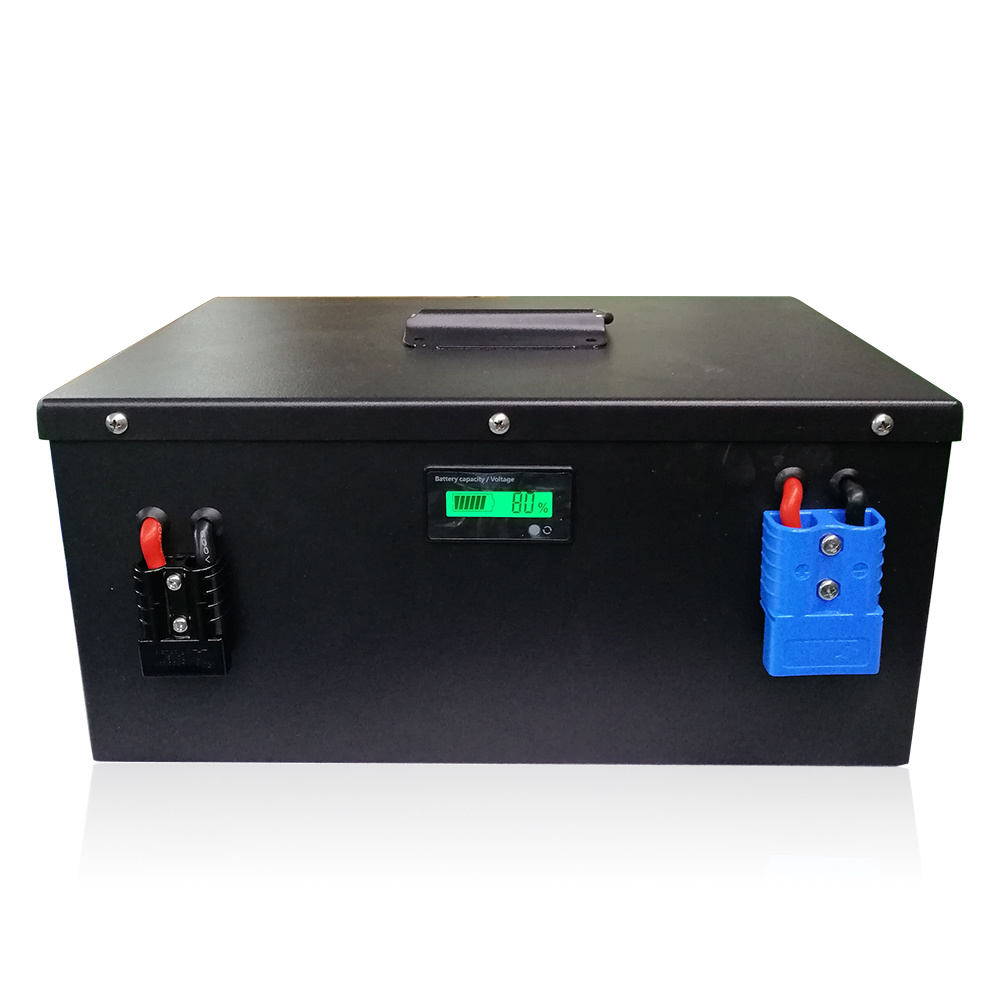

The Delong Battery 24V 100AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The DL-LFP24100 is plug and play for any application that currently uses a lead acid, gel or agm.

Electrical Characteristics
Advantage
Model
DL-LFP24100 8S1P
Nominal Voltage
24V
Nominal Capacity
100Ah
Internal Resistance
≤220mΩ
Capacity@1C rate 0.2C
≥100Ah
Cycle Life
2000 times at 85% dod
5000 times at 65% dod
8000 times at 40% dod
Standard Charge Advantage
End of charge Voltage
29.2V
End of charge Current
100mA
Max.Continuous charge current
50A
Charge Method
0.2C (0.5A) CC/CV
Standard Discharge Advantage
End of discharge Voltage
18.4V
Nominal Discharge Current
100A
Max. Pluse Discharge Current
150A/10S
Environmental Advantage
Charge Temp
0~45ºC
Discharge Temp
-10~55ºC
Storage Temp
-10~45ºC
Mechanical Advantage
Cells & Combination

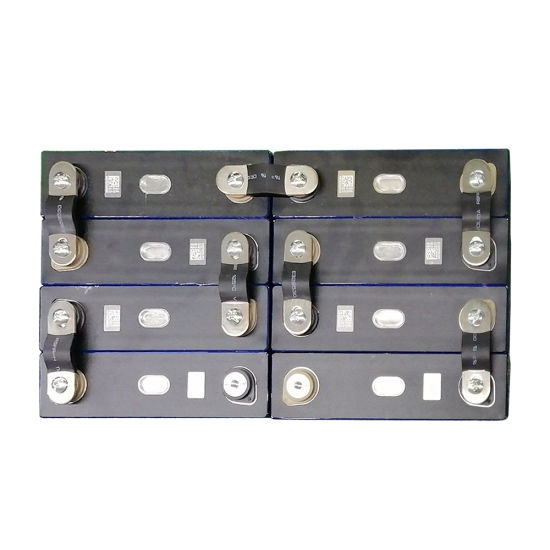

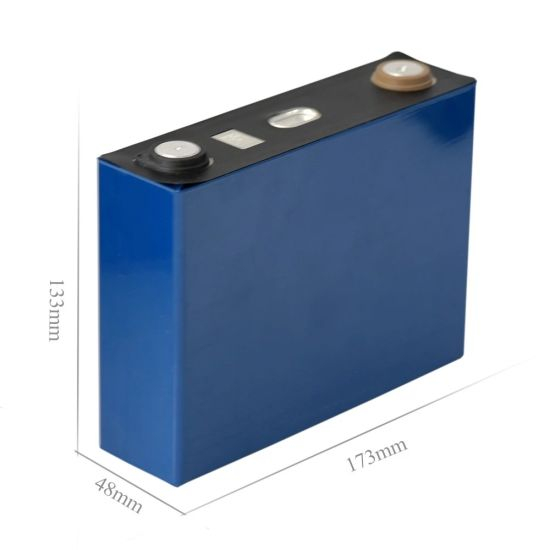

3.2V 100Ah & 8S1P
Shell Material
ABS Case or Metal Case

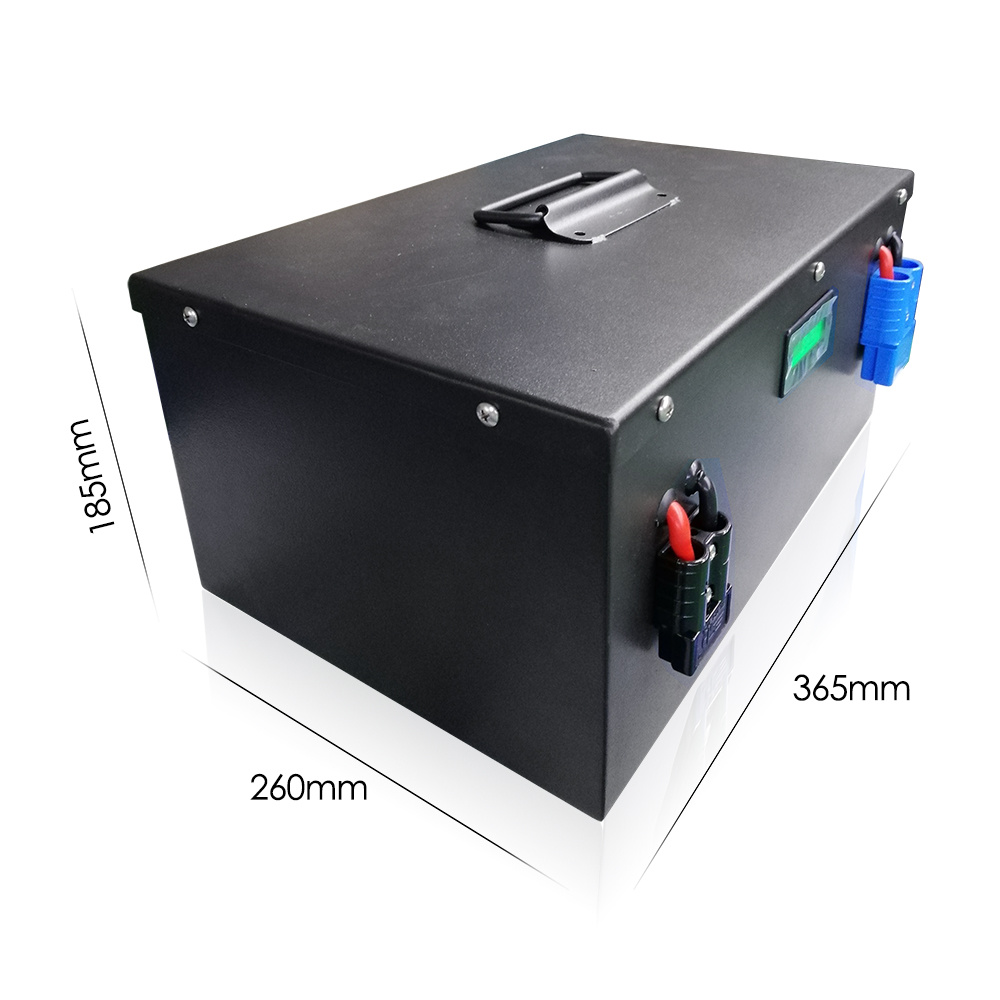

Dimesion(D×W×H)
365*265*185mm
Weight
≤23.5Kg
Safety & Protection Advantage
Built in Automatic Battery Protection System
Yes
Automatic Low Voltage Disconnect
Yes
Automatic Short Circuit Protection
Yes
Automatic Over Voltage Protection
Yes
Automatic Over Current Protection
Yes
Automatic Internal Cell Balancing
Yes
Automatic Over Charge Protection
Yes
Automatic Over Discharge Protection
Yes
Automatic Over Temperature Protection
Yes
This Product is Perfect For Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.

High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery
High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery
High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery



High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery
Packing&Shipping
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements
High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery



Product Application
High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery

Advantages of Lifepo4 batteries
1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment
1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction
1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.

4. Our factory is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers

5. Our management teams have been in lithium ion battery field for more than 10 years


High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery
High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery High Capacity Lithium Iron Phosphate Battery LiFePO4 24V 100ah Deep Cycle Solar Battery

Our Services & Strength
Support a variety of voltage,capacity,size,customized services according to your requirement
