Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System

Quantity:
  • Shenzhen, China

  • 1, 000PCS/Week

  • L/C, T/T, Western Union, Paypal, Money Gram

  • DL-24200/8S2P

  • 200ah

  • 24V

  • Solar Energy Storage,Yachts,Electric Boat,Marine

  • Lithium Iron Phosphate

  • 3.2V 100ah Prismatic LiFePO4 Cell

  • 29.2V

  • 100A

  • 200A

  • 8s2p

  • Cell+Wires+BMS+Case

  • Metal

  • 2 Years

  • 2000 Times

  • Built-in BMS

  • DELONGTOP

  • Carton

  • 450*375*185mm

  • China

  • 8507600090

  • LiFePO4 Battery

  • Series and Parallel

  • Chargeable

  • High Discharge Rate

  • Large

  • Chargers

green power rechargeable 24v 200Ah lifepo4 lithium ion battery packs for solar system

Specification:
Model DL-24200/8S2P
Nominal voltage 24V
Nominal Capacity 200Ah
Battery cell 3.2V 100Ah
Battery cell 3.2V 100Ah prismatic LifePO4 cell
Battery configuration 8S2P(8 series,2 parallel)
Internal resistance ≤220mΩ
End of charge voltage 29.2V
End of charge current 100mA
End of discharge voltage 19V
Charge method CC/CV
Standard charge current 40A
Max charge current 100A
Continuous discharge current 100A
Max pulse discharge current 150A/10S
Net weight 47KG
Case material metal

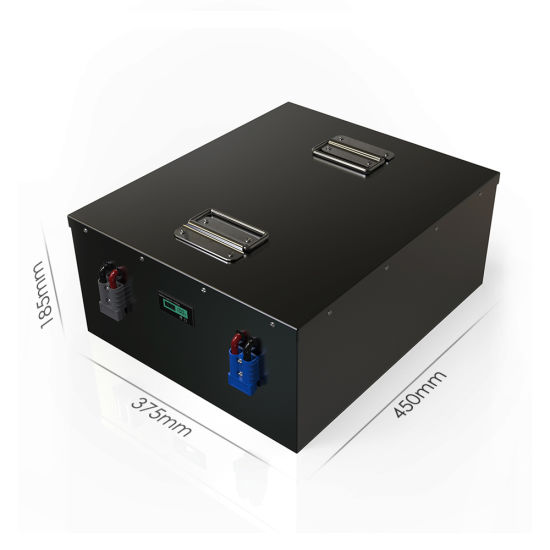

Case dimension 450*375*185mm(L*W*H)
Charge temperature 0~45ºC
Discharge temperature -10~55ºC
Storage temperature -10~45ºC
Warranty 2 years
Lifecycle 2000 times 85% DOD
BMS protection over-charge,over-discharge,over-current,short circuit and balance function
Terminal M8 or Anderson connector

Advantages of 24V 200Ah LifePO4 battery:

1. One lithium battery takes up half the space as two normal lead acid batteries.
2. One lithium battery weighs 1/3 the weight of one lead acid battery.
3. Inexpensive way to try lithium
4. They be recharged and discharged thousands of times if cared for properly and set to charge and discharge between 90% and 30% of capacity
5. Over 100Amp/hour discharge capability for intermittent high loads
6.  Green energy,Non-toxic, non-polluting, wide range of raw materials, cheap
7.   It without heavy metals and environment friendly.
8. High temperature performance is good


Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Main applications:
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, electric boat, aircraft, toys
5. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
6. Small medical equipment and portable equipment

7. RV,Camping car and yacht
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Payment methods:

1.Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

2.FOB , EXW and CIF all are available

3.Samples can accept Paypal

Packing and shipping:

24V 200Ah LifePO4 battery*1/Carton
Gross weight:49KG
Net weight:47KG
Carton dimension:59*42*38CM
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System


Shipping ways:
1. For small LifePO4 battery,we normally ship them by UPS,Fedex or by special line(door to door service)

2. For big LifePO4 battery,we usually delivery them by sea which will take 30-40 days to be arrived


Good feedback from clients:
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System


Our services:

1. Our professional engineer team can provide you one stop battery solution

2. All of our 24V 200Ah LifePO4 battery and accessories will be inspected before shipment

3. Battery case,size,voltage,capaicty and BMS can be customized

4. We can print your own logo or make customized label on product

5. We offer 2 years warranty and continuous technical support

6. We can help you to track the shipping status so that you can receive the goods timely

Company information:

Shenzhen Delong Energy Technology Co.,Ltd is one of leading lithium ion battery manufacturer in China , our management teams have been in lithium ion battery field for more than 10 years,we have own factory and testing room and sales center.Our factory is located in Dongguan city,Guangdong Province which is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers who can ensure to make high quality and more stable products. Dongguan Delong is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.We specialized in  developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.Our products are widely applied on digital products,consumer products,LED lights,medical devices,solar systems ,energy storage system and electric vehicles.

Our Advantages:
1.Full capacity battery, 100% quality testing
2.Built-in BMS , safe and reliable
3.With Protection of short circuit ,over current, over charge and discharge and temperature protection function
4.Long cycle life and high energy density
5.Factory direct price and fast leadtime
6.Size and capacity can be customized
7.Small MOQ
8.Nice quality
9.Excellent after sales service
10.Provide continuous technical support
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System
Green Power Rechargeable 24V 200ah LiFePO4 Lithium Ion Battery Packs for Solar System


FAQ:

Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service

Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.

Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are you battery real capacity?

A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?

A7:Shenzhen Delong Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
