Frog Type E-Bike Battery Pack 24V 10ah for Electric Scooter Motorcycle from China manufacturer

Home / POWER BATTERY / E Bike Battery / 24V E Bike Battery / Frog Type E-Bike Battery Pack 24V 10ah for Electric Scooter Motorcycle

Port:
Shenzhen, China
Production Capacity:
3000PCS/Week
Payment Terms:
T/T, D/P, Western Union, Paypal, Money Gram
Model NO.:
24v10ah
Composed Type:
3p 13s
Components:
Lithium Battery
Application:

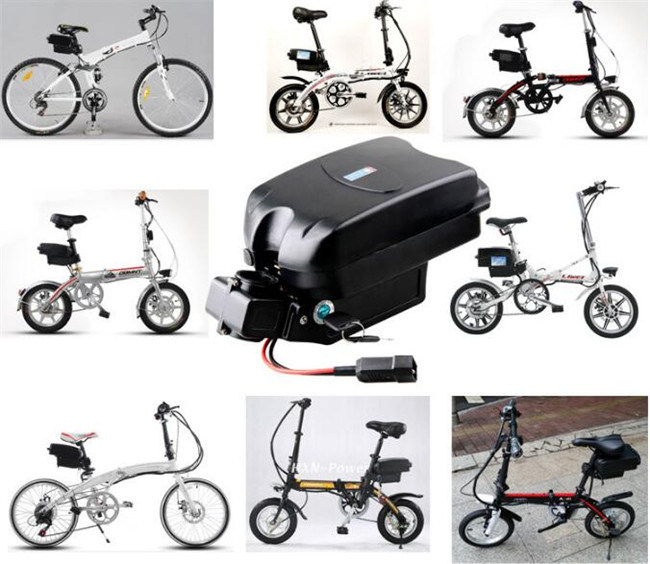

Electric Bike and Scooter
Color:
Black
Cycle Life:
Around 500 Times
Certificates:
Ce,RoHS,FCC
Charging Time:
2.5 Hours (Fast Charge)
Delivery:
by UPS or FedEx
Advantage:
Low Cost and Good Security
Warranty:
1 Year
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Origin:
China
Rated Power:
240W
Charging Current:
3A
Input Voltage:
24V
Type:
Lithium Ion Battery Charger
Charging Type:
Electric Charger
Principle:
Rechargeable Battery

Product Description

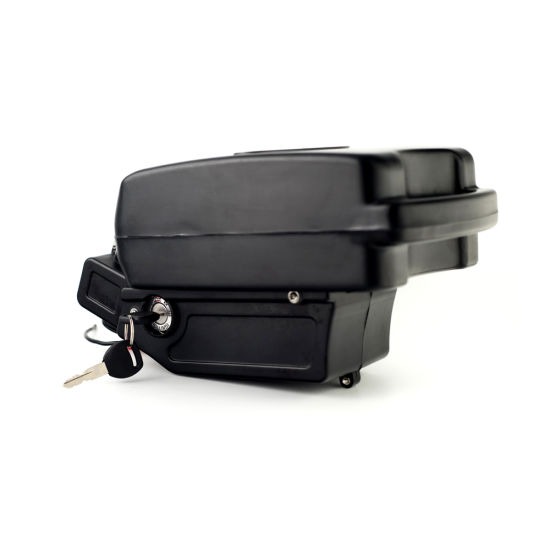

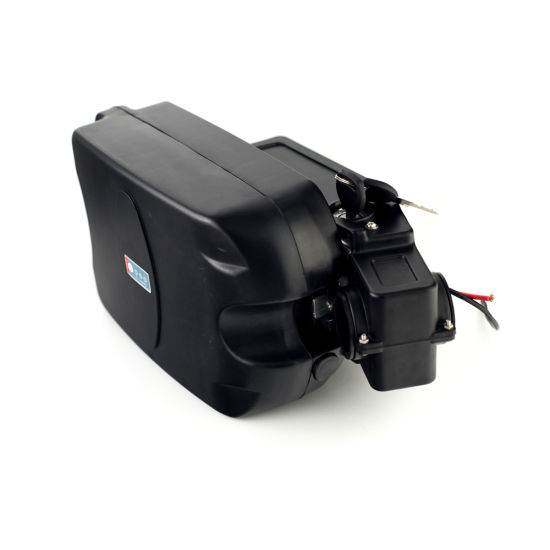

Frog Type E-Bike Battery Pack 24V 10Ah For Electric Scooter Motorcycle

Specifications

Battery Model	24V 10AH
Nominal Capacity (AH)	10
Nominal Voltage (V)	24
Source Resistance (mΩ)	40
Cell Combination	5-parallels
Cell Combination	7-series
Cell Quantity (parallel*series)	35
Discharge Cutoff Voltage (V)	20
Charge Cutoff Voltage (V)	29.4
Rated Discharge Current (A)	20
Instantaneous Maximum Discharge Current (A)	30
Maximum Continuous Discharge Current (A)	20
Maximum Continuous Charge Current (A)	20
Charge Mode	CC-CV
Standard Charge Current (A)	2
Charge Time under Standard Charge Current	6 hours
Fast Charge Current (A)	5
Charge Time under Fast Charge Current	2.5 hours
Charge Temperature Range	-20-55°C
Discharge Temperature Range	-20-55°C
Battery Net Weight	2.0kgs
Battery Gross Weight(with all parts and package)	4kg

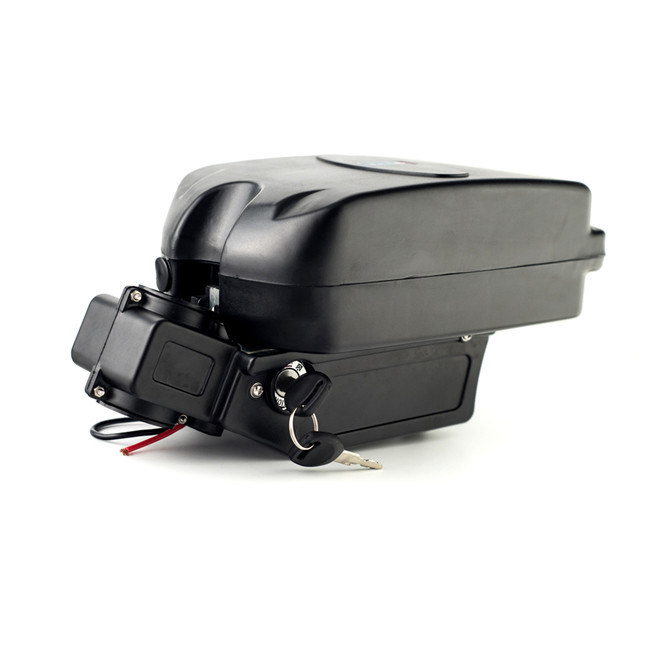

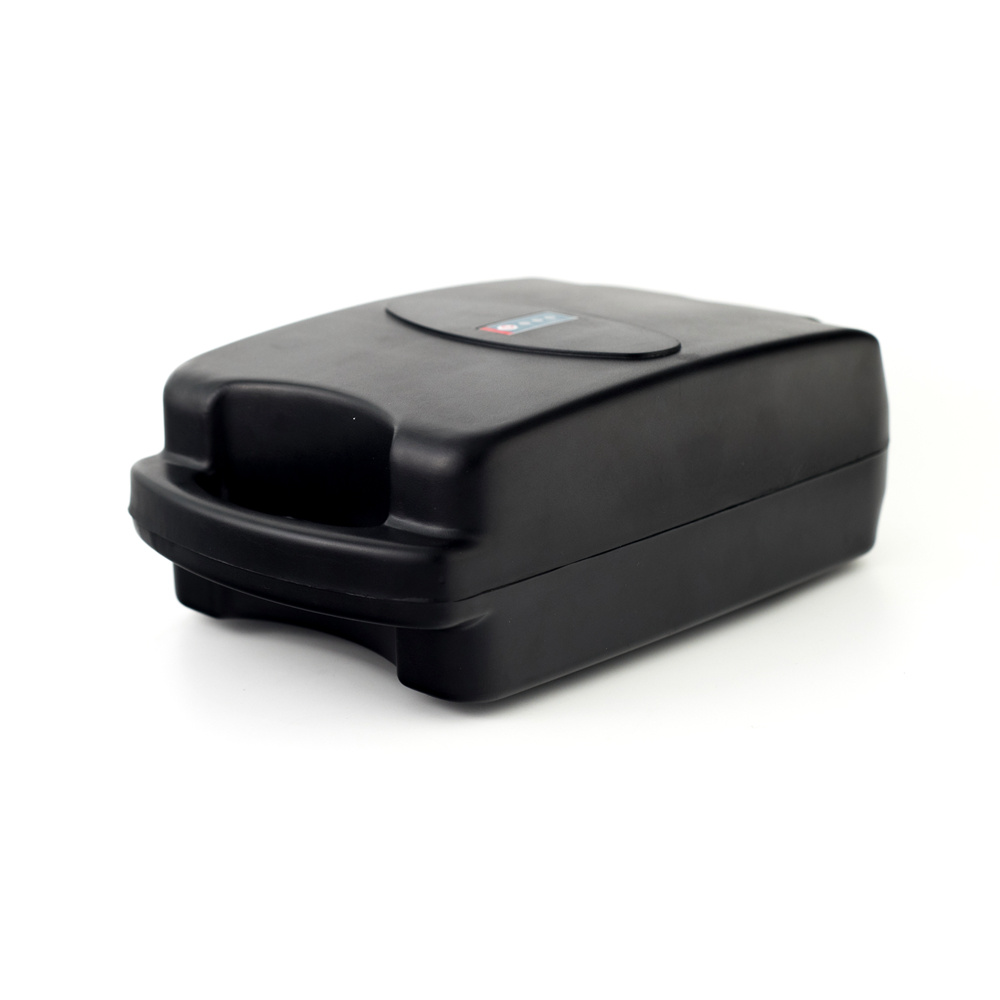

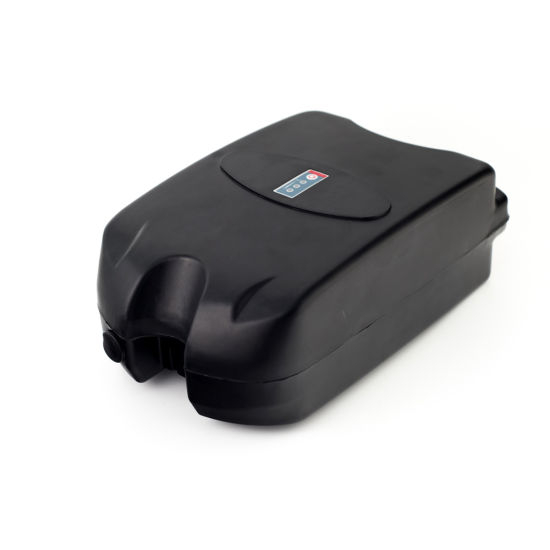

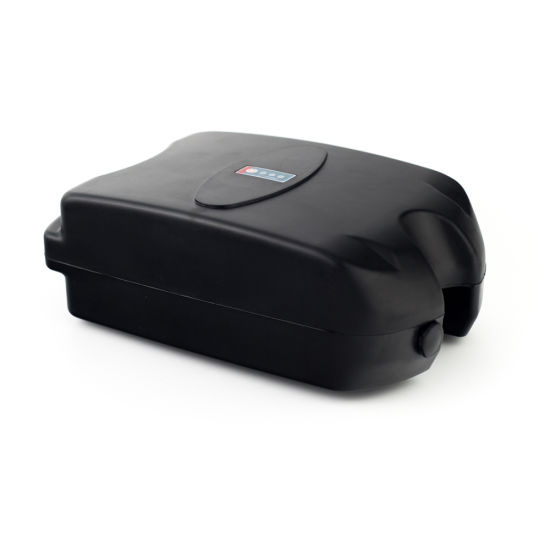

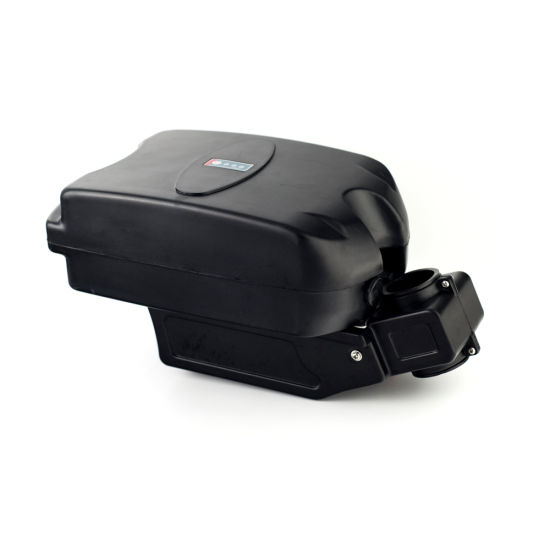

Battery Deatils

Our Services

Your inquiry will be replied in 24 hours.
Those enquiry would be answered by our experienced staffs with fluent English.
We make the OEM service for more than 5 years. And the Paypal ,T/T and Western union accepted,
According to your design for you the most suitable products
we will provide all the best quality , best service.
If our our products ave any problem that we caused, they will be sent free in the next order.

After sale service

12 monthes warranty
In the warranty period, non-artificial damage we will replace the latest parts for you.
Battery was transported by a dedicated channel
We have a special merchandiser, until confirm the delivery of products
Welcome to come up with any feedback and advice for our products.

Extra service

MOQ: Sample order is available
OEM: Quantity and price is proportional to the relationship.
According to your need to design packaging for you.

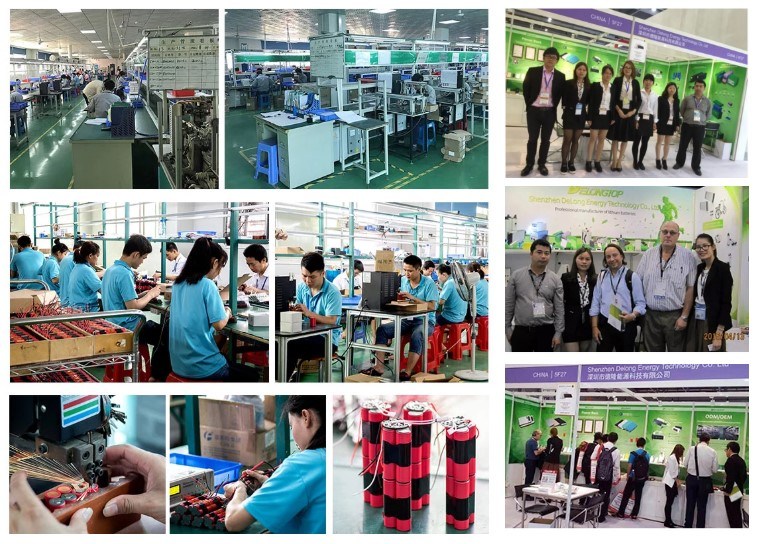

Company Display
