| Quantity: | |
|---|---|
Shenzhen, China
1000PCS/Week
T/T, Paypal
DL-7S4P
10ah
24V
Ebike
Li-ion
24V 10ah Lithium Battery Pack for Ebike
137*90*70mm
About 1.5kg
7s4p
18650 Li Ion
Wrap with PVC
DELONGTOP
Standard Export Package
LiNiCoMnO2
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Chargers
24v 10ah li ion ebike battery pack
Specification
| Item | Parameters | ||
| Nominal Voltage | 24V | ||
| Nominal Capacity | 10±1Ah( at 0.2C discharge rate) | ||
| Discharge | normal current | 1C | |
| Max continuous current | 2C (≤5min) | ||
| cut-off voltage | 18.8V | ||
| Charge | normal charge current | 0.5C | |
| Charge mode | CC/CV with professional charger | ||
| cut-off voltage | 29.2±0.1V | ||
| Inner Resistance |
Discharging Inner resistance | ≤80mΩ | |
| Charge Temperature | 0ºC~+45ºC | When the environment temperature is higher than 45ºC,please pay attention to ventilation and heat rejection. | |
| Discharge Temperature | -20ºC~+60ºC | ||
| Humidity Range | RH≤85% | ||
| Protection Function | Over charge protection,Over discharge protection,Over current protection,Balanced function | ||
| Shell Material | Blue PVC | ||
| Weight | 1.5.0±0.1kg | ||
| Dimension(L*W*H) | customized | ||
| Cycle Life | Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%) | ||
Features
Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
With at least More than 500times cycle life
It can run well under different temperature environment condition
No memory effects.
Suitable for electric bicycle ,electric bike,solar products,lights etc .

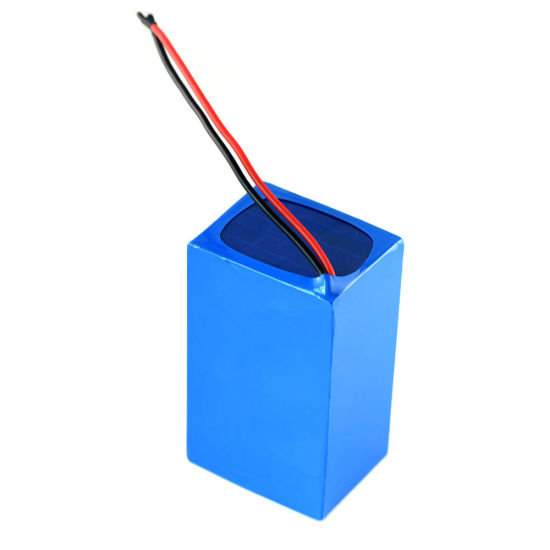

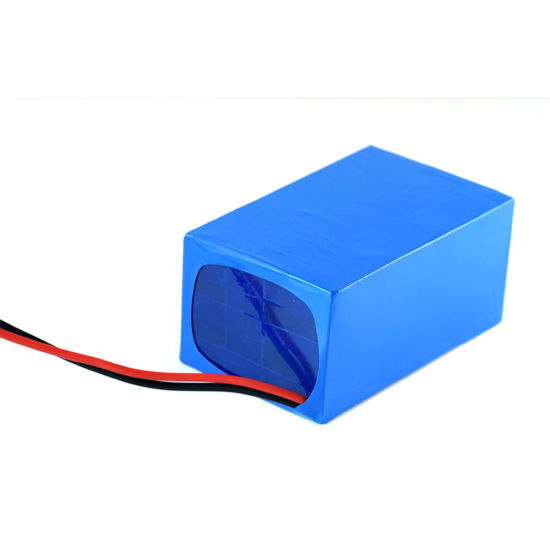

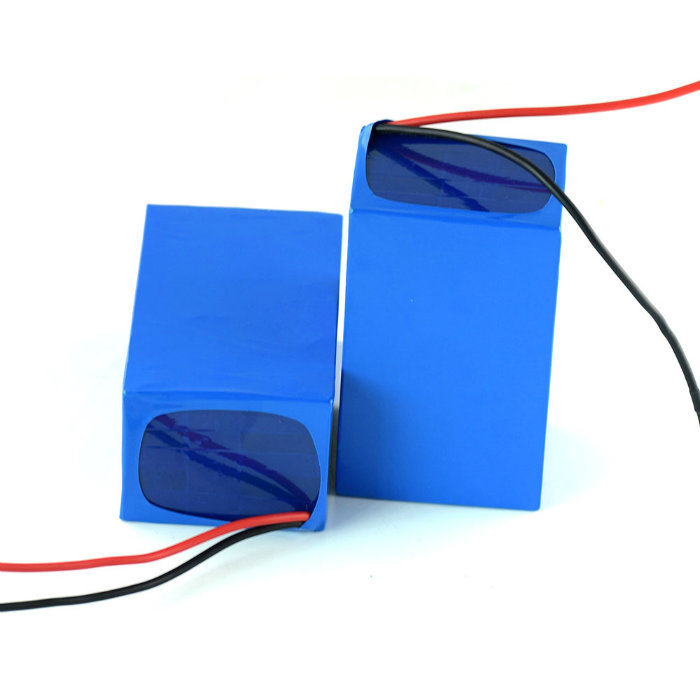

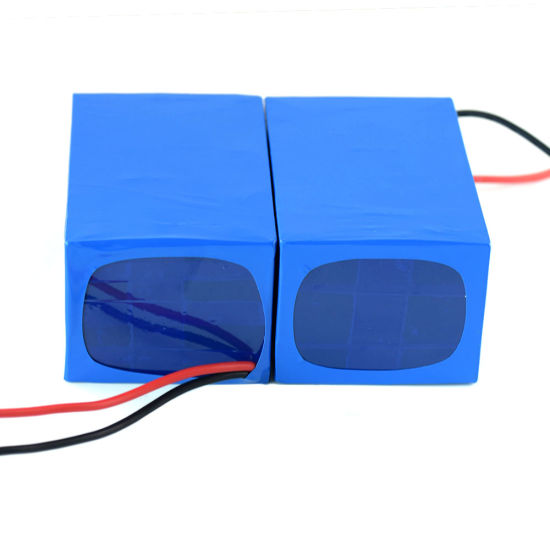

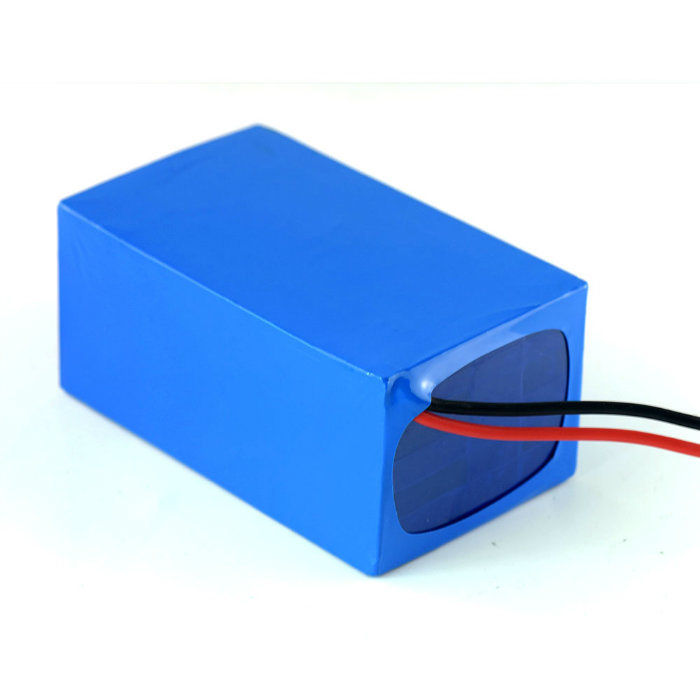

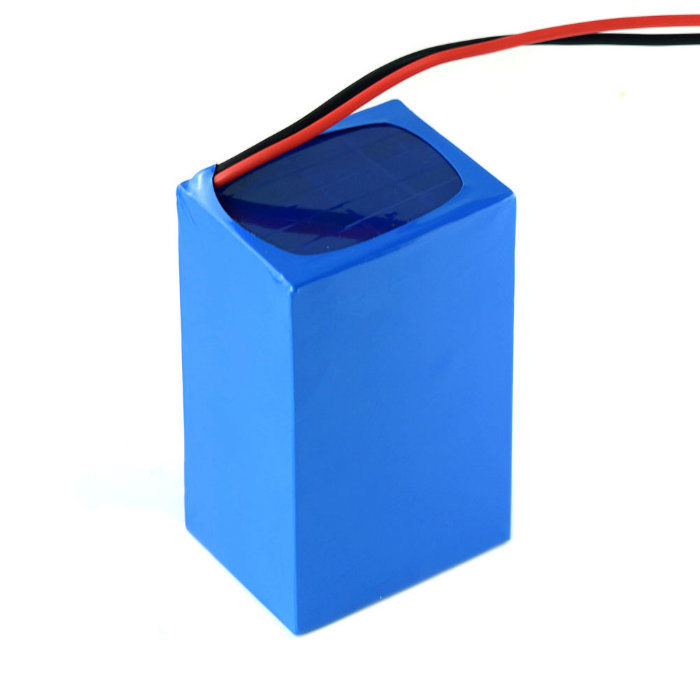

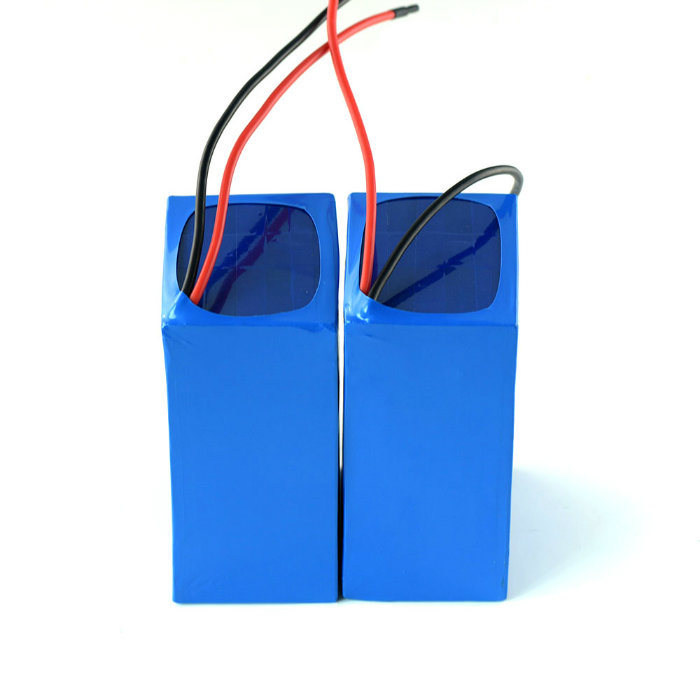

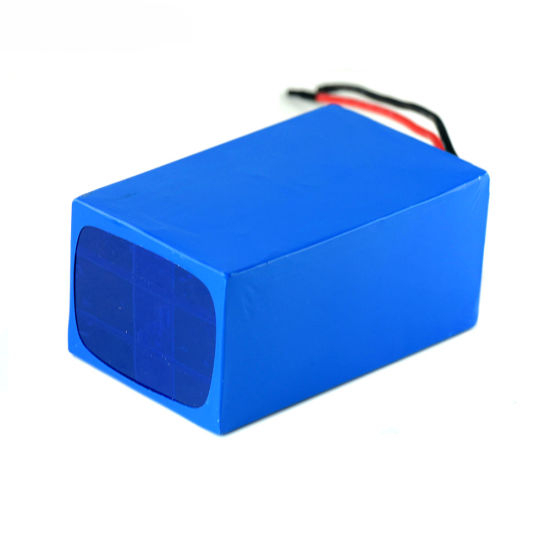

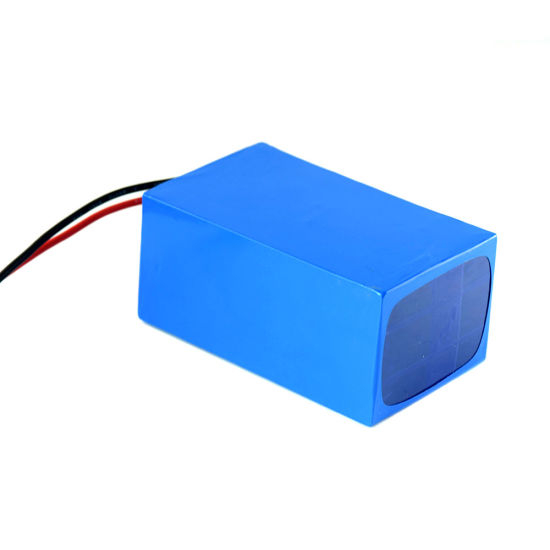

Product Pictures

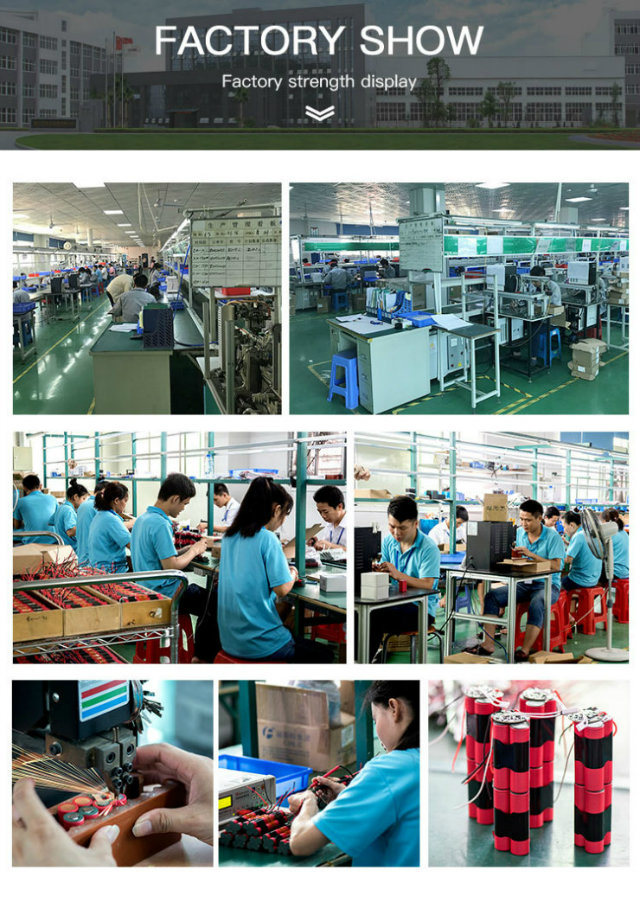

About us
