Deep Cycle 24V 100ah Battery LiFePO4 Solar Storage Batteries from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 24V LiFePO4 Battery / Deep Cycle 24V 100ah Battery LiFePO4 Solar Storage Batteries

Port:
Shenzhen, China
Production Capacity:
10000PCS/Month
Payment Terms:
T/T, Paypal
Model NO.:
DL-LFP24100 8S1P
Rated Capacity:
100ah
Standard Voltage:
24V
Usage:
Solar Storage
Electrolyte:
LiFePO4 Battery
Product Name:
Lithium Iron Phosphate LiFePO4 Battery
Nominal Voltage:
24V
Nominal Capacity:
100ah
Battery Size:
680*510*170mm
Protection:
Built in Battery Protection System (BPS)
Cycle Life:
2000 Times at 85% Dod/ 5000 Times at 65% Dod
Warranty:
3 Years
Battery Type:
3.2V 100ah LiFePO4 Battery Cells
Shell Material:
ABS Case or Metal Case
Packaging:
Standard Export Package Per Pieces
Payment:
Tt/Paypal
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
Customed
Origin:
China
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Size:
Customerized
Accessories Type:
Battery

Product Description

Deep Cycle lithium iron phosphate battery lifepo4 24v 100ah box

Product Description

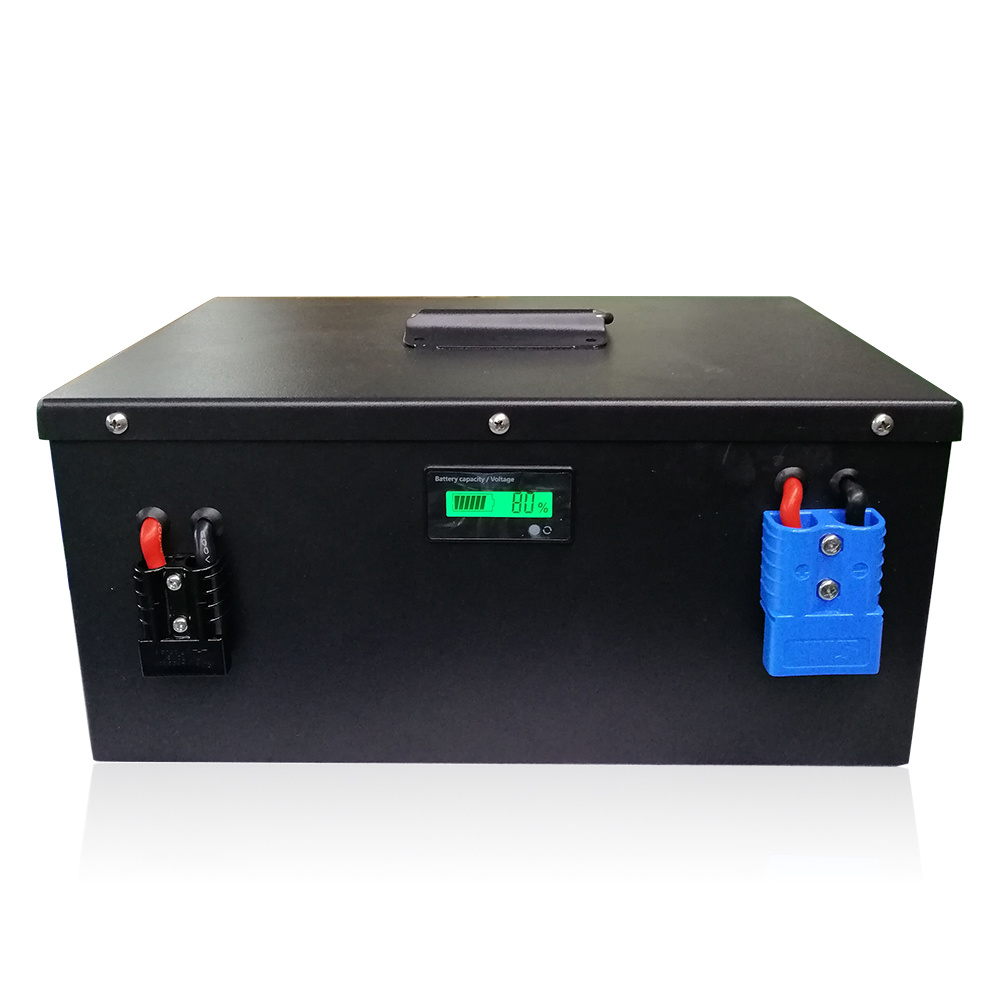

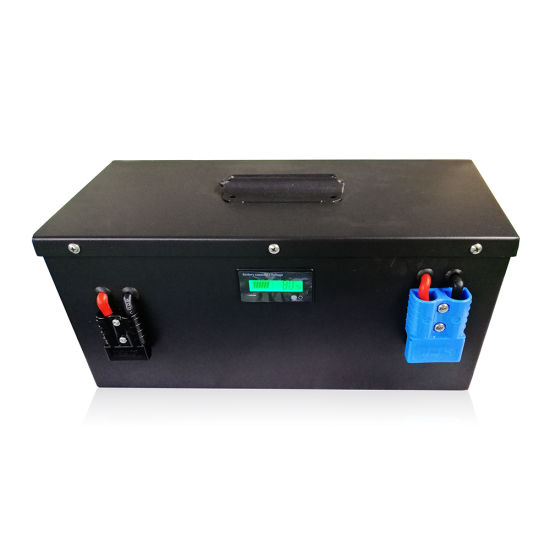

The Delong Battery 24V 100AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The DL-LFP24100 is plug and play for any application that currently uses a lead acid, gel or agm.

Electrical Characteristics Advantage	Model	DL-LFP24100 8S1P
	Nominal Voltage	24V
	Nominal Capacity	100Ah
	Internal Resistance	≤220mΩ
	Capacity@1C rate 0.2C	≥100Ah
	Cycle Life	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
Standard Charge Advantage	End of charge Voltage	29.2V
	End of charge Current	100mA
	Max.Continuous charge current	50A
	Charge Method	0.2C (0.5A) CC/CV
Standard Discharge Advantage	End of discharge Voltage	18.4V
	Nominal Discharge Current	100A
	Max. Pluse Discharge Current	150A/10S
Environmental Advantage	Charge Temp	0~45ºC
	Discharge Temp	-10~55ºC
	Storage Temp	-10~45ºC

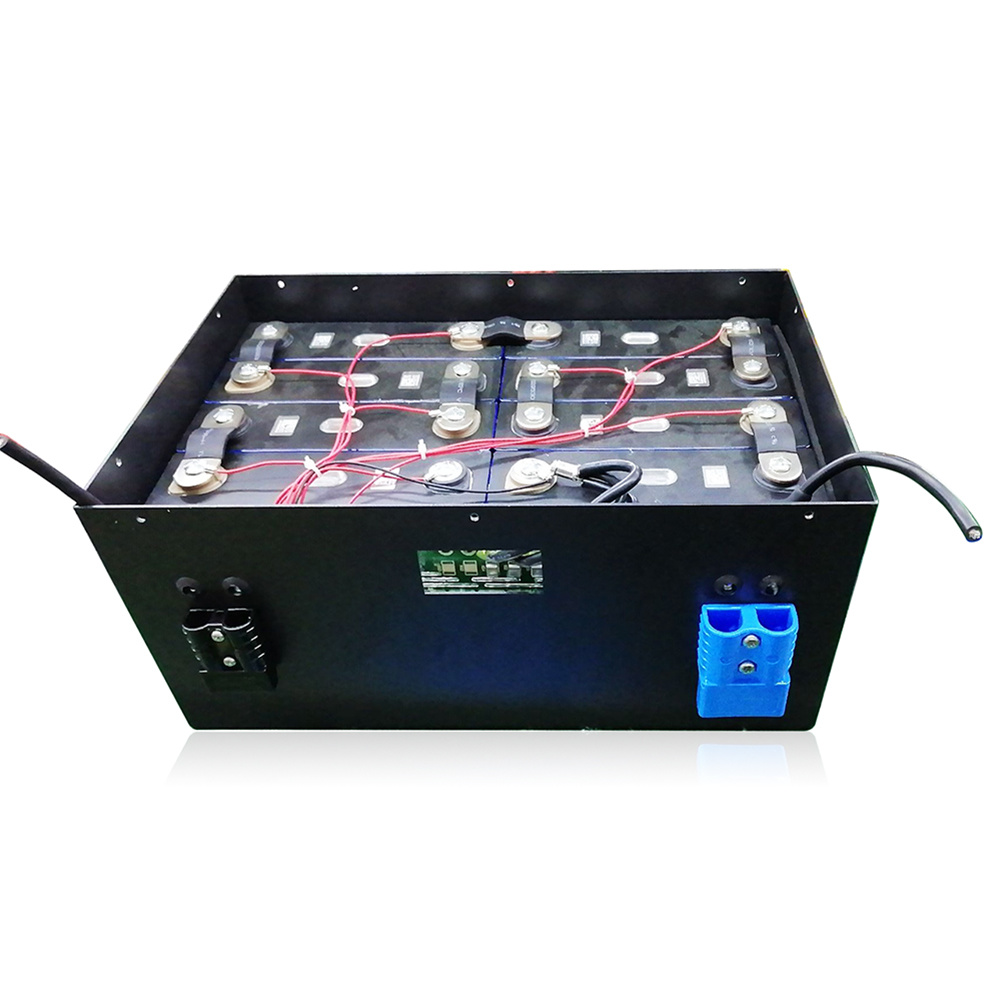

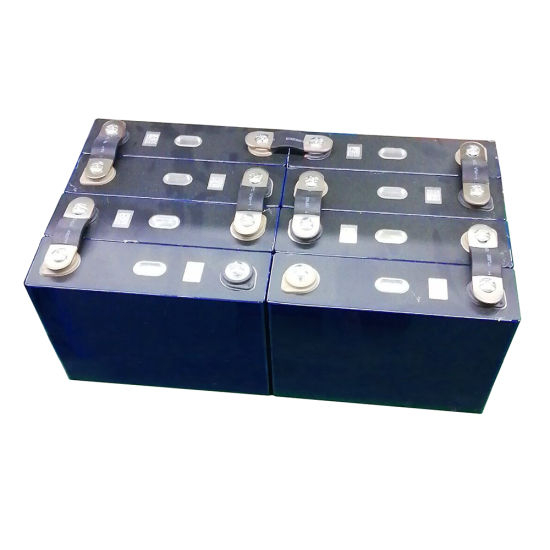

Mechanical Advantage	Cells & Combination	3.2V 100Ah & 8S1P
	Shell Material	ABS Case or Metal Case

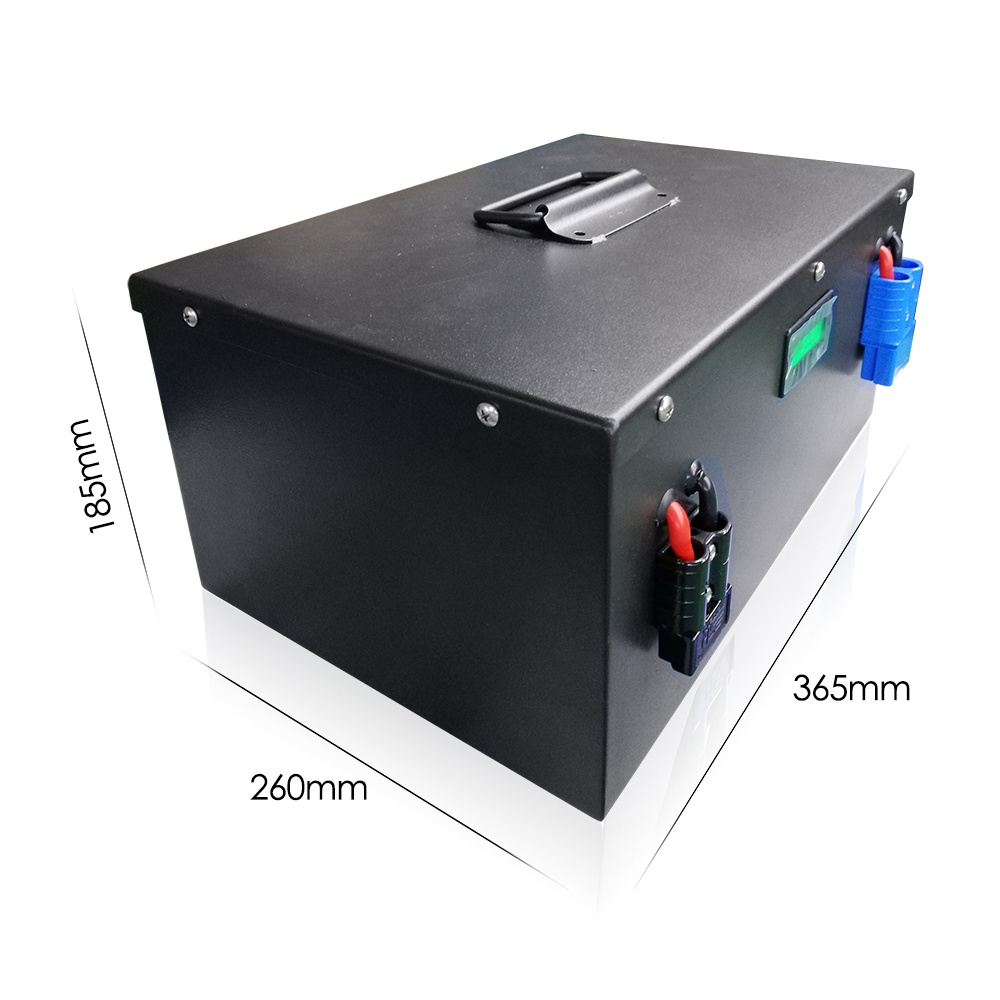

	Dimesion(D×W×H)	365265185mm
	Weight	≤23.5Kg
Safety & Protection Advantage	Built in Automatic Battery Protection System	Yes
	Automatic Low Voltage Disconnect	Yes
	Automatic Short Circuit Protection	Yes
	Automatic Over Voltage Protection	Yes
	Automatic Over Current Protection	Yes
	Automatic Internal Cell Balancing	Yes
	Automatic Over Charge Protection	Yes
	Automatic Over Discharge Protection	Yes
	Automatic Over Temperature Protection	Yes

This Product is Perfect For Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.

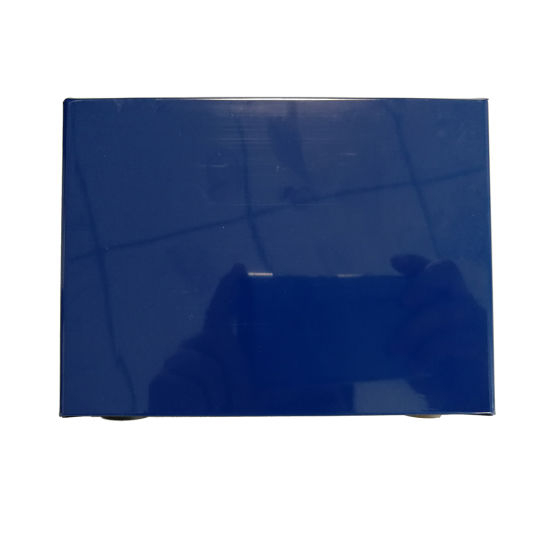

Deep Cycle 24V 100ah Battery LiFePO4 Solar Storage Batteries

Packing&Shipping

1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements

Product Application

Advantages of Lifepo4 batteries

1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment

1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction

1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
