English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Paypal
DL-24200
200ah
24V
Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
Li-ion
>2000 Times
2 Year
T/T, Paypal
OEM
Export Carton
173*133*48mm
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery

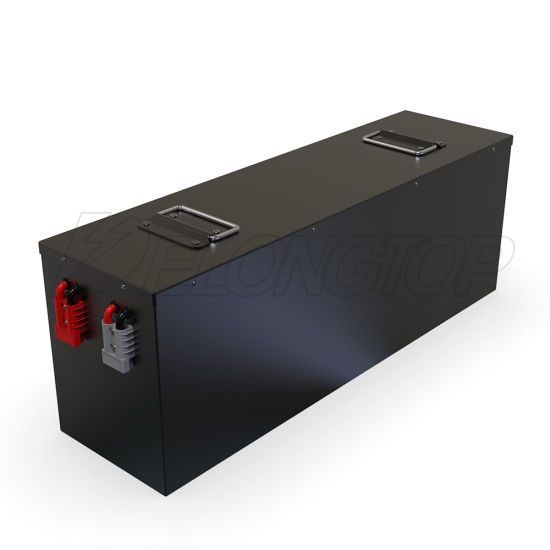

24v Battery Pack Lithium ion Lifepo4 24v 200ah Lifepo4 Battery Pack for Vehicles
24v 200ah lifepo4 battery specification: 24v Battery Pack Lithium ion Lifepo4 24v 200ah Lifepo4 Battery Pack for Vehicles
Model | DEL 24200LIFEPO4 |
| Nominal Voltage | 24V |
| Nominal Capacity | 200 |
| Internal Resistance | <420mΩ |
End of charge Voltage | 29.2V |
| End of charge Current | 100mA |
| End of discharge Voltage | 18.4V |
| Charge Method | 0.2C(0.5A)CC/CV |
| Max. Coutinuous charge current | 100A |
| Nominal discharge current | 100A |
| Max. Pluse Discharge Current | 500A |
| Dimension | 605*185*245MM |
| Weight | around 45kg |
| Storage Temp. (60~80% SOC Storage ) | -10 ~45'C |
| Capacity@1C rate 0.2C | ≥100AH |
| Cycle Life | 1500 times (Cycle @RT 1C rate, 100% D\OD) |
| Operating Temp | Charge: 0 ~45'C |
| Discharge: -10 ~55'C |
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.
Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a Professional New Energy Supplier in China focusing on the manufacture, research and sale of lithium ion battery product worldwide. It was established in 2006 and becoming the leading player in the new energy field through development. Delong company intergrates the cell manufacturing and offer of power solution in according to different application purpose.Our products are widely applied on digital device battery,high discharge rate battery, powerful electric vehicles battery, low and high temperature lithium ion battery, power storage and back-up battery pack etc.
1. 12 Years professional manufacturering experience.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service; or our current models.
4. Fast delivery; Professinal and quality 100% QC inspection.
Buyers feedback:
1:Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
2: Do you provide after-sales serive?
Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
5: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
