+86 755 21012989
Quantity: | |
---|---|
Shenzhen, China
5, 000PCS/Month
L/C, T/T, Western Union, Paypal, Money Gram
DL-24100/8S2P
14.6V
50A
100A
Cell+Wires+BMS+Case
2 Years
2000 Times
Built-in BMS
Metal
8s2p
350*170*240mm

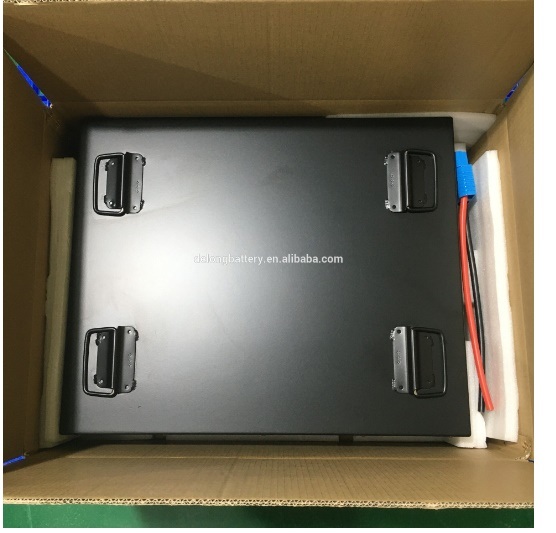

Carton
China
8507600090
Series and Parallel
Chargeable
High Discharge Rate
Large
Chargers
3.2V 50ah Pouch Battery Cell

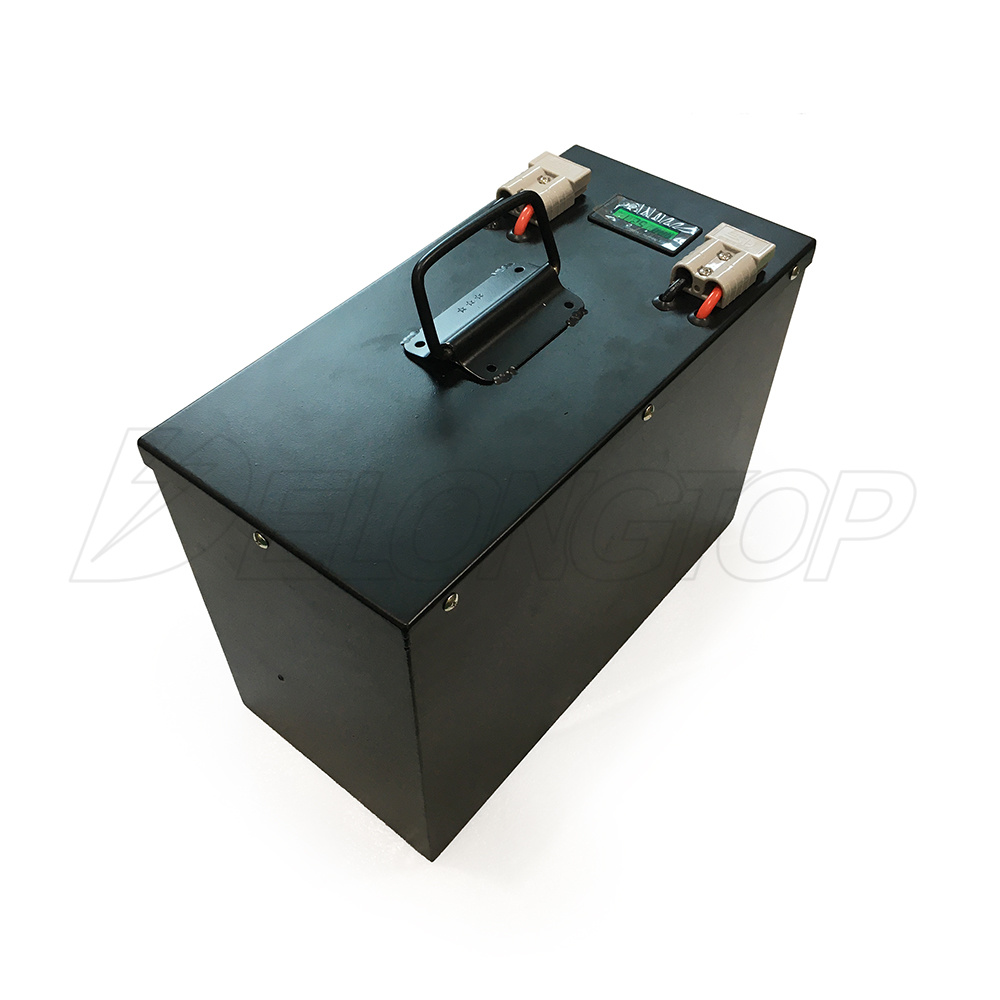

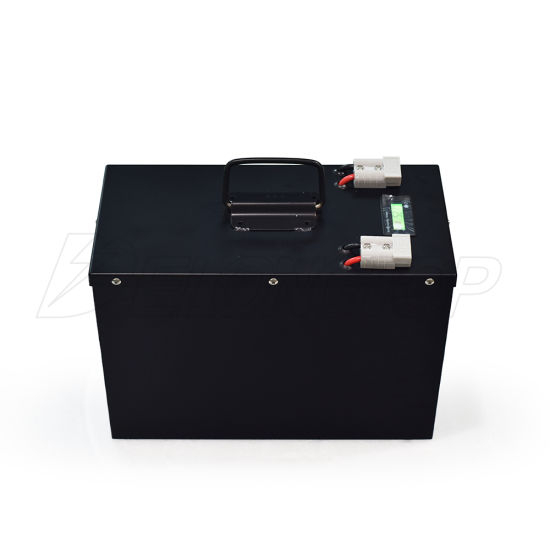

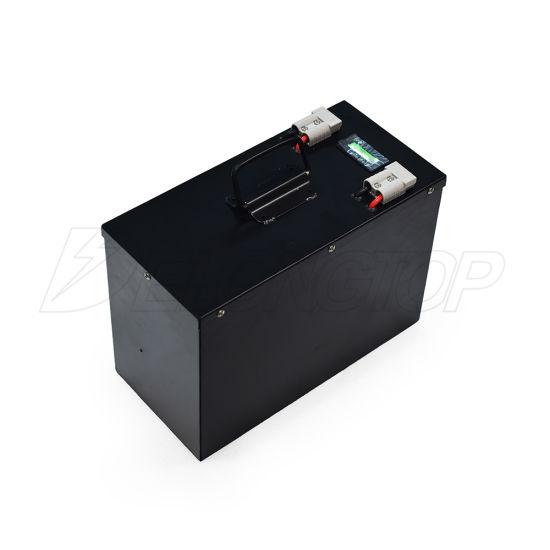

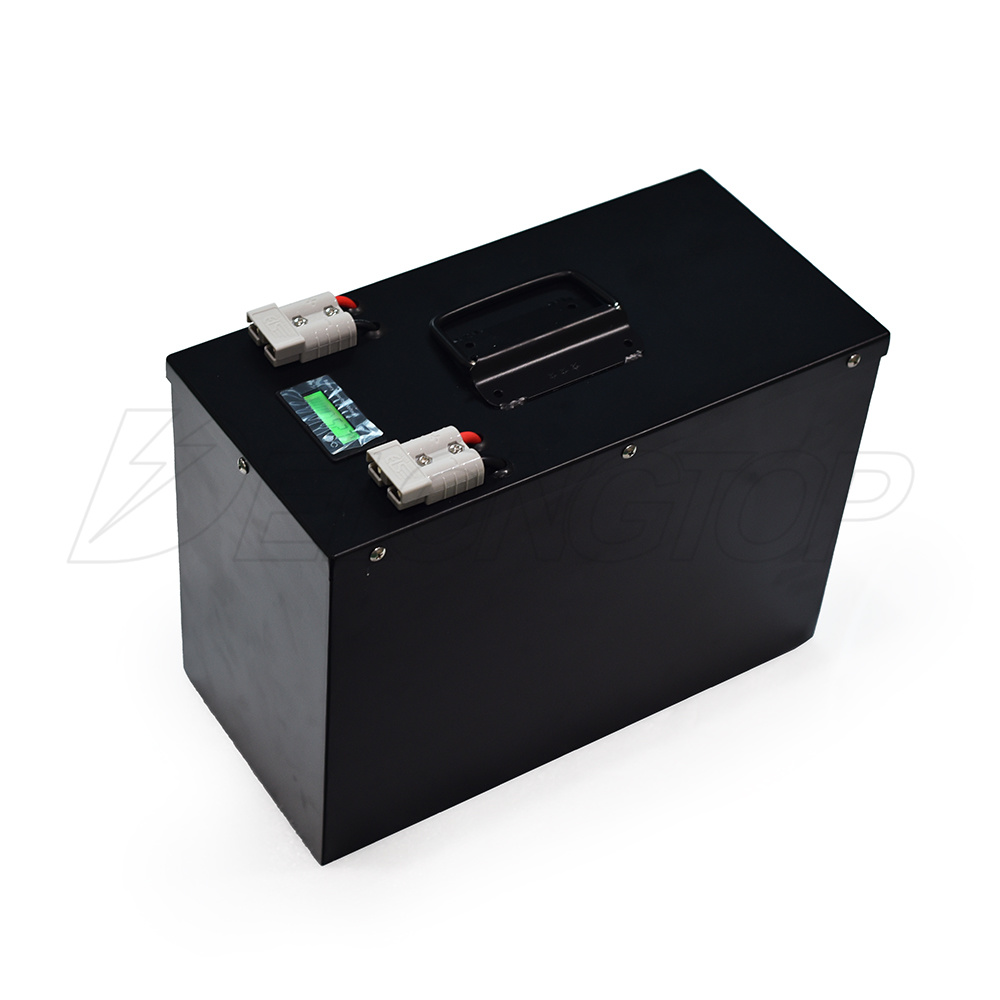

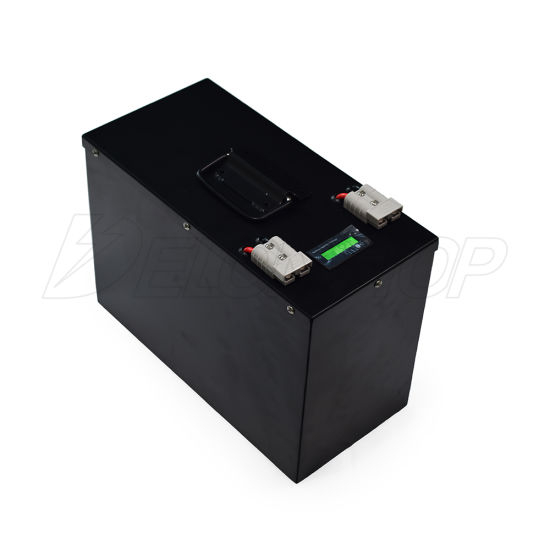

Model | DL-24100/8S2P |
Battery cell | 3.2V 50Ah pouch LifePO4 cell |
Nominal voltage | 24V |
Nominal capacity | 100Ah |
Internal resistance | ≤220mΩ |
Battery configuration | 8S2P |
End of charge voltage | 29.2V |
End of charge current | 100mA |
End of discharge voltage | 19V |
Charge method | CC/CV |
Standard charge current | 20A |
Max charge current | 50A |
Continuous discharge current | 100A |
Max continuous discharge current | 150A/10S |
Net weight | 19.5KG |
Case material | metal |

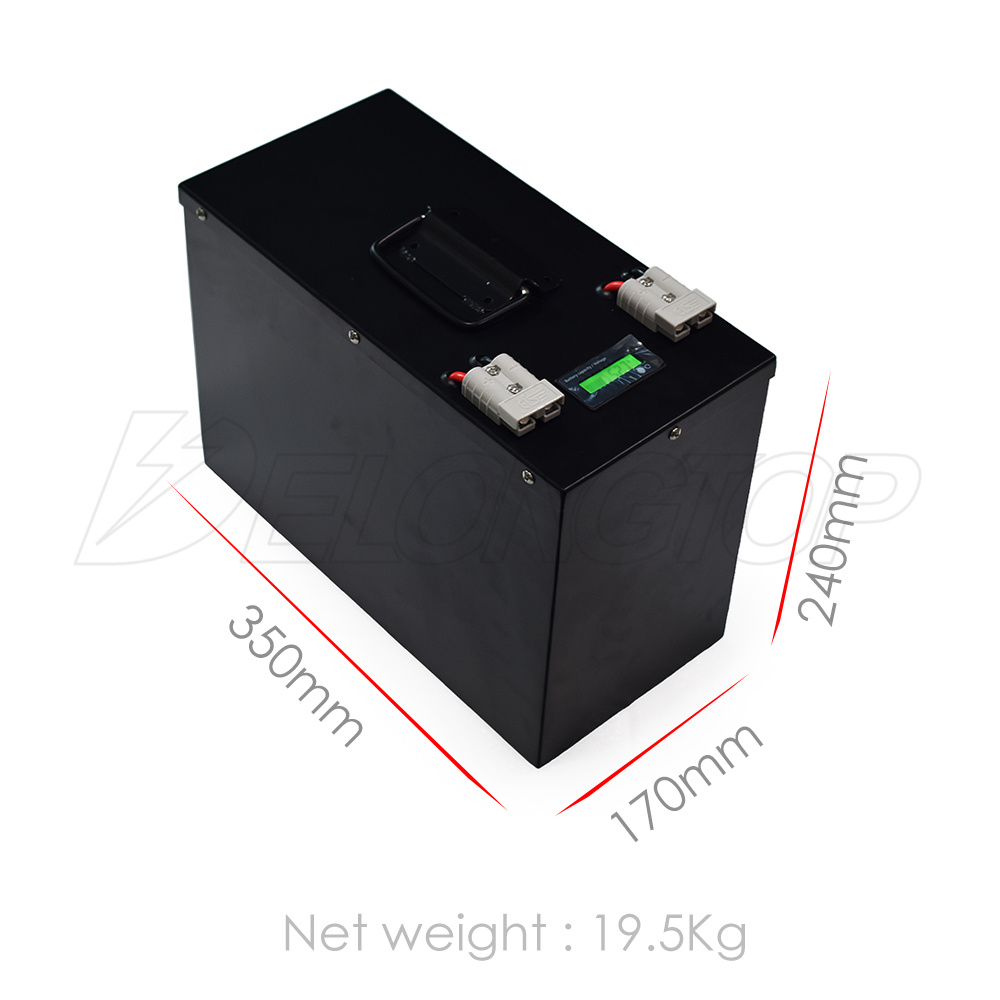

Case dimension | 350*170*240mm |
Charge temperature | 0~45ºC |
Discharge temperature | -10~55ºC |
Storage temperature | -10~45ºC |
Warranty | 2 years |
Lifecycle | 2000 times |
BMS protection | over-charge,over-discharge,over-current,short circuit and balance function |
LCD display | can show the battery voltage and capacity |
Terminal | M8 connector or Anderson |
1.Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
2.FOB , EXW and CIF all are available
3.Samples can accept Paypal

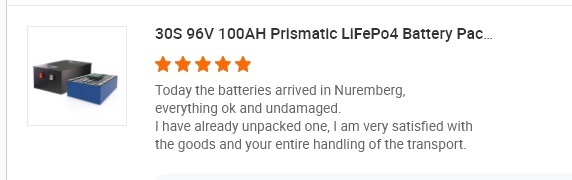

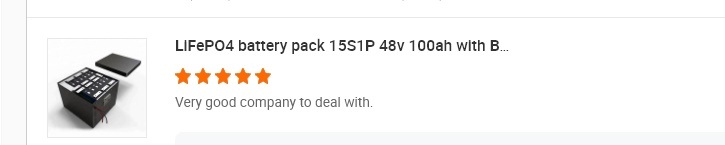

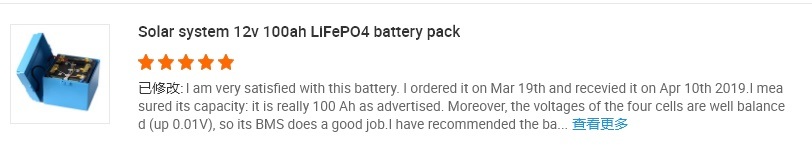

Good feedback from clients:
Our services:
1. Our professional engineer team can provide you one stop battery solution
2. All of the 24V 100Ah LifePO4 battery and accessories will be inspected before shipment
3. We can print your own logo or make customized label on product
4. We offer 2 years warranty and provide continuous technical support
5. Fast leadtime:5-7 days for samples;25-30 days for bulk order
6. Battery size,case,BMS can be customized
Company information:Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.

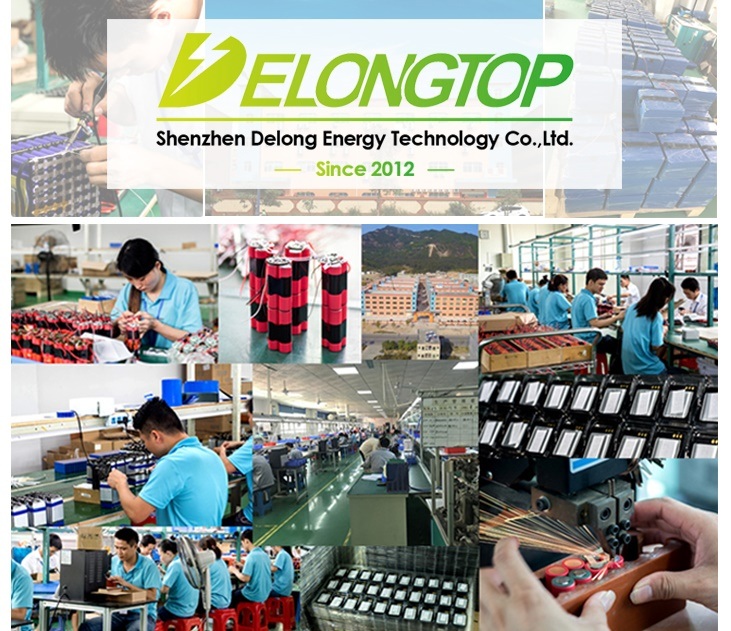

Q7:Are you a factory or a trading company?
A7:Shenzhen Delong Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Model | DL-24100/8S2P |
Battery cell | 3.2V 50Ah pouch LifePO4 cell |
Nominal voltage | 24V |
Nominal capacity | 100Ah |
Internal resistance | ≤220mΩ |
Battery configuration | 8S2P |
End of charge voltage | 29.2V |
End of charge current | 100mA |
End of discharge voltage | 19V |
Charge method | CC/CV |
Standard charge current | 20A |
Max charge current | 50A |
Continuous discharge current | 100A |
Max continuous discharge current | 150A/10S |
Net weight | 19.5KG |
Case material | metal |
Case dimension | 350*170*240mm |
Charge temperature | 0~45ºC |
Discharge temperature | -10~55ºC |
Storage temperature | -10~45ºC |
Warranty | 2 years |
Lifecycle | 2000 times |
BMS protection | over-charge,over-discharge,over-current,short circuit and balance function |
LCD display | can show the battery voltage and capacity |
Terminal | M8 connector or Anderson |
1.Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
2.FOB , EXW and CIF all are available
3.Samples can accept Paypal
Good feedback from clients:
Our services:
1. Our professional engineer team can provide you one stop battery solution
2. All of the 24V 100Ah LifePO4 battery and accessories will be inspected before shipment
3. We can print your own logo or make customized label on product
4. We offer 2 years warranty and provide continuous technical support
5. Fast leadtime:5-7 days for samples;25-30 days for bulk order
6. Battery size,case,BMS can be customized
Company information:Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Shenzhen Delong Energy Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
