| Quantity: | |
|---|---|
Shenzhen, China
10000PCS/Month
T/T, Paypal
400ah
12V
LiFePO4 Battery
Lithium Iron Phosphate LiFePO4 Battery
12V
400ah
625*205*265mm
Built in Battery Protection System (BPS)
2000 Times at 85% Dod/ 5000 Times at 65% Dod
3 Years
3.2V 100ah LiFePO4 Battery Cells
ABS Case or Metal Case
Standard Export Package Per Pieces
Tt/Paypal
55kg
DELONGTOP
Standard Packing
Customed
China
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Customerized
Battery
| Model | DL-LFP12400 4S4P |
| Nominal Voltage | 12V |
| Nominal Capacity | 400Ah |
| Internal Resistance | ≤220mΩ |
| Capacity@1C rate 0.2C | ≥400Ah |
| Cycle Life | 2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod |
| End of charge Voltage | 14.6V |
| End of charge Current | 200mA |
| Max.Continuous charge current | 50A |
| Charge Method | 0.2C (0.5A) CC/CV |
| End of discharge Voltage | 9.2V |
| Nominal Discharge Current | 100A |
| Max. Pluse Discharge Current | 300A/10S |
| Charge Temp | 0~45ºC |
| Discharge Temp | -10~55ºC |
| Storage Temp | -10~45ºC |

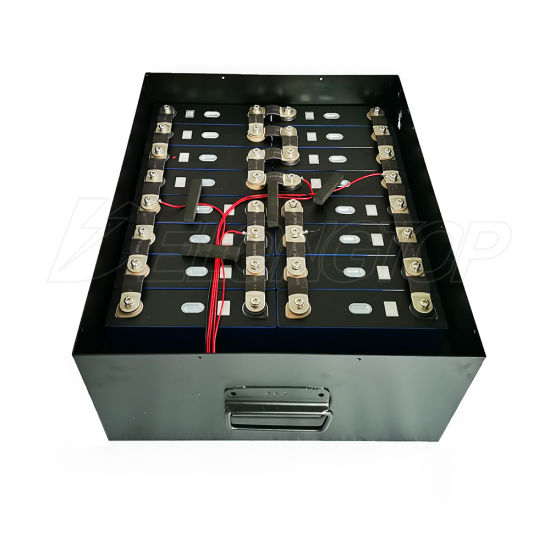

| Cells & Combination | 3.2V 100Ah & 4S4P |
| Shell Material | ABS Case or Metal Case |
| Dimesion(D×W×H) | 625*205*265mm |
| Weight | ≤55Kg |
| Built in Automatic Battery Protection System | Yes |
| Model | DL-LFP12400 4S4P |
| Nominal Voltage | 12V |
| Nominal Capacity | 400Ah |
| Internal Resistance | ≤220mΩ |
| Capacity@1C rate 0.2C | ≥400Ah |
| Cycle Life | 2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod |
| End of charge Voltage | 14.6V |
| End of charge Current | 200mA |
| Max.Continuous charge current | 50A |
| Charge Method | 0.2C (0.5A) CC/CV |
| End of discharge Voltage | 9.2V |
| Nominal Discharge Current | 100A |
| Max. Pluse Discharge Current | 300A/10S |
| Charge Temp | 0~45ºC |
| Discharge Temp | -10~55ºC |
| Storage Temp | -10~45ºC |
| Cells & Combination | 3.2V 100Ah & 4S4P |
| Shell Material | ABS Case or Metal Case |
| Dimesion(D×W×H) | 625*205*265mm |
| Weight | ≤55Kg |
| Built in Automatic Battery Protection System | Yes |
