English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Western Union, Paypal
402035
240mAh
3.7V
Digital Device
Li-ion
Delongtop
Export Carton
35*20*4mm
China
Lithium-Polymer Battery Pack
Series and Parallel
Chargeable
Low Discharge Rate
Small
Battery

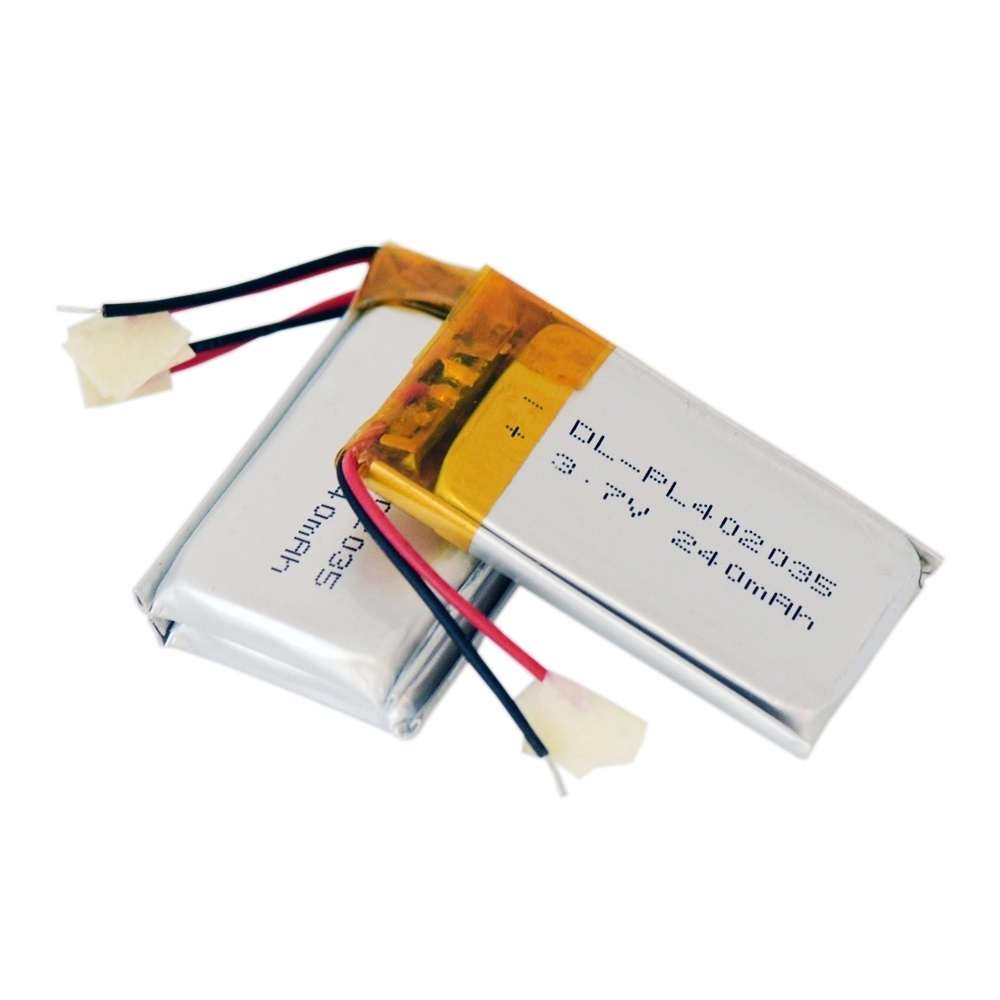

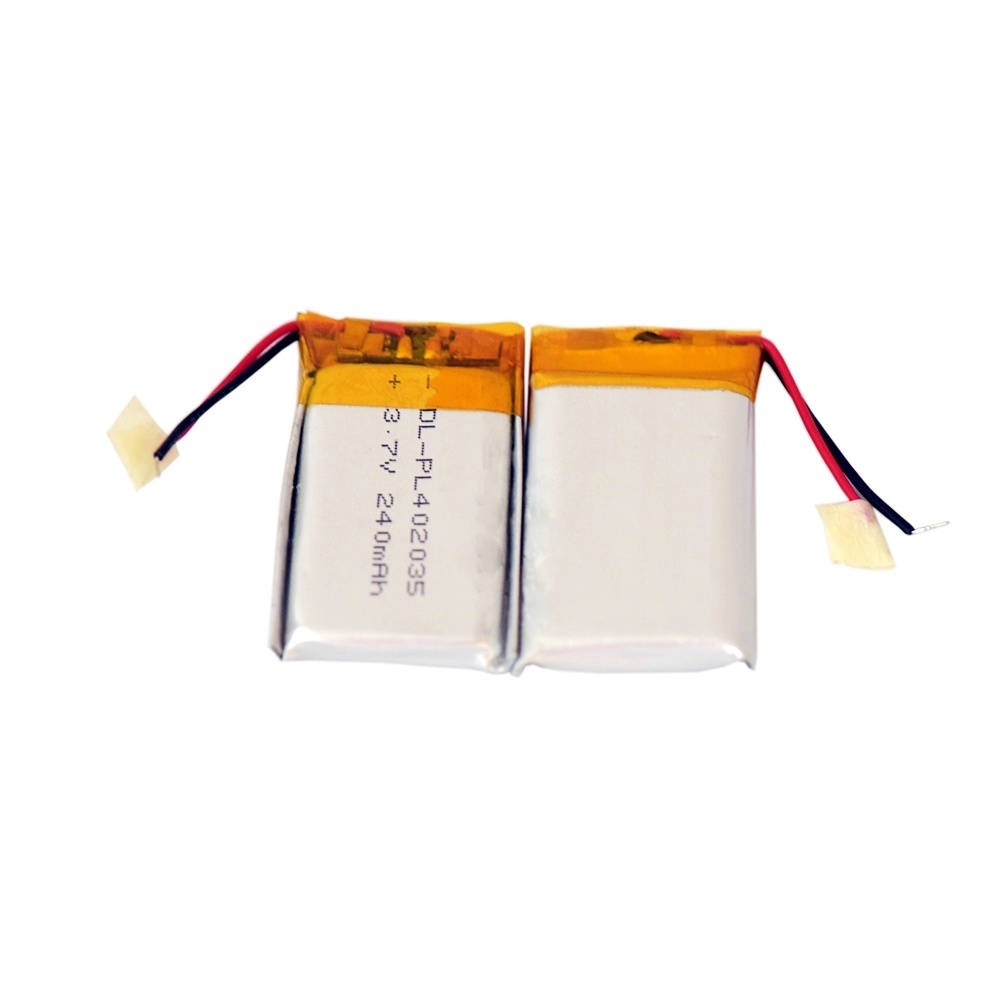

3.7v lithium polymer battery cells specification:
| Model | DL-402035 |
| Nominal voltage | 3.7V |
| Charge voltage | 4.2V |
| Nominal capacity | 240mAh |
| Stanard charge current | 48mA |
| Max charge current | 240mA |
| Standard discharge current | 120mA |
| Max discharge current | 240mA |
| Discharge cut off voltage | 2.75V |
| AC Impedance Resistance | ≤170mΩ |
| Max charge voltage | 4.25V |
| Net weight | around 6.3g |
| Size | 4*20*35mm(T*W*L) |
| Charge temperature | 0~+45ºC |
| Discharge temperature | -10~+60ºC |
| Lifecycle | 500 times |
| Warranty | 12 months |
| Storage temperature | -10~+45ºC(less than 1 month) |
| Storage temperature | -10~+35ºC(less than 6 months) |
Product applications:
1. Telecommunications: Cellular phone, interphone, blue tooth earphone.
2. Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television
3. Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.
4. Illuminate Devices: Miner lamp, search light.
5. Others: Electric Toys, RC models
Advantage:
1.High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added
7.Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload;
8.Injection Technology to make battery more stable;
9.With short-circuit production function, safe and reliable;
10.Factory mastered technology and competitive price;

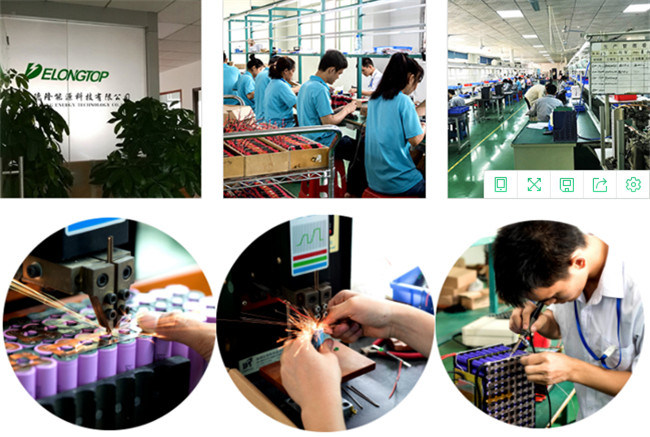

Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a Professional New Energy Supplier in China focusing on the manufacture, research and sale of lithium ion battery product worldwide. It was established in 2006 and becoming the leading player in the new energy field through development. Delong company intergrates the cell manufacturing and offer of power solution in according to different application purpose.Our products are widely applied on digital device battery,high discharge rate battery, powerful electric vehicles battery, low and high temperature lithium ion battery, power storage and back-up battery pack etc.
1. 12 Years professional manufacturering experience.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service; or our current models.
4. Fast delivery; Professinal and quality 100% QC inspection.
1:Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
2: Do you provide after-sales serive?
Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
5: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
