OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

Quantity:
  • Shenzhen, China
  • 1000/Wk
  • T/T, Western Union, Paypal
  • DL-12100
  • 100ah
  • 12V
  • Remote Control Boat, Remote Control Car, EV, RV, Boat, Yacht
  • Li-ion
  • RoHS, Ce, FCC,etc
  • 11kg
  • 3 Year
  • 2000times
  • BMS Inside
  • UPS,Back-up Power,Solar Street Light
  • DelongTop
  • Standard Export Package
  • 192mm *173mm *133mm
  • Guangdong, China
  • 8507600090
  • LiFePO4 Lithium Ion Battery
  • Series and Parallel
  • Chargeable
  • High Discharge Rate
  • 192mm *173mm *133mm
  • Battery

OEM Deep Cycle Prismatic lithium ionen akku 12v 100ah LiFePO4 Solar Battery

Specification:
Why choose Delong:
1. DELONG original factory.  Factory price
2. 2 years long Warranty
3. OEM/ODM is acceptable
4. No MOQ Request
5. Fast delivery time
6. Nice quantity with certication
7.ONLINE PAYMENT


Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life.
2000 Cycle Times 85% DOD
5000 Cycle Times 65% DOD
8000 Cycle Times 40% DOD

3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

How Application Case
1.Electric vehicle
- Golf cart battery/Low-speed electric car battery/ Tricycle Battery /Motorcycle battery/Ebike Battery

2.Energy Storage
-Solar-Wind Power System / City Grid (On/Off) / Telcom Base / Computer Server Center

3. Intelligent Equipment & Special Equipment
-Robert Battery/ AGV  battery/Forklift battery/ Tow truck battery/Sweeper battery

4.Other Applications
-Drone battery / Electric tools battery / Emergency Light battery/ Starter battery/Medical instruments battery
Name  12.8V 100AH Lifepo4 battery
Nominal voltage 12.8V
Nominal capacity 100ah
Battery type Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell
Model DL-12100
Battery configation 4S1P or 4S2P
Internal resistance ≤420mΩ
End of charge voltage 14.6V
End of charge current 200mA
End of discharge voltage 9.2V
Charge method CC/CV(constant current/constant voltage)
Max continuous charge current  50A/100A
Max continuous discharge current 100A
Max pulse discharge current 200A/10S
Net weight 100ah: 11.5 kg
Case material ABS or metal case or stainless steel case
Case dimension 235*196 *170mm ( customized )
Warranty 2 years
BMS protect Overcharge,Balance, Over-discharge,Over-current, Short-circuit etc

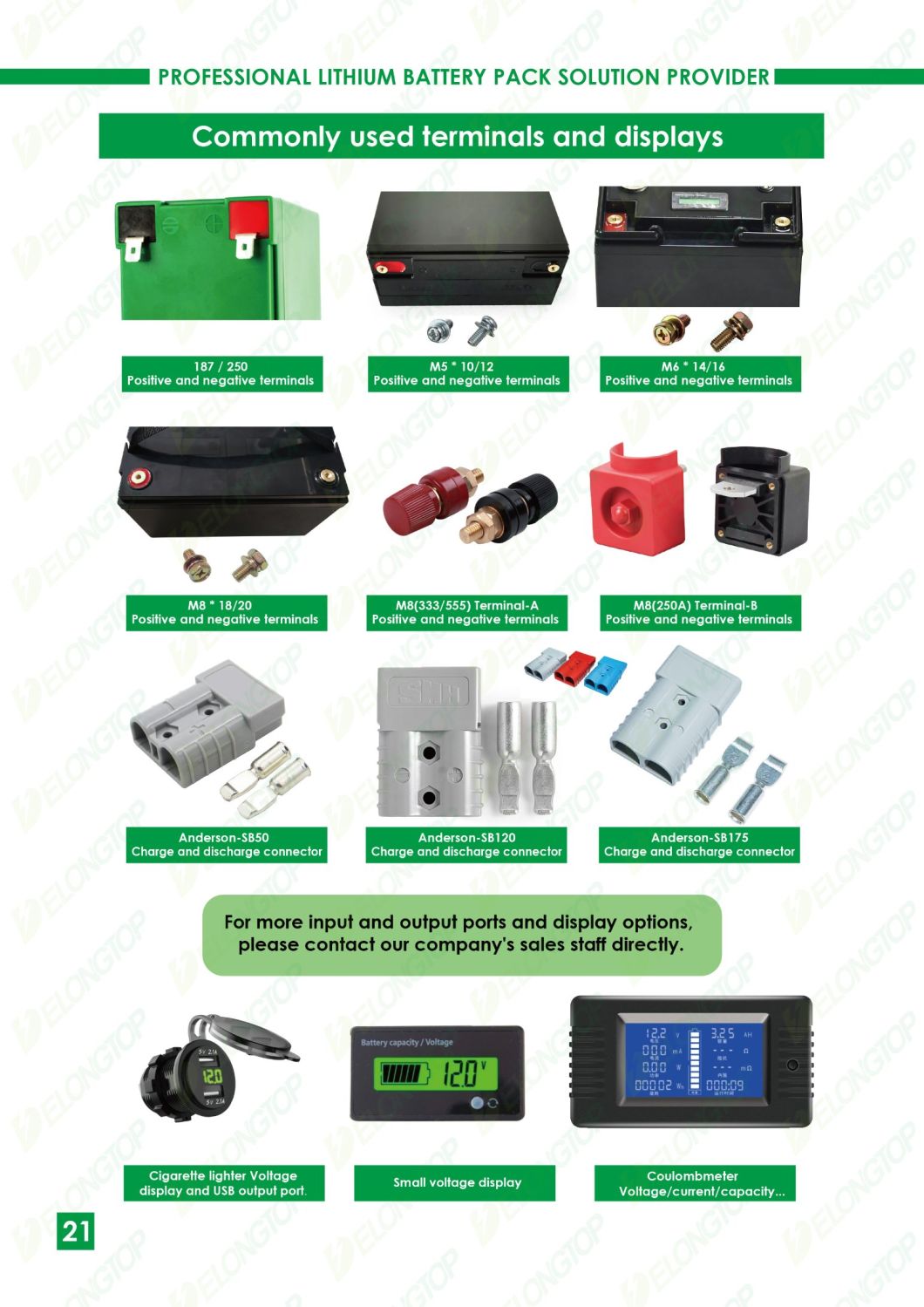

Terminal Type M8 or anderson or another bolt screw
Lifecycle 2000 times, 85%dod, 3000 times, 80%dod  5000 times , 65% dod, 8000 times, 40% dod
Charge temperature 0~45ºC
Discharge temperature -20~60ºC
Storage temperature -10~45ºC
Certificate CE, RoHS ,MSDS and UN38.3 certification
Parallel assembly up to 10 items
Enclosure Protection IP56 or customized IP67 available
Weight 11.5KG

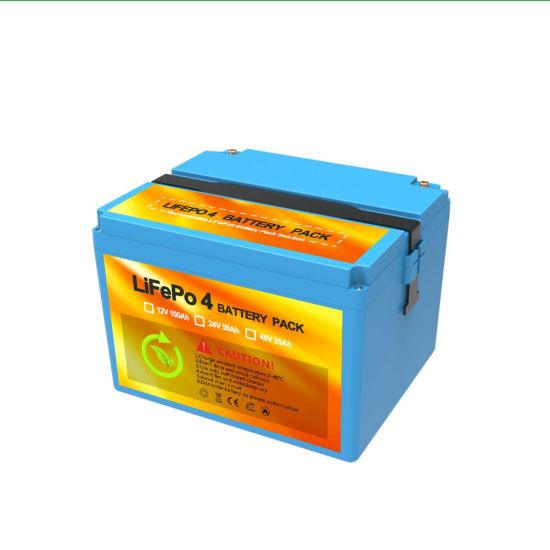

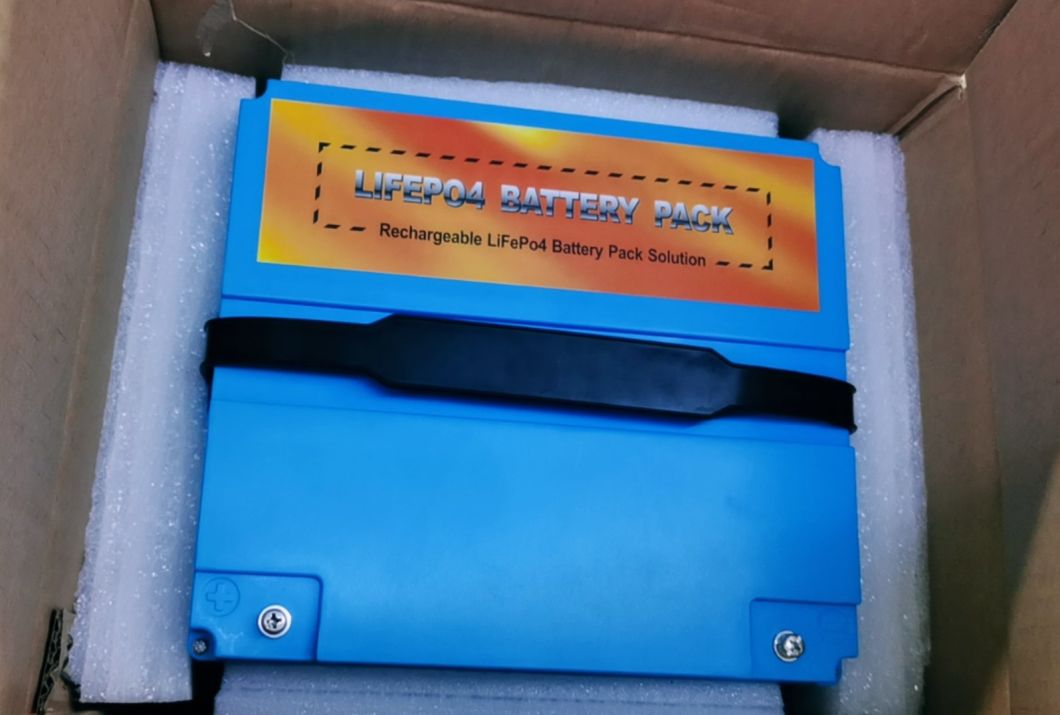

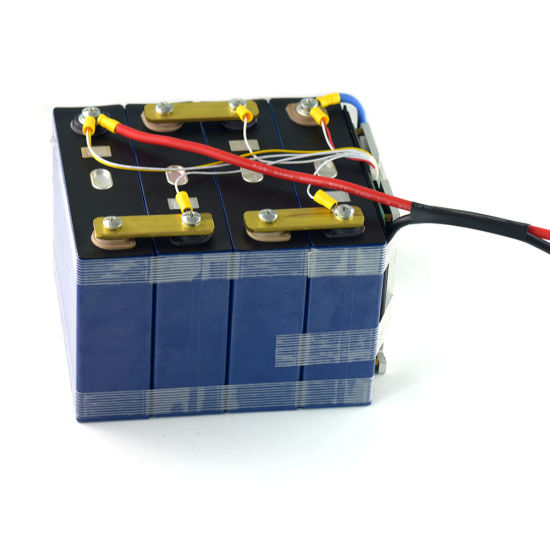

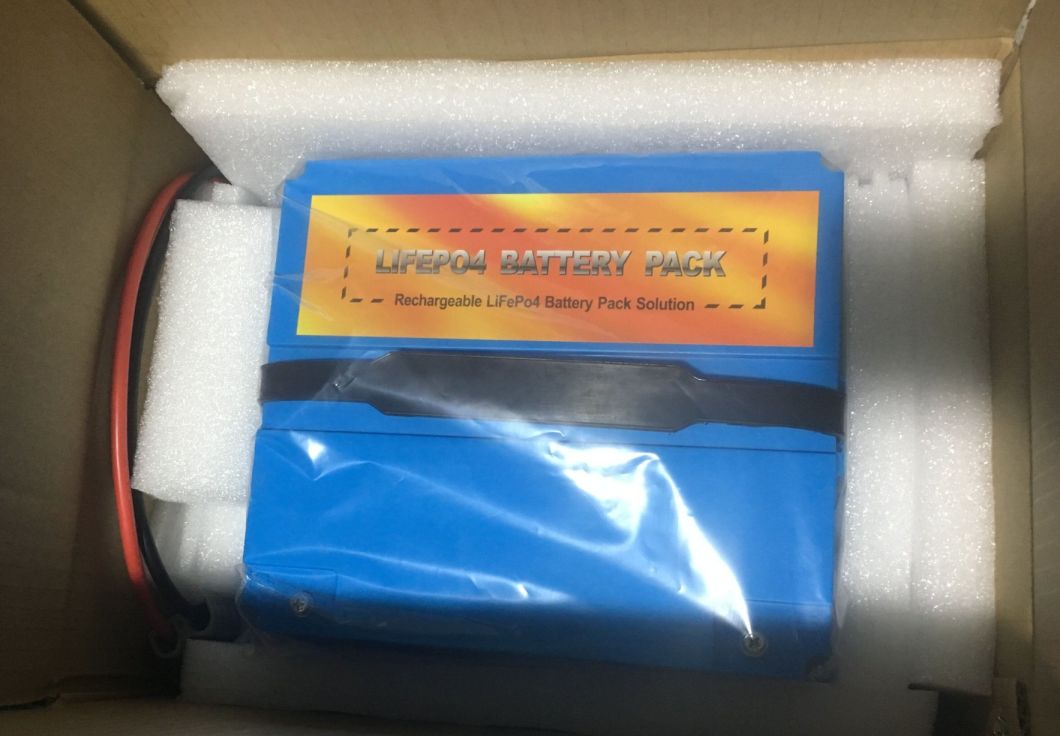

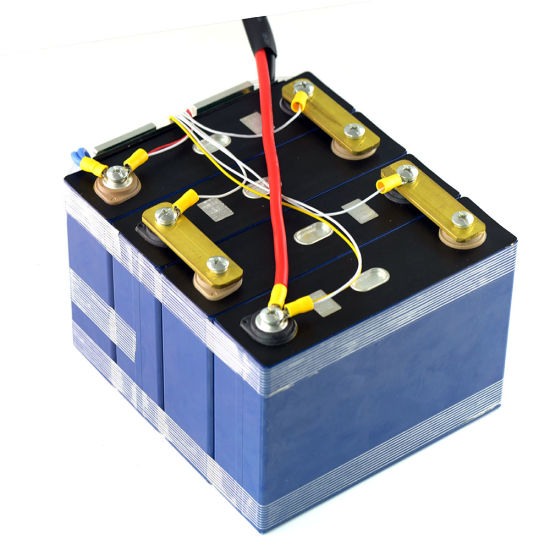

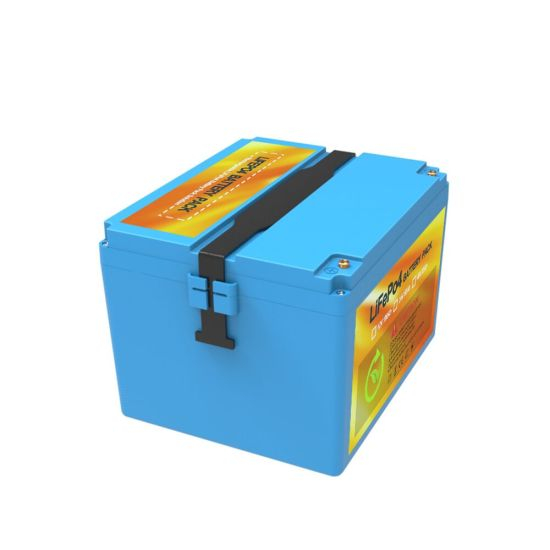

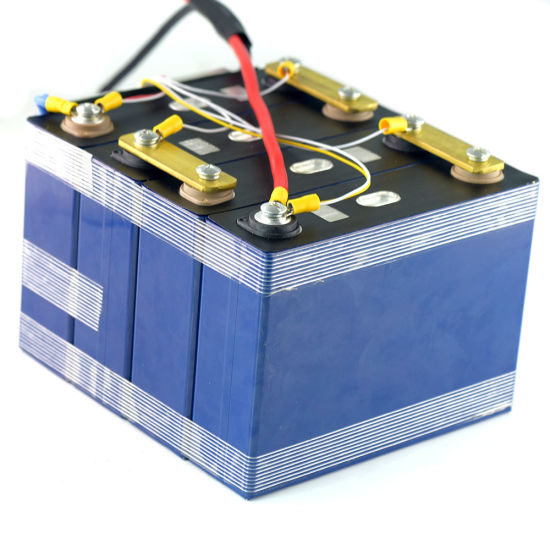

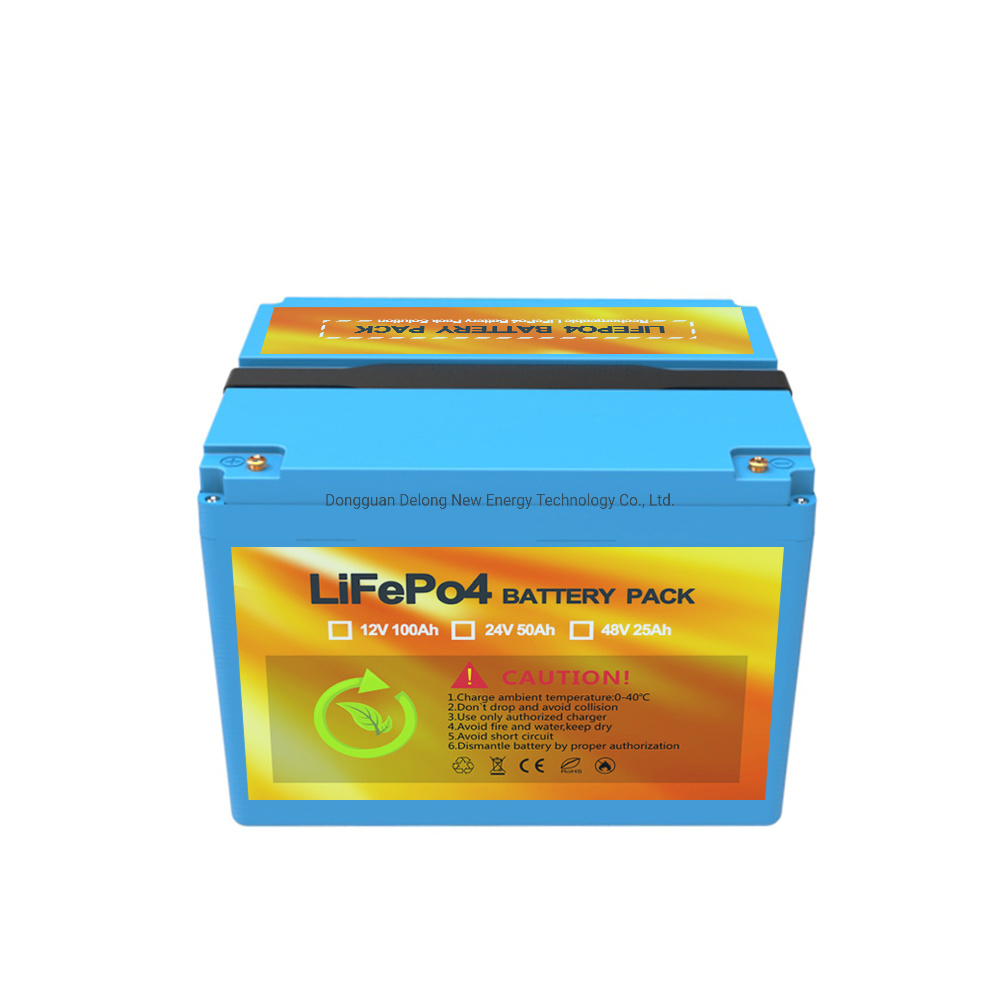

Product Show:
OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery
OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery


OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

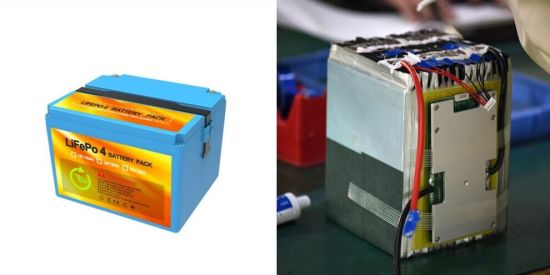

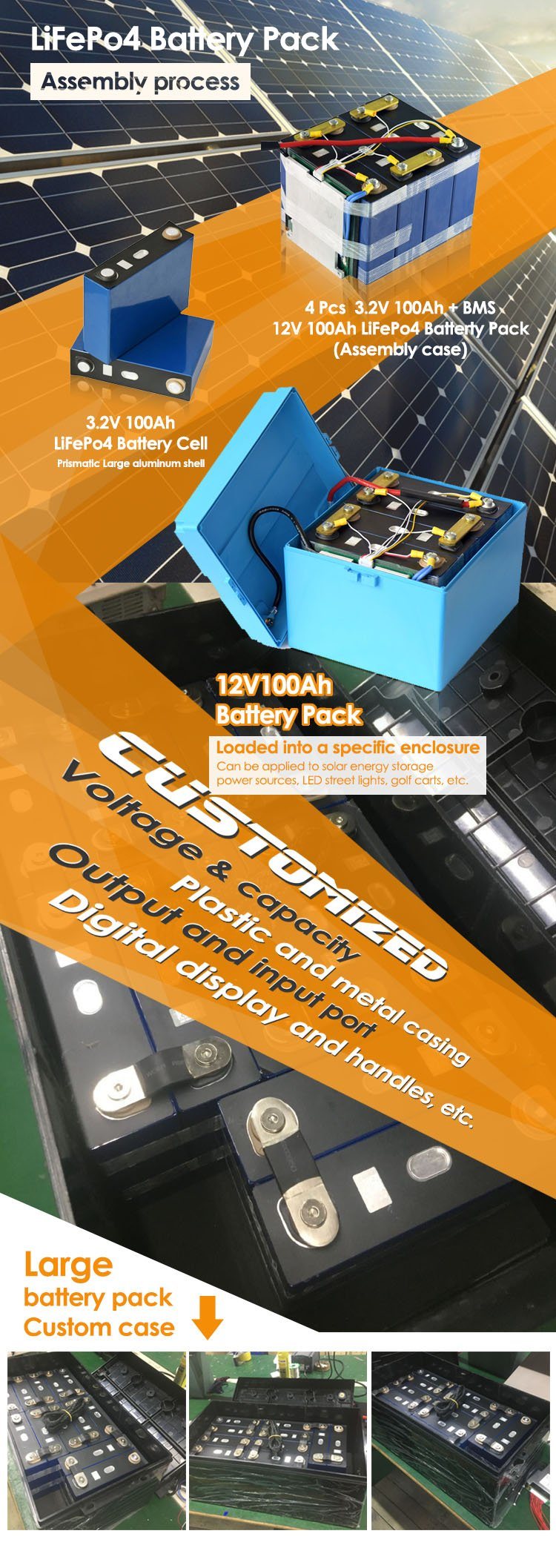

More details:

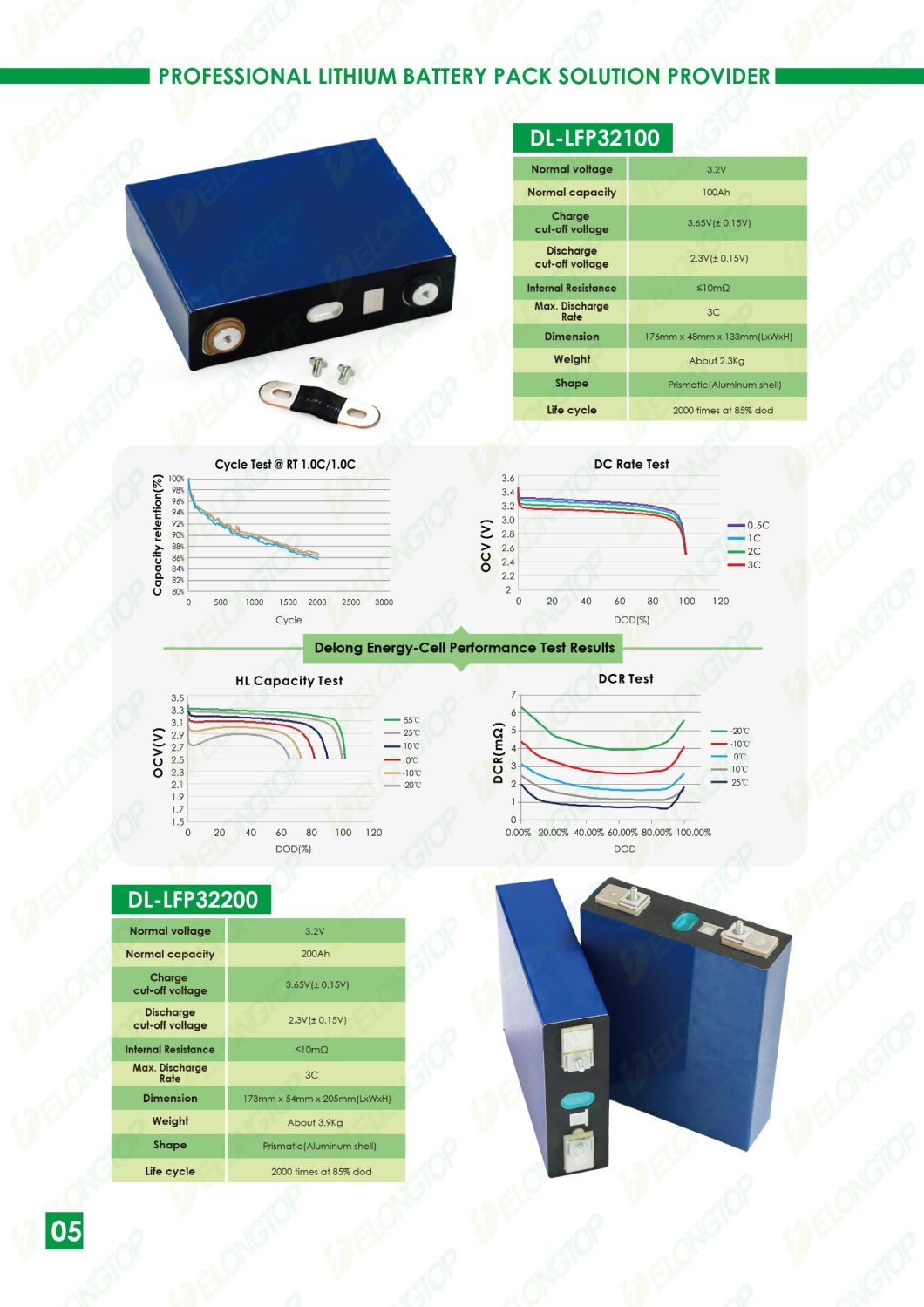

Battery Type: 3.2V 100AHLiFePO4 cell Voltage customized:
12V, 24V, 36V, 48V. 72v . 96V
Capacity customized: 100Ah/200Ah/300Ah/400Ah/500Ah/ 600Ah..
Net weight: 2.3KG
Dimension: 176mm*133mm*148mm Cycle Life: 2000 times

OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

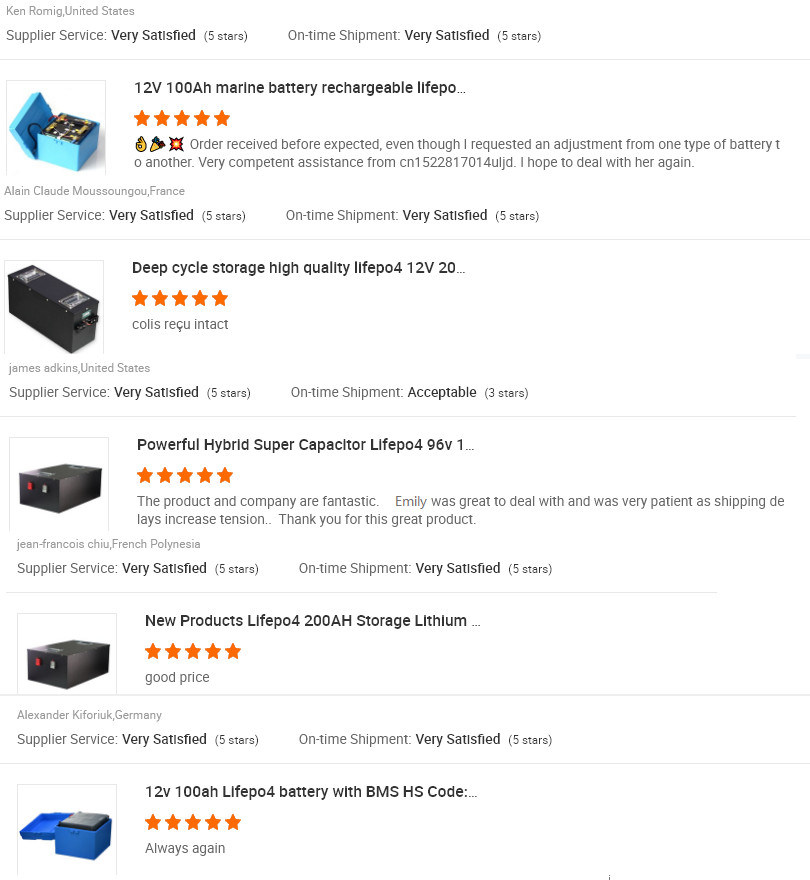

Feedback:
OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery


Applications:

Military power
Wind & Solar energy storage
Communication power
Transmission and distribution backup
UPS power supply
Electric Golf Car
Electric forklifts and so on

OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery

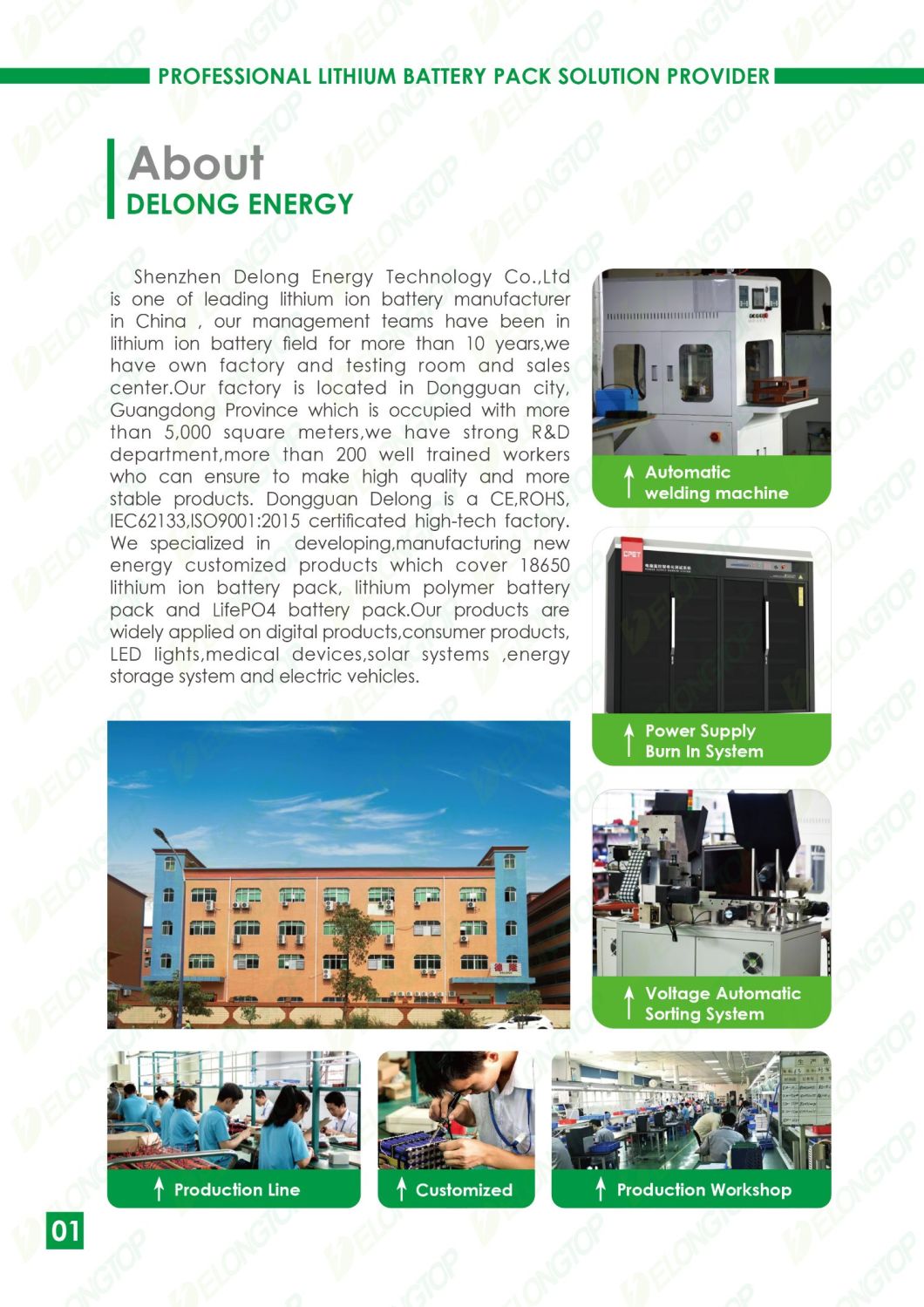

Shenzhen Delong Energy Technology Co.,Ltd
It was established in 2006 and have been in lithium ion battery field over 10 years.
Our Main products is 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery
Packing&Shipping
Delivery time :
7-15days, but could be changed according to the quantity or other things.
Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
Packaging:
Per battery per carton, Standard export pakcage
Shippment:
DHL, UPS, Fedex, Special Line, Sea shipping, Customer
OEM Deep Cycle Prismatic Lithium Akku 12V 100ah LiFePO4 Solar Battery
RFQ:

Q: Are you trading company or manufacturer?
A: We are DELONG original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
