English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Western Union, Paypal
DL-IFR12100
100ah
12V
Remote Control Boat, Remote Control Plane, Electric Motorcycle
Li-ion
1500
1 Year
T/T
OEM
Export Carton
196*170*235mm
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery

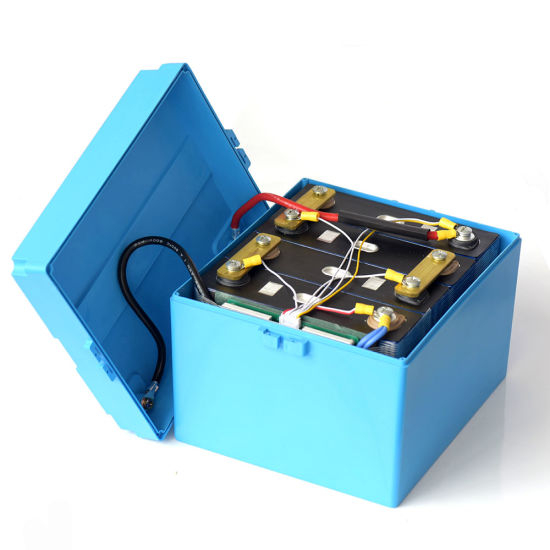

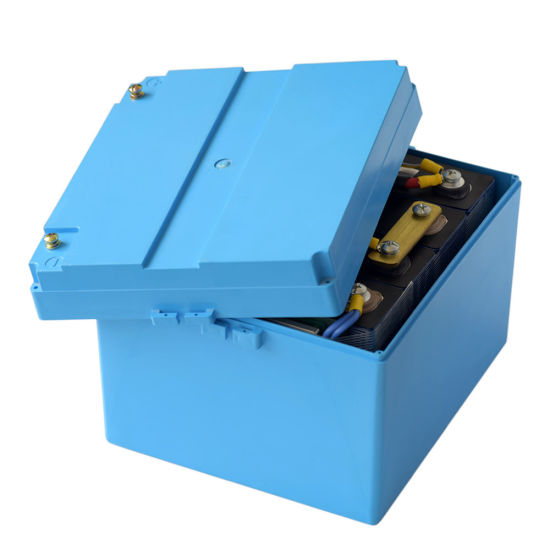

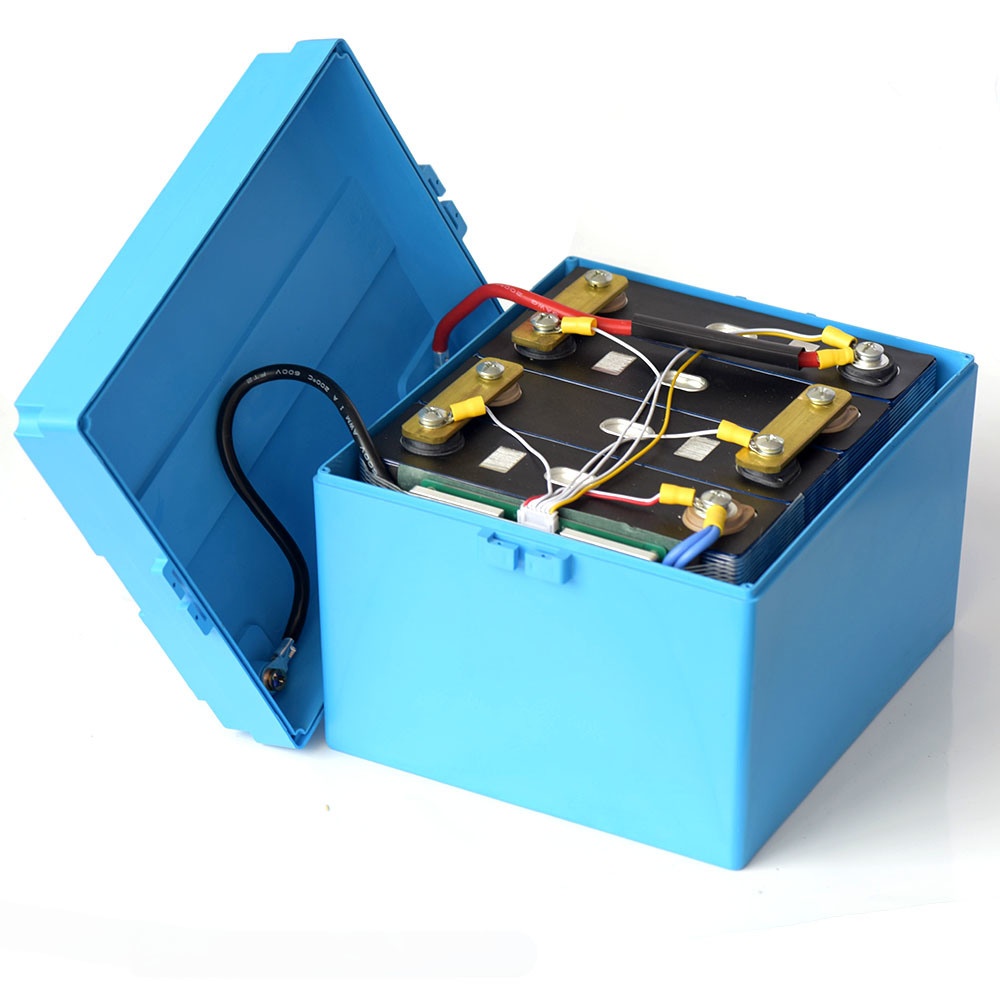

12v 100ah lifepo4 battery specification:
Nominal Voltage: | 12V |
Nominal Capacity: | 100Ah |

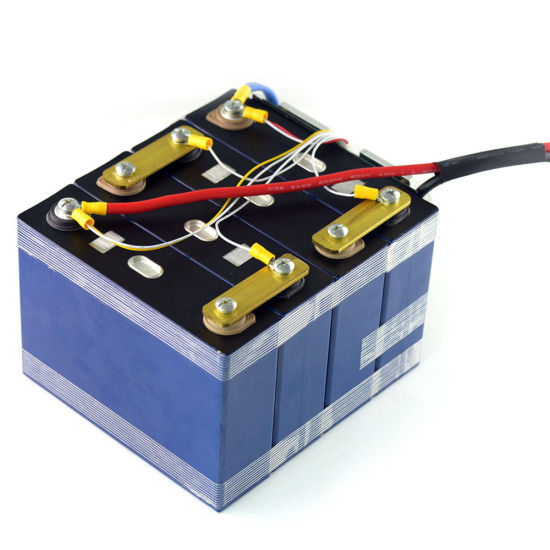

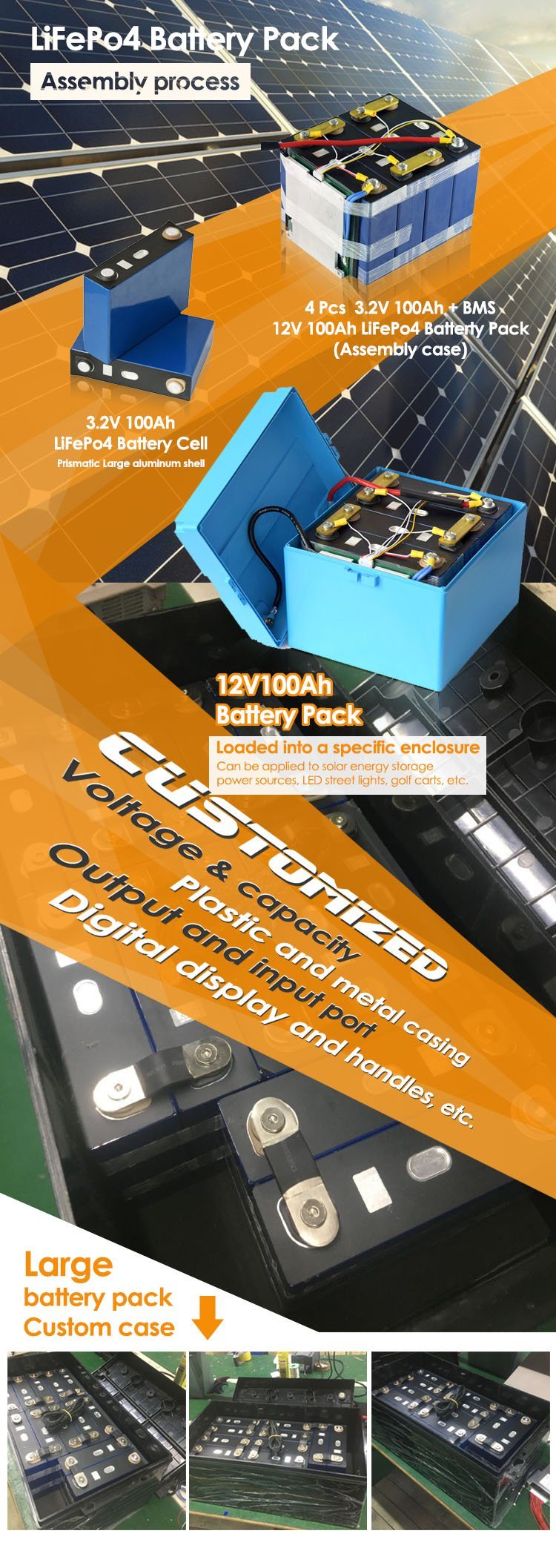

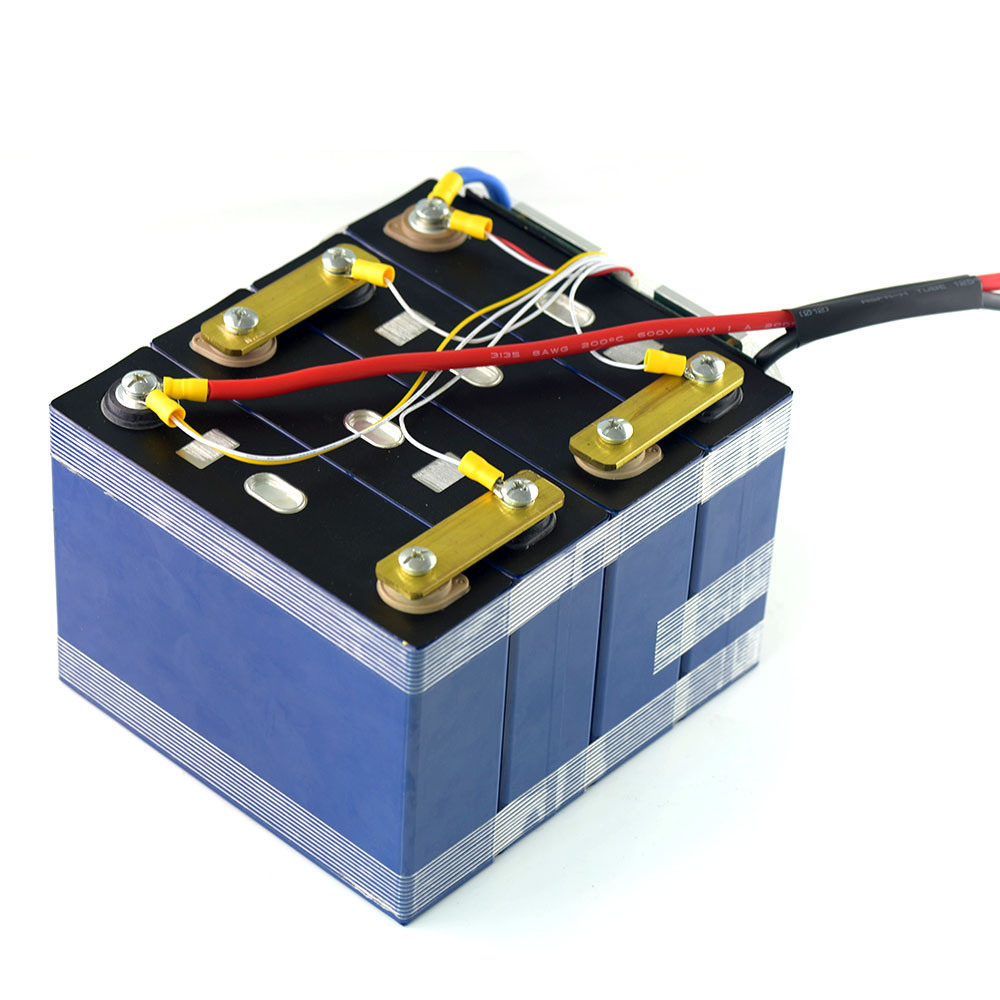

Battery Type: | 4S1P Lifepo4 3.2v 100 cell |
Weight: | ≤15Kg |
Internal Resistance: | ≤420mΩ |

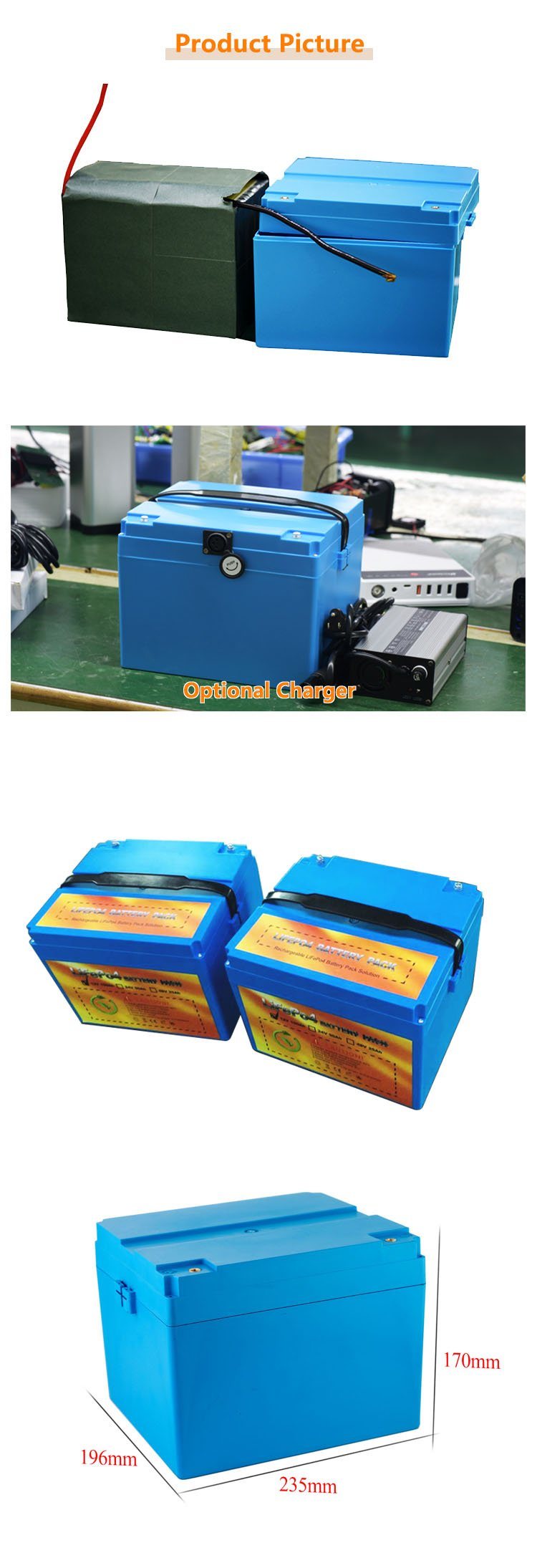

Size: (LxWxHmm) | 195*175*230mm |
End of charge Voltage: | 14.6V |
End of charge Current: | 100mA |
End of discharge Voltage: | 9.2V |
Charge Method: | 0.2C(0.5A) CC/CV |
Max.Continuouscharge currnt: | 50A |
Nominal Discharge Current: | 100A |
Max. Pluse Discharge Current: | 150A/10S |
Operating Temp.: | Charge: 0~45ºC |
Discharge: -10~55ºC | |
Storage Temp.(60-80% SOC Storage): | -10~45ºC |
Cycle Life: | 2000 Times |
BMS protection: | Over-charge,over-discharge,over-current,Short-circut |
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Company Information:
1. 12 Years professional manufacturering experience.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service; or our current models.
4. Fast delivery; Professinal and quality 100% QC inspection.
1:Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
2: Do you provide after-sales serive?
Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
5: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
