DL-4S1P12100
>12V
Li-ion

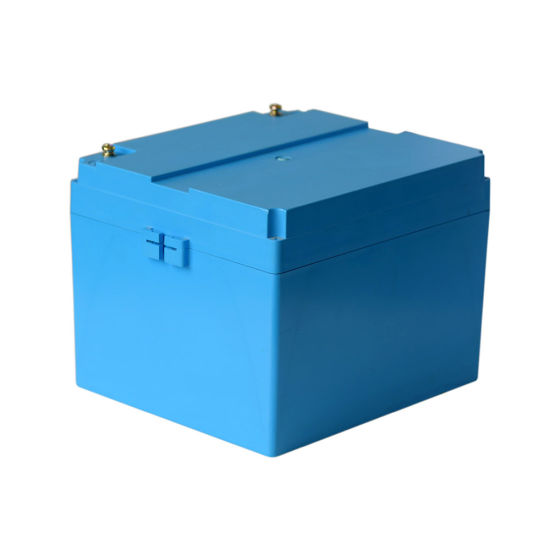

LiFePO4 Battery 12V 100ah for Motor Homes
LiFePO4
4s1p
10.5kg
H170mm*W196mm*L235mm
Plastic
Ce,RoHS,FCC
Touring Car,Solar System
DELONGTOP
Standard Export Package
LiNiCoMnO2
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Chargers
Lifepo4 battery 12v 100ah for motor homes
SpecificationBasic Spec | ||
Model | 12V100Ah | |
Single cell voltage | 3.2V | |
D×W×H | H130mm*W200mm*L400mm | |
Nominal Voltage | 12V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage
| 14.6V | |
End of charge Current
| 100mA | |
End of discharge Voltage
| 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current
| 150A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45ºC |
Discharge | -10~55ºC | |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 1500 times(Cycle @RT, 1C rate,100%D\OD) | |
Advantages
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Services
1).Professional lithium ion battery pack for over ten years,and have our own factory.
2).Strong R&D team to support.
3).Offer OEM service for customer's order.
4).Quick reply and action.
5).Competitive price, good sale and after-sales service.
Q.What about the Guarantee of battery pack ?
A.DEL battery can offer full no-hassle Limited Lifetime Warranty .New battery will be sent to you in your next bulk order for free if there is any quality problem of it.
Q.Will any damage or security risks be caused to customers when using battery pack?
A.NO! DEL battery is using a high-quality battey cells and circuit safety equipment,all of DEL battery pack are with approved of CE/RoHS/FCC. The built-in protection circuit & automatic buck-boost circuit, can prevent overcharge, over-discharge, over-current and short circuit.
Q.How long will battery be used?
A.With in-built high capacity Lifepo4 battery,DEL power bank charger can be charged more than 1500 times. It will be more than 2-3 years for the using lifetime with a daily frequency count on one charge.
Q.What is the lead time?
A.Sample is5-7 working days, mass production time is 12-20 working days for bulk order .
Q.Can I have a sample even pre-production before I send you the order?
A.Yes, samples order to test products quality is welcome.
Q.Where are you based?
A.As a MANUFACTURER,DEL Technology Limited is located in Shenzhen City,China.
Q.What if I have more questions?
A.Simply use the Contact form and we will answer your questions as soon as possible.
