English
 |
| Quantity: | |
|---|---|
Shenzhen, China
1000set/Week
T/T, Paypal, Money Gram
DL-12200
12V
200ah
Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
Li-ion
>2000 Times 100% Dod
3 Year
T/T, Paypal
OEM
Export Carton
360*270*190MM
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
12V 200ah lifepo4 battery specification:
We have 12V 200Ah lifepo4 battery pack with different cells, contact us for more information.
Deep Cycle Solar Battery Storage Batteries 48V 50ah lifepo4 battery pack
| Nominal voltage | 12V |
| Nominal capacity | 200ah(OEM) |

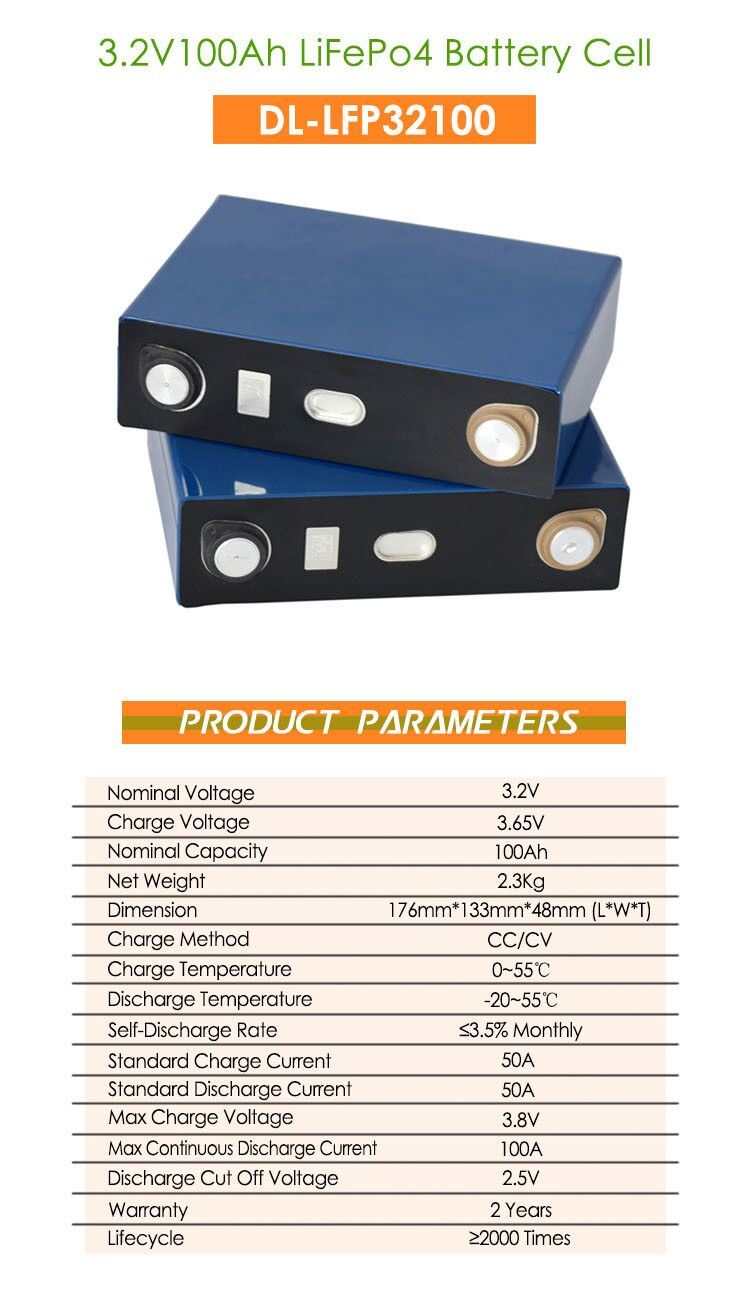

| Battery type | Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell |
| Model | DL-12200 4S2P |
| Battery configation | 4S2P |
| Internal resistance | ≤420mΩ |
| End of charge voltage | 14.6V |
| End of charge current | 200mA |
| End of discharge voltage | 9.2V |
| Charge method | CC/CV(constant current/constant voltage) |
| Max continuous charge current | 50A-100A |
| Max continuous discharge current | 100A |
| Max pulse discharge current | 200A/10S |
| Net weight | 200ah:25kg |
| Case material | Waterproof ABS case or metal case or stainless steel case |
| Case dimension | 200ah :360*270*190mm ( all dimension can be customized ) |
| Warranty | 2 years. 3 years for seller |
| Built-in BMS | Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc |
| Terminal Type | M8 or anderson or another bolt screw |
| Lifecycle | Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod |
| Charge temperature | 0~45ºC |
| Discharge temperature | -20~60ºC |
| Storage temperature | -10~45ºC |
| Certificate | CE, RoHS ,MSDS and UN38.3 certification |
| Parallel assembly | up to 10 items (48V-1000Ah) |
| Enclosure Protection | IP65- IP67 available |

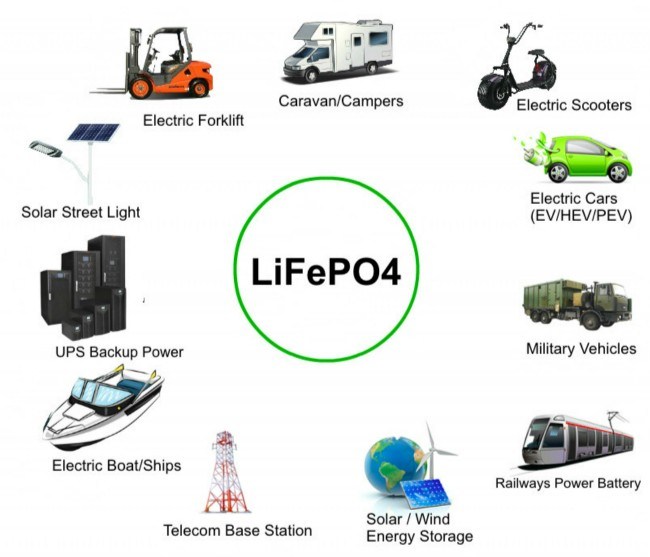

·Electric Vehicles, such as E-bike, E-scooters,golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs
·Electric boats, such as trolling fishing boat
·Robots for industries and military
·Remote data transfer system
·Satellite communication station
·Un-manned aircrafts
·Power tools, such as drilling, cutting and polishing tools
·Power supplier for Training systems, such as Trainer

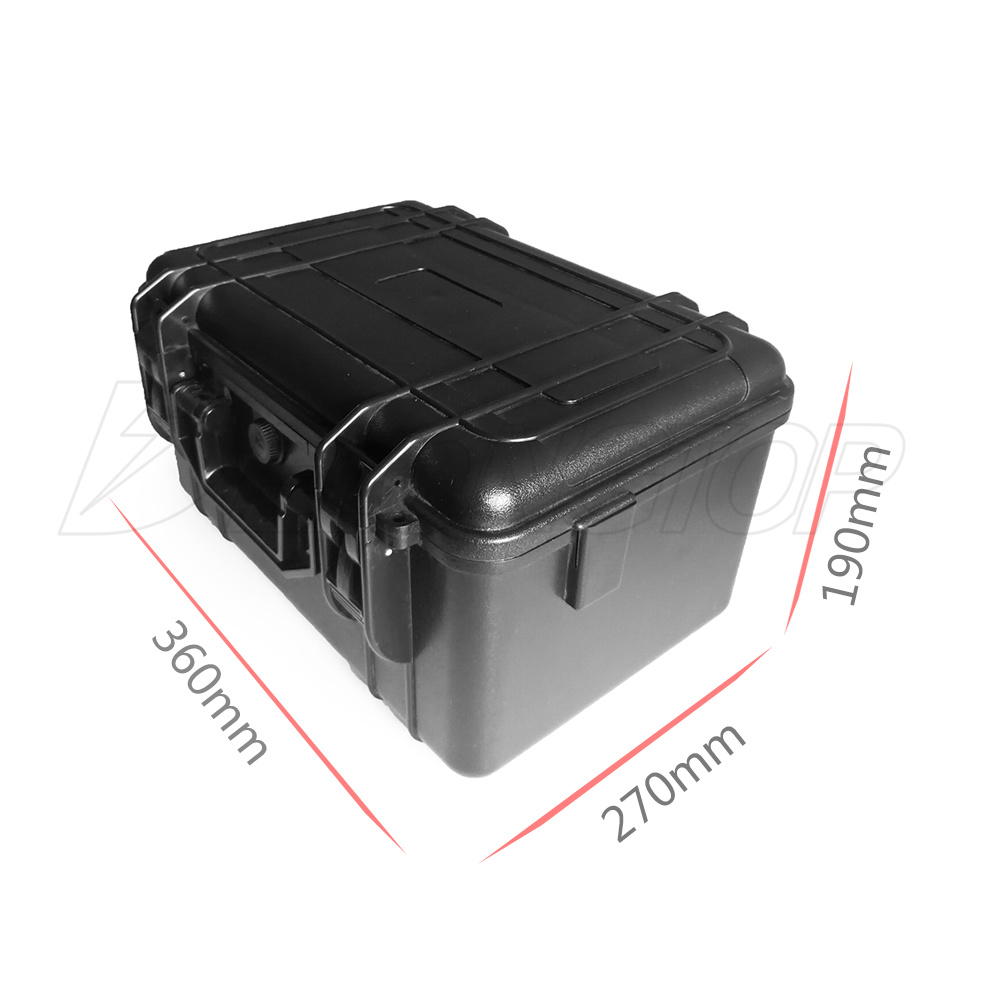

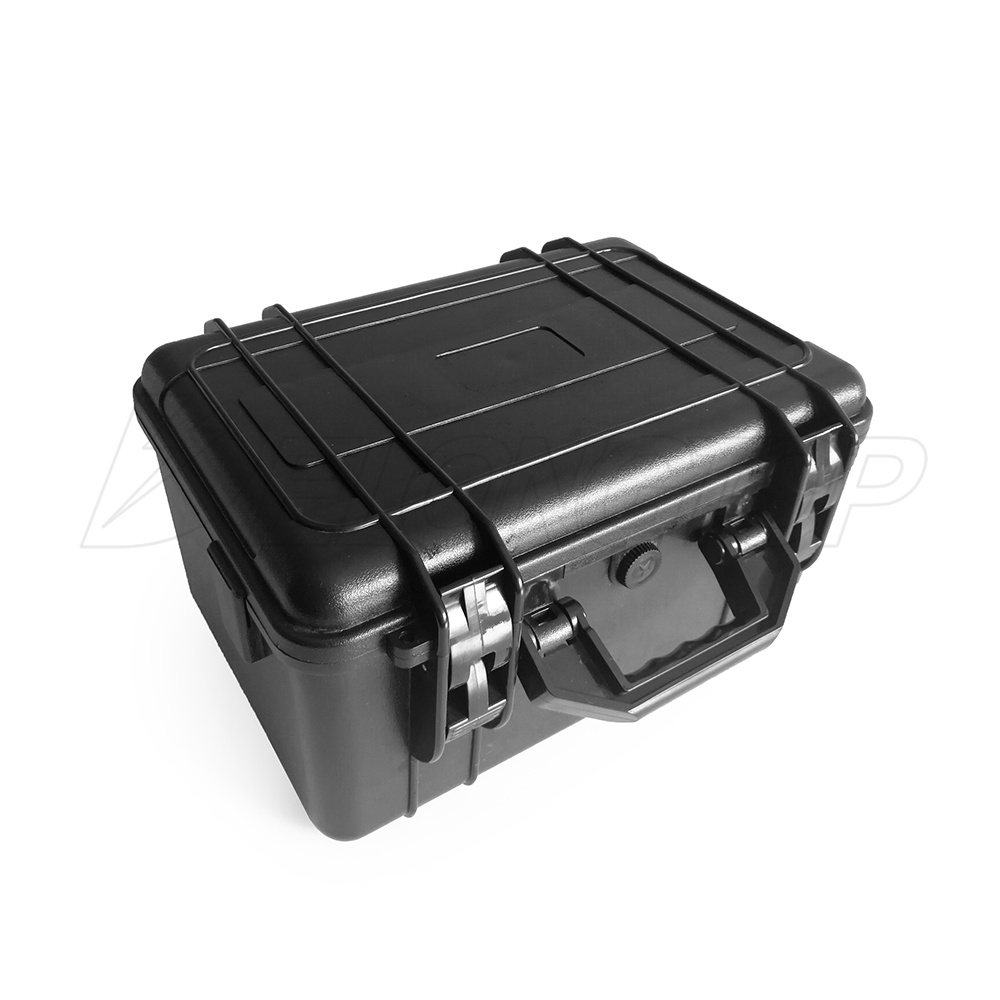

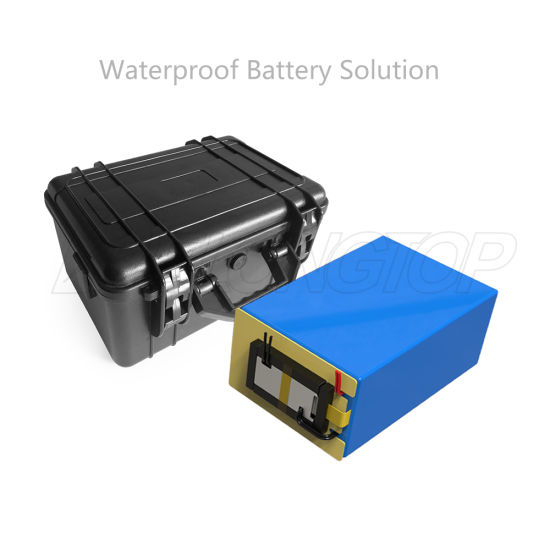

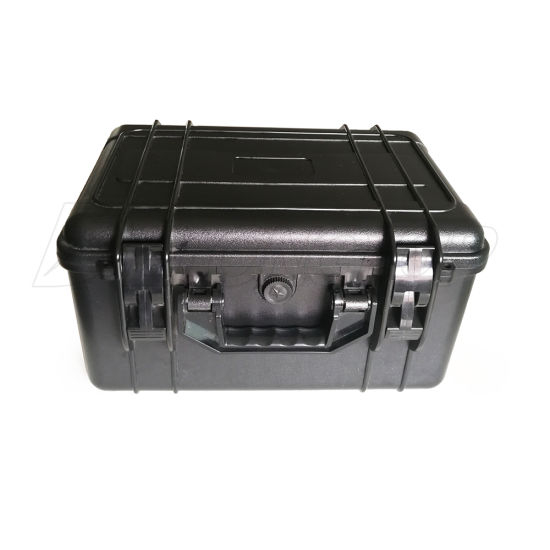

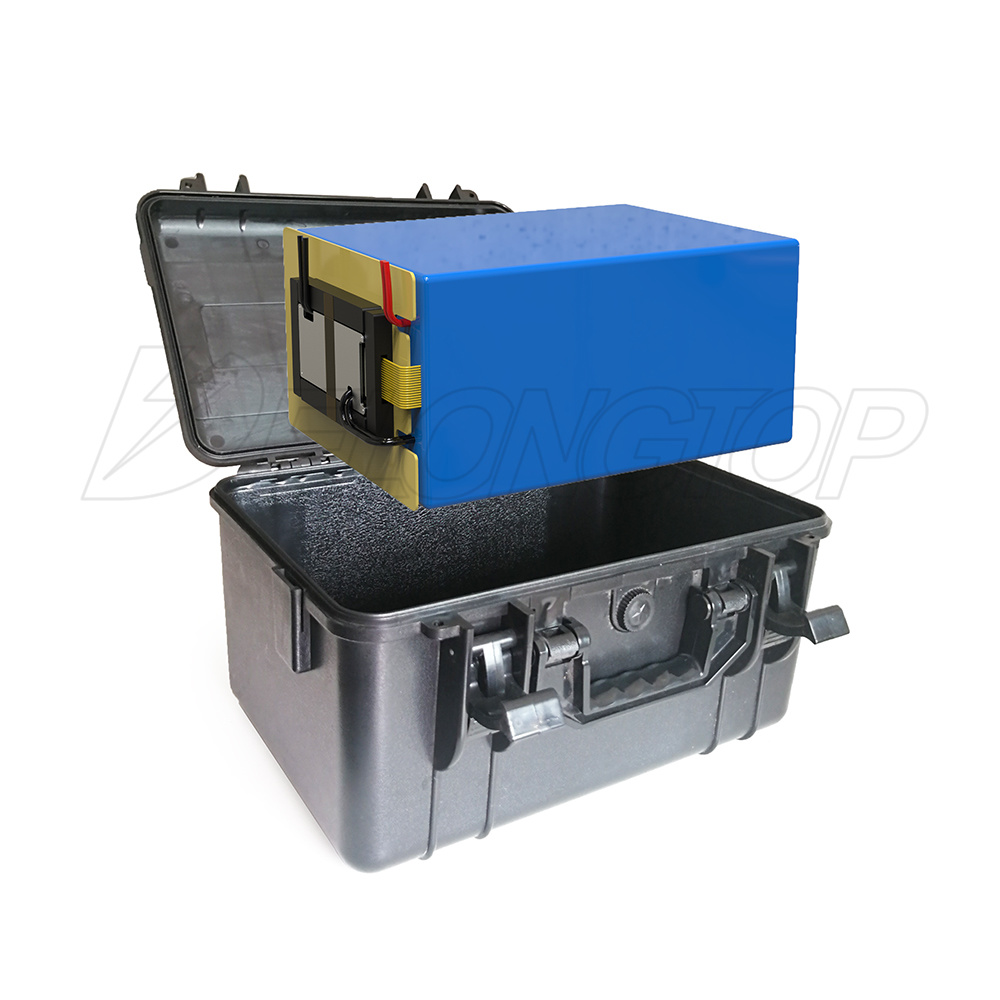

Photos of 12V 200ah lifepo4 battery ( can do 24V 100ah /48V 50ah) :

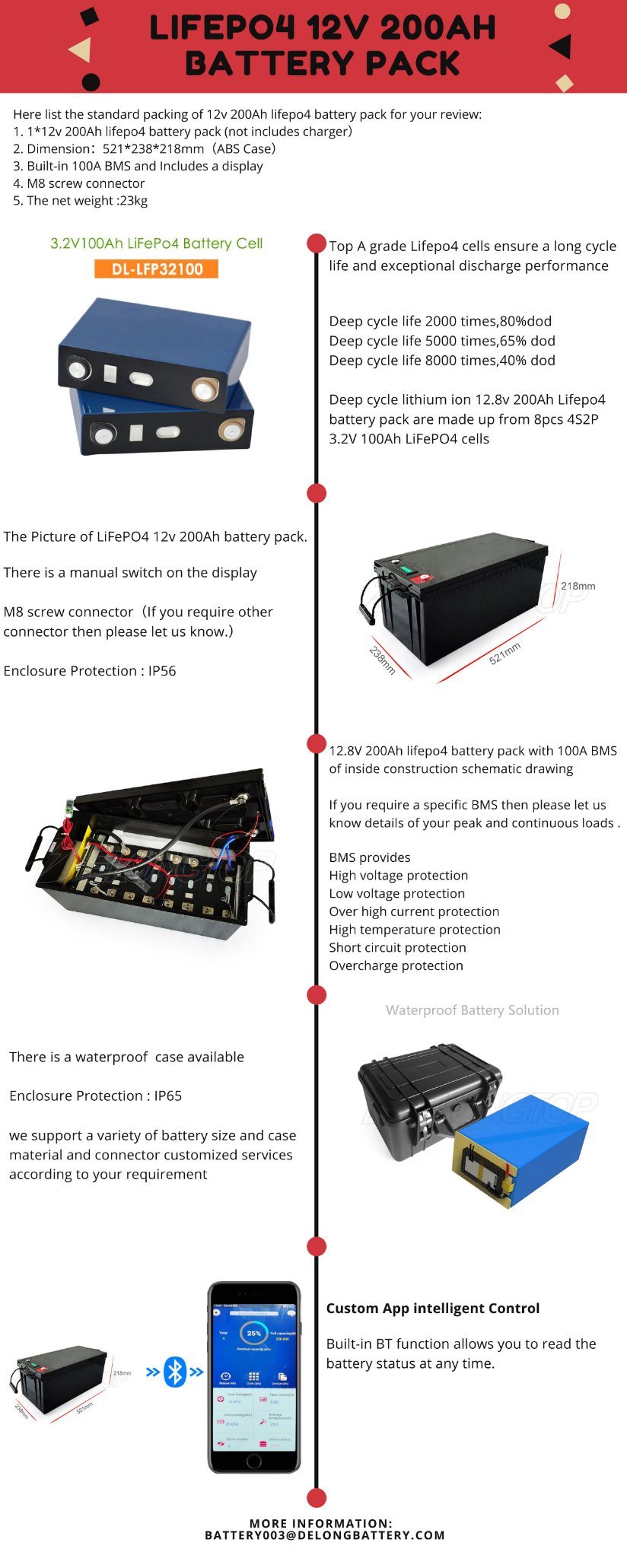

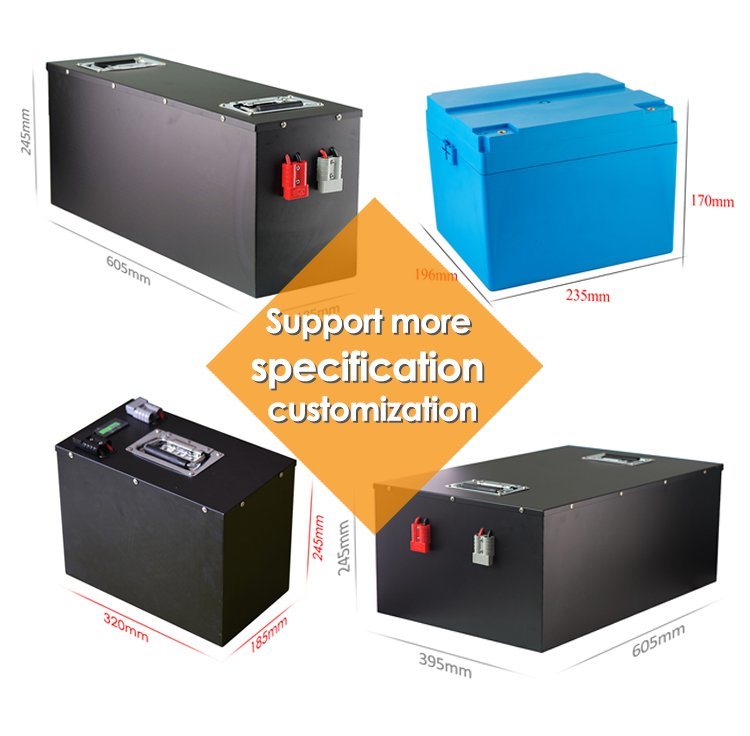

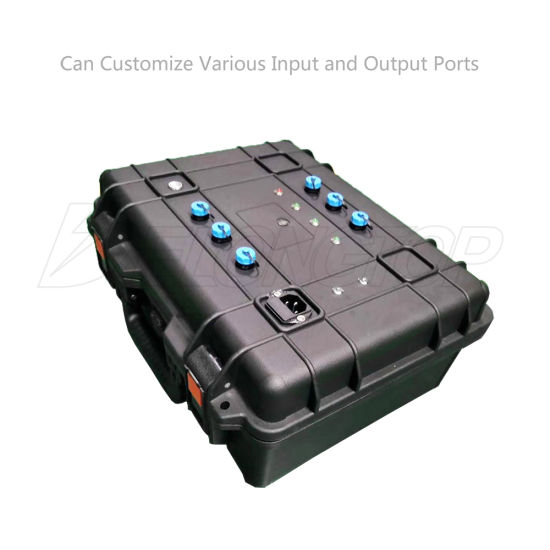

Other lifepo4 battery pack design example:

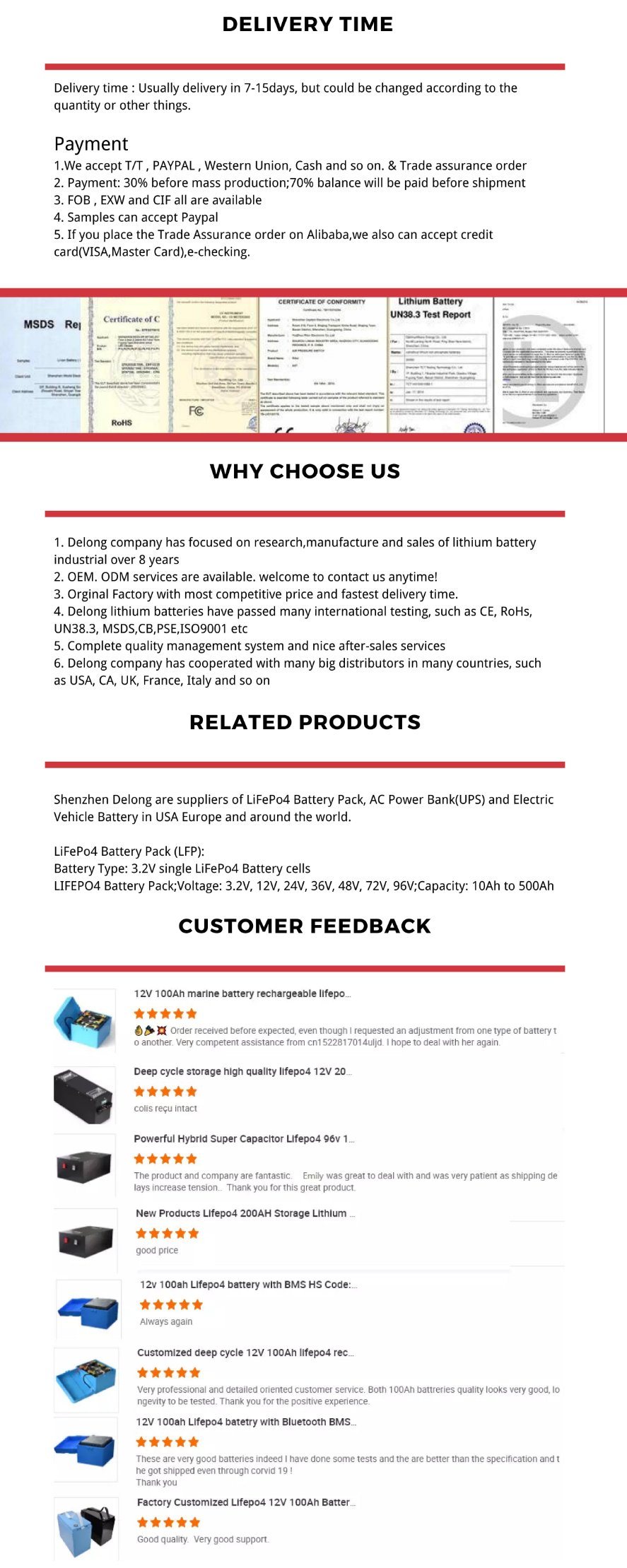

Our advantages:
Other products:
FAQ:
Q: Are you trading company or manufacturer?
A: We are DELONG original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
