Factory Customized Deep Cycle Built-in BMS 12V 600ah LiFePO4 Lithium Ion Battery Pack from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 12V LiFePO4 Battery / Factory Customized Deep Cycle Built-in BMS 12V 600ah LiFePO4 Lithium Ion Battery Pack

Port:
Shenzhen, China
Production Capacity:
10000set/Week
Payment Terms:
T/T, Paypal, Money Gram
Model NO.:
DL-12600
Rated Capacity:
600ah
Standard Voltage:
12V
Usage:
Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
Electrolyte:
Li-ion
Cycle Life:
>2000 Times
Warranty:
2 Year
Payment:
T/T, Paypal
Trademark:
OEM
Transport Package:
Export Carton
Specification:
680*510*170mm
Origin:
China
HS Code:
8507600090
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
Medium Discharge Rate
Size:
Medium
Accessories Type:
Battery

Product Description

Delong Factory Offer you:

1:ORIGINAL FACTORY DIRECT LOWEST PRICE.
2:NICE QUALITY. PASS CERTIFICATION
3:WITHOUT MOQ. SMALL SAMPLE ORDER WELCOME.
4:QUICK SHIPPING WITHIN 15 DAYS.
5:ONLINE PAYMENT
6:FACTORY 3 YEAR WARRANTY, SUPPORT 7 DAYS REFUND.
7:AFTER SALES SERVICES 24 HOURS.

Specs:

Pro Description

Lifepo4 Battery Pack 12v 600ah for RV Camping Caravan AGV UPS Storage Battery
Nominal voltage	12.8V
Nominal capacity	200ah/300ah/400ah/500ah/600ah(OEM)
Battery type	Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell
Model	DL-12200/4S2P DL-12300/4S3P DL-12400/4S4P DL-12500/4S5P DL-12600/4S6P
Battery configation	4S2P 4S3P 4S4P 4S5P 4S6P
Internal resistance	≤420mΩ
End of charge voltage	14.6V
End of charge current	200mA
End of discharge voltage	9.2V
Charge method	CC/CV(constant current/constant voltage)
Max continuous charge current	50A ( suggetsion), 100A also ok
Max continuous discharge current	100A
Max pulse discharge current	200A/10S
Net weight	200ah:around 26kg ,300ah: 40kg, 400ah: 45kg, 500ah: 56kg, 600ah: 80kg
Case material	ABS or metal case or stainless steel case
Case dimension	600ah :680510170mm ( all dimension can be customized )
Warranty	2 years. 3 years for seller
Built-in BMS	Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc
Terminal Type	M8 or anderson or another bolt screw
Lifecycle	Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod
Charge temperature	0~45ºC
Discharge temperature	-20~60ºC
Storage temperature	-10~45ºC
Certificate	CE, RoHS ,MSDS and UN38.3 certification
Parallel assembly	up to 10 items (48V-1000Ah)
Enclosure Protection	IP56 or customized IP67 available

Lithium Battery Advantage:
( Reasons for Why you choose Lithium battery to replace lead acid battery )

1. Long cycle life than lead acid Battery
-at least 2000 times - 8000 times 40% dod
2.Less half the weight of similar-capacity than lead-acid batteries
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A)
5.No maintenance required

6. No battery memory
7.Almost no temperature derating effects
8. 95% energy efficient

Photos example:

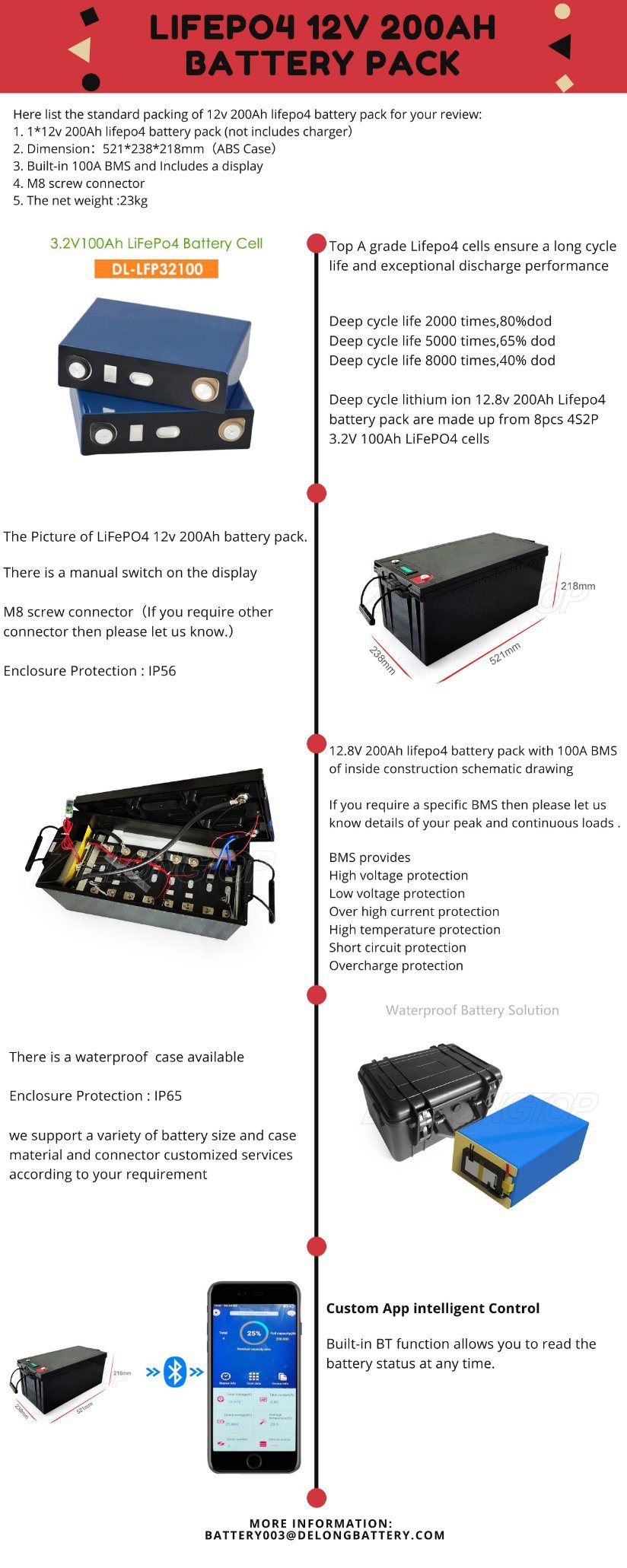

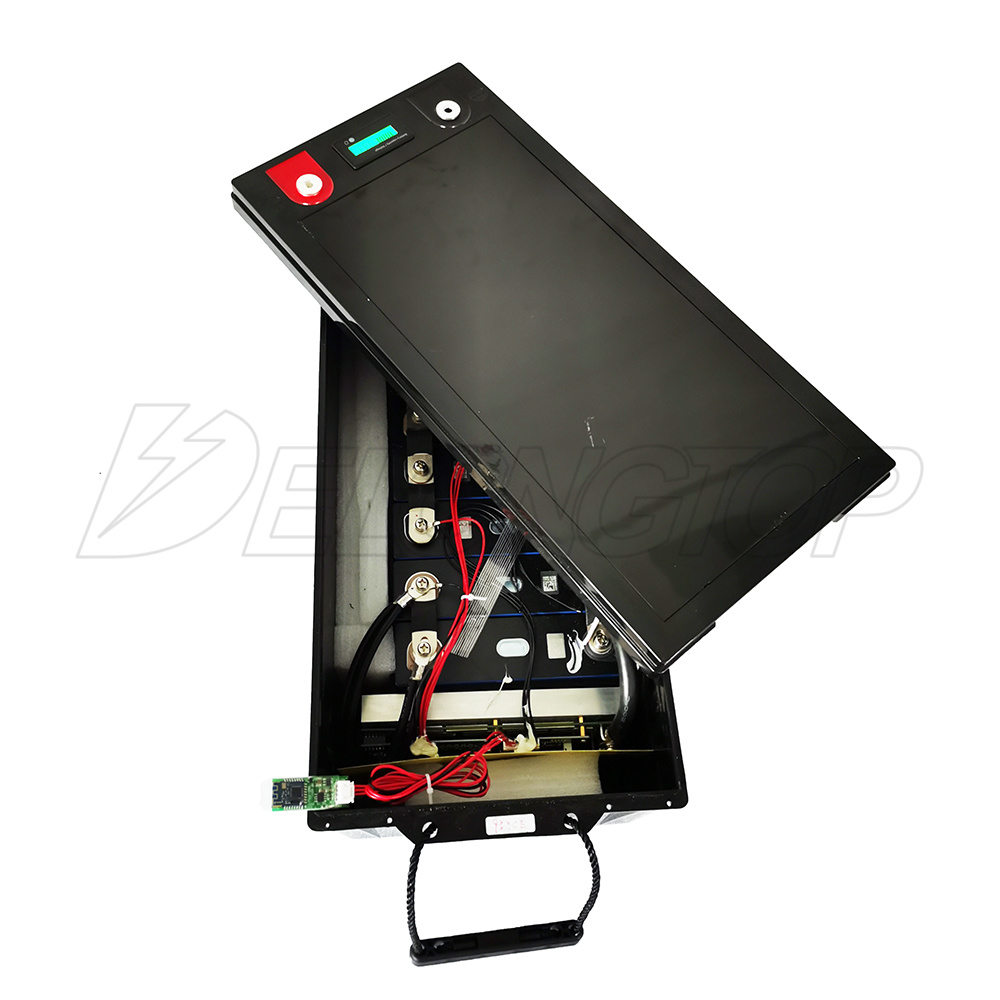

Photos of 12v 200ah lifepo4 battery ( welcome to contact for more detail)

Factory Customized Deep Cycle Built-in BMS 12V 600ah LiFePO4 Lithium Ion Battery Pack

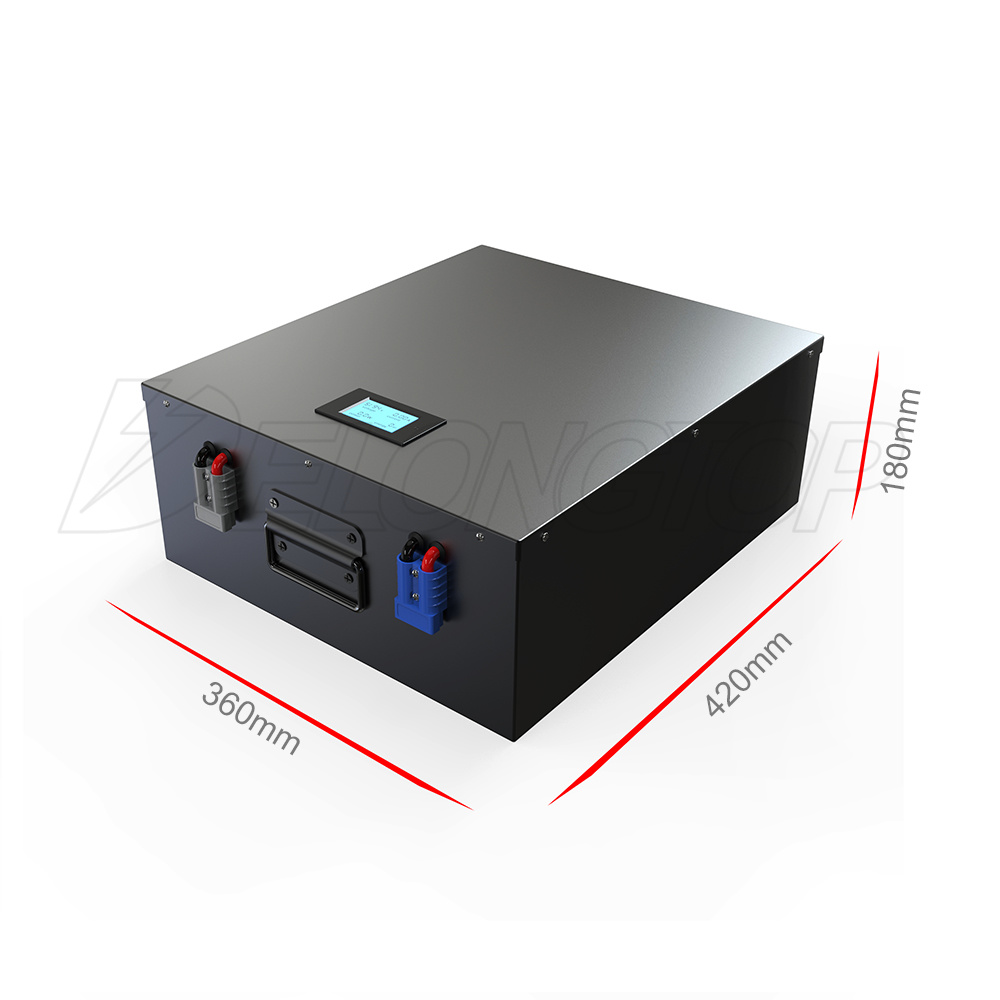

Photos of 12v 300ah lifepo4 battery

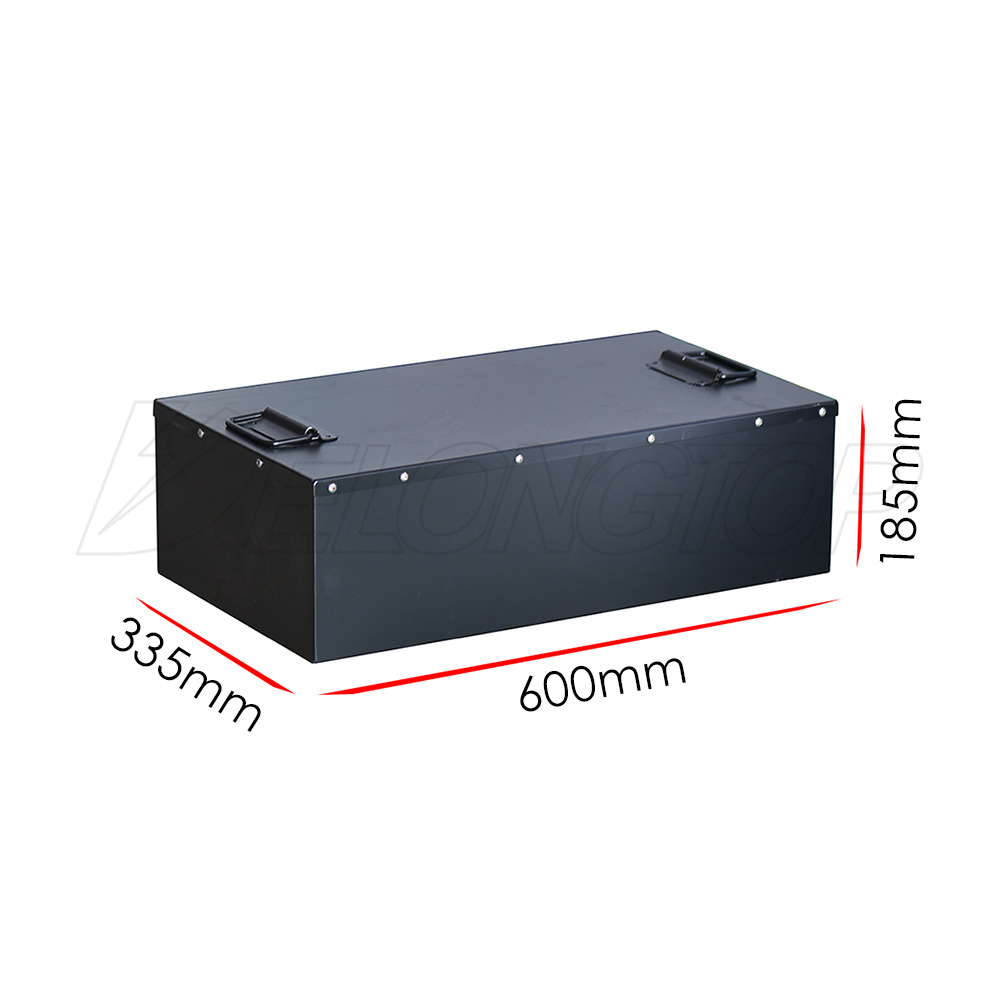

Photos of 12v 400ah lifepo4 battery

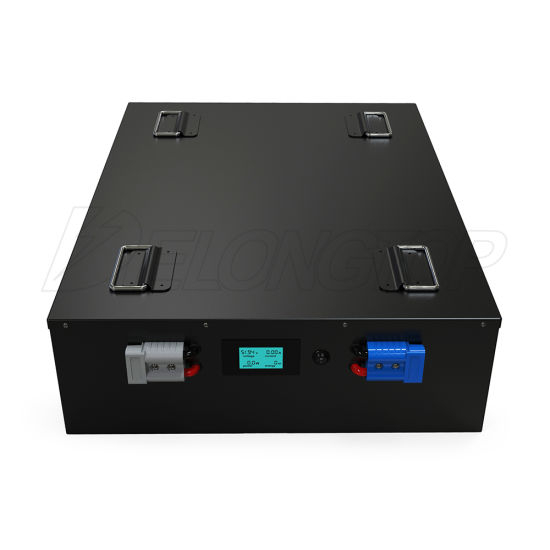

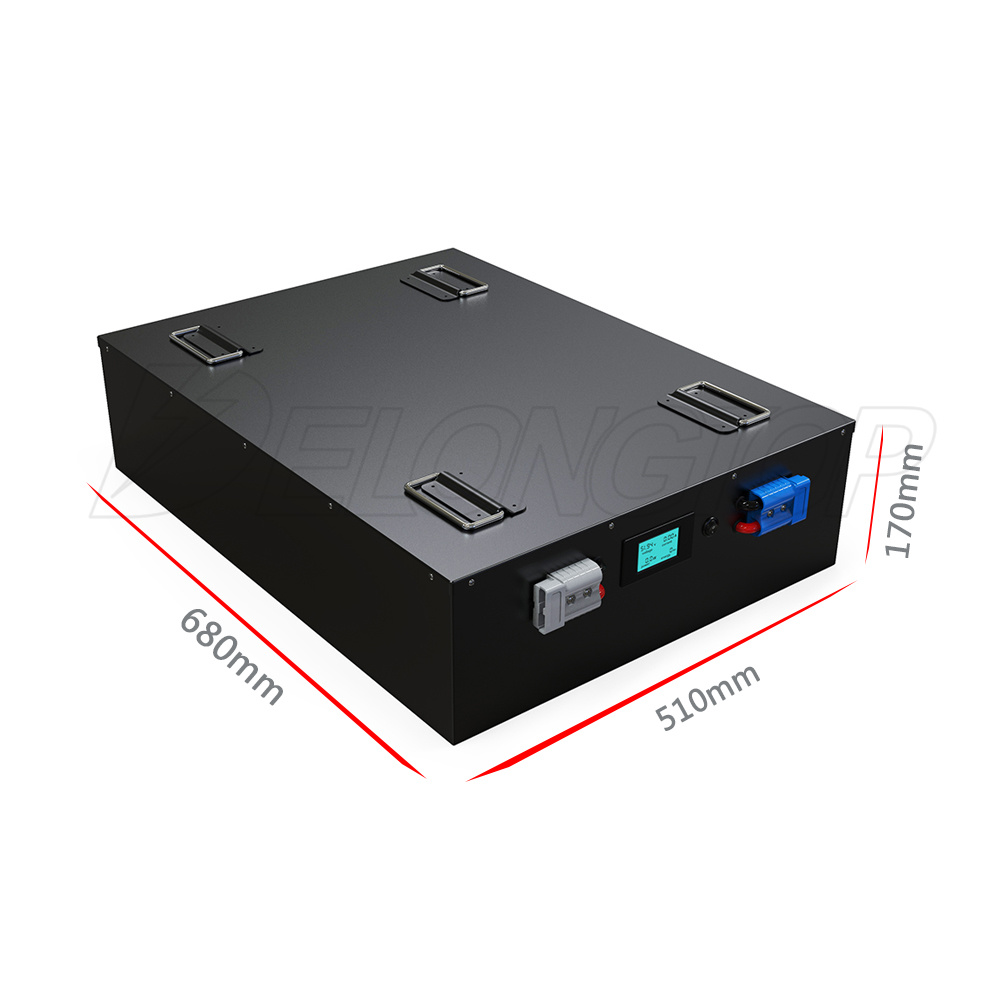

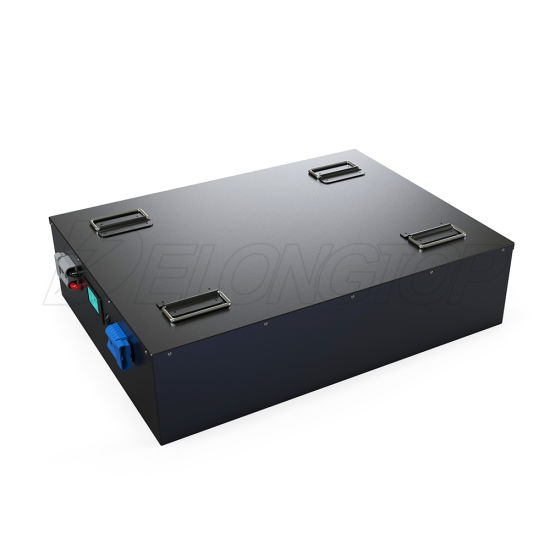

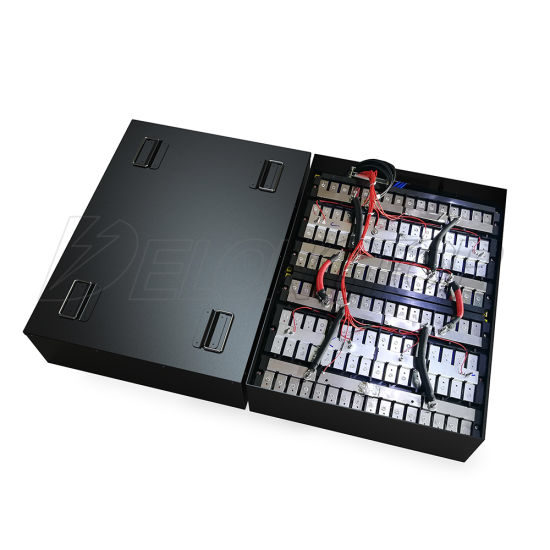

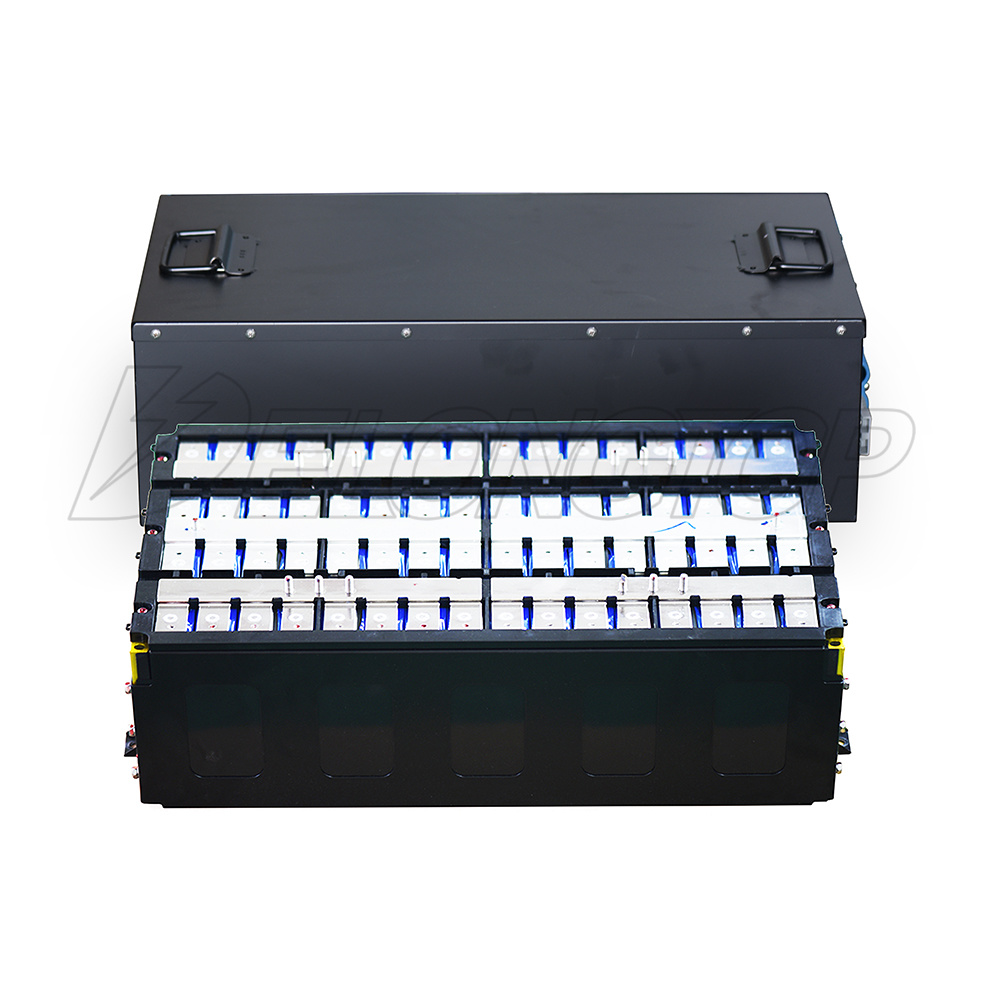

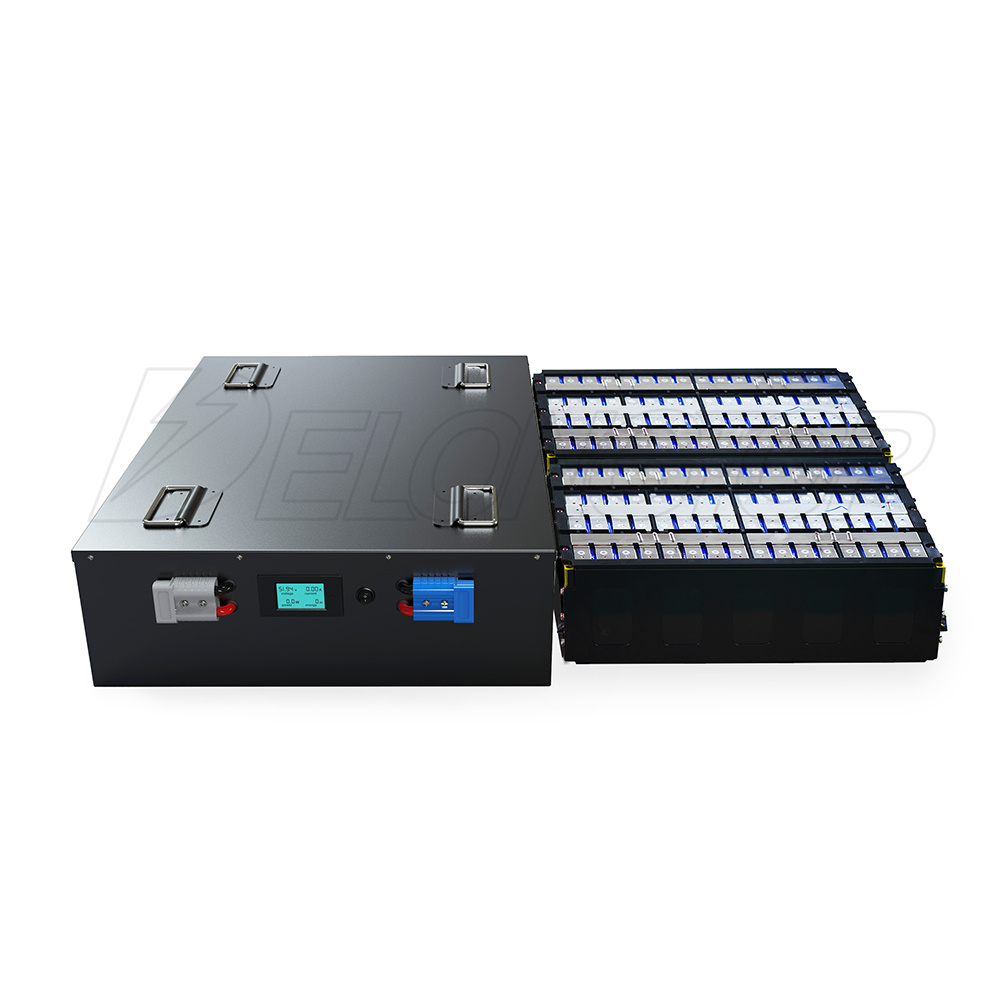

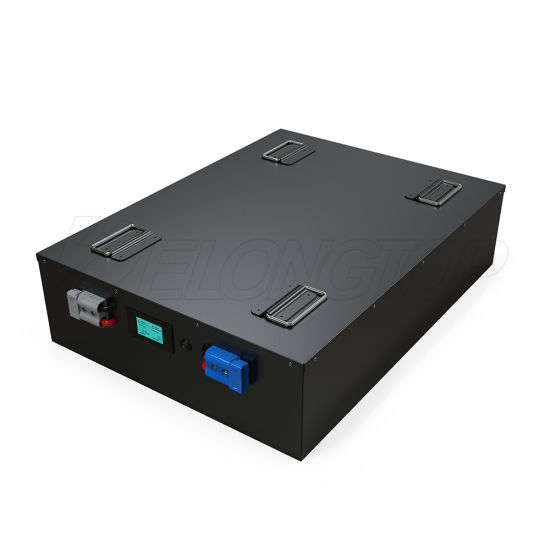

Photos of 12V 600ah lifepo4 battery:
Factory Customized Deep Cycle Built-in BMS 12V 600ah LiFePO4 Lithium Ion Battery Pack

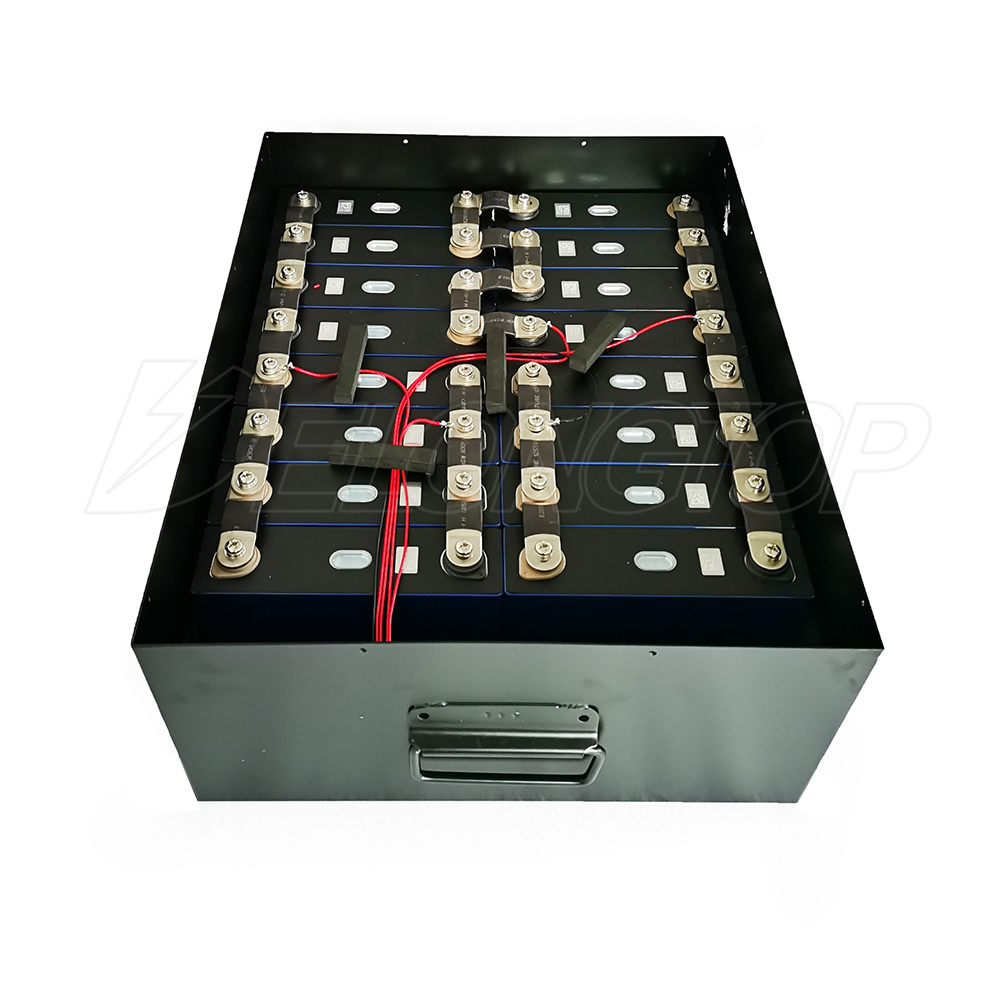

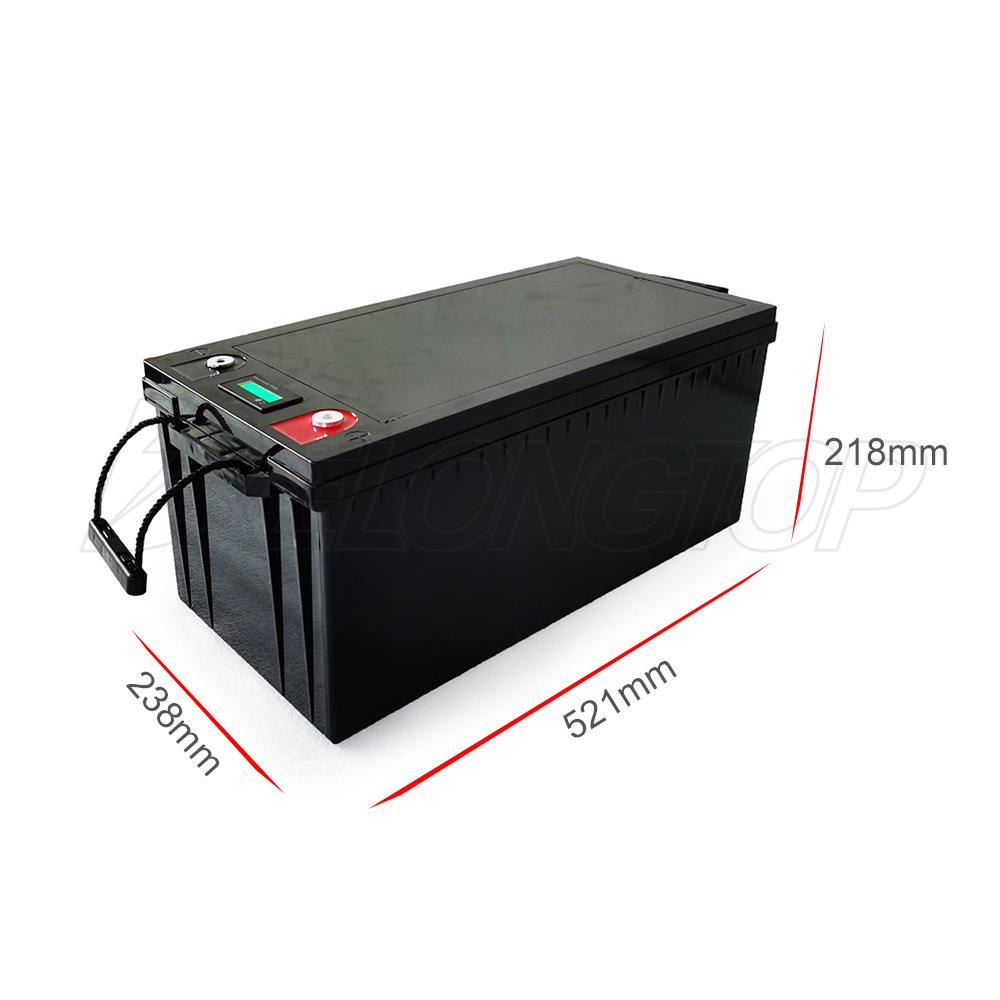

Other Lifepo4 battery pack for 12v 200ah battery:
Factory Customized Deep Cycle Built-in BMS 12V 600ah LiFePO4 Lithium Ion Battery Pack

Product Applications

Applications of 12V lifepo4 battery :

♦ Solar-Wind Power System

♦ City Grid (On/Off) Back-up solar System and UPS

♦ Power tools: electric drills, toys Energy Storage

Electric Propelling Applications

♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.

♦ Intellectual Robots

♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment Other Applications

♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

Packing&Shipping

Delivery time :

Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to quanity or other reason.

Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

★ Delong company has focused on research,manufacture and sales of lithium battery industrial over 8 years

Original factory+Competitive price+ Reliable after-sales services +Complete quality management system+Real certificate(CE,RoHs, UN38.3, MSDS ETC)+ Cooperated with many big distributors in many countries, such as USA, CA, UK, France, Italy and so on

Company Introductio

Other on-line contact way:

WA: +86 17325986629

Customer Feedback

FAQ

Q: Are you trading company or manufacturer?
A: We are DELONG original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
