| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Paypal
DL-12100
100ah
12V
Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
Li-ion
>1500 Times
3 Year
OEM
Export Carton
235*196*170mm
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
12v 100ah lifepo4 battery specification:
We have 12V 50-400Ah lifepo4 battery pack spec., contact us for more information.
Nominal Voltage: | 12V |
Nominal Capacity: | 100Ah |
Battery Type: | 4S4P Lifepo4 3.2v 25 cell |
Weight: | ≤11Kg |
Internal Resistance: | ≤420mΩ |

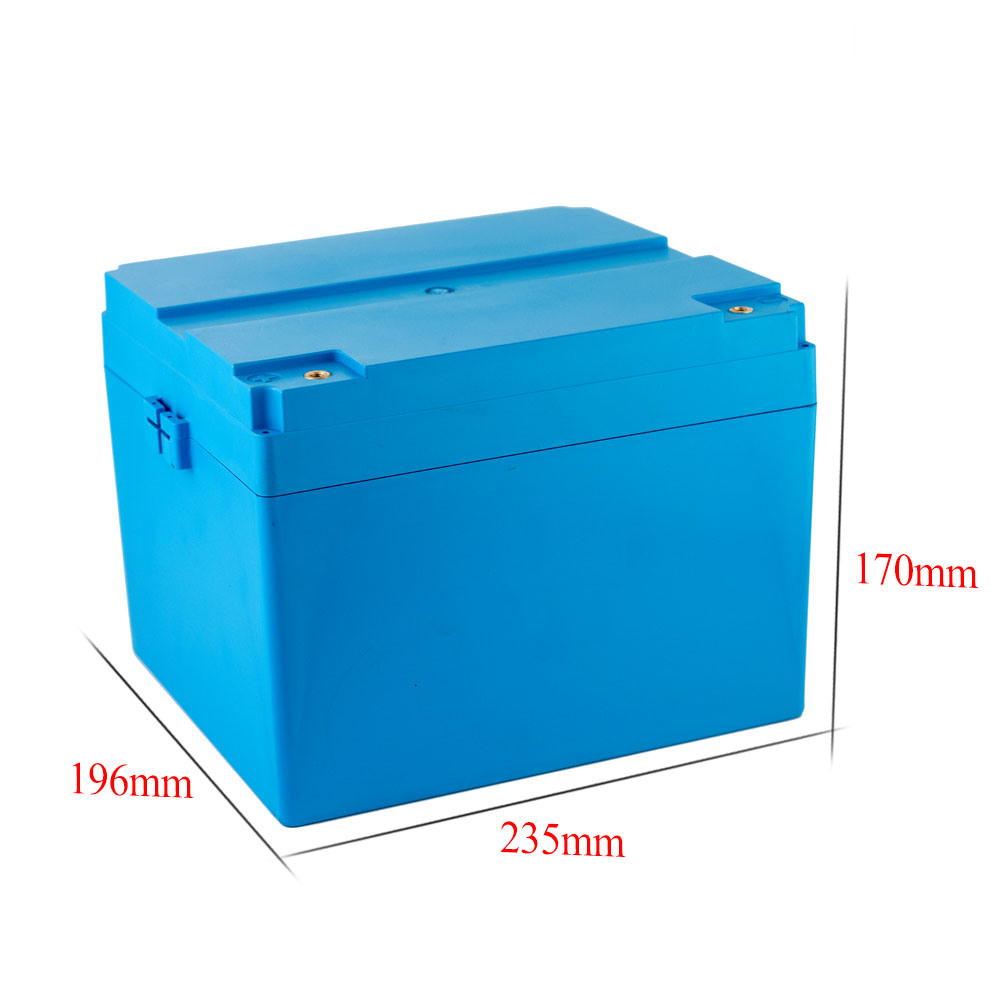

Size: (LxWxHmm) | 235*196*170mm |
End of charge Voltage: | 14.6V |
End of charge Current: | 100mA |
End of discharge Voltage: | 9.2V |
Charge Method: | 0.2C(0.5A) CC/CV |
Max.Continuouscharge currnt: | 50A |
Nominal Discharge Current: | 100A |
Max. Pluse Discharge Current: | 150A/10S |
Operating Temp.: | Charge: 0~45ºC |
Discharge: -10~55ºC | |
Storage Temp.(60-80% SOC Storage): | -10~45ºC |
Cycle Life: | 2000 Times |
BMS protection: | Over-charge,over-discharge,over-current,Short-circut |
Warranty: | 3 years |
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

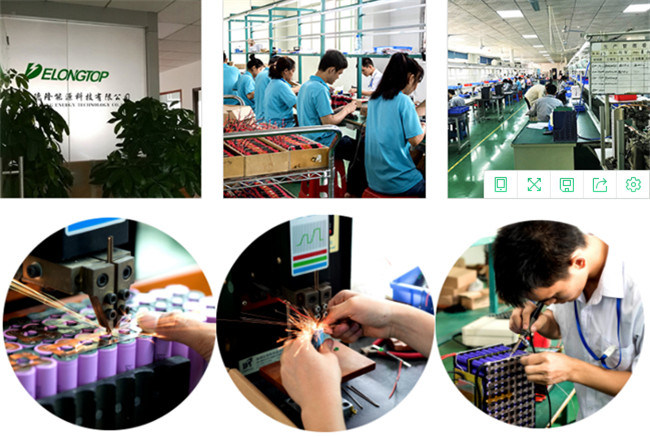

Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a Professional New Energy Supplier in China focusing on the manufacture, research and sale of lithium ion battery product worldwide. It was established in 2006 and becoming the leading player in the new energy field through development. Delong company intergrates the cell manufacturing and offer of power solution in according to different application purpose.Our products are widely applied on digital device battery,high discharge rate battery, powerful electric vehicles battery, low and high temperature lithium ion battery, power storage and back-up battery pack etc.
1. 12 Years professional manufacturering experience.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service; or our current models.
4. Fast delivery; Professinal and quality 100% QC inspection.
1:Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
2: Do you provide after-sales serive?
Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
5: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
