English
 |
| Quantity: | |
|---|---|
Shenzhen, China
1000
T/T, Paypal
DL-12100
100ah
12V
Solar RV
Li-ion
4s 100A BMS
329*195*180mm
delong
12v 100ah
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Small
Battery
excellent RV battery 12v 100ah deep cycle rechargeable lithium ion batteries
SpecificationBasic Spec | ||
Model | 12V 100Ah lifepo4 battery | |
Single cell voltage | 3.2V | |

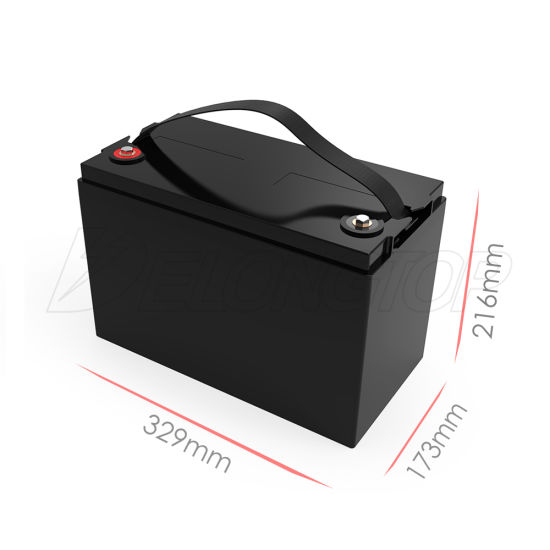

D×W×H | 329*172*217mm | |
Nominal Voltage | 12V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage
| 14.6V | |
End of charge Current
| 100mA | |
End of discharge Voltage
| 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current
| 200A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45ºC |
Discharge | -10~55ºC | |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 3000 times(Cycle @RT, 1C rate,85%D\OD) | |
excellent RV battery 12v 100ah deep cycle rechargeable lithium ion batteries :
Characteristics of 12V 100ah lifepo4 batteries:
Long cycle life: cycle life is 5 times higher than lead-acid battery, better reduce the comprehensive use cost
Light weight: about 40% lighter than lead-acid batteries, is the best alternative to lead-acid batteries
Li 12V 100Ah Lithium Iron Phosphate Battery. Widely used in RV, marine and Solar applications
Extended lifespan- with more than 2000 cycles. The service life is more than double that of traditional lead acid batteries
The built-in battery protection system optimizes the Battery performance by automatically balancing the cells and providing multiple protections against: over-charging, over-discharging, over-current, short-circuit and over-temperature
DO NOT string this battery in series. It is made ONLY FOR PARALLEL CONNECTIONS using identical batteries

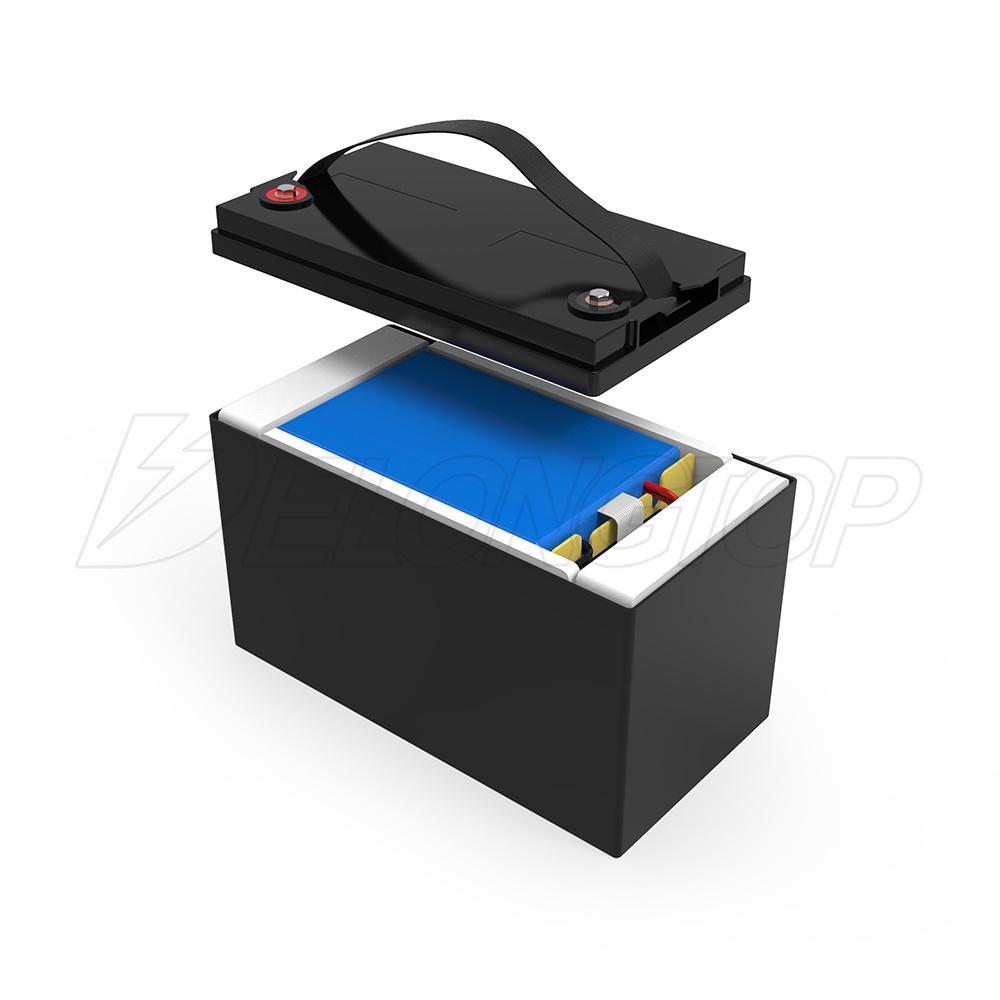

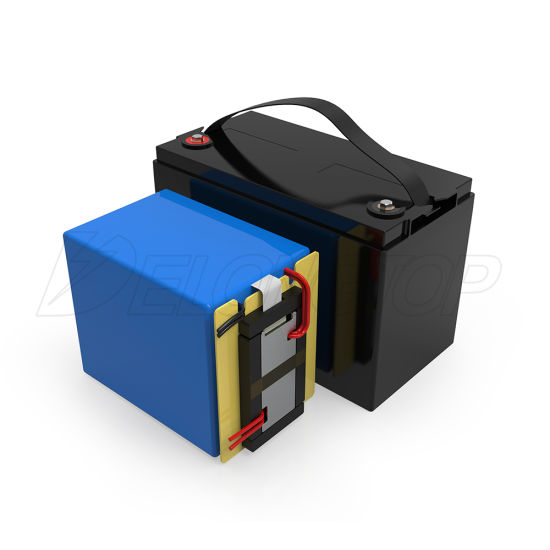

excellent RV battery 12v 100ah deep cycle rechargeable lithium ion batteries use 3.2v 50ah lifepo4 pouch cells with 4s 100a BMS

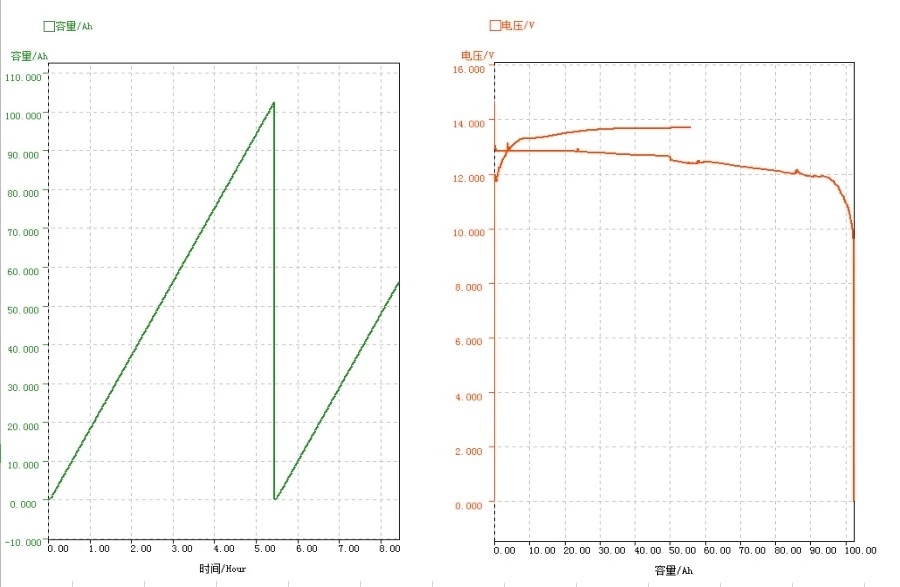

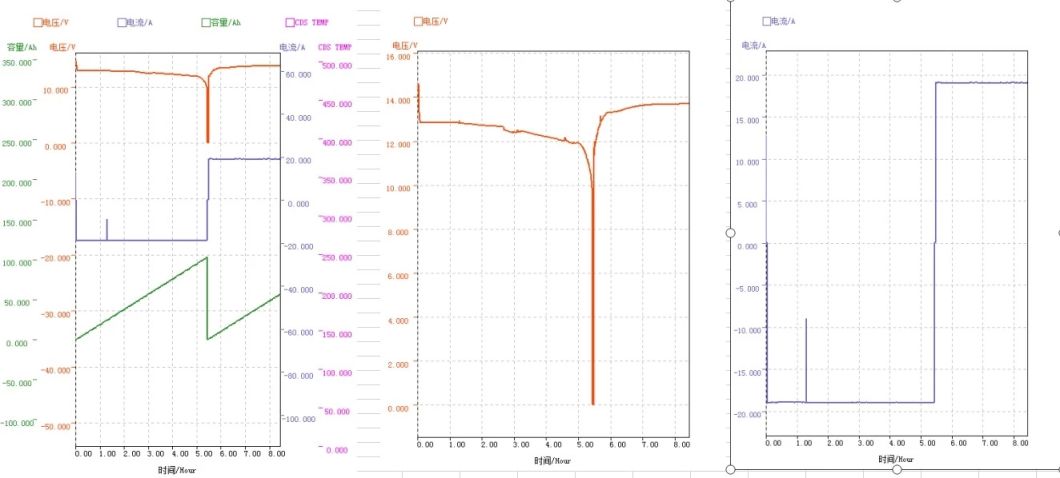

lifepo4 battery 12v 100ah test data sheet:

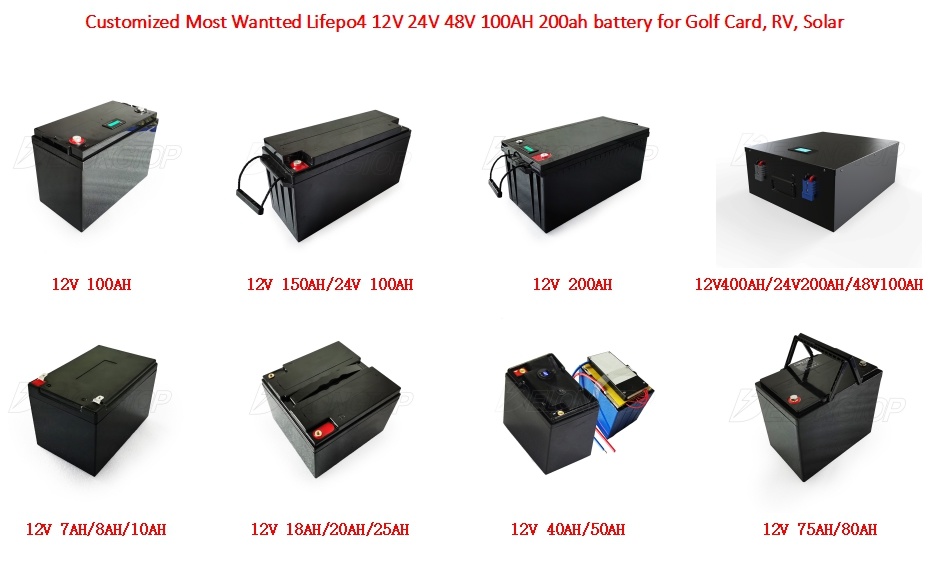

We can customized one single 12v / 24v / 36v / 48v / 72v / 96v 100ah-500ah lithium / lifepo4 battery.
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Services
1).Professional lithium ion battery pack for over ten years,and have our own factory.
2).Strong R&D team to support.
3).Offer OEM service for customer's order.
4).Quick reply and action.
5).Competitive price, good sale and after-sales service.
Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a professional new energy supplier.
Focusing on the manufacture, research and sale of lithium ion battery product worldwide.
DeLong battery won a good reputation and has become a popular brand in the international market.
We offer OEM and ODM service at factory price and high quality.
Q: Are you trading company or manufacturer?
A: We are DELONG original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
