Home / ENERGY STORAGE / LiFePO4 Battery / 12V LiFePO4 Battery / Deep Cycle Waterproof Lithium Iron Phosphate LiFePO4 Battery 12V 200ah Lithium Ion Battery

Port:
Shenzhen, China
Production Capacity:
10000PCS/Month
Payment Terms:
T/T, Paypal
Standard Voltage:
12.8V
Usage:
Solar
Electrolyte:
LiFePO4 Battery
Product Name:
Lithium Iron Phosphate LiFePO4 Battery
Nominal Voltage:
12V
Nominal Capacity:
200ah
Battery Size:
521*238*218mm
Protection:
Built in Battery Protection System (BPS)
Cycle Life:
2000 Times at 85% Dod/ 5000 Times at 65% Dod
Warranty:
3 Years
Battery Type:
3.2V 100ah LiFePO4 Battery Cells
Shell Material:
ABS Case or Metal Case
Packaging:
Standard Export Package Per Pieces
Payment:
Tt/Paypal
Weight:
23kg
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
Customed
Origin:
China
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Accessories Type:
Battery
Rated Capacity:
200ah

Product Description

Product Description

Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application,If you require a specific BMS then please let us know details of your peak and continuous loads .
Product Name	rechargeable BOATS Home Appliances lifepo4 deep cycle 12v 200ah lithium ion battery
Nominal Voltage	12.8V
Nominal Capacity	200 Ah (Amp hour) / 2.56Kwh
Energy	@25A 480min

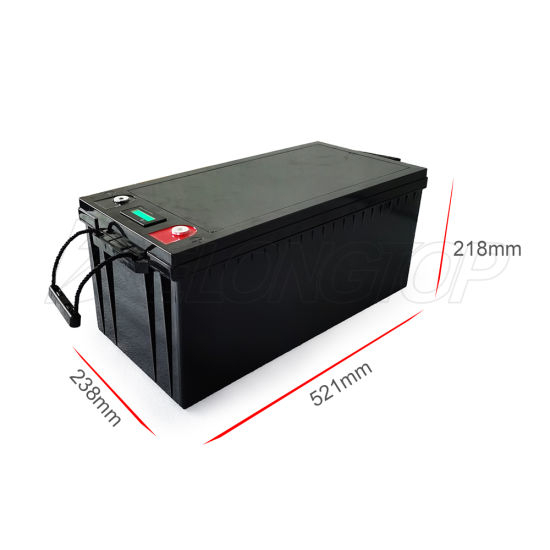

Dimensions	521238218mm or customized
Weight	23KG
Terminal Type	M8 or customized
Energy efficiency	99%
Depth of Discharge	100%
Case Material	ABS or Metal or customized
Enclosure Protection	IP56 or customized IP67 available
Self Discharge	<3% per Month
Continuous charge current	50A
Peak discharge current	200A for 10S
continuous discharge current	100A

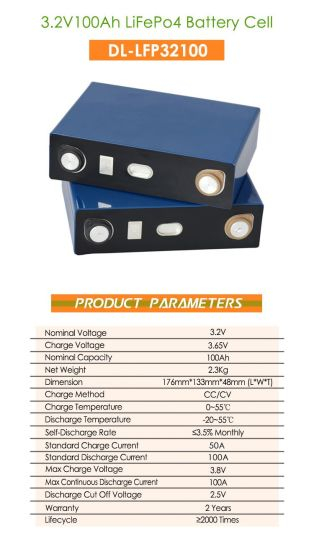

Battery cells	Top A grade 3.2V 100Ah LifePO4 Prismatic Cell
Built-in BMS	Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
Parallel assembly	up to 10 items (12V-2000Ah)
Certificate	CE, RoHS ,MSDS and UN38.3 certification
100% Maintenance free

Advantage of Delong lithium iron phosphate battery (LiFePO4 battery) 12v 200Ah battery pack

Built-in BMS: Not all lithium batteries are created equal. All Delong Batteries use the safest and most stable components,
including a LiFePO4 cathode and a built-in Battery Management System (BMS protects it from overcharge, deep discharge,overloading,overheating).

Ultra-Light Weight: About 23kg, only 1/3 weight of normal lead-acid battery; portable for outdoor using, perfect for RVs,
Solar,Marine and Off-Grid Applications ect.

Super Safety: Lithium Iron Phosphate Chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

Excellent Cycle Life: 2000-7000 cycles (lead acid battery only 200-500 cycles); Warranty 3 years (lead-acid battery 6 months)

Wider Temperature Range: -20°C~60°C and 100% Maintenance free.

Increased Flexibility: Modular design enables deployment of up to 10 batteries in parallel.

The Delong Battery also requires no new hardware to run in your boat, RV, trailer, solar system or golf cart.

The Delong 12v 200Ah battery pack is plug and play for any application that currently uses a lead acid, gel or agm.

Top A grade Lifepo4 cells ensure a long cycle life and exceptional discharge performance

Deep cycle life 2000 times, 80%dod

Deep cycle life 5000 times , 65% dod

Deep cycle life 8000 times, 40% dod

long cycle life lithium ion battery Lifepo4 12v 200ah are made up from 8pcs 4S2P 3.2V 100Ah LiFePO4 cells

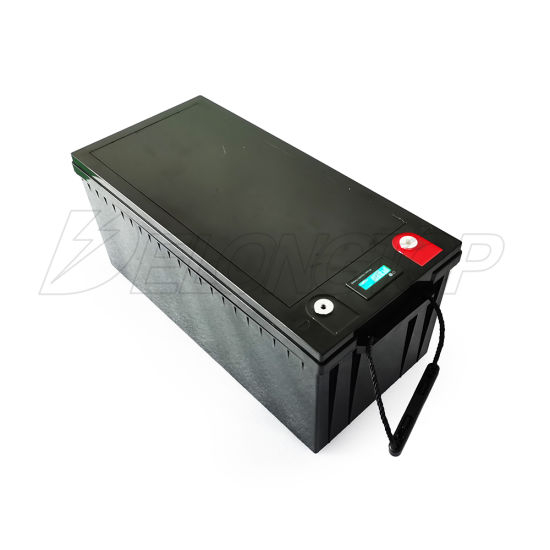

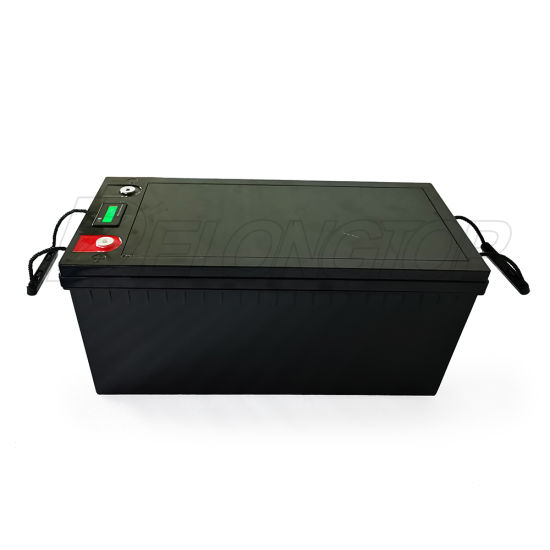

Deep Cycle Waterproof Lithium Iron Phosphate LiFePO4 Battery 12V 200ah Lithium Ion Battery

Designed for safety with built in Battery protection BMS. BMS provides high voltage protection, low voltage protection, over high current protection, high temperature protection, short circuit protection, and over charge protection.

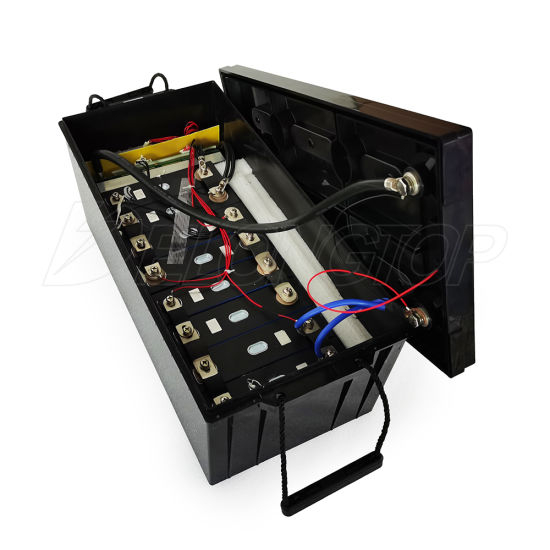

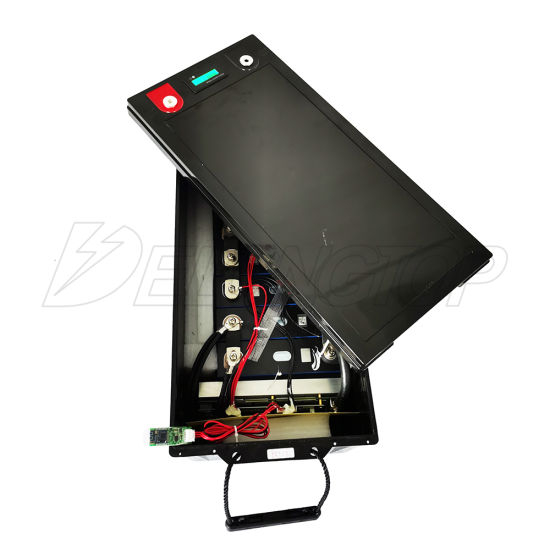

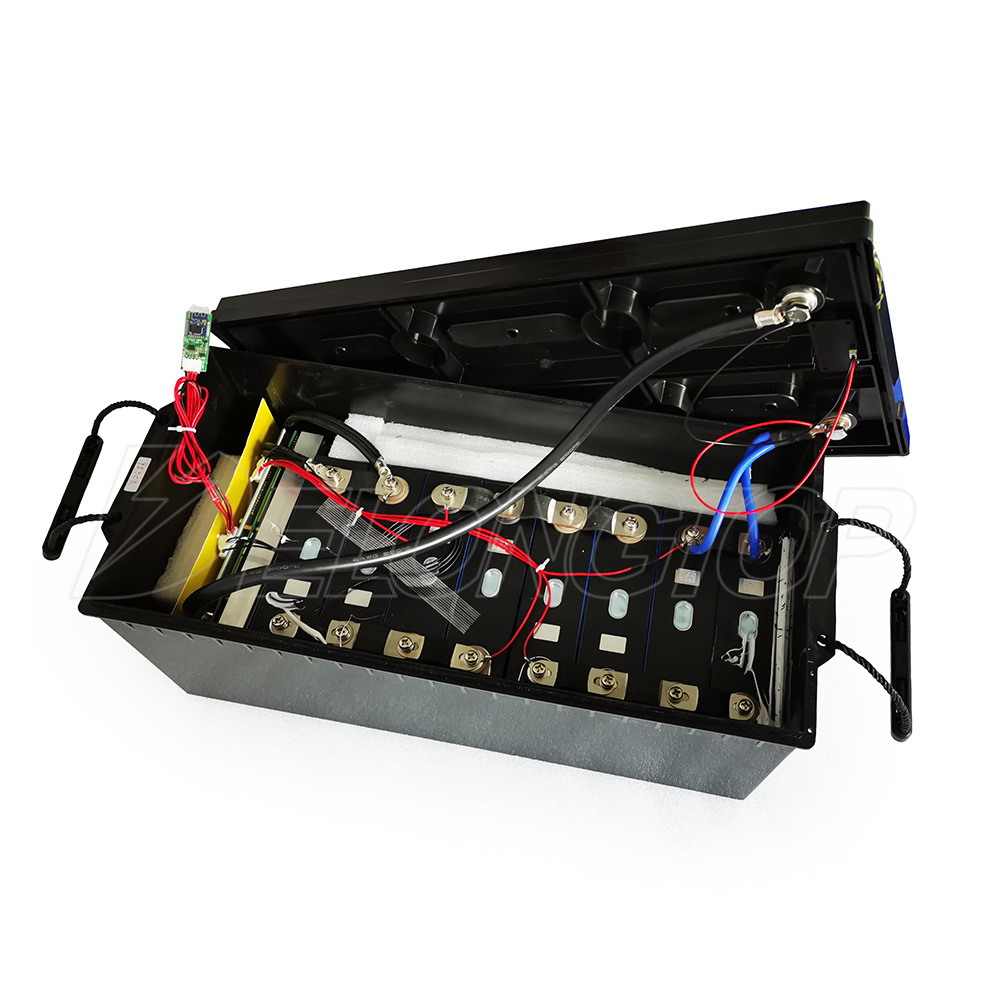

12.8V 200Ah lifepo4 battery pack with 100A management system of inside construction schematic drawing

There are another options case

Enclosure Protection : IP56, If you require a specific IP65 case then please let us know.

we support a variety of battery size and case material and connector customized services according to your requirement

Packing&Shipping

1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements

Product Application

Advantages of Lifepo4 batteries

1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment

1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.
