Deep Cycle Solar Power Lithium Ion Battery LiFePO4 12V 100ah 120ah from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 12V LiFePO4 Battery / Deep Cycle Solar Power Lithium Ion Battery LiFePO4 12V 100ah 120ah

Port:
Shenzhen, China
Production Capacity:
10000PCS/Month
Payment Terms:
T/T, Paypal
Rated Capacity:
100ah
Standard Voltage:
12.8V
Usage:
Solar Backup Power
Electrolyte:
LiFePO4 Battery Cell
Product Name:
Lithium Iron Phosphate LiFePO4 Battery
Nominal Voltage:
12V
Nominal Capacity:
100ah
Battery Size:
332*170*220mm
Protection:
Built in Battery Protection System (BPS)
Cycle Life:
2000 Times at 85% Dod/ 5000 Times at 65% Dod
Warranty:
3 Years
Battery Type:
3.2V 100ah LiFePO4 Battery Cells
Shell Material:
ABS Case or Metal Case
Packaging:
Standard Export Package Per Pieces
Weight:
11kg
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
Customed
Origin:
China
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Size:
Customerized
Accessories Type:
Battery

Product Description

Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application
Product Name	2000 Cycles LiFePO4 lithium battery 12v 100ah Battery Pack for RV car
Nominal Voltage	12.8V
Nominal Capacity	100 Ah (Amp hour) / 1.28Kwh
Energy	@25A 240 min
Dimensions	329172217mm or customized
Weight	11KG
Terminal Type	M8 or customized
Energy efficiency	99%
Depth of Discharge	100%
Case Material	ABS or Metal or customized
Enclosure Protection	IP56 or customized IP67 available
Self Discharge	<3% per Month
Continuous charge current	50A
Peak discharge current	150A for 10S
continuous discharge current	100A
Battery cells	Top A grade 3.2V 100Ah LifePO4 Prismatic Cell
Built-in BMS	Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
Parallel assembly	up to 10 items (12V-1000Ah)
Certificate	CE, RoHS ,MSDS and UN38.3 certification
100% Maintenance free

Advantage of Delong lithium iron phosphate (LiFePO4) 12v 100Ah battery pack

Built-in BMS: Not all lithium batteries are created equal. All Delong Batteries use the safest and most stable components,
including a LiFePO4 cathode and a built-in Battery Management System (BMS protects it from overcharge, deep discharge,overloading, overheating).

Ultra-Light Weight: About 11kg, only 1/3 weight of normal lead-acid battery; portable for outdoor using, perfect for RVs,
Solar,Marine and Off-Grid Applications ect.

Super Safety: Lithium Iron Phosphate Chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

Excellent Cycle Life: 2000-7000 cycles (lead acid battery only 200-500 cycles);

Warranty 3 years (lead-acid battery 6 months)

Wider Temperature Range: -20°C~60°C and 100% Maintenance free.

Increased Flexibility: Modular design enables deployment of up to 10 batteries in parallel.

The Delong 12v 100Ah battery pack is plug and play for any application that currently uses a lead acid, gel or agm and also requires no new hardware to run in your boat, RV, trailer, solar system or golf cart.

Top A grade Lifepo4 cells ensure a long cycle life and exceptional discharge performance

Deep cycle life 2000 times, 80%dod

Deep cycle life 5000 times , 65% dod

Deep cycle life 8000 times, 40% dod

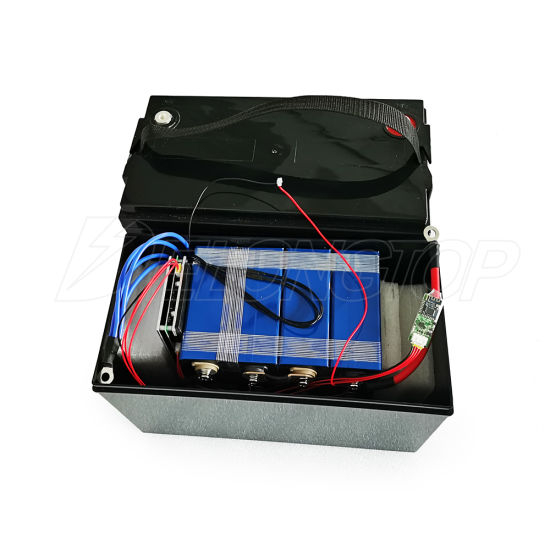

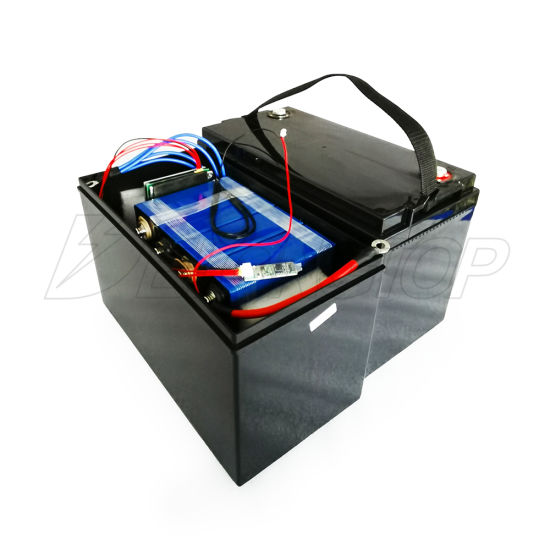

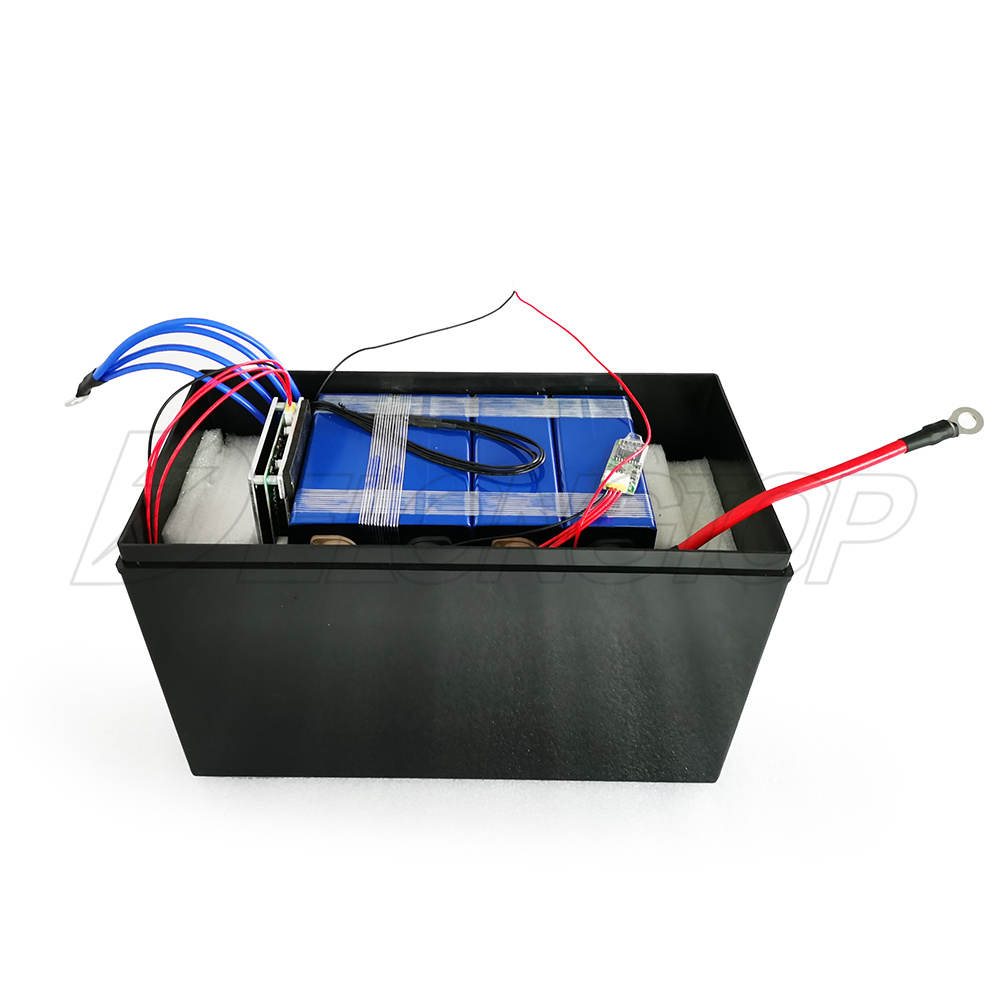

Deep cycle lithium ion 12.8v 100Ah Lifepo4 battery pack are made up from 4pcs 4S1P 3.2V 100Ah LiFePO4 cells

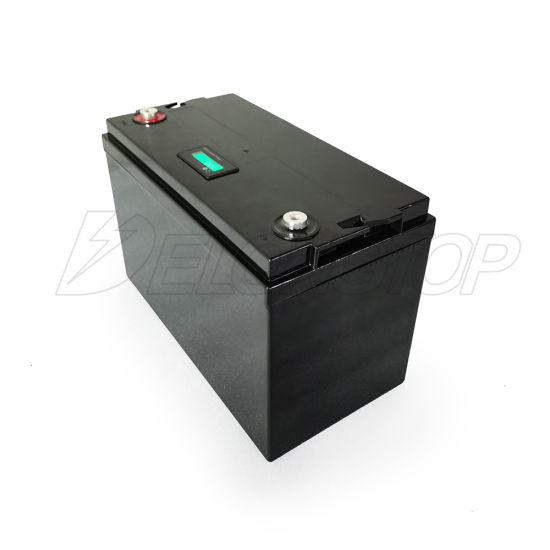

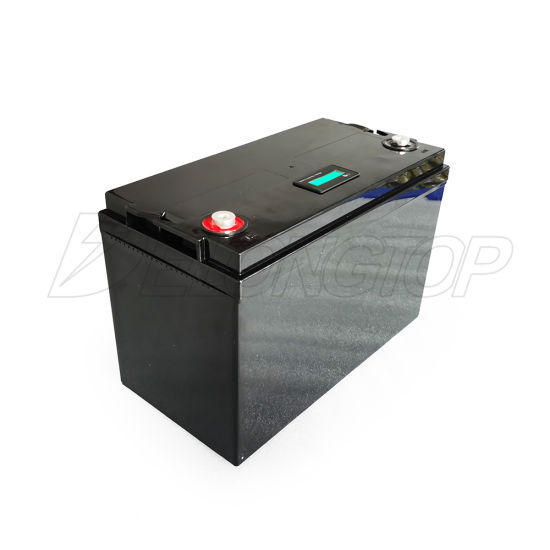

Deep Cycle Solar Power Lithium Ion Battery LiFePO4 12V 100ah 120ah

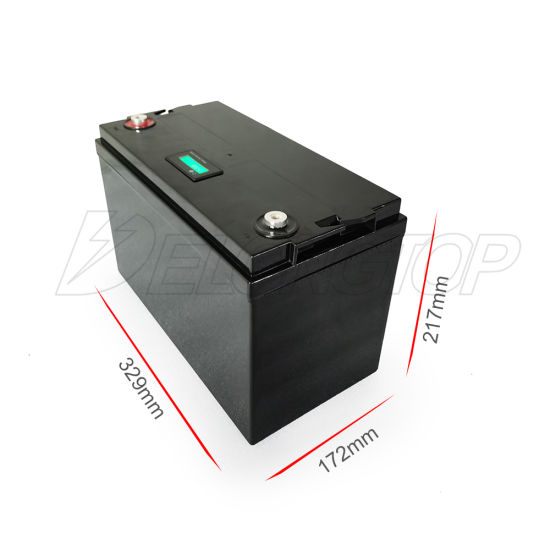

Dimension:329*172*217mm
Shell material: ABS Case
Display: LED display
we support a variety of battery size and shell material customized services according to your requirement

Different case available
Deep Cycle Solar Power Lithium Ion Battery LiFePO4 12V 100ah 120ah

Built-in 100A BMS for Automatically controlto protect from over heat, over voltage and current ,etc
Customized BMS charging and discharging current available
Deep Cycle Solar Power Lithium Ion Battery LiFePO4 12V 100ah 120ah

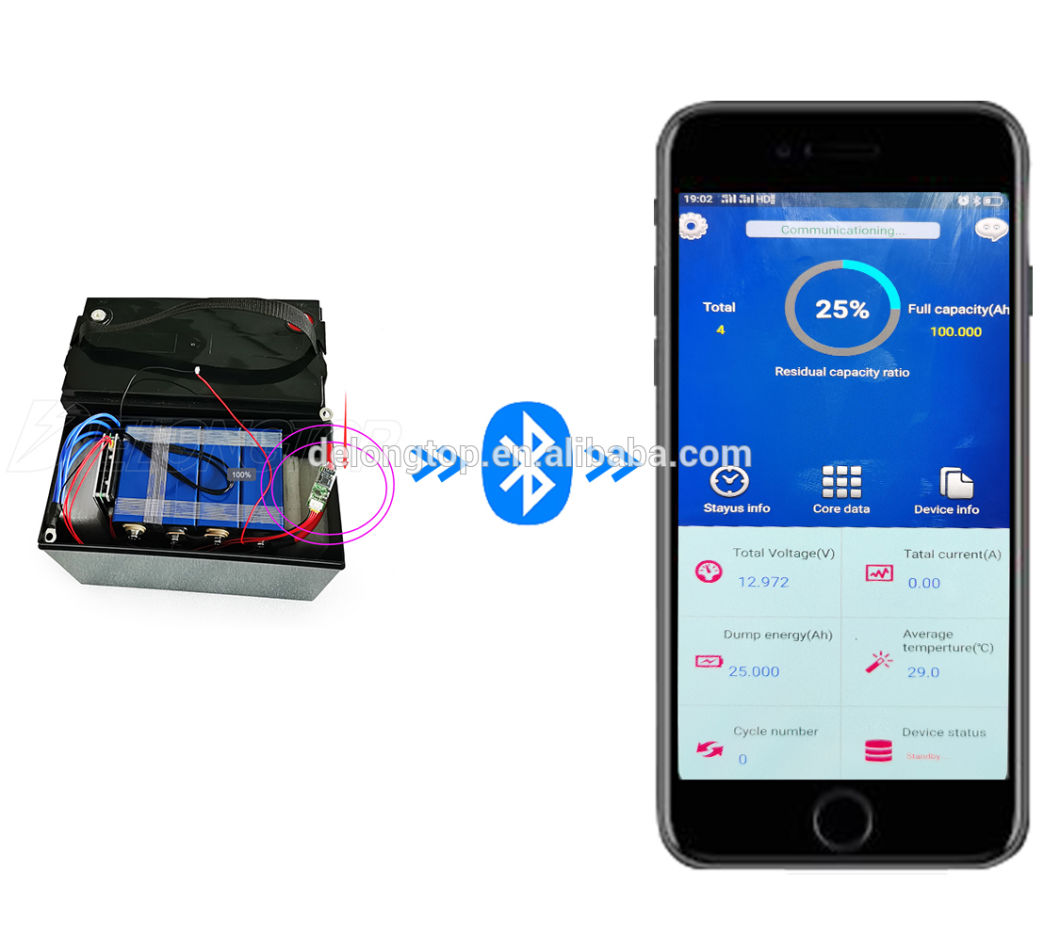

Customized your App intelligent Control : Built-in BT function allows you to read the battery status at any time.

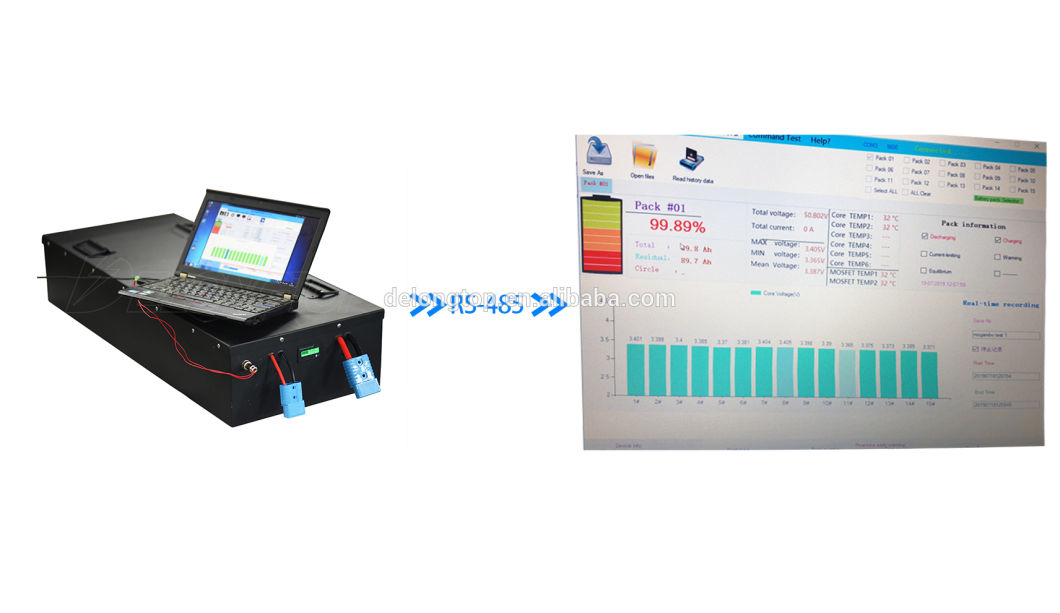

Customized Communication functions: RS-232 / RS-485/ BT available

Example as follow: 48v 100Ah lifepo4 15S1P

Delivery time :

Usually delivery in 7-15days, but could be changed according to the quantity or other things.

Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Packing&Shipping

1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements

Product Application

The Delong batteries are plug and play for any application that currently uses a lead acid, gel or agm.

Applications of lifepo4 battery 12V 100ah :

Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Company Introduction

1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
