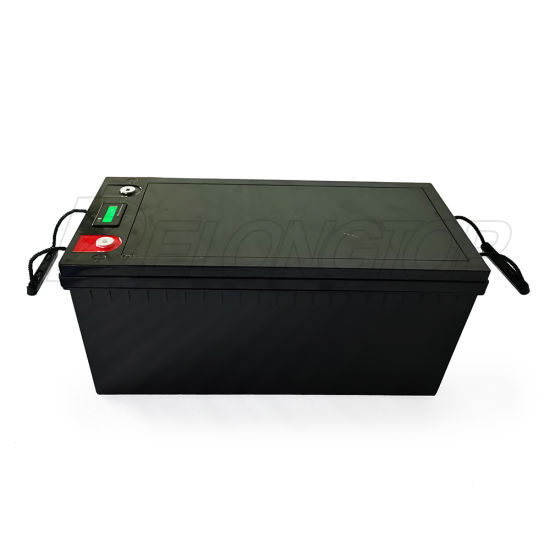

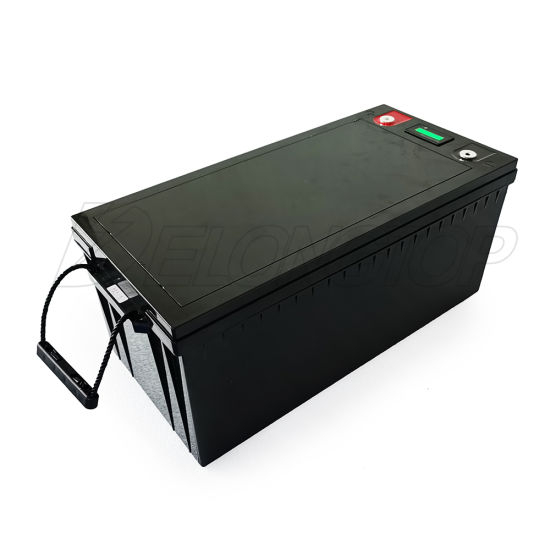

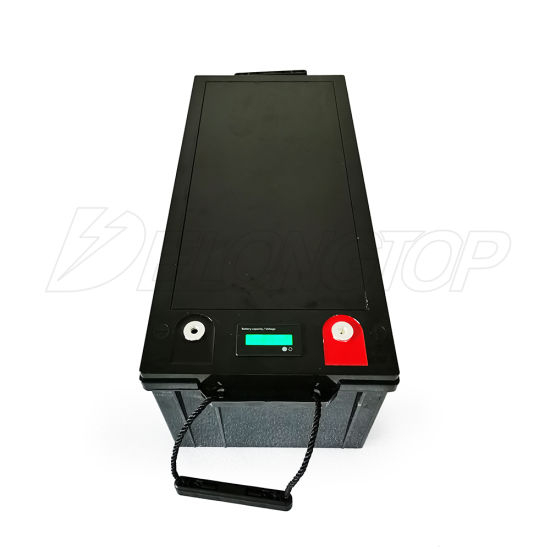

Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar

Quantity:
  • Shenzhen, China
  • 10000PCS/Month
  • T/T, Paypal
  • 12.8V
  • Solar
  • LiFePO4 Battery
  • Lithium Iron Phosphate LiFePO4 Battery
  • 12V
  • 200ah
  • 521*238*218mm
  • Built in Battery Protection System (BPS)
  • 2000 Times at 85% Dod/ 5000 Times at 65% Dod
  • 3 Years
  • 3.2V 100ah LiFePO4 Battery Cells
  • ABS Case or Metal Case
  • Standard Export Package Per Pieces
  • Tt/Paypal
  • 23kg
  • DELONGTOP
  • Standard Packing
  • Customed
  • China
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • High Discharge Rate
  • Battery
  • 200ah

Product Description

Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application,If you require a specific BMS then please let us know details of your peak and continuous loads .
Product Name
rechargeable BOATS Home Appliances lifepo4 deep cycle 12v 200ah lithium ion battery
Nominal Voltage
12.8V
Nominal Capacity
200 Ah (Amp hour) / 2.56Kwh
Energy
@25A 480min

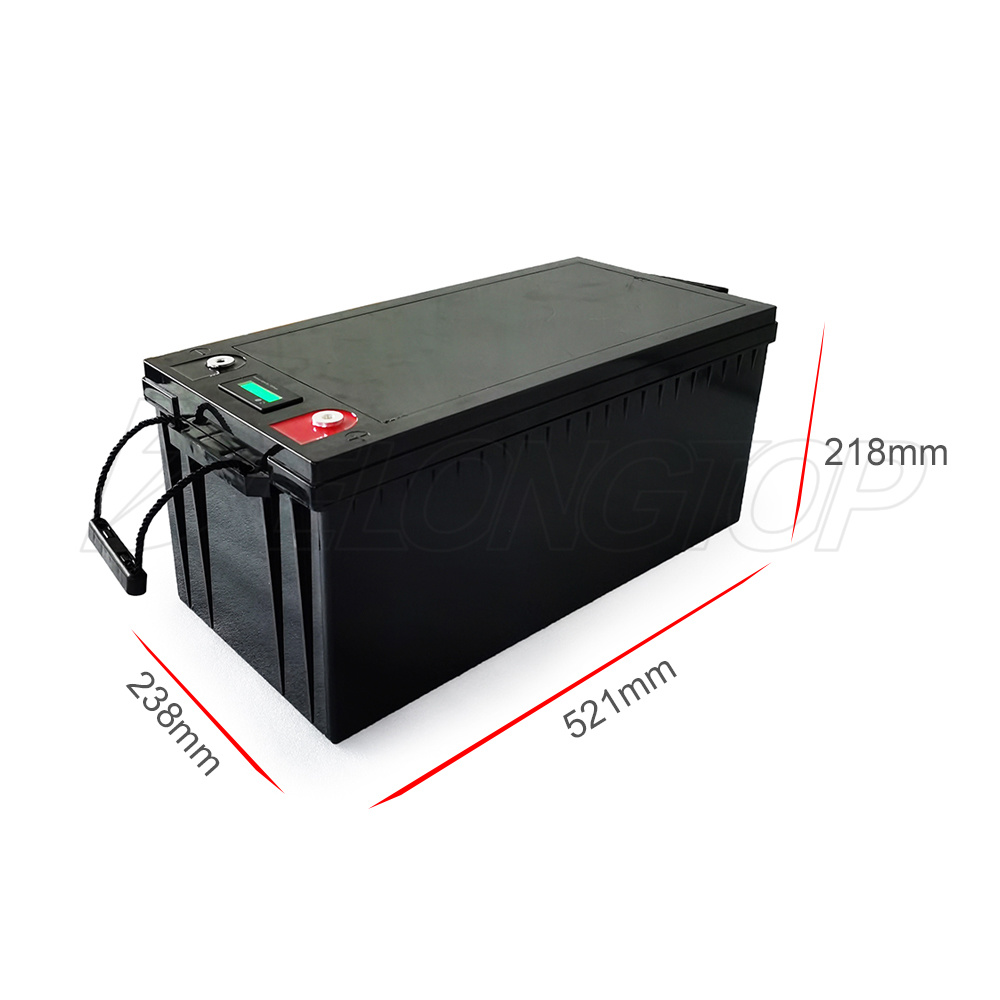

Dimensions
521*238*218mm or customized
Weight
23KG
Terminal Type
M8 or customized
Energy efficiency
99%
Depth of Discharge
100%
Case Material
ABS or Metal or customized
Enclosure Protection
IP56 or customized IP67 available
Self Discharge
<3% per Month
Continuous charge current
50A
Peak discharge current
200A for 10S
continuous discharge current
100A
Battery cells
Top A grade 3.2V 100Ah LifePO4 Prismatic Cell
Built-in BMS
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
Parallel assembly
up to 10 items (12V-2000Ah)
Certificate
CE, RoHS ,MSDS and UN38.3 certification
100% Maintenance free

Advantage of Delong lithium iron phosphate battery (LiFePO4 battery) 12v 200Ah battery pack


Built-in BMS: Not all lithium batteries are created equal. All Delong Batteries use the safest and most stable components,
including a LiFePO4 cathode and a built-in Battery Management System (BMS protects it from overcharge, deep discharge,overloading,overheating).

Ultra-Light Weight: About 23kg, only 1/3 weight of normal lead-acid battery; portable for outdoor using, perfect for RVs,
Solar,Marine and Off-Grid Applications ect.

Super Safety: Lithium Iron Phosphate Chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

Excellent Cycle Life: 2000-7000 cycles (lead acid battery only 200-500 cycles); Warranty 3 years (lead-acid battery 6 months)

Wider Temperature Range: -20°C~60°C and 100% Maintenance free.

Increased Flexibility: Modular design enables deployment of up to 10 batteries in parallel.

The Delong Battery also requires no new hardware to run in your boat, RV, trailer, solar system or golf cart.

The Delong 12v 200Ah battery pack is plug and play for any application that currently uses a lead acid, gel or agm.

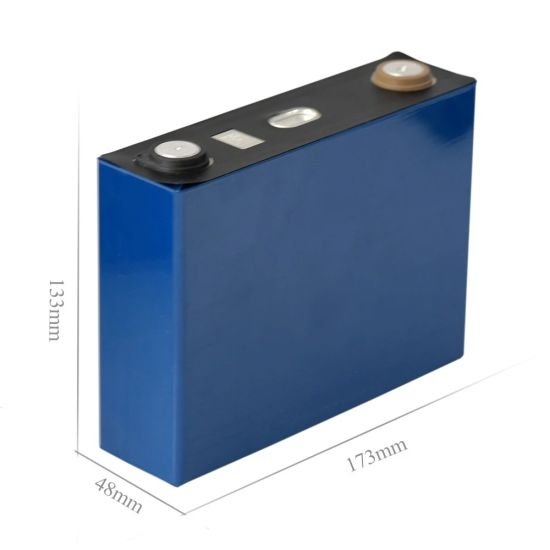

Top A grade Lifepo4 cells ensure a long cycle life and exceptional discharge performance
Deep cycle life 2000 times, 80%dod
Deep cycle life 5000 times , 65% dod
Deep cycle life 8000 times, 40% dod

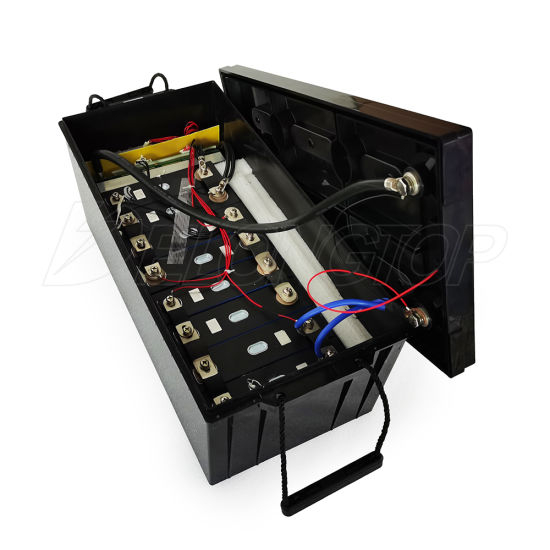

long cycle life lithium ion battery Lifepo4 12v 200ah  are made up from 8pcs 4S2P 3.2V 100Ah LiFePO4 cells

Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar

Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar
Designed for safety with built in Battery protection BMS. BMS provides high voltage protection, low voltage protection, over high current protection, high temperature protection, short circuit protection, and over charge protection.


12.8V 200Ah lifepo4 battery pack with 100A management system of inside construction schematic drawing


Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar
There are another options case


Enclosure Protection : IP56, If you require a specific IP65 case then please let us know.

we support a variety of battery size and case material and connector customized services according to your requirement

Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar



Packing&Shipping
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements
Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar



Product Application
Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar

Advantages of Lifepo4 batteries
1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment
1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction
1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.

4. Our factory is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers

5. Our management teams have been in lithium ion battery field for more than 10 years


Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar
Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar Deep Cycle Rechargeable LiFePO4 LFP12V 200ah Lithium Ion Battery Pack for Solar Our Services & Strength
Support a variety of voltage,capacity,size,customized services according to your requirement
