Deep Cycle Lithium Iron Phosphate 12V 20ah LiFePO4 Battery from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 12V LiFePO4 Battery / Deep Cycle Lithium Iron Phosphate 12V 20ah LiFePO4 Battery

Port:
Shenzhen, China
Production Capacity:
10000PCS/Month
Payment Terms:
T/T, Paypal
Model NO.:
DL-LFP1220 4S4P
Rated Capacity:
20ah
Standard Voltage:
12.8V
Usage:
Solar Backup Power
Electrolyte:
LiFePO4 Battery Cell
Product Name:
Lithium Iron Phosphate LiFePO4 Battery
Nominal Voltage:
12V
Nominal Capacity:
20ah

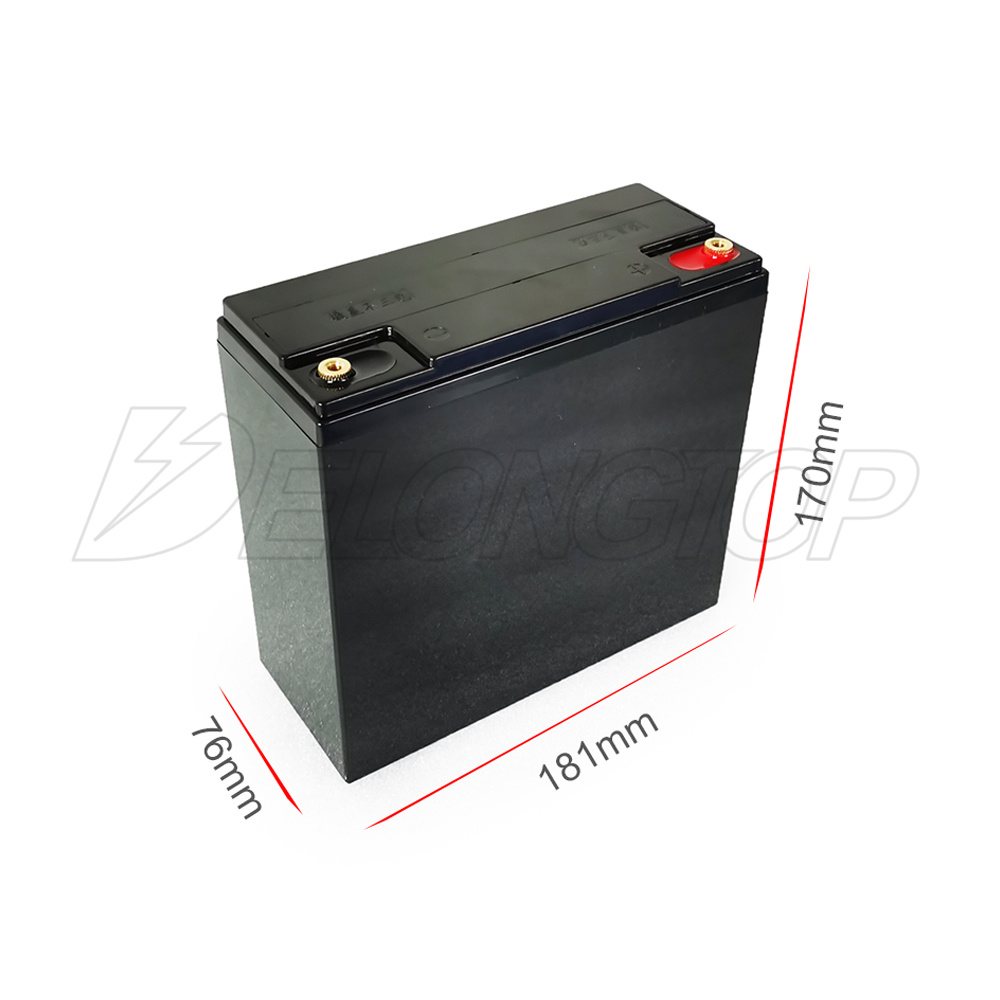

Battery Size:
181*76*170mm
Protection:
Built in Battery Protection System (BPS)
Cycle Life:
2000 Times at 85% Dod/ 5000 Times at 65% Dod
Warranty:
3 Years
Battery Type:
LiFePO4 Battery Cells
Shell Material:
ABS Case or Metal Case
Packaging:
Standard Export Package Per Pieces
Weight:
5kg
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
Customed
Origin:
China
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Size:
Customerized
Accessories Type:
Battery

Product Description

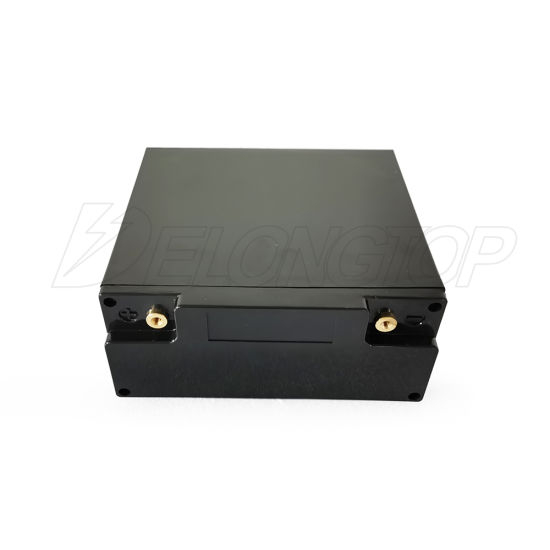

The Delong Battery 12V 20AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The DL-LFP1220 is plug and play for any application that currently uses a lead acid, gel or agm.

Deep Cycle lithium iron phosphate 12v 20ah lifepo4 battery
The Electric Advantage	Model	DL-LFP1220 4S4P
	Nominal Voltage	12V
	Nominal Capacity	20Ah
	Internal Resistance	≤220mΩ
	Capacity@1C rate 0.2C	≥20Ah
	Cycle Life	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
Standard Charge Advantage	End of charge Voltage	14.6V
	End of charge Current	5A
	Max.Continuous charge current	5A
	Charge Method	0.2C (0.5A) CC/CV
Standard Discharge Advantage	End of discharge Voltage	9.2V
	Nominal Discharge Current	5A
	Max. Pluse Discharge Current	20A/10S
Environmental Advantage	Charge Temp	0~45ºC
	Discharge Temp	-10~55ºC
	Storage Temp	-10~45ºC
Mechanical Advantage	Cells & Combination	32650 battery cells
	Shell Material	ABS Case or Metal Case
	Dimesion(D×W×H)	18176170mm
	Weight	≤5Kg
Safety & Protection Advantage	Built in Automatic Battery Protection System	Yes

This Product is Perfect For Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications

Deep Cycle Lithium Iron Phosphate 12V 20ah LiFePO4 Battery

Packing&Shipping

1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements

Product Application

Advantages of Lifepo4 batteries

1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment

1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction

1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
