Deep Cycle Lithium Ion 48V 200ah LiFePO4 Battery Pack for Solar Energy Storage Systems from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 48V LiFePO4 Battery / Deep Cycle Lithium Ion 48V 200ah LiFePO4 Battery Pack for Solar Energy Storage Systems

Port:
Shenzhen, China
Production Capacity:
10000PCS/Month
Payment Terms:
T/T, Paypal
Rated Capacity:
200ah
Standard Voltage:
48V
Usage:
Solar Storage
Electrolyte:
LiFePO4 Battery
Product Name:
Lithium Iron Phosphate LiFePO4 Battery
Nominal Voltage:
48V
Nominal Capacity:
200ah
Battery Size:
870*365*180mm
Protection:
Built in Battery Protection System (BPS)
Cycle Life:
2000 Times at 85% Dod/ 5000 Times at 65% Dod
Warranty:
3 Years
Battery Type:
3.2V 100ah LiFePO4 Battery Cells
Shell Material:
ABS Case or Metal Case
Packaging:
Standard Export Package Per Pieces
Payment:
Tt/Paypal
Weight:
98kg
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
Customed
Origin:
China
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Size:
Customerized
Accessories Type:
Battery

Product Description

Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application,If you require a specific BMS then please let us know details of your peak and continuous loads .
Product Name	lithium ion 48v 200ah lifepo4 solar battery 10kwh power
Nominal Voltage	48V
Nominal Capacity	200 Ah (Amp hour)/ 10Kwh
Energy	@25A 480min
Dimensions	870365180mm or customized
Weight	85KG
Terminal Type	M8 or customized
Energy efficiency	99%
Depth of Discharge	100%
Case Material	ABS or Metal or customized
Enclosure Protection	IP56 or customized IP65 available
Self Discharge	<3% per Month
Continuous charge current	50A
Peak discharge current	200A for 10S
continuous discharge current	100A
Battery cells	Top A grade 3.2V 100Ah LifePO4 Prismatic Cell

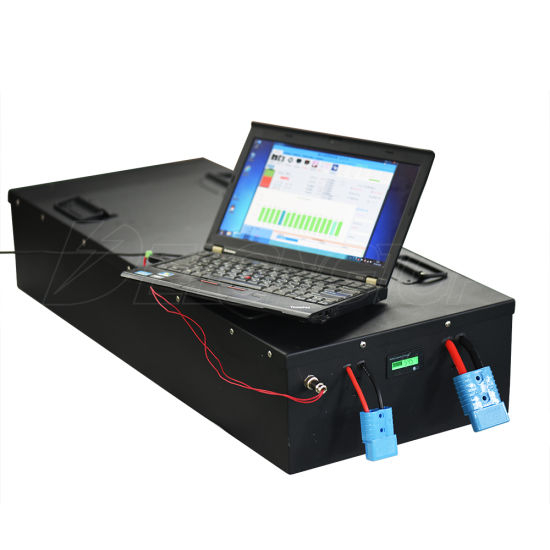

Built-in BMS	Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
Parallel assembly	up to 10 items (48V-1000Ah)

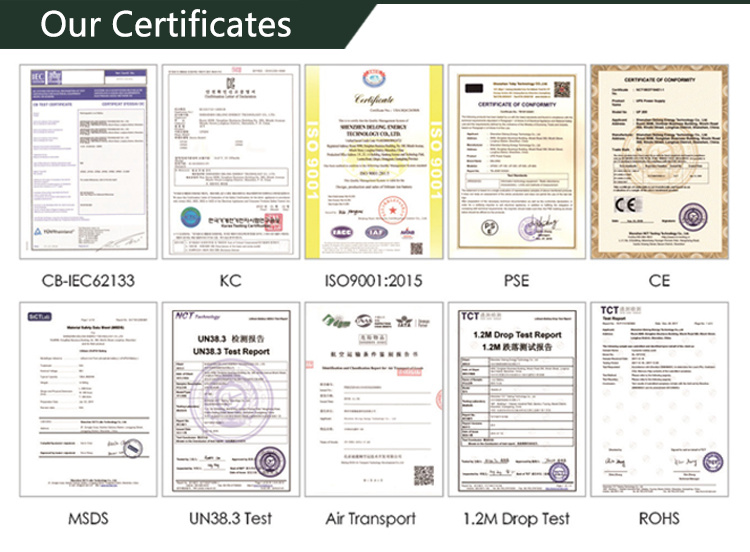

Certificate	CE, RoHS ,MSDS and UN38.3 certification
100% Maintenance free

Advantage of Delong lithium Lifepo4 48V 200Ah battery pack

Built-in BMS: Not all lithium batteries are created equal. All Delong Batteries use the safest and most stable components,
including a LiFePO4 cathode and a built-in Battery Management System (BMS protects it from overcharge, deep discharge,overloading, overheating).

Ultra-Light Weight: About 85kg, only 1/3 weight of normal lead-acid battery; portable for outdoor using, perfect for RVs, Solar,Marine and Off-Grid Applications ect.

Super Safety: Lithium Iron Phosphate Chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

Excellent Cycle Life: 2000-7000 cycles (lead acid battery only 200-500 cycles); Warranty 3 years (lead-acid battery 6 months)

Wider Temperature Range: -20°C~60°C and 100% Maintenance free.

Increased Flexibility: Modular design enables deployment of up to 10 batteries in parallel.

The Delong Battery also requires no new hardware to run in your boat, RV, trailer, solar system or golf cart. Just pull out that grungy old lead acid battery , drop in this elegant upgrade, and get yourself out there.

Top A grade Lifepo4 cells ensure a long cycle life and exceptional discharge performance

Deep cycle life 2000 times, 80%dod

Deep cycle life 5000 times , 65% dod

Deep cycle life 8000 times, 40% dod

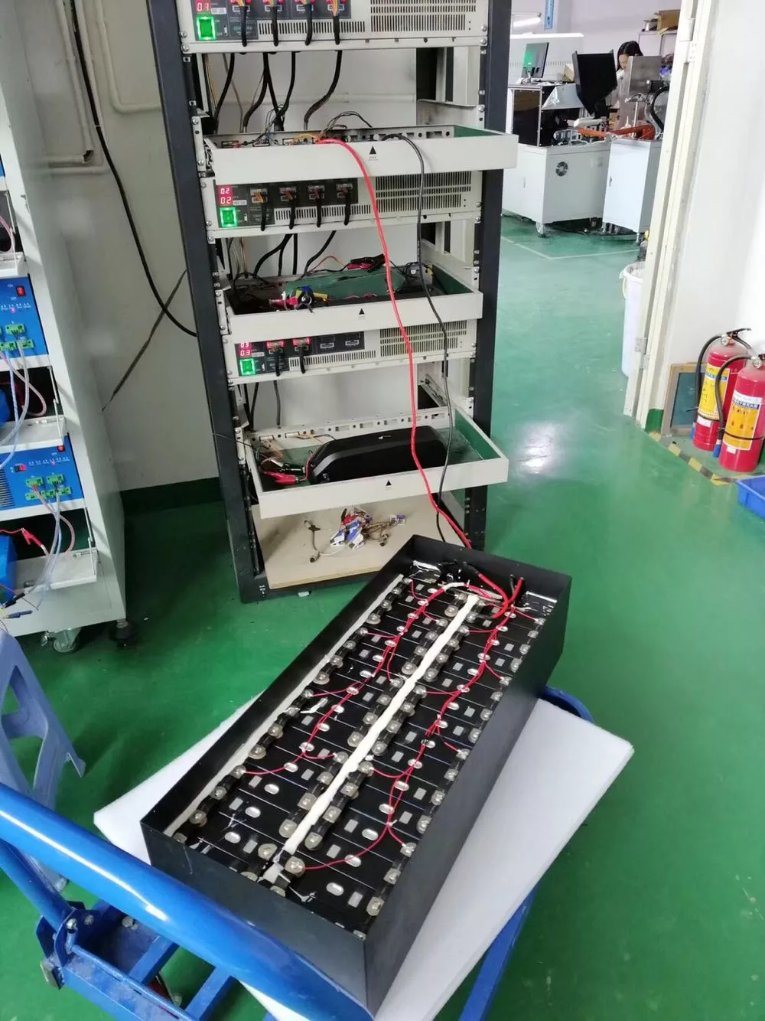

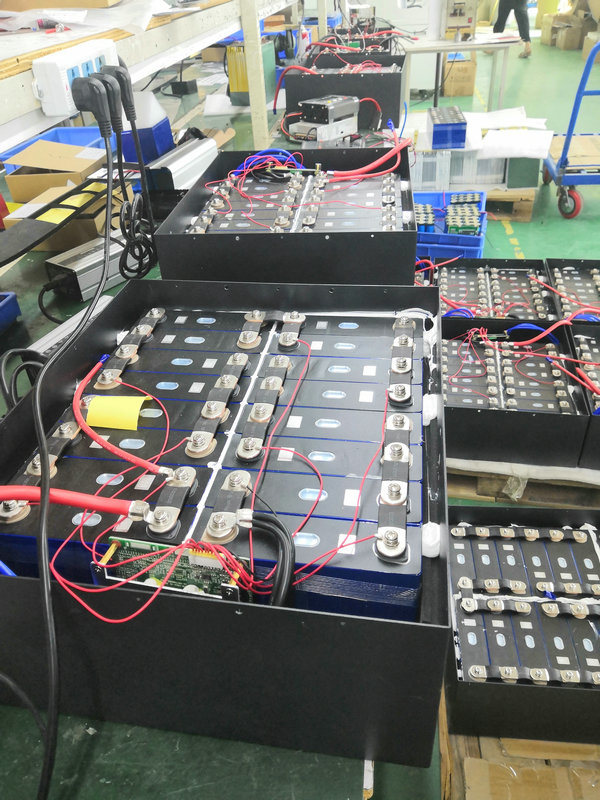

Deep Cycle rechargeable batteries 48v 200ah lifepo4 batteries pack are made up from 32pcs 16S2P 3.2V 100Ah LiFePO4 cells

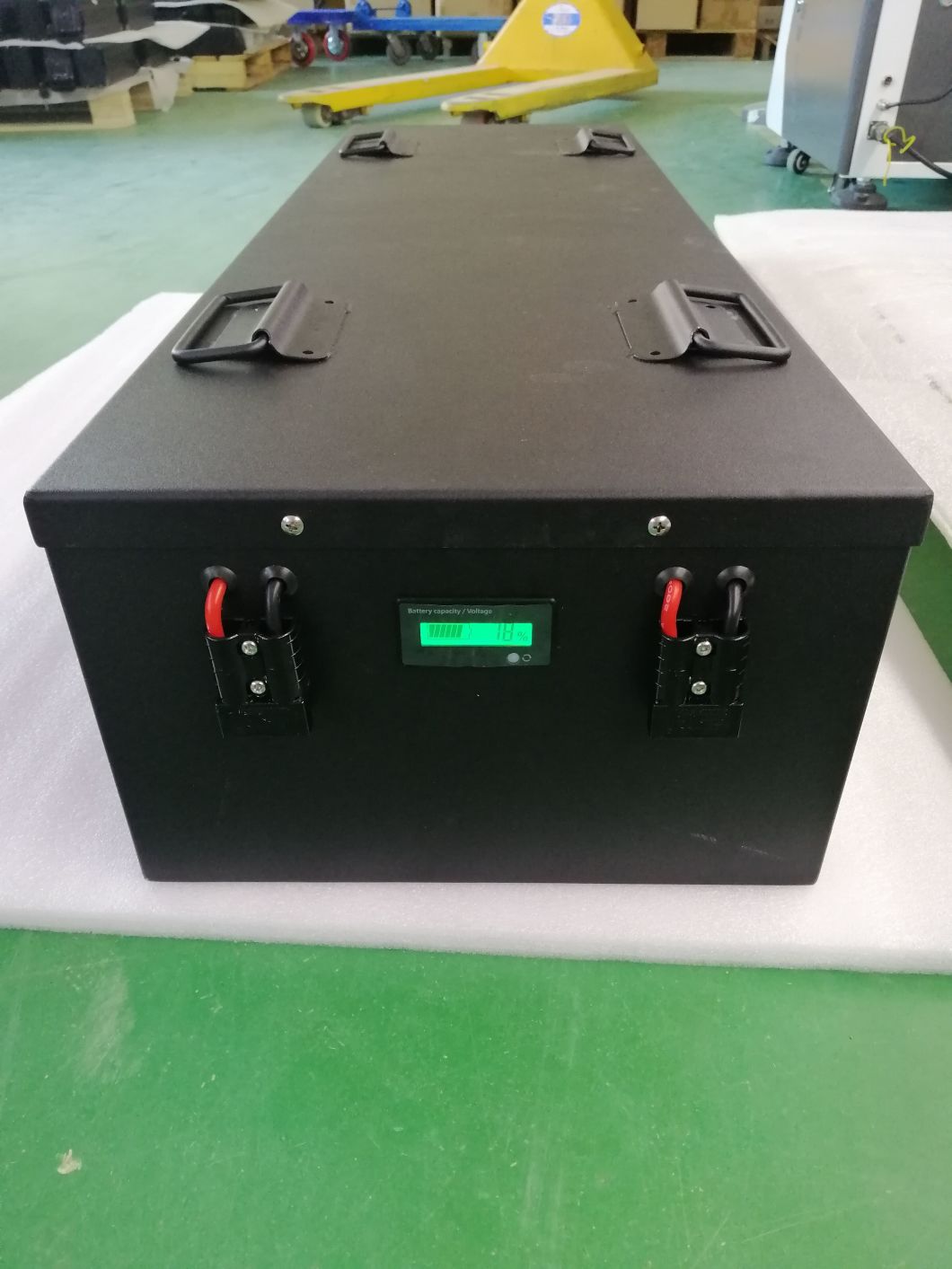

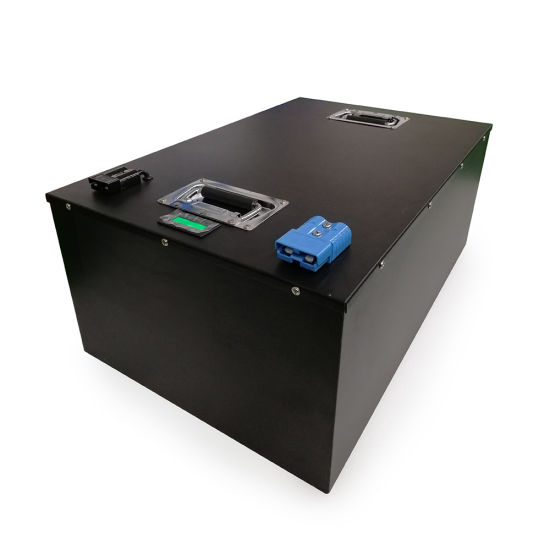

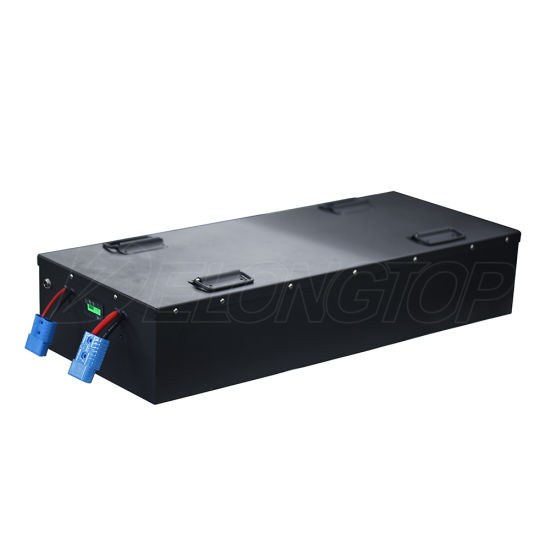

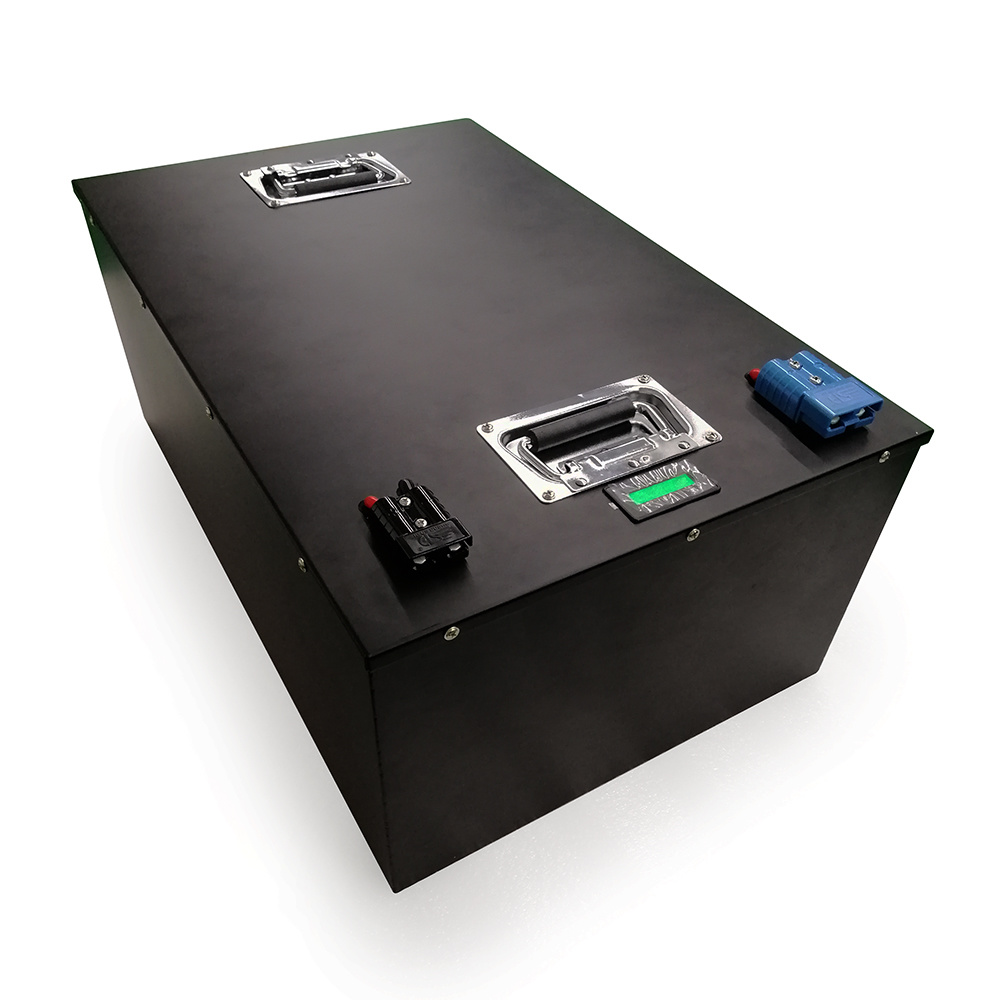

Deep Cycle Lithium Ion 48V 200ah LiFePO4 Battery Pack for Solar Energy Storage Systems

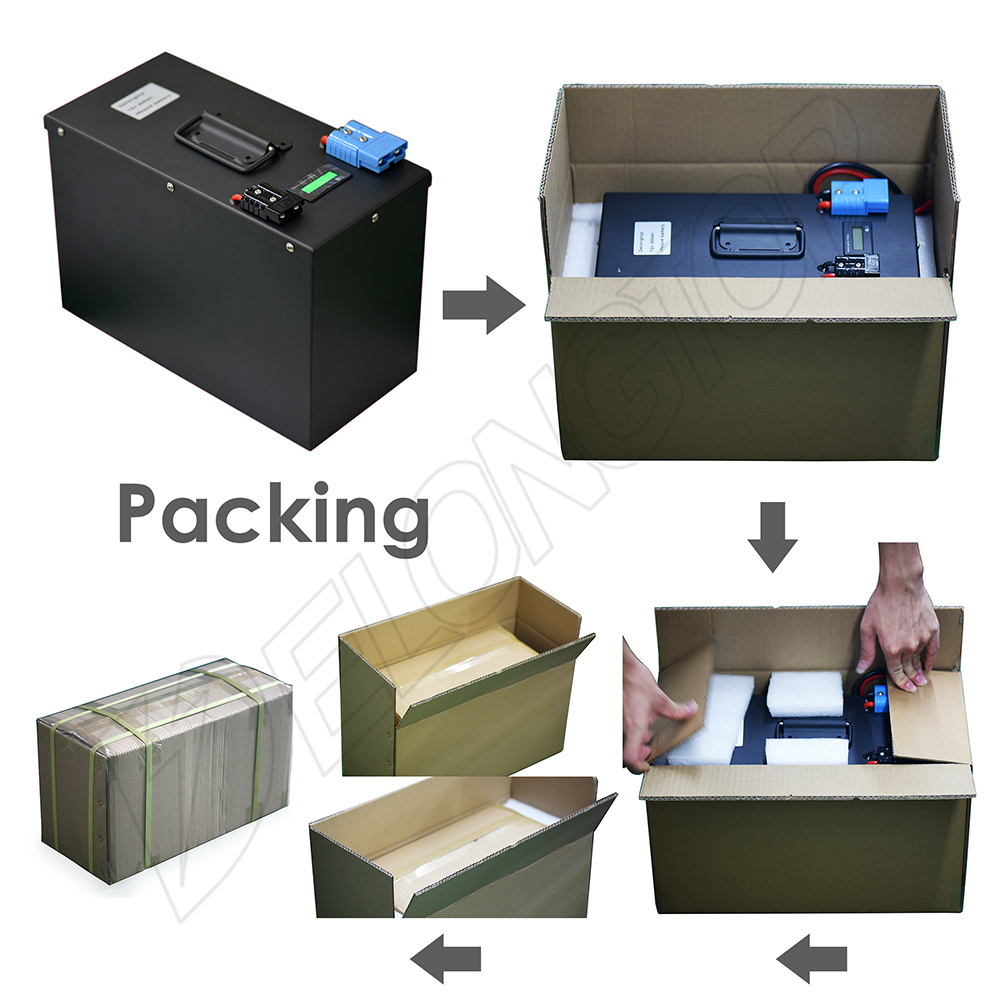

Packing&Shipping

1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements

Product Application

Advantages of Lifepo4 batteries

1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment

1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction

1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
