DL-48200/15S8P
200ah
48V
Solar System,Torist Car,Storage Energy
Lithium Iron Phosphate Battery
LiFePO4 Battery Cell
200ah
200ah 48V Deep Cycle Battery Lithium for Solar Sys
2000 Times
2 Years

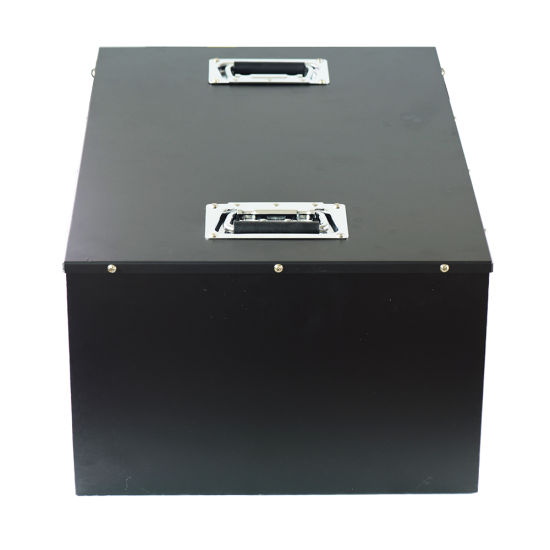

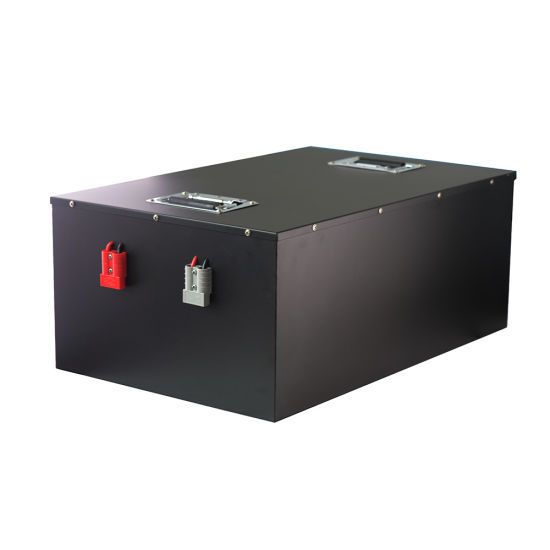

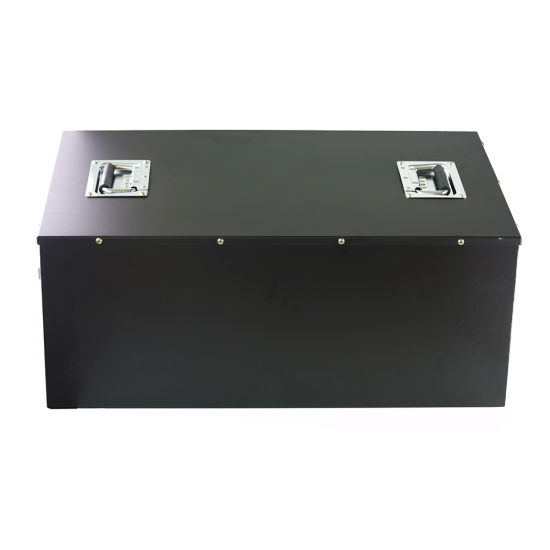

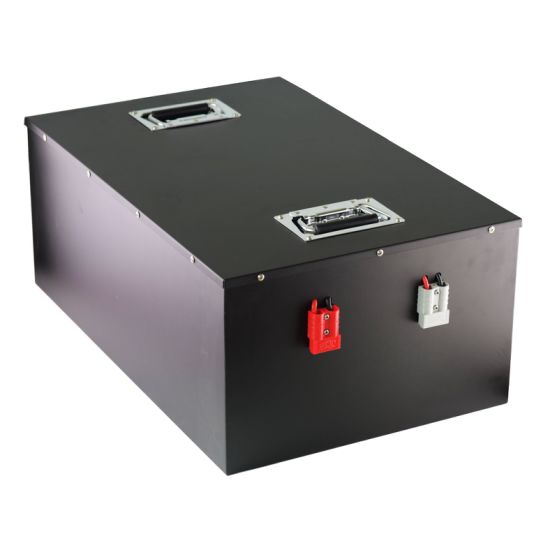

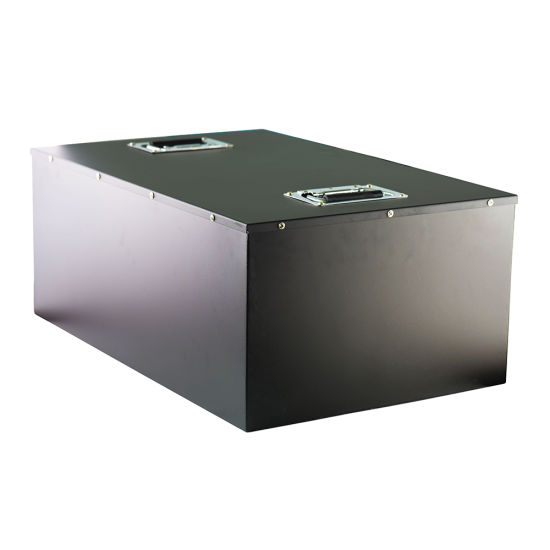

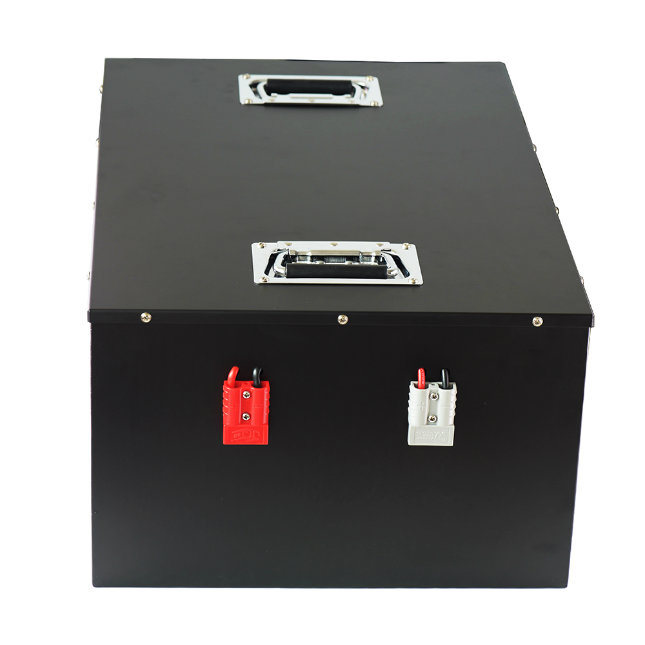

Black Metal Casing
DELONGTOP
Standard Export Carton
605*395*245mm
China
8507600090
LiFePO4 Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Large
Chargers
Model | DL-48200/15S8P |
Nominal voltage | 48V |
Charge voltage | 54.75V |
Nominal capacity | 200Ah |
Battery type | LifePO4 |
Single LifePO4 battery cell | 3.2V 25Ah |
Standard charge current | 40A |
Continuous discharge current | 100A |
Max discharge current | 200A |
Battery configation | 15S8P |
Discharge cut off voltage | 34.5V |
Net weight | around 80KG |

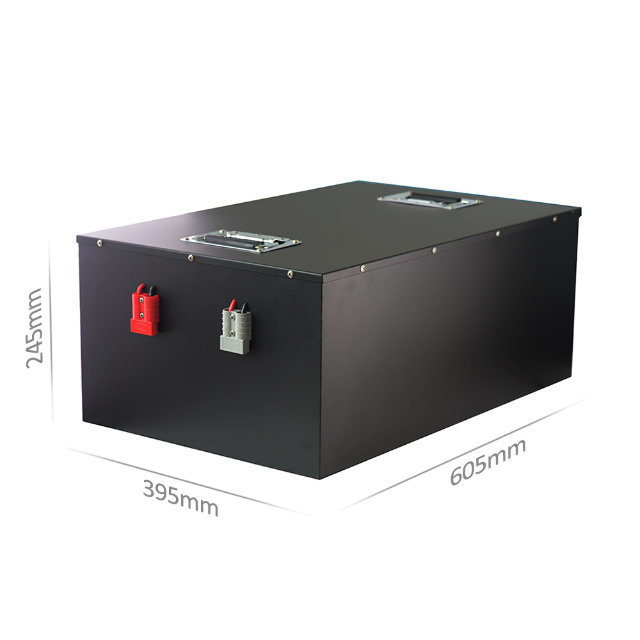

Case dimension | 605*395*245mm(L*W*H) |
Lifecycle | 1500-2000 times |
Warranty | 2 years |
BMS protection | over-charge,over-discharge,over-current,short circuit |
Charge method | CC/CV |
Charge temperature | 0~45ºC |
Discharge temperature | -10~55ºC |
Storage temperature | -10~45ºC |
Advantages:
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly.
Applications:
1) Energy Storage: UPS , backup ,power station.
2) EV : Golf trolleys , Electric scooters , Electric Bike
3) Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4) Telecommunications Base Stations.
5) UPS(Uninterrupted Power Supply).
6) General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.)

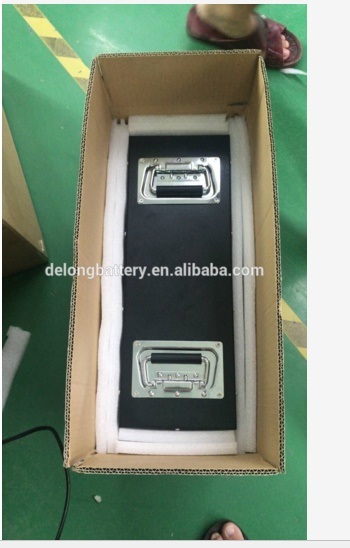

Packing and shipping:
Standard export cartons
Shipping ways:
1.For samples,we normally ship them by HK UPS(door to door service)
2.For bulk order,we usually delivery them by sea which will take 30-45 days to arrive
Payment:
1.Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
2.FOB , EXW and CIF all are available
3.Samples can accept Paypal
Our services:
1.All of your inquiry and emails will be replied within 12 hours
2.OEM and ODM available
3.We have over 10 years experience in lithium battery field,we can provide you best solution for you
4.We can help you to track the shipping status,so that you can receive the goods timely
5.We can gurantee on-time leadtime and good after sales service
6.All of the battery pack and accessories will be tested before shipment
Company information:
Shenzhen Delong Energy Technology Co.,Ltd is one of leading lithium ion battery manufacturer in China , our management teams have been in lithium ion battery field for more than 10 years,we have own factory and testing room and sales center.Our factory is located in Dongguan city,Guangdong Province which is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers who can ensure to make high quality and more stable products. Dongguan Delong is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack and LifePO4 battery pack.Our products are widely applied on digital products,consumer products,LED lights,medical devices,solar systems ,energy storage system and electric vehicles.
FAQ:
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Shenzhen Delong EnergyTtechnology Co.,Ltd. is a professional rechargeable lithium-ion battery manufacturer,welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Model | DL-48200/15S8P |
Nominal voltage | 48V |
Charge voltage | 54.75V |
Nominal capacity | 200Ah |
Battery type | LifePO4 |
Single LifePO4 battery cell | 3.2V 25Ah |
Standard charge current | 40A |
Continuous discharge current | 100A |
Max discharge current | 200A |
Battery configation | 15S8P |
Discharge cut off voltage | 34.5V |
Net weight | around 80KG |
Case dimension | 605*395*245mm(L*W*H) |
Lifecycle | 1500-2000 times |
Warranty | 2 years |
BMS protection | over-charge,over-discharge,over-current,short circuit |
Charge method | CC/CV |
Charge temperature | 0~45ºC |
Discharge temperature | -10~55ºC |
Storage temperature | -10~45ºC |
Advantages:
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly.
Applications:
1) Energy Storage: UPS , backup ,power station.
2) EV : Golf trolleys , Electric scooters , Electric Bike
3) Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4) Telecommunications Base Stations.
5) UPS(Uninterrupted Power Supply).
6) General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.)
Packing and shipping:
Standard export cartons
Shipping ways:
1.For samples,we normally ship them by HK UPS(door to door service)
2.For bulk order,we usually delivery them by sea which will take 30-45 days to arrive
Payment:
1.Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
2.FOB , EXW and CIF all are available
3.Samples can accept Paypal
Our services:
1.All of your inquiry and emails will be replied within 12 hours
2.OEM and ODM available
3.We have over 10 years experience in lithium battery field,we can provide you best solution for you
4.We can help you to track the shipping status,so that you can receive the goods timely
5.We can gurantee on-time leadtime and good after sales service
6.All of the battery pack and accessories will be tested before shipment
Company information:
Shenzhen Delong Energy Technology Co.,Ltd is one of leading lithium ion battery manufacturer in China , our management teams have been in lithium ion battery field for more than 10 years,we have own factory and testing room and sales center.Our factory is located in Dongguan city,Guangdong Province which is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers who can ensure to make high quality and more stable products. Dongguan Delong is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack and LifePO4 battery pack.Our products are widely applied on digital products,consumer products,LED lights,medical devices,solar systems ,energy storage system and electric vehicles.
FAQ:
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service
Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
A7:Shenzhen Delong EnergyTtechnology Co.,Ltd. is a professional rechargeable lithium-ion battery manufacturer,welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
