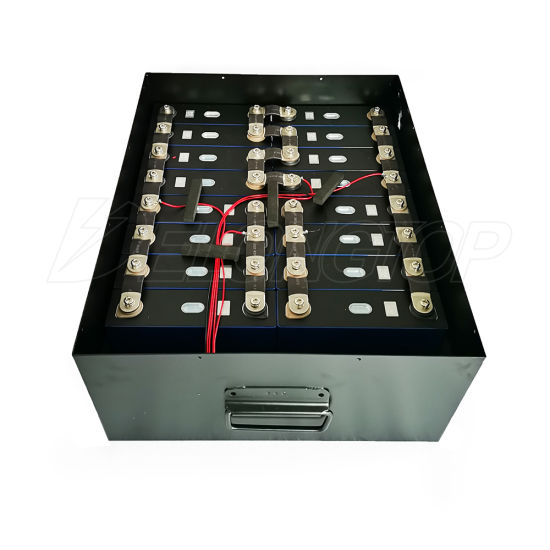

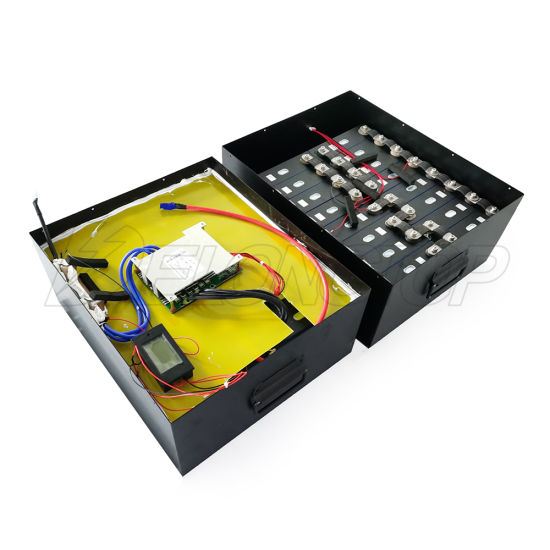

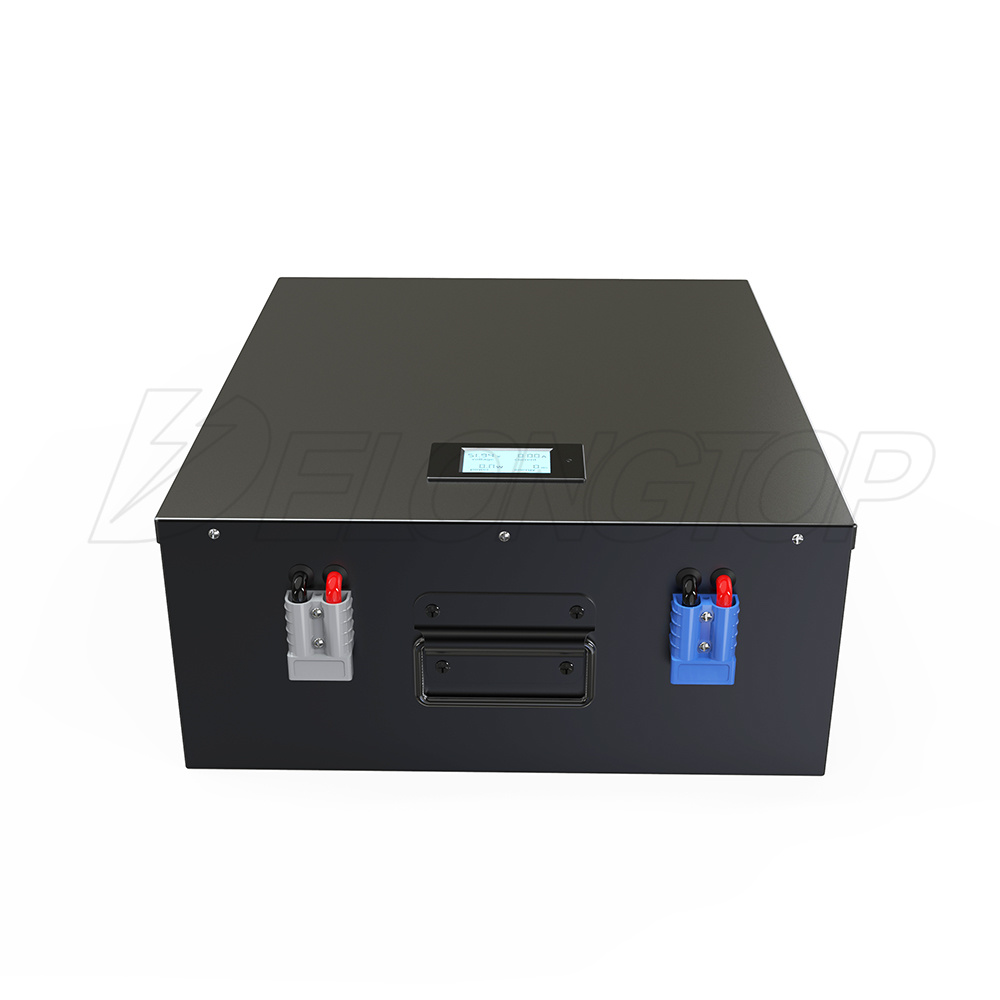

Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack

Quantity:
  • Shenzhen, China
  • 10000PCS/Month
  • T/T, Paypal
  • DL-LFP12400 4S4P
  • 400ah
  • 12V
  • LiFePO4 Battery
  • Lithium Iron Phosphate LiFePO4 Battery
  • 12V
  • 400ah
  • 625*205*265mm
  • Built in Battery Protection System (BPS)
  • 2000 Times at 85% Dod/ 5000 Times at 65% Dod
  • 3 Years

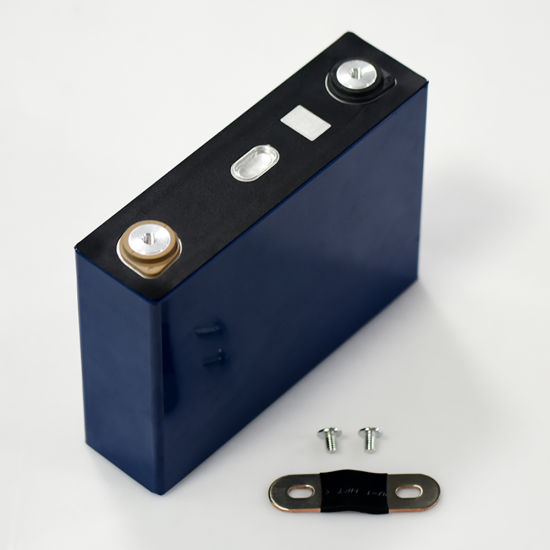

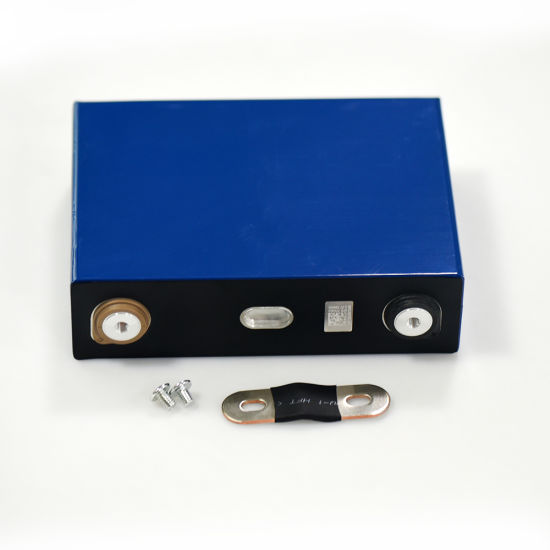

  • 3.2V 100ah LiFePO4 Battery Cells
  • ABS Case or Metal Case
  • Standard Export Package Per Pieces
  • Tt/Paypal
  • 55kg
  • DELONGTOP
  • Standard Packing
  • Customed
  • China
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • High Discharge Rate
  • Customerized
  • Battery
Deep Cycle li ion  prismatic cell LiFePO4 12V 400ah battery pack

Product Description
The Delong Battery 12V 400AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The DL-LFP12400 is plug and play for any application that currently uses a lead acid, gel or agm.
 Electrical Characteristics

Advantage
Model DL-LFP12400 4S4P
Nominal Voltage 12V
Nominal Capacity 400Ah
Internal Resistance ≤220mΩ
Capacity@1C rate 0.2C ≥400Ah
Cycle Life 2000 times at 85% dod
5000 times at 65% dod
8000 times at 40% dod
Standard Charge Advantage End of charge Voltage 14.6V
End of charge Current 200mA
Max.Continuous charge current 50A
Charge Method 0.2C (0.5A) CC/CV
Standard Discharge Advantage End of discharge Voltage 9.2V
Nominal Discharge Current 100A
Max. Pluse Discharge Current 300A/10S
Environmental Advantage Charge Temp 0~45ºC
Discharge Temp -10~55ºC
Storage Temp -10~45ºC

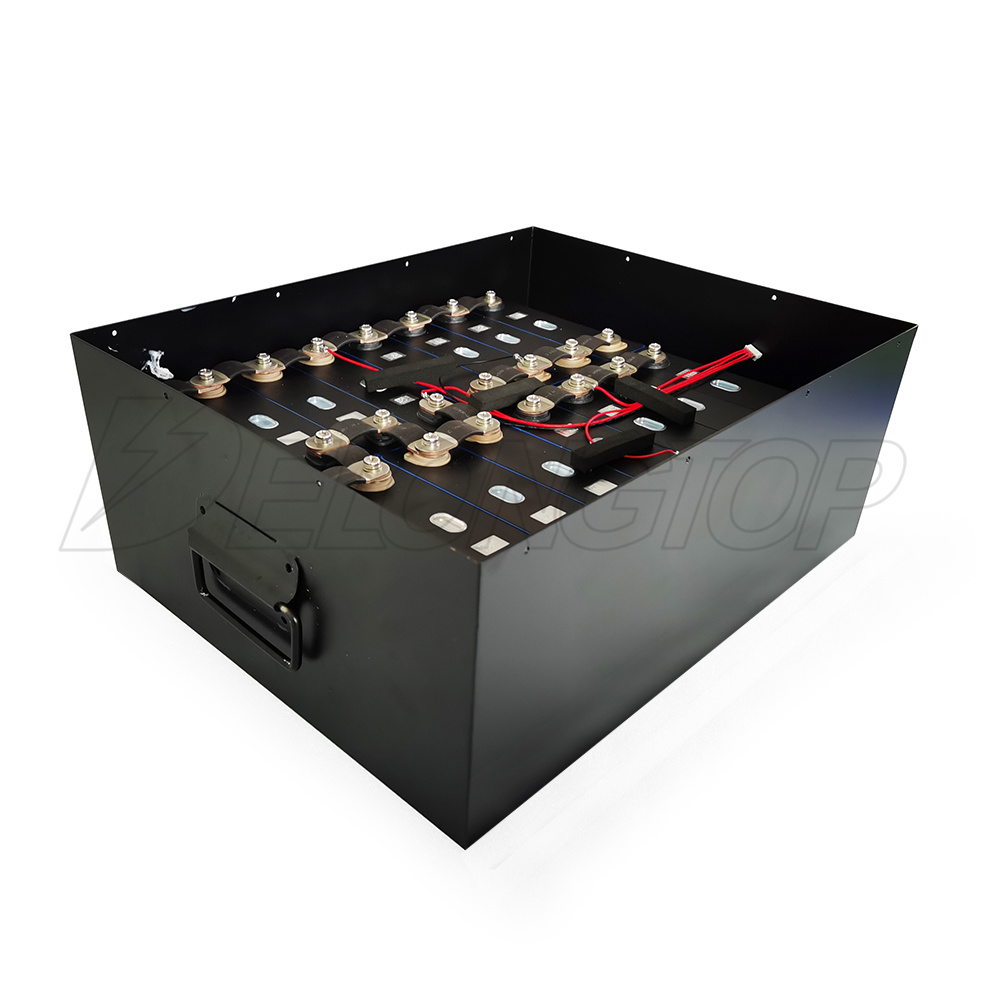

Mechanical Advantage Cells & Combination 3.2V 100Ah & 4S4P
Shell Material ABS Case or Metal Case
Dimesion(D×W×H) 625*205*265mm
Weight ≤55Kg
Safety & Protection Advantage Built in Automatic Battery Protection System Yes
Automatic Low Voltage Disconnect Yes
Automatic Short Circuit Protection Yes
Automatic Over Voltage Protection Yes
Automatic Over Current Protection Yes
Automatic Internal Cell Balancing Yes
Automatic Over Charge Protection Yes
Automatic Over Discharge Protection Yes
Automatic Over Temperature Protection Yes

This Product is Perfect For Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack

Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack
Packing&Shipping
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack



Product Application
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack

Advantages of Lifepo4 batteries
1. Long life, large capacity and good shock resistance

2..Low self-discharge and good discharge performance at low temperature

3. Strong charging acceptance and quick-charging capability

4. Strong over-discharge resistance and charge retention

5. Maintenance-free and no acid or water for maintenance in usage

6. Excellent large current discharge performance, and have obvious advantages in startup and climbing

7. High temperature performance

8. Environmental friendly

9. Lighter weight smaller size

Payment
1. We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order

2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy

3. FOB , EXW and CIF all are available

4. Samples can accept Paypal

5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Company Introduction
1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.

3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.

4. Our factory is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers

5. Our management teams have been in lithium ion battery field for more than 10 years


Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack
Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack Deep Cycle Li Ion Prismatic Cell LiFePO4 12V 400ah Battery Pack

Our Services & Strength
Support a variety of voltage,capacity,size,customized services according to your requirement
