| Quantity: | |
|---|---|
Shenzhen, China
10000PCS/Month
T/T, Paypal
200ah
48V
Solar Storage
LiFePO4 Battery

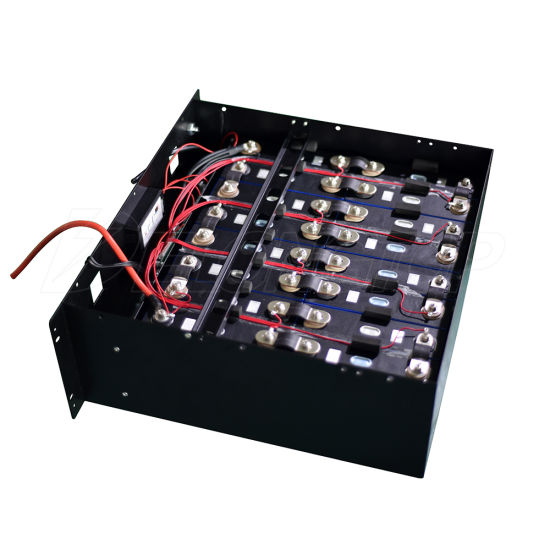

Lithium Iron Phosphate LiFePO4 Battery
48V
200ah
482*430*250mm
Built in Battery Protection System (BPS)
2000 Times at 85% Dod/ 5000 Times at 65% Dod
3 Years
3.2V 200ah LiFePO4 Battery Cells
Metal Case
Standard Export Package Per Pieces
Tt/Paypal
DELONGTOP
Standard Packing
Customed
China
Lithium-Ion Battery Pack

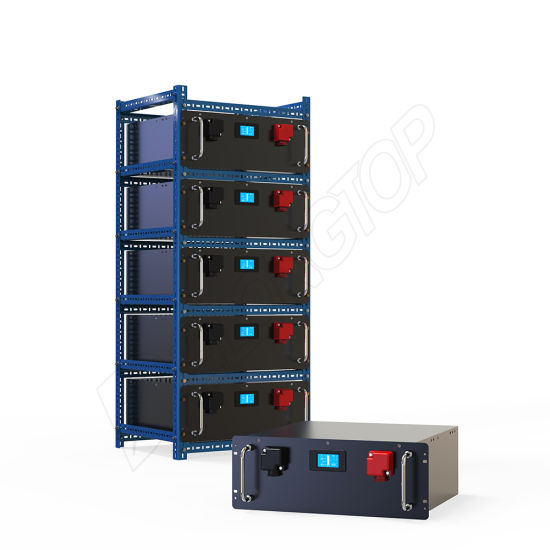

Series and Parallel
Chargeable
High Discharge Rate
Customerized
Battery
| Model No | DL-LFP48200 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200 Ah (Amp hour)/ 10Kwh |

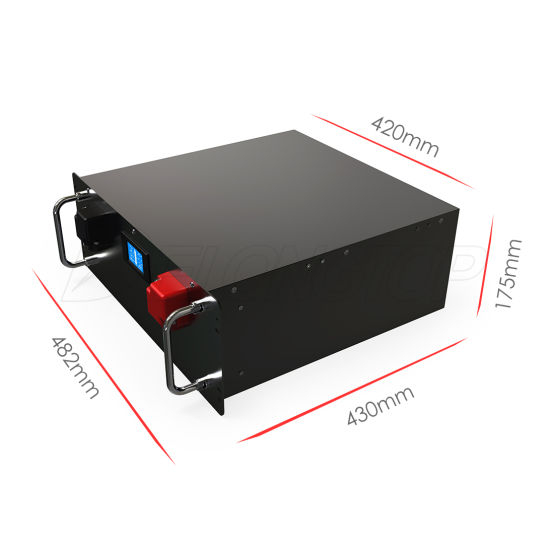

| Dimensions | 482*430*250mm (19*17*10 in) |
| Weight | 75KG (165 lbs) |
| Terminal Type | M8 screw connector |
| Case Material | Metal |
| Self Discharge | <3% per Month |
| Continuous charge current | 100A |
| Continuous discharge current | 100A |
| Battery Cell Type - Chemistry | Top A grade 3.2V 200Ah LifePO4 Prismatic Cell |
| Built-in BMS | YES |
| Certificate | CE, RoHS ,MSDS and UN38.3 certification |
| 100A Energy Storage BMS for 16S Lithium 48v 200Ah Battery Pack | ||
| Number of cells in series | 16 units | adjustable |
| Maximal charging current of the battery pack (max.) | 100A | adjustable |
| Maximal Discharging current of the battery pack (max.) | 100A | adjustable |
| Over Charging Protection activating | 58.4V | adjustable |
| Over Discharging Protection activating | 43.2V | adjustable |
| Over current protection current | 110A | adjustable |
| Short protection | ≥350A | adjustable |
| MOS high temperature protection | 115ºC | adjustable |
| RS232 interface | YES | |
| RS485 interface | YES | |
| CAN bus interface | YES | |
| Cell Over Charging Protection activating | 3700mV | adjustable |
| Cell Over Discharging Protection activating | 2700mV | adjustable |
| Over Temperature Protection activating | 75ºC | adjustable |
| Balance voltage for single cell | 3500mV | adjustable |
| Operating Current Consumption | ≤30mA | adjustable |
| Model No | DL-LFP48200 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200 Ah (Amp hour)/ 10Kwh |
| Dimensions | 482*430*250mm (19*17*10 in) |
| Weight | 75KG (165 lbs) |
| Terminal Type | M8 screw connector |
| Case Material | Metal |
| Self Discharge | <3% per Month |
| Continuous charge current | 100A |
| Continuous discharge current | 100A |
| Battery Cell Type - Chemistry | Top A grade 3.2V 200Ah LifePO4 Prismatic Cell |
| Built-in BMS | YES |
| Certificate | CE, RoHS ,MSDS and UN38.3 certification |
| 100A Energy Storage BMS for 16S Lithium 48v 200Ah Battery Pack | ||
| Number of cells in series | 16 units | adjustable |
| Maximal charging current of the battery pack (max.) | 100A | adjustable |
| Maximal Discharging current of the battery pack (max.) | 100A | adjustable |
| Over Charging Protection activating | 58.4V | adjustable |
| Over Discharging Protection activating | 43.2V | adjustable |
| Over current protection current | 110A | adjustable |
| Short protection | ≥350A | adjustable |
| MOS high temperature protection | 115ºC | adjustable |
| RS232 interface | YES | |
| RS485 interface | YES | |
| CAN bus interface | YES | |
| Cell Over Charging Protection activating | 3700mV | adjustable |
| Cell Over Discharging Protection activating | 2700mV | adjustable |
| Over Temperature Protection activating | 75ºC | adjustable |
| Balance voltage for single cell | 3500mV | adjustable |
| Operating Current Consumption | ≤30mA | adjustable |
