Quantity: | |
---|---|
Name | 12.8V 100AH Lifepo4 battery |
Nominal voltage | 12.8V |
Nominal capacity | 100ah |
Battery type | Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell |
Model | DL-12100 |
Battery configation | 4S1P or 4S2P |
Internal resistance | ≤420mΩ |
End of charge voltage | 14.6V |
End of charge current | 200mA |
End of discharge voltage | 9.2V |
Charge method | CC/CV(constant current/constant voltage) |
Max continuous charge current | 50A/100A |
Max continuous discharge current | 100A |
Max pulse discharge current | 200A/10S |
Net weight | 100ah: 11.5 kg |
Case material | ABS or metal case or stainless steel case |

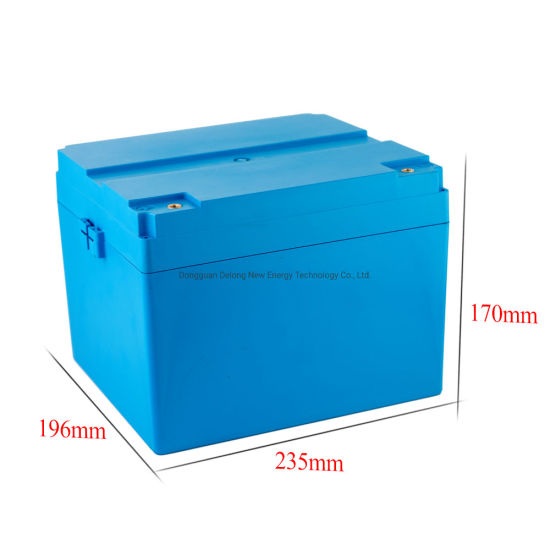

Case dimension | 235*196 *170mm ( customized ) |
Warranty | 2 years |
BMS protect | Overcharge,Balance, Over-discharge,Over-current, Short-circuit etc |
Terminal Type | M8 or anderson or another bolt screw |
Lifecycle | 2000 times, 85%dod, 3000 times, 80%dod 5000 times , 65% dod, 8000 times, 40% dod |
Charge temperature | 0~45ºC |
Discharge temperature | -20~60ºC |
Storage temperature | -10~45ºC |
Certificate | CE, RoHS ,MSDS and UN38.3 certification |
Parallel assembly | up to 10 items |
Enclosure Protection | IP56 or customized IP67 available |
Weight | 11.5KG |

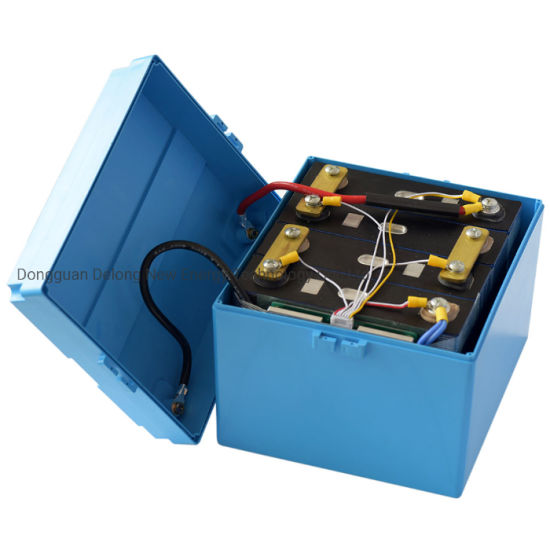

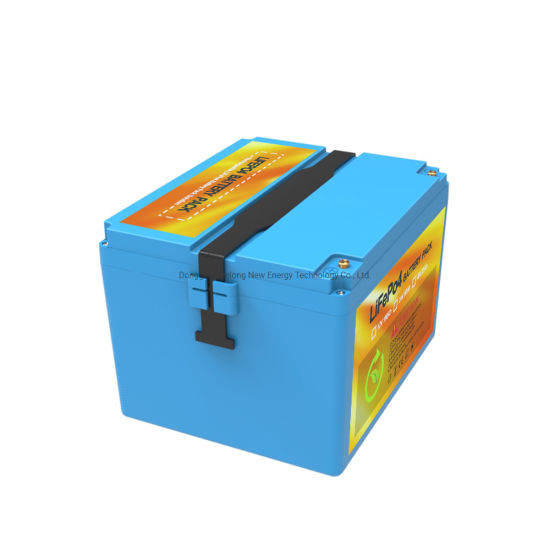

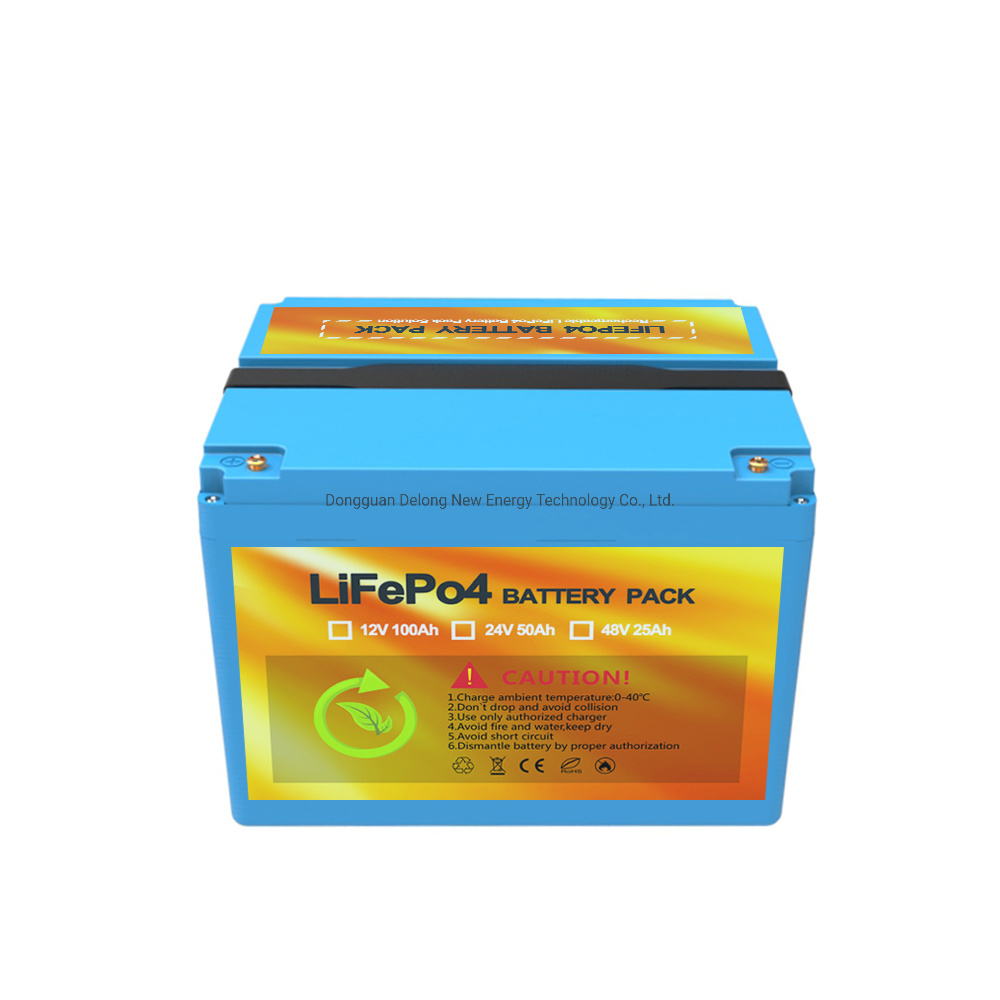

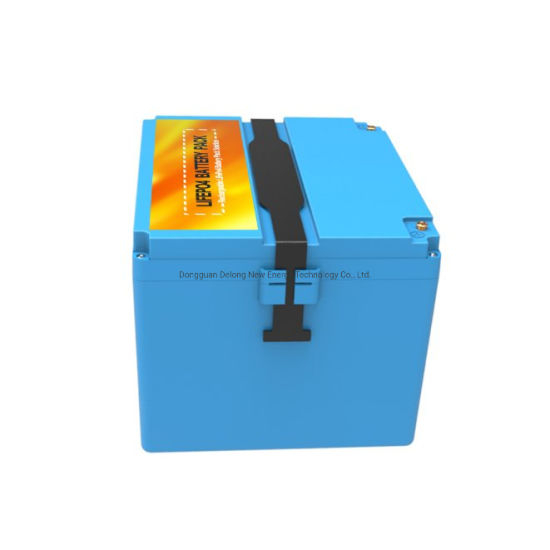

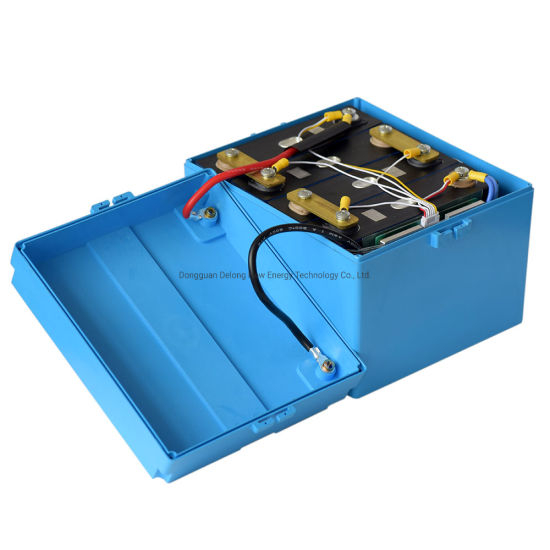

Product Show:
Feedback:
Applications:
Military power
Wind & Solar energy storage
Communication power
Transmission and distribution backup
UPS power supply
Electric Golf Car
Electric forklifts and so on
