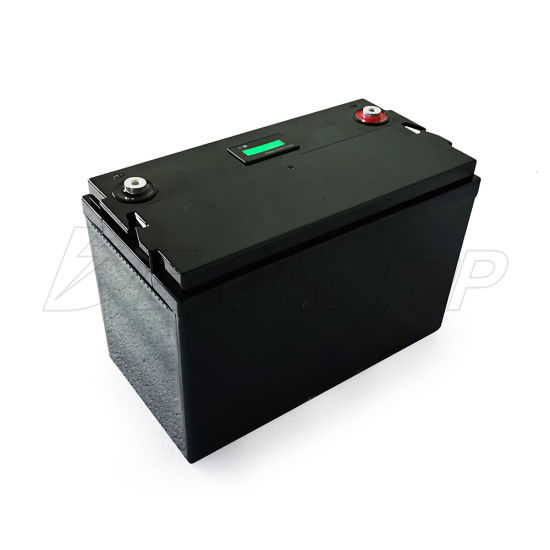

2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

Quantity:
  • Shenzhen, China
  • 10000PCS/Month
  • T/T, Paypal
  • 100ah
  • 12.8V
  • Solar Backup Power
  • LiFePO4 Battery Cell
  • Lithium Iron Phosphate LiFePO4 Battery
  • 12V
  • 100ah
  • 332*170*220mm
  • Built in Battery Protection System (BPS)
  • 2000 Times at 85% Dod/ 5000 Times at 65% Dod
  • 3 Years
  • 3.2V 100ah LiFePO4 Battery Cells
  • ABS Case or Metal Case
  • Standard Export Package Per Pieces
  • 11kg
  • DELONGTOP
  • Standard Packing
  • Customed
  • China
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • High Discharge Rate
  • Customerized
  • Battery
Our LiFePO4 batteries are made to order so we can make any size you require with custom BMS to suit your application
Product Name 2000 Cycles LiFePO4 lithium battery 12v 100ah Battery Pack for RV car
Nominal Voltage 12.8V
Nominal Capacity 100 Ah (Amp hour) / 1.28Kwh
Energy @25A 240 min

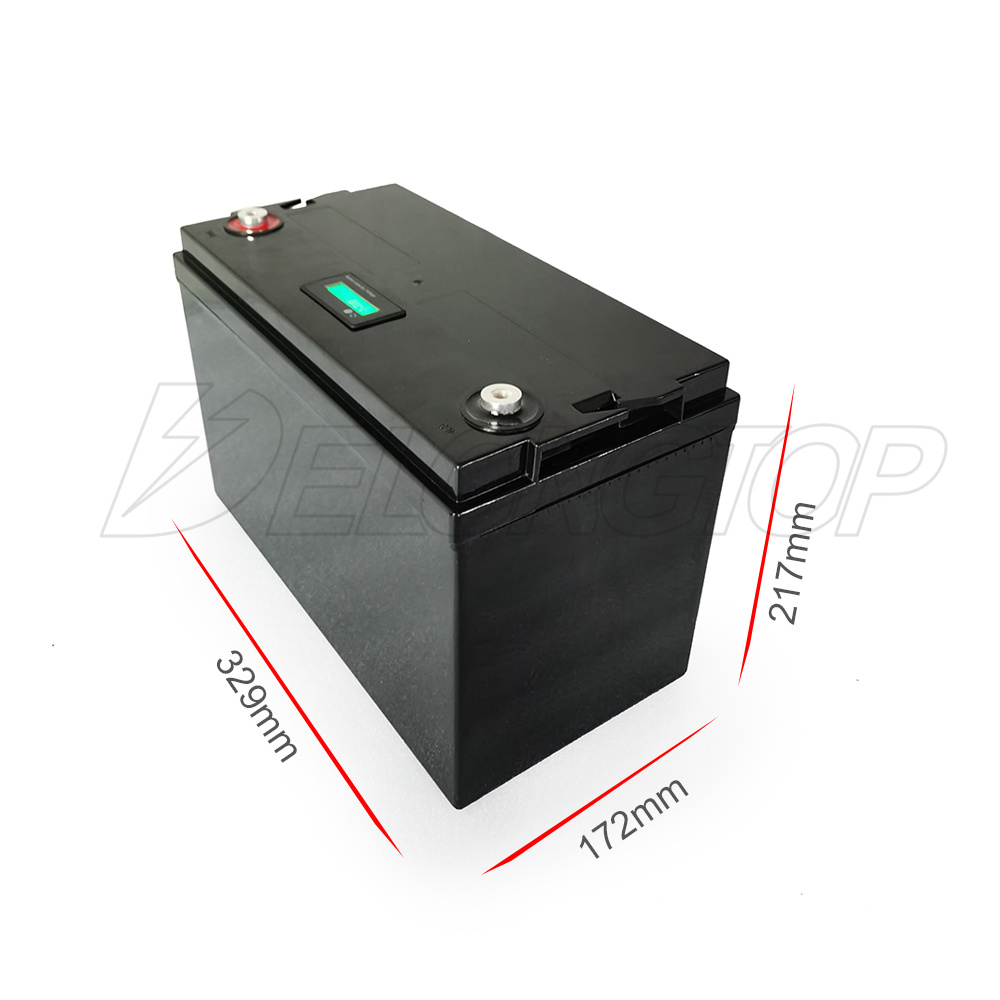

Dimensions 329*172*217mm or customized
Weight 11KG
Terminal Type M8 or customized
Energy efficiency 99%
Depth of Discharge 100%
Case Material ABS or Metal or customized
Enclosure Protection IP56 or customized IP67 available
Self Discharge <3% per Month
Continuous charge current 50A
Peak discharge current 150A for 10S
continuous discharge current 100A
Battery cells Top A grade 3.2V 100Ah LifePO4 Prismatic Cell
Built-in BMS Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
Parallel assembly up to 10 items (12V-1000Ah)
Certificate CE, RoHS ,MSDS and UN38.3 certification
100% Maintenance free


Advantage of Delong lithium iron phosphate (LiFePO4) 12v 100Ah battery pack


Built-in BMS: Not all lithium batteries are created equal. All Delong Batteries use the safest and most stable components,
including a LiFePO4 cathode and a built-in Battery Management System (BMS protects it from overcharge, deep discharge,overloading, overheating).

Ultra-Light Weight: About 11kg, only 1/3 weight of normal lead-acid battery; portable for outdoor using, perfect for RVs,
Solar,Marine and Off-Grid Applications ect.

Super Safety: Lithium Iron Phosphate Chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

Excellent Cycle Life: 2000-7000 cycles (lead acid battery only 200-500 cycles);

Warranty 3 years (lead-acid battery 6 months)

Wider Temperature Range: -20°C~60°C and 100% Maintenance free.

Increased Flexibility: Modular design enables deployment of up to 10 batteries in parallel.

The Delong 12v 100Ah battery pack is plug and play for any application that currently uses a lead acid, gel or agm and also requires no new hardware to run in your boat, RV, trailer, solar system or golf cart.


Top A grade Lifepo4 cells ensure a long cycle life and exceptional discharge performance
Deep cycle life 2000 times, 80%dod
Deep cycle life 5000 times , 65% dod
Deep cycle life 8000 times, 40% dod

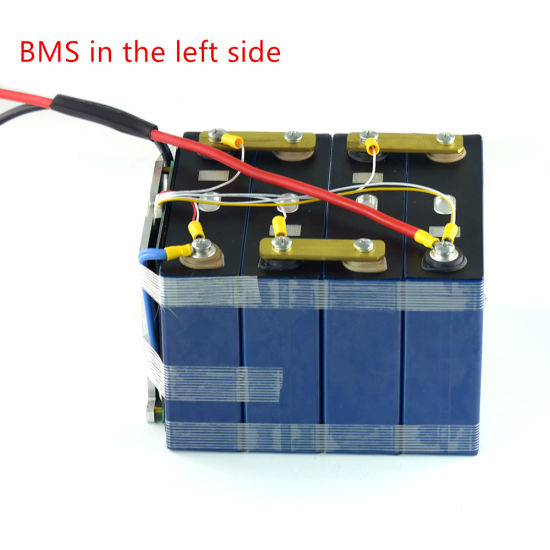

Deep cycle lithium ion 12.8v 100Ah Lifepo4 battery pack are made up from 4pcs 4S1P 3.2V 100Ah LiFePO4 cells

2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

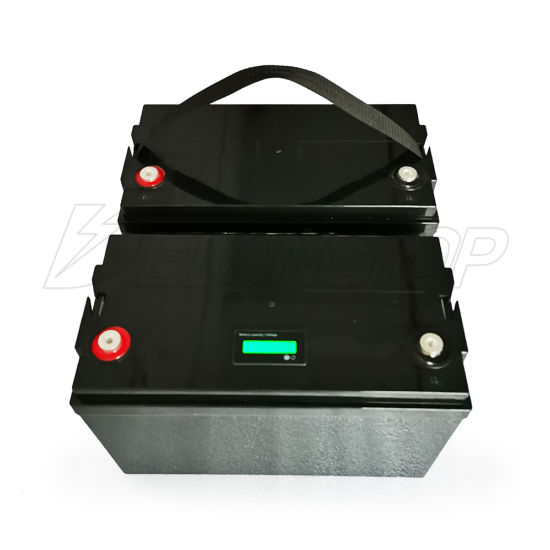

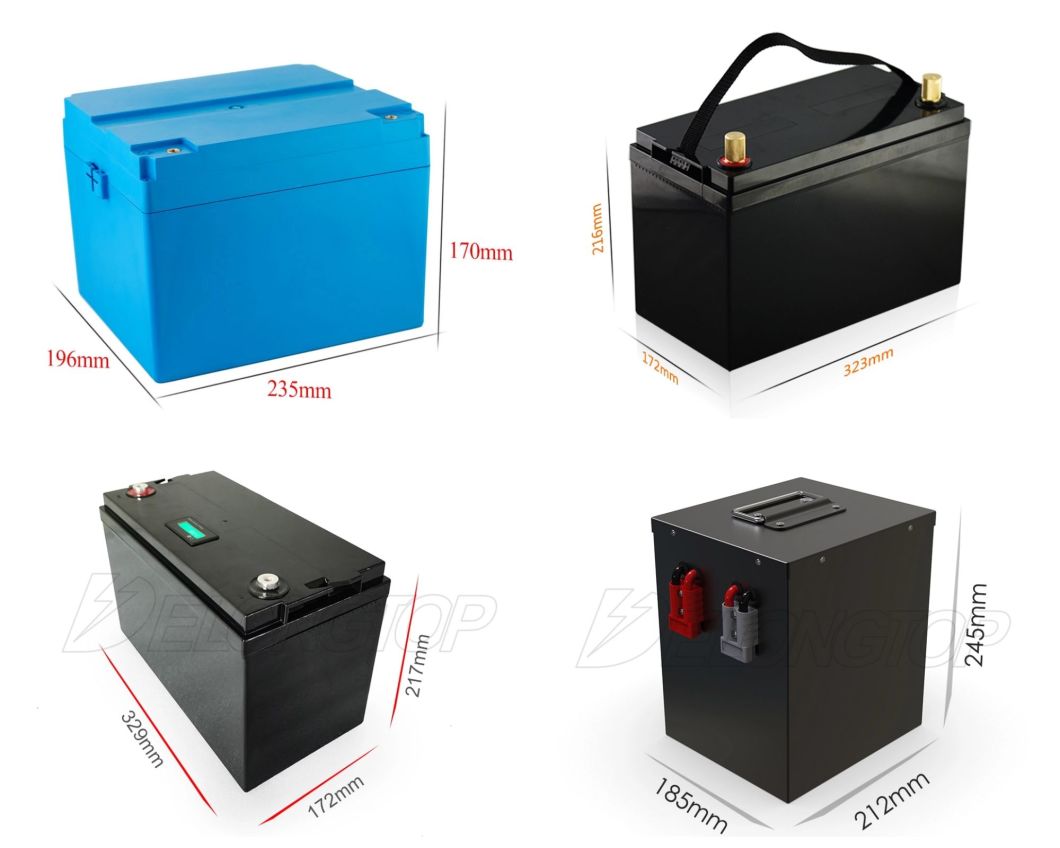

There are another options case

Enclosure Protection : IP56, If you require a specific IP65 case then please let us know.

we support a variety of battery size and case material and connector customized services according to your requirement


2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack






Designed for safety with built in Battery protection BMS. BMS provides high voltage protection, low voltage protection, over high current protection, high temperature protection, short circuit protection, and over charge protection.

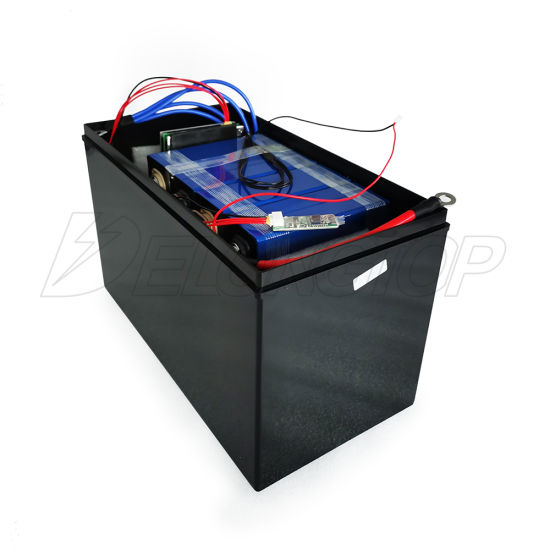

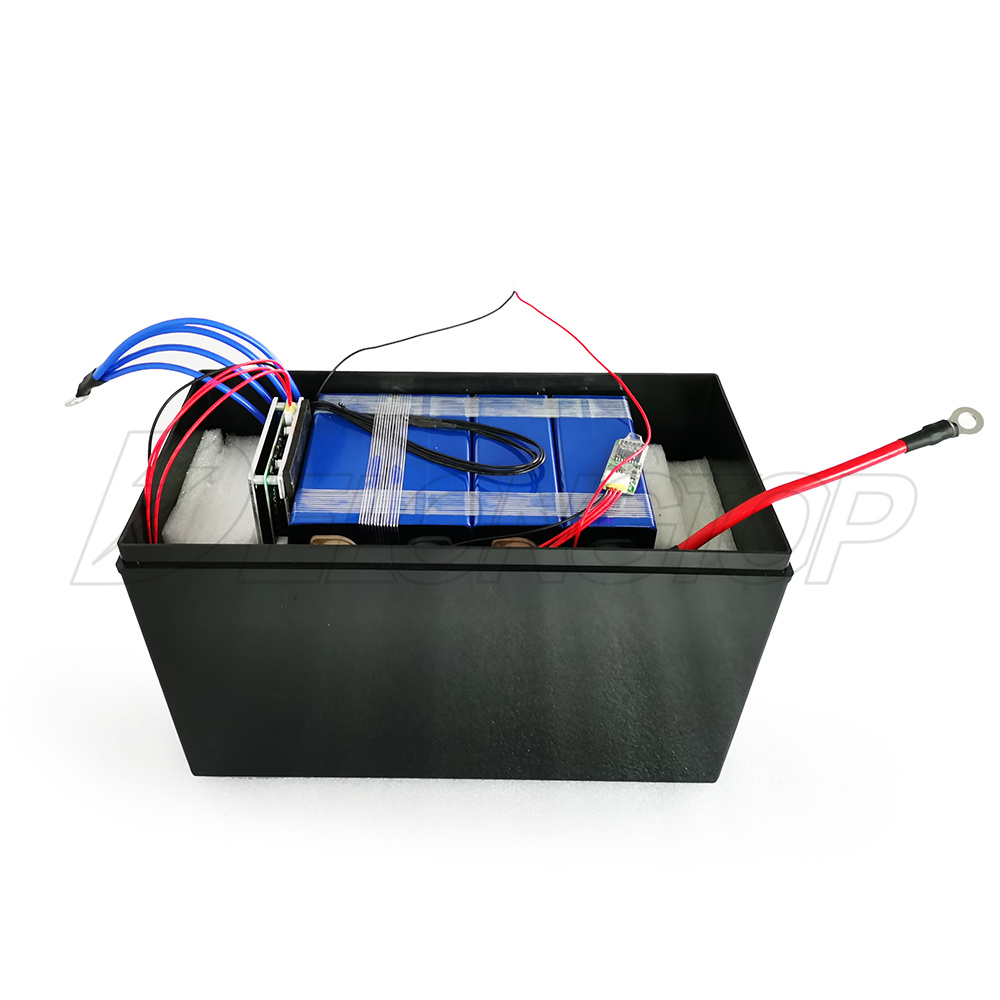

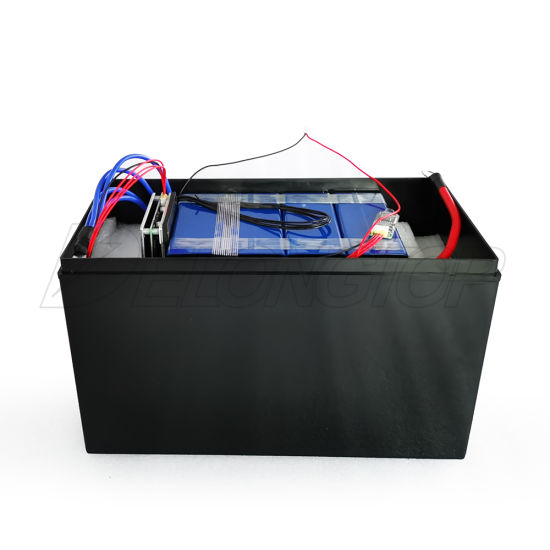

12.8V 200Ah lifepo4 battery pack with 100A management system of inside construction schematic drawing


2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

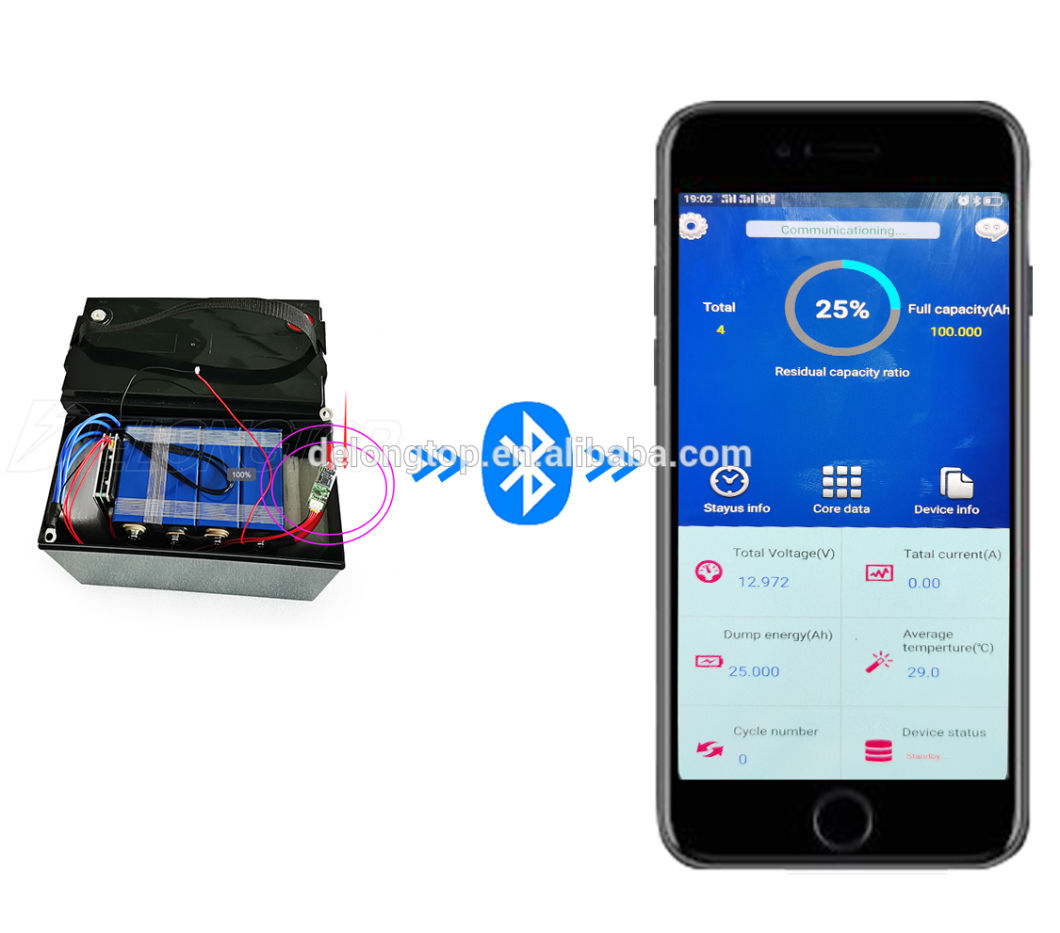

Customized your App intelligent Control : Built-in BT function allows you to read the battery status at any time.
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

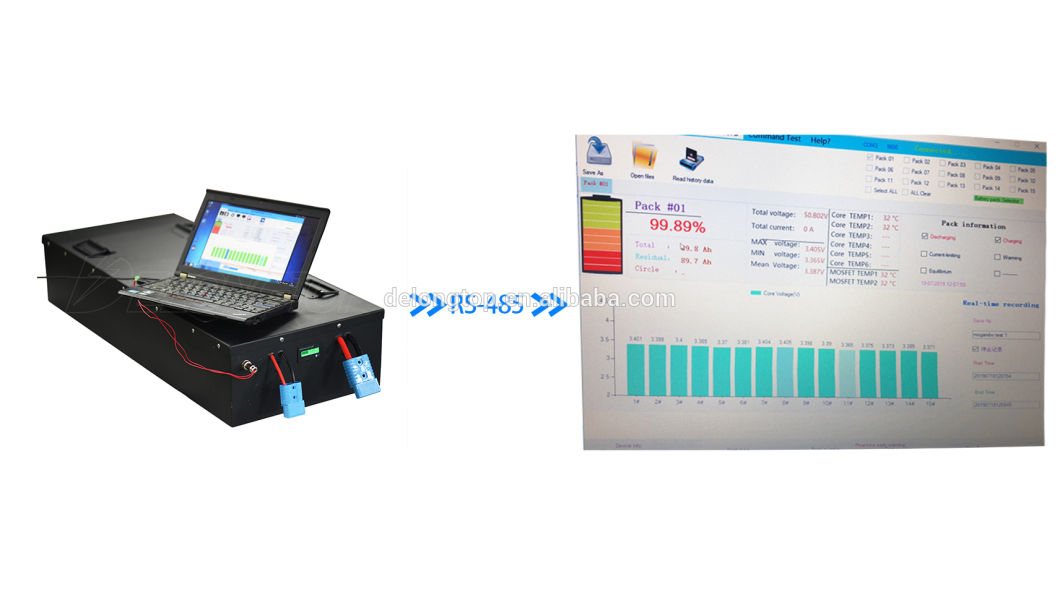

Customized Communication functions: RS-232 / RS-485/ BT available

Example as follow: 48v 100Ah lifepo4 15S1P
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack

Delivery time :

Usually delivery in 7-15days, but could be changed according to the quantity or other things.

Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on. & Trade assurance order
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy
3. FOB , EXW and CIF all are available
4. Samples can accept Paypal
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.



Packing&Shipping
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack




Product Application

The Delong batteries are plug and play for any application that currently uses a lead acid, gel or agm.

Applications of lifepo4 battery 12V 100ah :

Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack





Company Introduction
1.Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.

2.Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory.
3. We specialized in developing,manufacturing new energy customized products which cover 18650 lithium ion battery pack, lithium polymer battery pack,AC output power banks and LifePO4 battery pack.
4. Our factory is occupied with more than 5,000 square meters,we have strong R&D department,more than 200 well trained workers
5. Our management teams have been in lithium ion battery field for more than 10 years

2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack
2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack 2500-7000 Life LiFePO4 12V 100ah Deep Cycle Lithium Ion Battery Pack
Our Services & Strength
Support a variety of voltage,capacity,size,customized services according to your requirement
