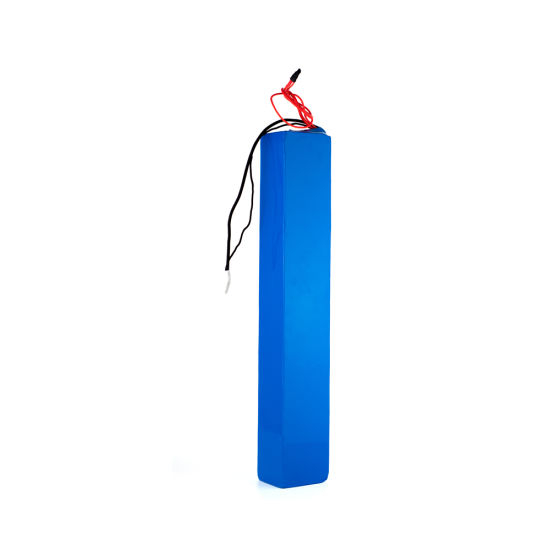

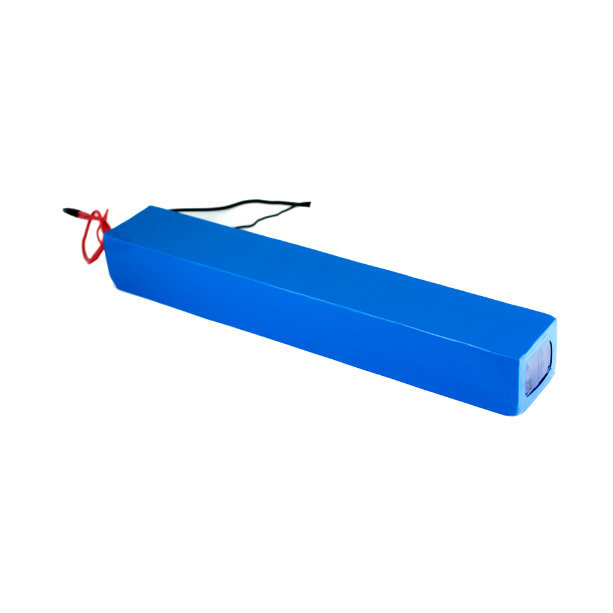

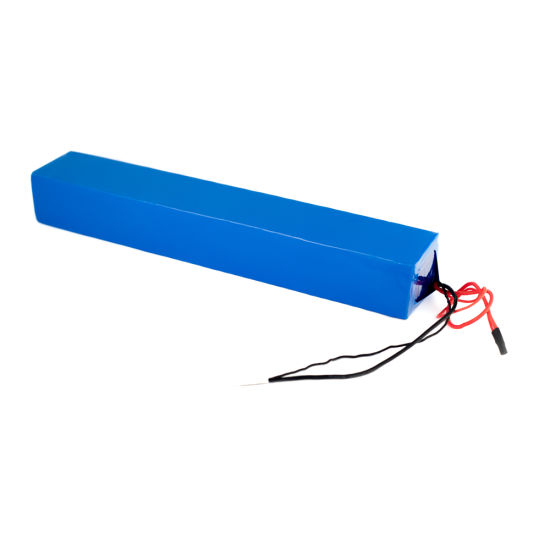

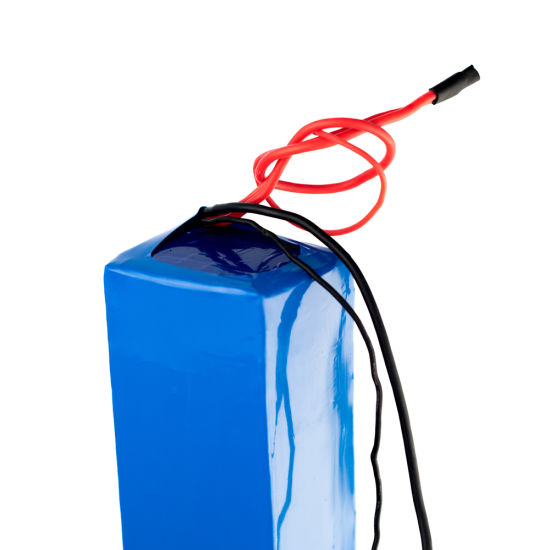

18650 Brand Cell 10ah 36V Lithium Ion Battery Pack for Ebike

Quantity:
  • Shenzhen, China
  • 3000PCS/Day
  • L/C, T/T, Western Union, Paypal
  • Del-36V10P
  • 10ah(Customized)
  • 36V
  • E-Bike
  • Li-ion
  • 3kg
  • 36V
  • 10ah
  • 1000 Times
  • Lithium Ion
  • E-Bike
  • 38mm* 70mm*495mm
  • Ce/RoHS/MSDS/Un38.3/FCC
  • Delong
  • Standard Export Package
  • Customized
  • Guangdong
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • Medium Discharge Rate
  • Medium
  • Chargers
18650 brand cell 10ah 36v lithium ion battery pack for ebike

Product Parameter
Item Specification
Technical data: Del-36V10P
Chemistry: Li-ion/Lithium ion
No. of cells: 18650 10S5P
Capacity: 10Ah discharging at 0.2C
Nominal Voltage: 36V
Standard charge voltage: 42V±0.05V
Standard discharge voltage: 30±0.05V
Impedance: ≤ 150 mΩ
Norminal Charge Current: 0.5C
Maximum Charge Current: <5Ah  (can be adjustable)
Maximum Discharge Current: <15Ah  (can be adjustable)
Maximum Pulse discharge current: ≤ 35A (can be adjustable)
Charge end current: 0.01C
Operation Temperature Range: Charge: 0~45ºC
Discharge: -20~60ºC
Storage Temperature: Less than 1 year: -20~25ºC
less than 3 months: -20~40ºC
Weight: Approx 2.5kg
Dimension: Length:Max. 495mm
Width:Max.   70mm
Thickness:Max. 38mm

18650 Brand Cell 10ah 36V Lithium Ion Battery Pack for Ebike
18650 Brand Cell 10ah 36V Lithium Ion Battery Pack for Ebike


Characteristics:

1. Extremely safe and stable chemistry: BMS or PCB built inside to protect the battery over charge and discharge.

2. Long life-cycle: 800 times cycle life.

3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.

4. Wide operating temperature: High temperature resistance(-20~60 degrees Celsius).

5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells, Low self-discharge rate, less than 3% monthly.

6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity

7. Green product: Environment friendly, clean and green energy, no pollution on our environment.

8. Quality assurance:  CE/Rohs/MSDS/UN38.3/FCC certificates

    CE,ROHS UN38.3,TUV,KC etc...product certificates.


 Applications:

 1. Telephone switchboard, electric equipment and power instruments

 2. UPS, emergency application and medical devices

 3. Power transmission and transformer station and accident lighting

 4.  Fire fighting, safety device and alarm monitoring

 5.  Automatic office system

 6.  Radio communication system

 7.  Emergency lighting and car/ship starting system

 8.  Portable electric appliances and mining system

 9.  Traffic and navigation signal lamp

 10. Solar energy: solar street lights, solar LED lights


Charger:

Item Specification
Technical data 42V 2A
Input Voltage AC90~240V
Output Voltage 42V
Max charging current 2A
Protection function AC safety&output short circuit, over charging/temperature
Demension
Weight 500g
Warranty 13 months


More products:


24v10ah(140mm*110mm*55mm)

24v12ah(160mm*140mm*40mm)

24v15ah(190mm*140mm*40mm)

24v18ah(220mm*140mm*40mm)

24v20ah(260mm*140mm*40mm)

36v10ah(170mm*140mm*40mm)

36v12ah(220mm*140mm*40mm)

36v15ah(190mm*140mm*60mm)

36v18ah(220mm*140mm*60mm)

36v20ah(190mm*140mm*70mm)

48v10ah(220mm*140mm*40mm)

48v12ah(220mm*140mm*55mm)

48v15ah(220mm*140mm*65mm)

48v18ah(240mm*120mm*70mm)

48v20ah(240mm*140mm*70mm

18650 Brand Cell 10ah 36V Lithium Ion Battery Pack for Ebike
18650 Brand Cell 10ah 36V Lithium Ion Battery Pack for Ebike

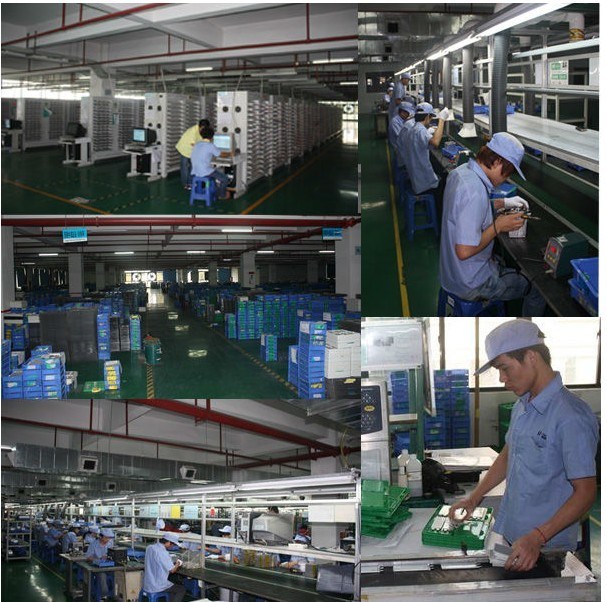

Our Company
