English
 |
| Quantity: | |
|---|---|
Shenzhen, China
T/T, Paypal
LFP12100
100ah
12.8V
Solar Boat
LiFePO4
delong
235*196*170mm
China
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Anderson Connector
Basic Spec | ||
Model | 12V100Ah lifepo4 battery | |
Single cell voltage | 3.2V | |

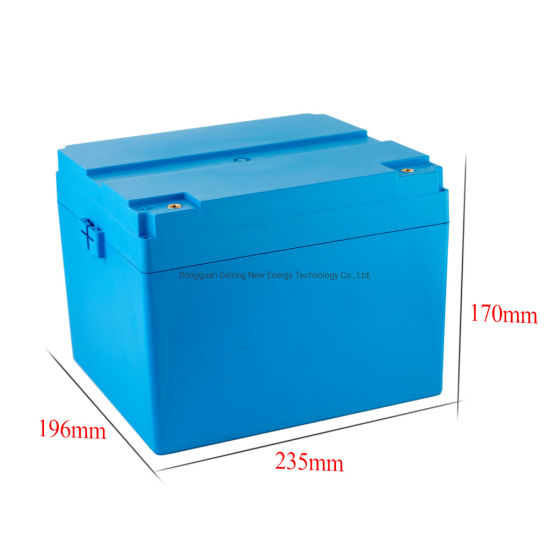

D×W×H | 235*196*170mm | |
Nominal Voltage | 12.8V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage
| 14.6V | |
End of charge Current
| 100mA | |
End of discharge Voltage
| 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current
| 200A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45ºC |
Discharge | -10~55ºC | |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 3000 times(Cycle @RT, 1C rate,85%D\OD) | |
lifepo4 is mainly used in power systems, such as electric vehicles, military aerospace, power tools and UPS. Compared with other lithium ion batteries, lifepo4 batteries have the following five advantages:
1. Stable structure and higher security.
2. The lithium iron phosphate battery has a cycle life of at least 2000 times, and its capacity can be maintained at more than 80%. The cycle life of lithium-ion batteries is about 500-800 times.
3. The use of environmentally friendly materials is environmentally friendly.
4. Support fast charging.
5. A wider operating temperature range, which can work normally from -20 ° C to + 75 ° C, and some lifepo4 batteries with high temperature resistance can also work normally in the range of 350 ° C to 500 ° C.

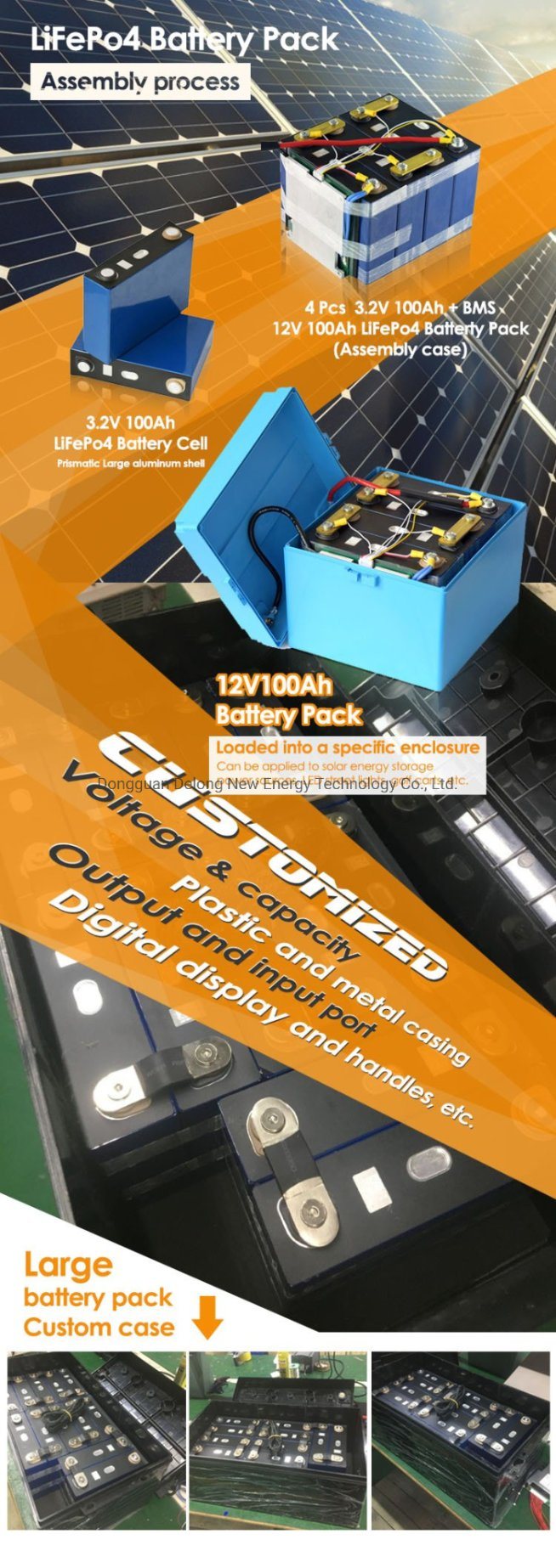

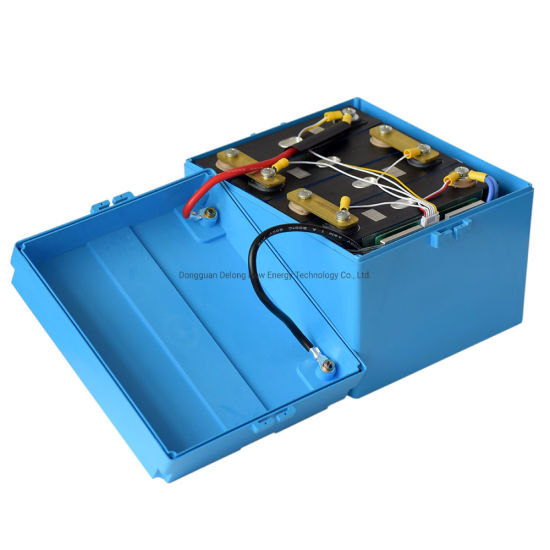

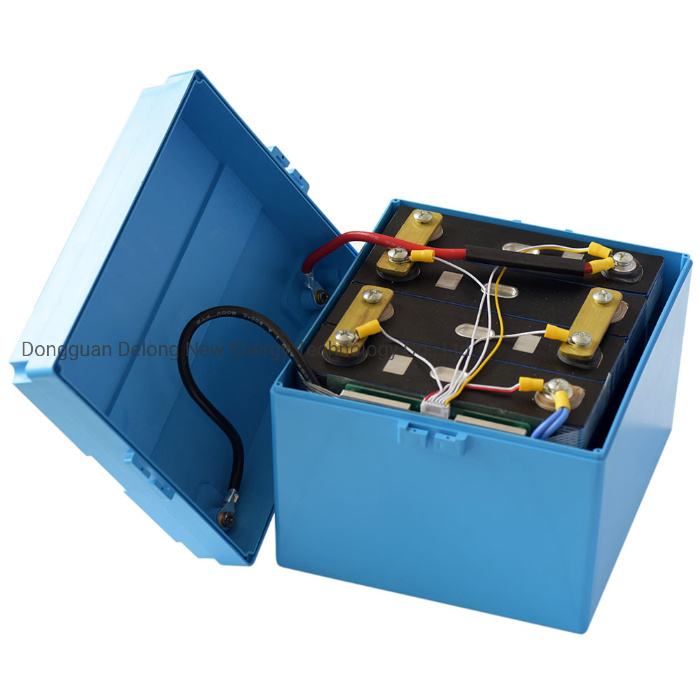

12.8v100ah lifepo4 battery pack use 3.2v 100ah lifepo4 prismatic cells with 4s 100a BMS
12v100ah lifepo4 prismatic batteries for solar of Advantages:
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly

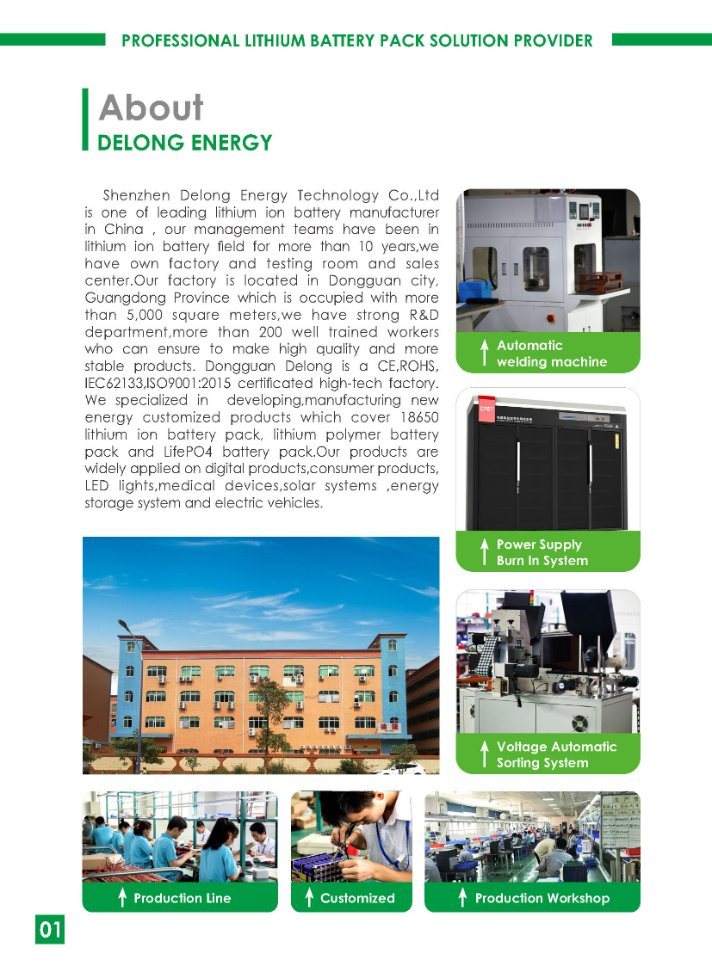

Shenzhen DeLong Energy Technology Co., Ltd. is a professional new energy supplier.
Focusing on the manufacture, research and sale of lithium ion battery product worldwide.
DeLong battery won a good reputation and has become a popular brand in the international market.
We offer OEM and ODM service at factory price and high quality.
Basic Spec | ||
Model | 12V100Ah lifepo4 battery | |
Single cell voltage | 3.2V | |
D×W×H | 235*196*170mm | |
Nominal Voltage | 12.8V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage
| 14.6V | |
End of charge Current
| 100mA | |
End of discharge Voltage
| 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current
| 200A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45ºC |
Discharge | -10~55ºC | |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 3000 times(Cycle @RT, 1C rate,85%D\OD) | |
lifepo4 is mainly used in power systems, such as electric vehicles, military aerospace, power tools and UPS. Compared with other lithium ion batteries, lifepo4 batteries have the following five advantages:
1. Stable structure and higher security.
2. The lithium iron phosphate battery has a cycle life of at least 2000 times, and its capacity can be maintained at more than 80%. The cycle life of lithium-ion batteries is about 500-800 times.
3. The use of environmentally friendly materials is environmentally friendly.
4. Support fast charging.
5. A wider operating temperature range, which can work normally from -20 ° C to + 75 ° C, and some lifepo4 batteries with high temperature resistance can also work normally in the range of 350 ° C to 500 ° C.
12.8v100ah lifepo4 battery pack use 3.2v 100ah lifepo4 prismatic cells with 4s 100a BMS
12v100ah lifepo4 prismatic batteries for solar of Advantages:
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Shenzhen DeLong Energy Technology Co., Ltd. is a professional new energy supplier.
Focusing on the manufacture, research and sale of lithium ion battery product worldwide.
DeLong battery won a good reputation and has become a popular brand in the international market.
We offer OEM and ODM service at factory price and high quality.
