English
 |
| Quantity: | |
|---|---|
Shenzhen, China
1000PCS
T/T, Paypal
LFP-12100
100ah
12V
RV Solar
Li-ion
delong
lifepo4 12.8v 100ah
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Small
Battery
Basic Spec | ||
Model | 12V 100Ah lifepo4 battery | |
Single cell voltage | 3.2V | |

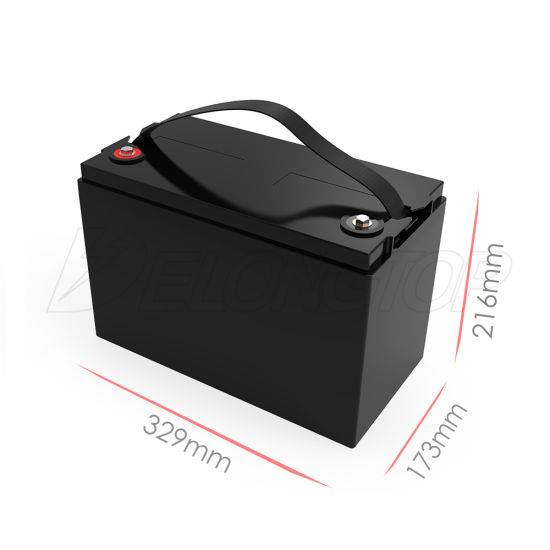

D×W×H | 329*172*217mm | |
Nominal Voltage | 12V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage
| 14.6V | |
End of charge Current
| 100mA | |
End of discharge Voltage
| 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current
| 200A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45ºC |
Discharge | -10~55ºC | |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 2000 times(Cycle @RT, 1C rate,85%D\OD) | |

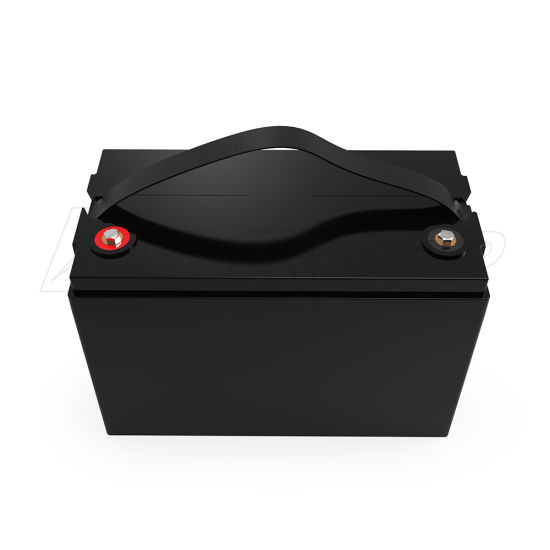

Characteristics of 12V 100ah lifepo4 batteries:
1,Long Cycle Life, 2000+ Cycles. 12V100ah lithium ion battery pack is constructed from 4pcs High Quality 3.2v100ah prismatic cells in 4S1P. Compatible with LED strip, Digital/CCTV cameras, 12 volt HDTV, portable tv, Booth lighting, Bluetooth speaker, 12 volt pump, Fish finder, or most 12V DC electronic devices.
2,High Capacity: 12.8V 100Ah . Output voltage: 14.6V-9V (Nominal: 12.8V). Output Current: 100A Max. The output voltage is output directly from 4S Li-Ion battery by through the PCM, so the output voltage is not constant. But more than 90% of the time, the output voltage is about from 12V to 13V in one of discharge cycle.
3,Appearance shape, size of the product is similar to the specifications of traditional lead-acid batteries, so you can be installed directly instead of the customary lead-acid battery.[Please note: this battery can't be used as a Jump Starter Battery!!!]
4,Compared with lead-acid battery, the LiFePo battery has higher capacity, is lighter and much better. Lithium battery have excellent characteristics, for example: large capacity, small volume, light weight, etc. It will bring a very convenient experience to users. Note: the package not included the charger, please purchase it separately.
5,Package content: 1pcs 12V LiFePO4 Battery Pack [No battery charger. Please use the 14.6V LiFePO4 Battery Charger to charge, the package not included the charger, you need to purchase it separately!!!]

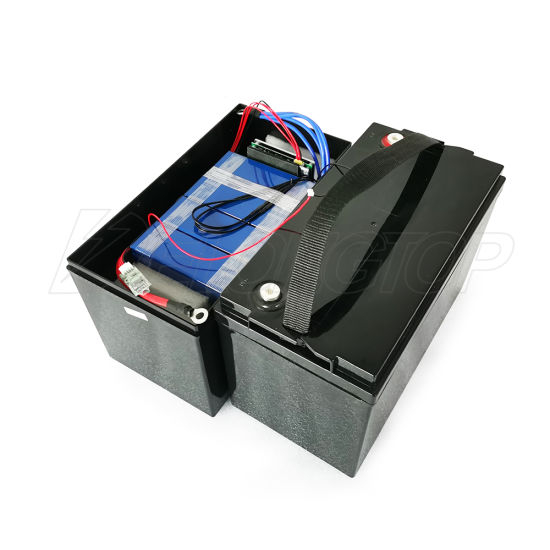

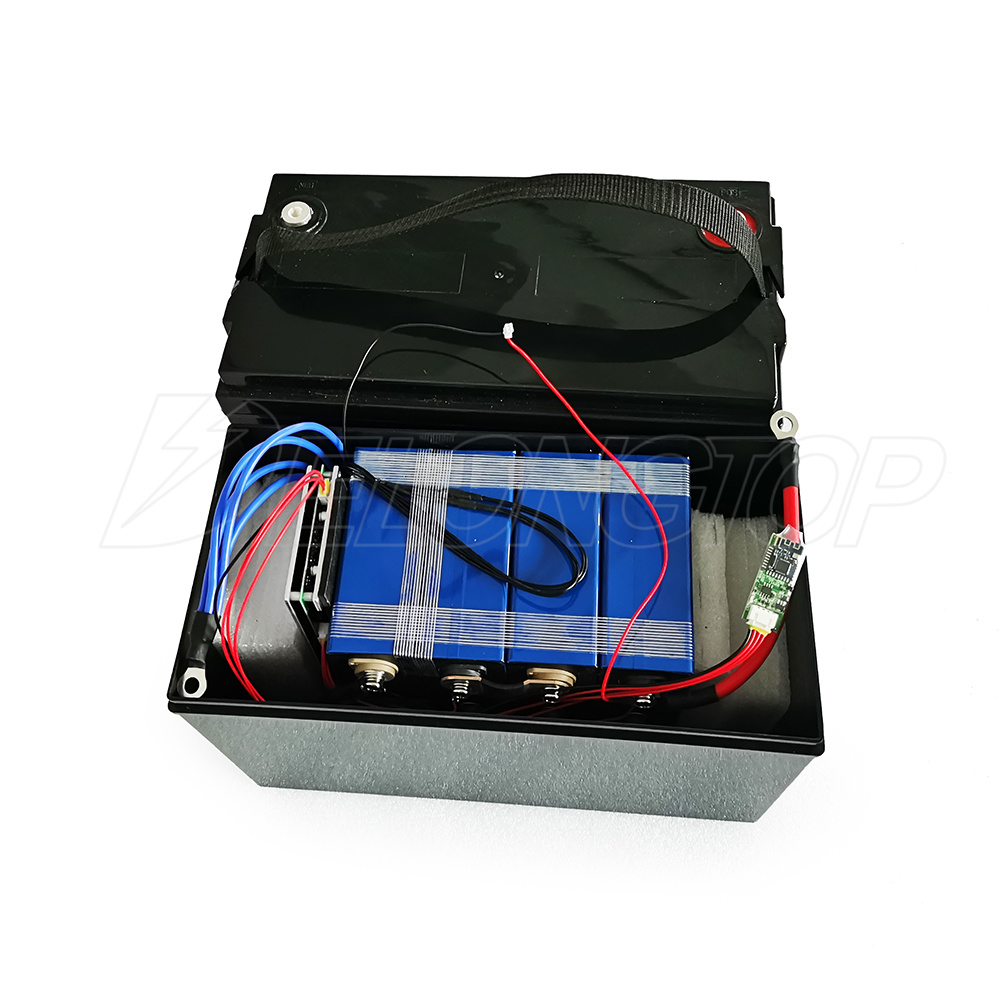

12v prismatic lithium battery 100ah LiFePo4 use 3.2v 100ah lifepo4 prismatic cells with 4s 100a BMS
Services

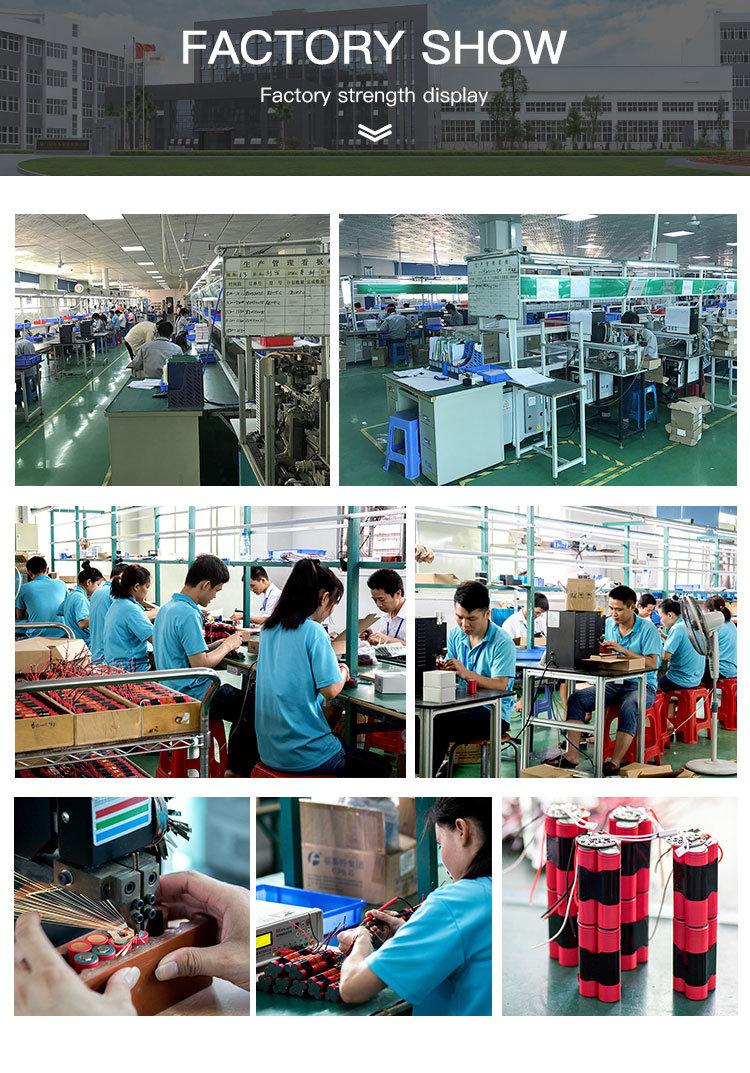

1).Professional lithium ion battery pack for over ten years,and have our own factory.
2).Strong R&D team to support.
3).Offer OEM service for customer's order.
4).Quick reply and action.
5).Competitive price, good sale and after-sales service.
Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a professional new energy supplier.
Focusing on the manufacture, research and sale of lithium ion battery product worldwide.
DeLong battery won a good reputation and has become a popular brand in the international market.
We offer OEM and ODM service at factory price and high quality.
