English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Paypal, Money Gram
DL-12200
200ah
12V
Remote Control Boat, Remote Control Plane, Remote Control Car, Solar Power
Li-ion
>2000 Times
2 Year
T/T, Paypal
OEM
Export Carton
320*185*245mm
China
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
12v 200ah lifepo4 battery specification:
We have 12V 50-400Ah lifepo4 battery pack with different cells, contact us for more information.
Factory Price 12v 200ah lifepo4 Lithium battery 24v 100ah rechargeable battery Storage Battery
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Battery type | 3.2V 25Ah LifePO4 cell |
| Model | DL-12200/4S8P |
| Battery configation | 4S8P |
| Internal resistance | ≤420mΩ |
| End of charge voltage | 14.6V |
| End of charge current | 200mA |
| End of discharge voltage | 9.2V |
| Charge method | CC/CV(constant current/constant voltage) |
| Max continuous charge current | 50A |
| Max continuous discharge current | 100A |
| Max pulse discharge current | 200A/10S |
| Net weight | around 26KG |
| Case material | metal |
| Case dimension | 320*185*245mm |
| Warranty | 2 years |
| Lifecycle | 2000 times |
| Charge temperature | 0~45ºC |
| Discharge temperature | -20~60ºC |
| Storage temperature | -10~45ºC |
Applications of 24V 100ah/12V 200ah lifepo4 battery :
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.

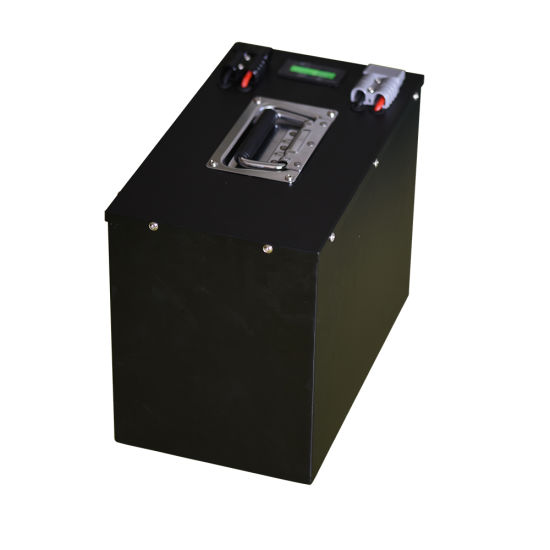

Photos:
Our advantages:
Other products:
FAQ:
Q: Are you trading company or manufacturer?
A: We are DELONG original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
12v 200ah lifepo4 battery specification:
We have 12V 50-400Ah lifepo4 battery pack with different cells, contact us for more information.
Factory Price 12v 200ah lifepo4 Lithium battery 24v 100ah rechargeable battery Storage Battery
| Nominal voltage | 12.8V |
| Nominal capacity | 200Ah |
| Battery type | 3.2V 25Ah LifePO4 cell |
| Model | DL-12200/4S8P |
| Battery configation | 4S8P |
| Internal resistance | ≤420mΩ |
| End of charge voltage | 14.6V |
| End of charge current | 200mA |
| End of discharge voltage | 9.2V |
| Charge method | CC/CV(constant current/constant voltage) |
| Max continuous charge current | 50A |
| Max continuous discharge current | 100A |
| Max pulse discharge current | 200A/10S |
| Net weight | around 26KG |
| Case material | metal |
| Case dimension | 320*185*245mm |
| Warranty | 2 years |
| Lifecycle | 2000 times |
| Charge temperature | 0~45ºC |
| Discharge temperature | -20~60ºC |
| Storage temperature | -10~45ºC |
Applications of 24V 100ah/12V 200ah lifepo4 battery :
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.
Photos:
Our advantages:
Other products:
FAQ:
Q: Are you trading company or manufacturer?
A: We are DELONG original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
