Solar Street Light LiFePO4 Lithium Battery 3.2V 100ah from China manufacturer

Home / ENERGY STORAGE / LiFePO4 Battery / 3.2V LiFePO4 Battery Cell / Solar Street Light LiFePO4 Lithium Battery 3.2V 100ah

Port:
Shenzhen, China
Production Capacity:
1000/Wk
Payment Terms:
T/T, Western Union, Paypal
Model NO.:
dl-3.2v cell
Installation:
Packaged
Rechargeable:
Chargeable
Available Certificates:
RoHS, Ce, FCC,etc
Trademark:
DelongTop
Transport Package:
Standard Export Package
Specification:
48mm *173mm *133mm
Origin:
Guangdong, China
HS Code:
8507600090
Type:
LiFePO4
Usage:
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Nominal Voltage:
3.2V
Discharge Rate:
Medium Discharge Rate
Shape:
Square Battery
Electrolyte:
Li-ion

Product Description

Specification

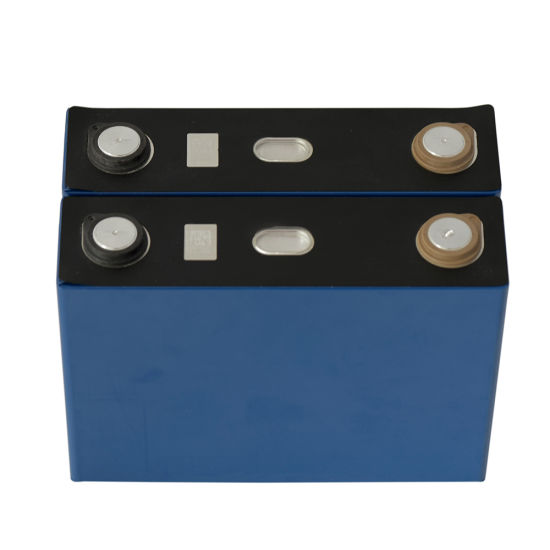

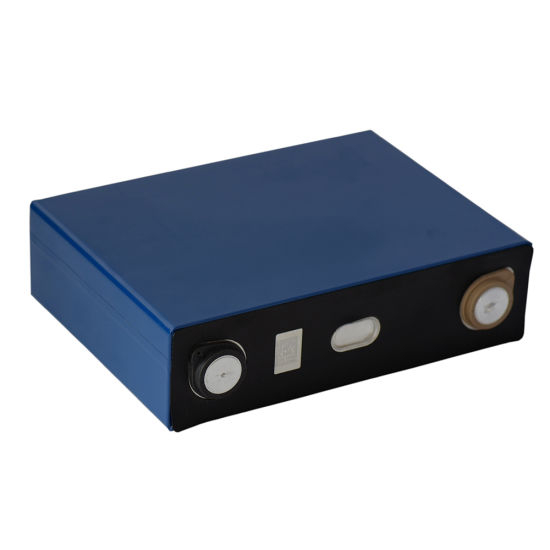

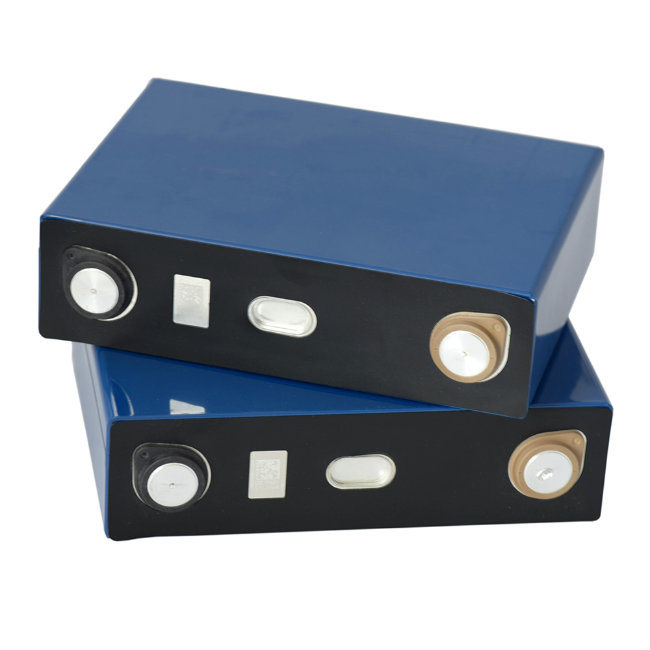

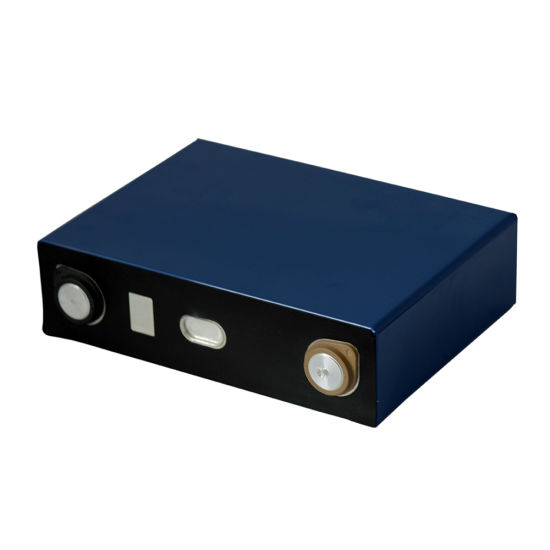

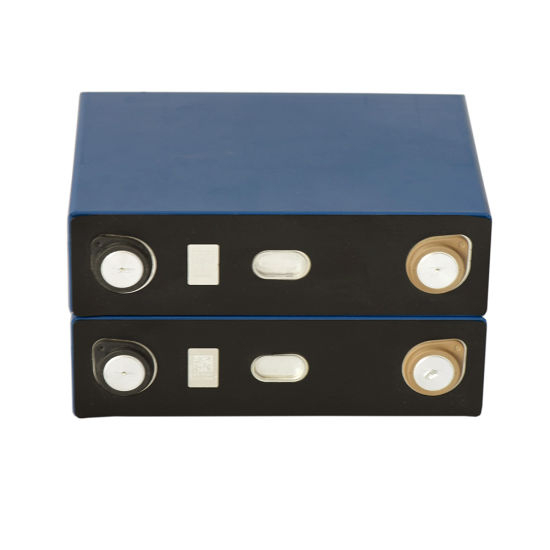

Solar street light LiFePO4 lithium battery 3.2v 100ah

Voltage (nominal, V)		3.2V
Nominal Capacity		100 Ah
Organization way		3.2V100AH LiFePO4 single cell
Standard Discharging Current		1C (100A)
End of Charging Voltage		3.7V
End of Discharging Voltage		2.5V
Standard Charging Mode		CC/CV
Max. Continuous Discharging Current		3C (300A)
Weight of Single Cell		2.23kg
Inner Resistance(Impedance)		≤ 1mΩ (At 0.2C rate, 2.0V cut-off)
Battery cell type		LiFepo4 battery for solar panel or solar heating system or electric car battery pack use
Shipping		DHL, UPS, FEDEX or Sea Shipping or Special line

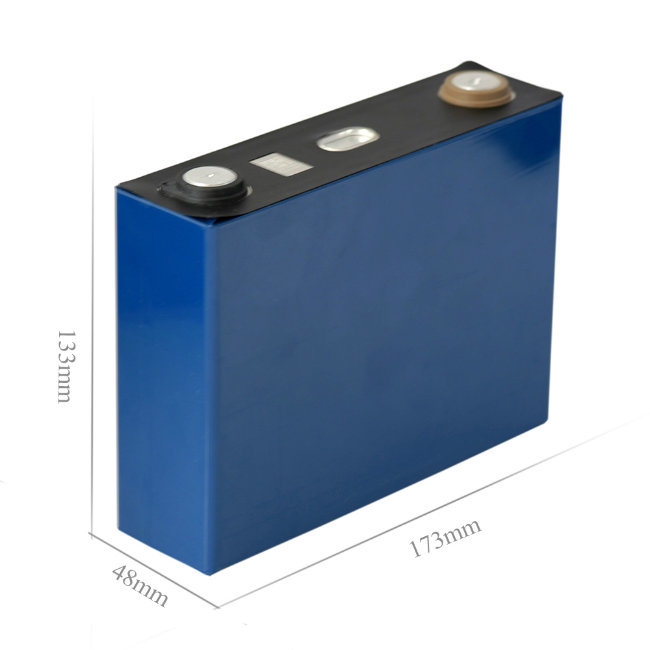

Dimensions		Length: 173 mm,Width: 133 mm,Thickness:48mm
Operating Temperature		Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C
Storage Temperature		Storage Temperature -20°C ~ 60°C
Cycle Life at 0.2C Discharge,100% DOD≥2000 times (100%DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

Applications.

Military power
Wind & Solar energy storage
Communication power
Transmission and distribution backup
UPS power supply
Electric Golf Car
Electric forklifts and so on

Solar Street Light LiFePO4 Lithium Battery 3.2V 100ah

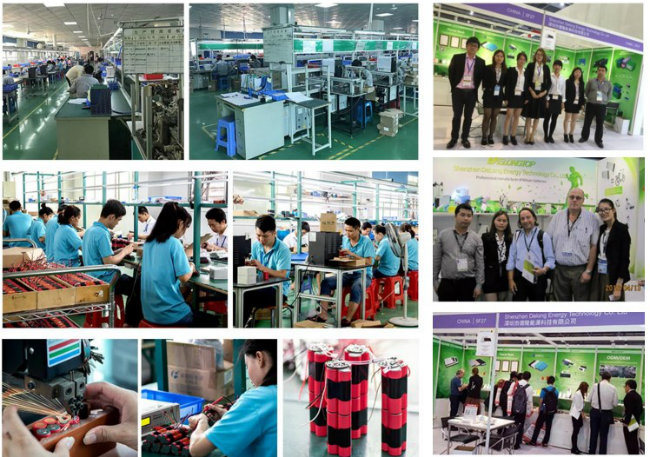

Company and Factory

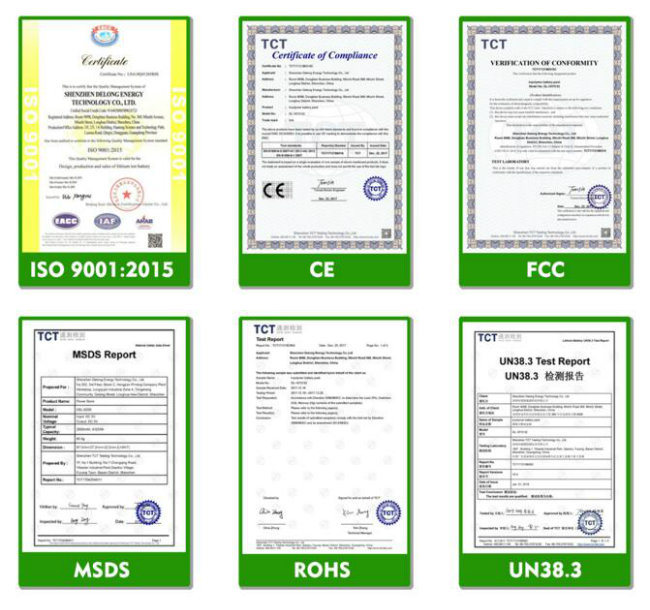

Certifications

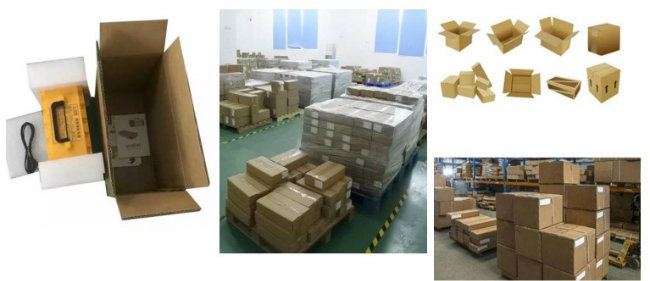

Packing & Delivery
Packing Accessories

Delivery
1.Payment Terms: T/T , paypal.
2.FOB Port: Shenzhen / FOB HK
3.Lead Time: Sample Order 7days, OEM 15~25days

Note

1. This product contains lithium battery, please stay away from fire source, if not use, please do special treatment, and do not throw away anywhere .
2.Do not use this product under the humid environment or in water ! Please pay attention to the moisture-proof and use it under the ventilated and dry environment.
3. Please gently get and put when use! Do not drop, knock or violent disassemble !
4.If there is any abnormal phenomena such as smoke or fire when using, in order to avoid the explosion , please stop to use it immediately and take relevant measures to put out the fire .
5. Please start this product first and then turn on the corresponding switch if you want to use it, and confirm the LED indicator light is on and the output is running.
6. For the first time to use, please refer to the use specification.
7. When this product is idle, please charge it every three months so as to ensure the battery's lifetime.
