Rear Rack Type 48V 20ah Lithium LiFePO4 Electric Bicycle Battery Pack with BMS Charger from China manufacturer

Home / POWER BATTERY / E Bike Battery / 48V E Bike Battery / Rear Rack Type 48V 20ah Lithium LiFePO4 Electric Bicycle Battery Pack with BMS Charger

Port:
Shenzhen, China
Production Capacity:
3000PCS/Week
Payment Terms:
T/T, D/P, Western Union, Paypal, Money Gram, Payple
Model NO.:
Rear Rack Type
Size:
Ebike Battery Pack
Certification:
RoHS, CE, FCC
Socket Type:
Custoemrized
Recyclable:
Recyclable
Product Name:
E-Bike Battery
Application:
Electric Bike
Nominal Capacity (Ah):
10ah/12ah/20ah/Optional
Nominal Voltage (V):
12V/24V/36V/48V/Optional
Cycle Life:
1000 Times
Battery Type:
Lithium-Ion 18650
Color:
Black
Factory:
7 Years Battery Factory
Features:
Factory Price
Warranty:
1 Year
Trademark:
DELONGTOP
Transport Package:
Standard Packing
Specification:
customerized
Origin:
China
Type:
Lithium Battery
Charger Type:
Electric Charger
Charger Application:
Ebike
Nominal Voltage:
48V
Charger Style:
USB Charger
Compatible Battery Type:
18650

Product Description

Rear Rack Type 48V 20Ah Lithium LiFePO4 Electric bicycle Battery Pack With BMS Charger

Main parameter of the ebike battery

Battery Model	48V 20Ah
Nominal Capacity (AH)	20ah
Nominal Voltage (V)	48V
Source Resistance (mΩ)	< 40
Cell Specification	3.7V 2500mAh
Cell Combination	8-paralle
Cell Combination	13-series
Cell type	18650
Cell Quantity (parallel*series)	104
Discharge Cutoff Voltage (V)	41+/-1V
Charge Cutoff Voltage (V)	54.6V
Rated Discharge Current (A)	20A
Instantaneous Maximum Discharge Current (A)	40A
Maximum Continuous Discharge Current (A)	30A
Maximum Continuous Charge Current (A)	5A
Charge Mode	CC/CV
Standard Charge Current (A)	2A
Charge Time under Standard Charge Current	10
Fast Charge Current (A)	5A
Charge Time under Fast Charge Current	4
Charge Temperature Range	-20 - 60 °C
Discharge Temperature Range	-20 - 60 °C
Battery Size	39514880mm
Battery Net Weight	6.5kgs
Battery Gross Weight	7.0kgs

- Water-resistant
- Built-in PCB and BMS protection.
- Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
- The internal pack is stabilized by braces.
- Avoiding mechanical accidents caused by vibration.

Advantages
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size

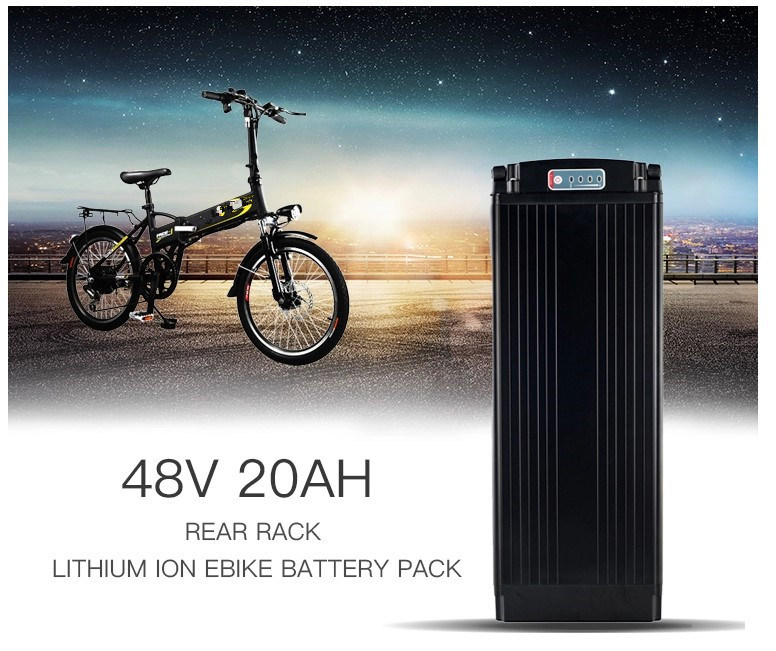

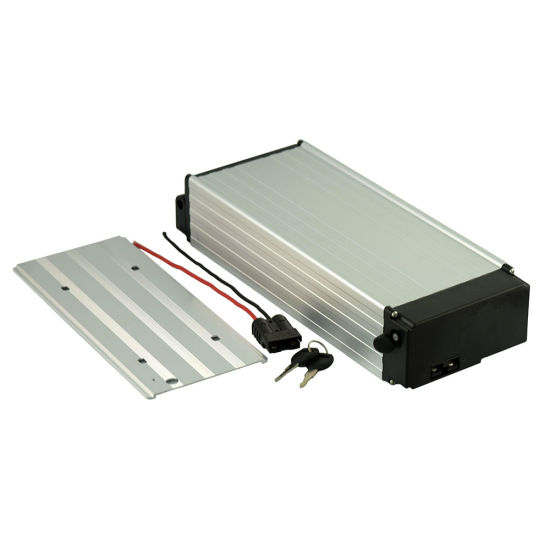

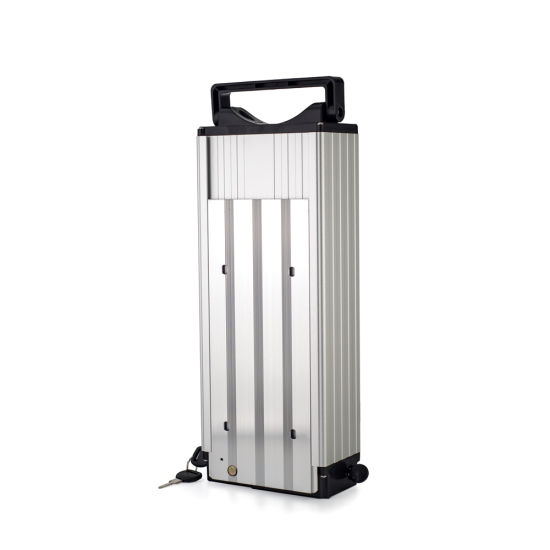

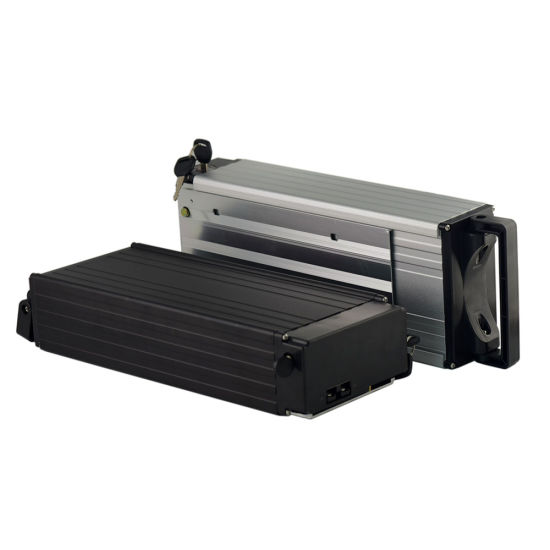

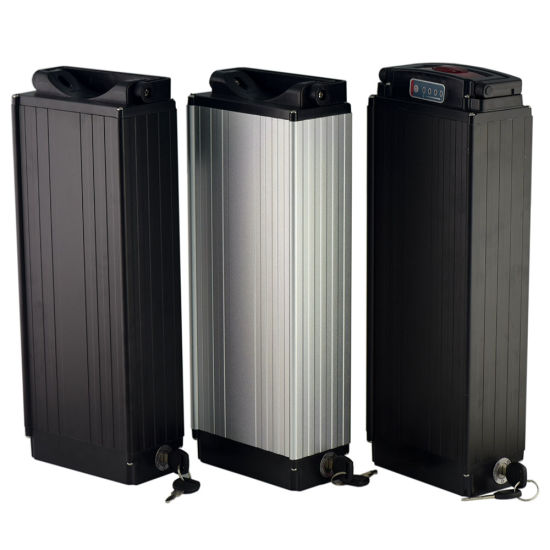

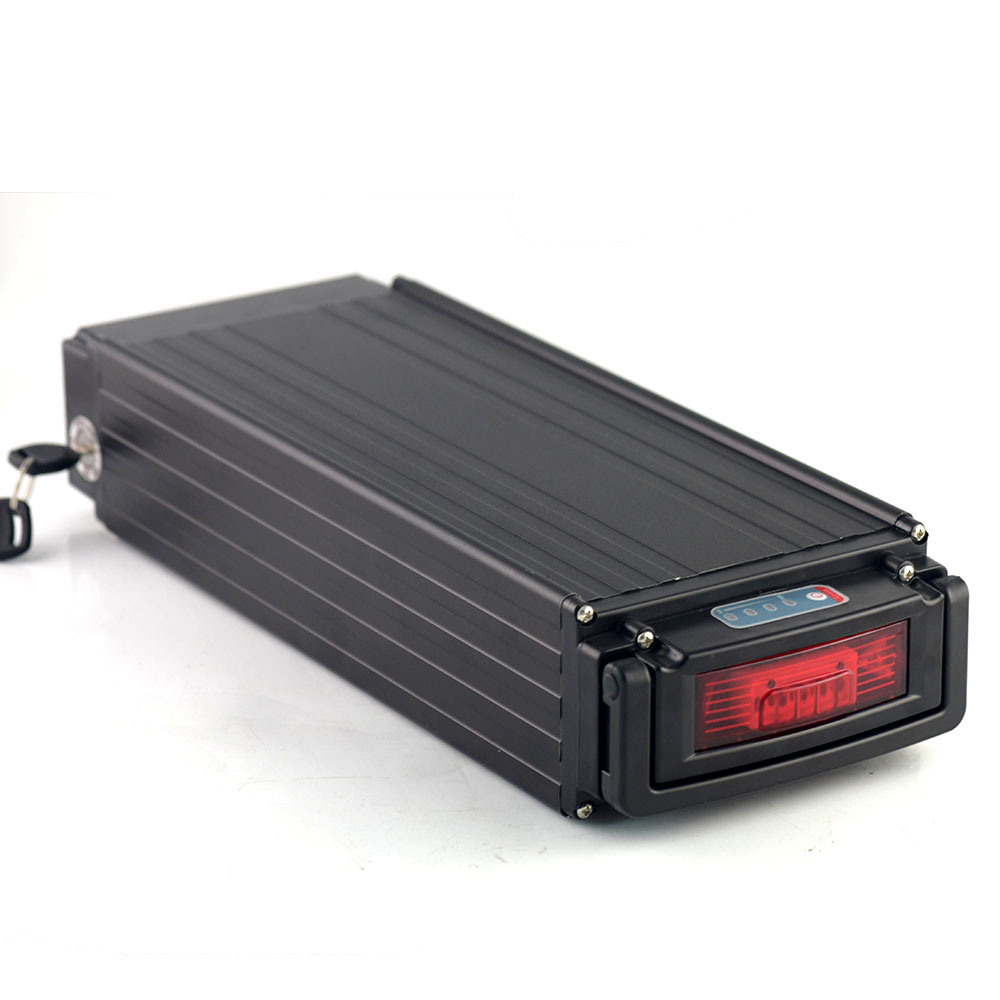

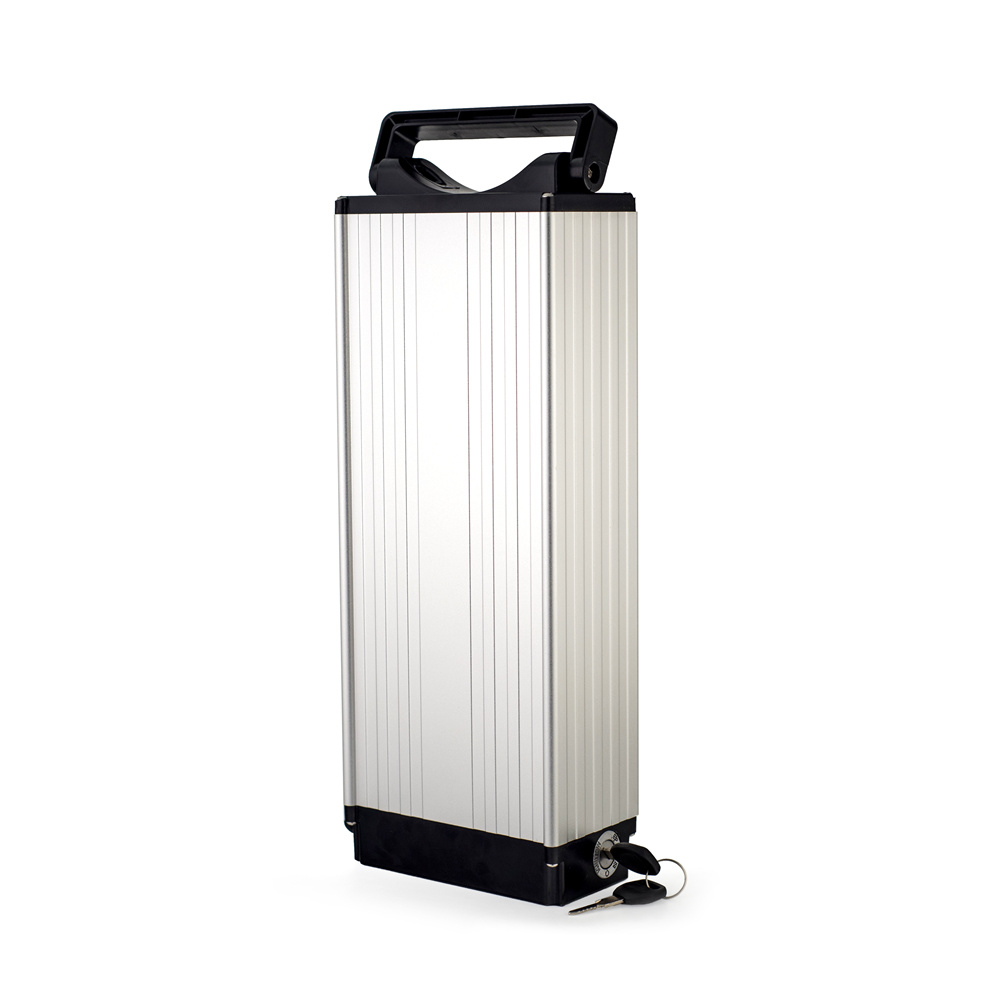

Picture of the battery

The Packing & Shipping
Inner packing with EPE pearl cotton,
outer packing with thick cardboard cartons
or customerized packing
On-time leadtime and 7-15 shipping before balance
Rear Rack Type 48V 20ah Lithium LiFePO4 Electric Bicycle Battery Pack with BMS Charger

Rear Rack Type 48V 20ah Lithium LiFePO4 Electric Bicycle Battery Pack with BMS Charger

Our Services
Warranty Instructions
1.All battery we provide 1 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

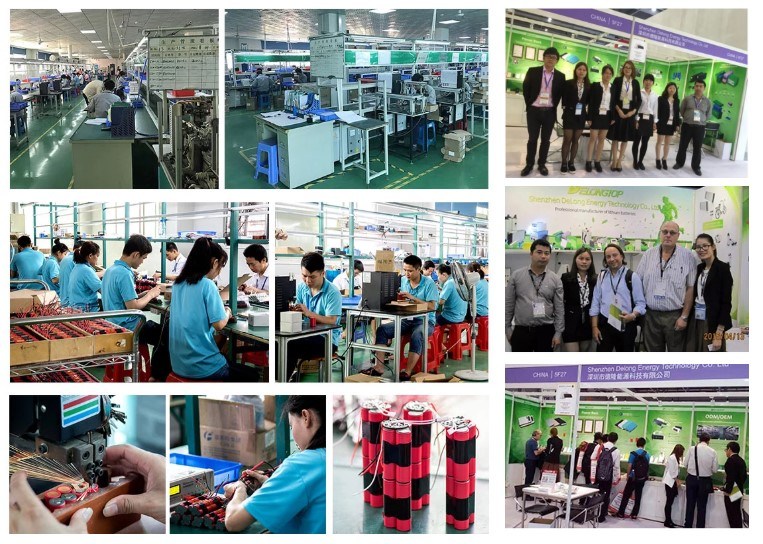

Company Information
Established in 2011,we are a professional energy supplier in china focusing on the manufacture, research and sale of lithium ion battery products. Our product are widely applied on common digital devices battery, high discharge rate battery, powerful electric vehicles battery worldwide, We offer OEM and ODM service at factory price and high quality.
Warming welcome you to come to visit our factory for further information!!
Rear Rack Type 48V 20ah Lithium LiFePO4 Electric Bicycle Battery Pack with BMS Charger
