English
 |
| Quantity: | |
|---|---|
Shenzhen, China
1000/Wk
T/T, Western Union, Paypal
DEL-3.2V 100AH
Packaged
Chargeable
RoHS, Ce, FCC,etc
DelongTop
Standard Export Package
48mm *173mm *133mm
Guangdong, China
8507600090
Lithium-Ion Batteries
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
3.2V
Medium Discharge Rate
Square Battery
Li-ion

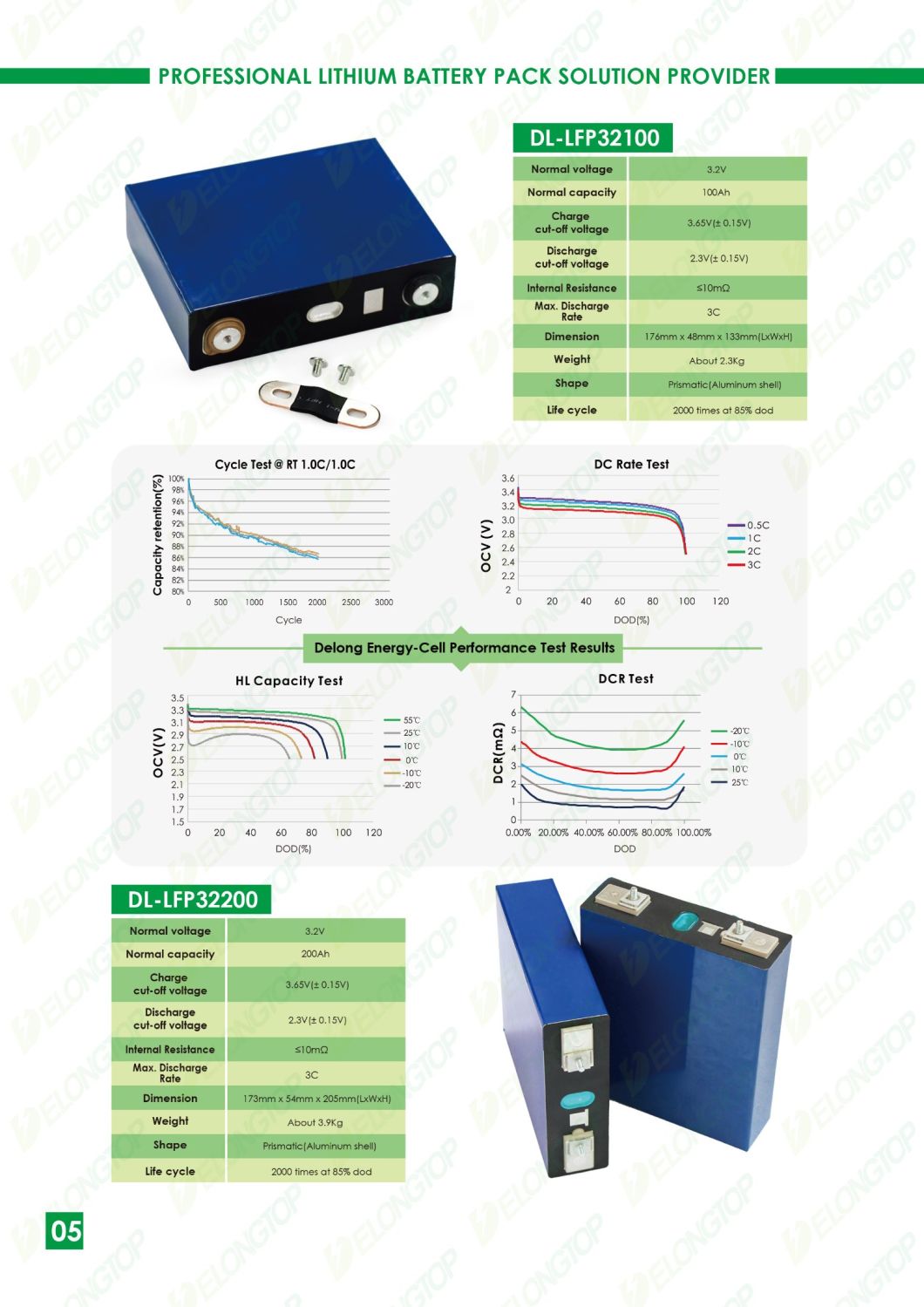

| Voltage (nominal, V) | 3.2V | ||
| Nominal Capacity | 100 Ah | ||

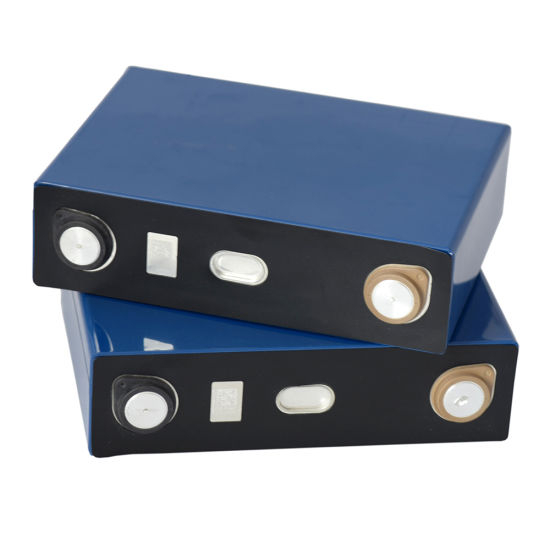

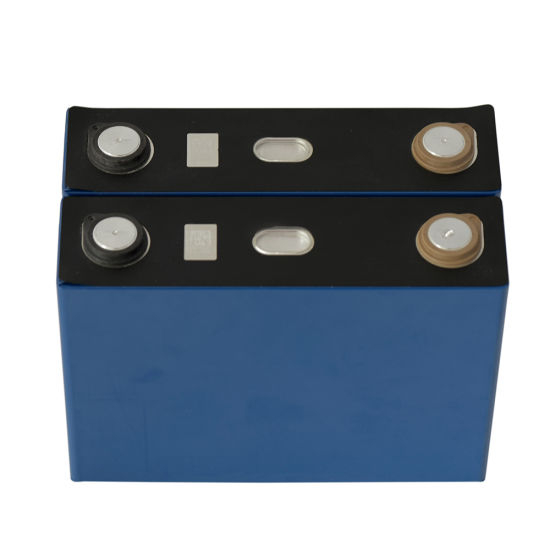

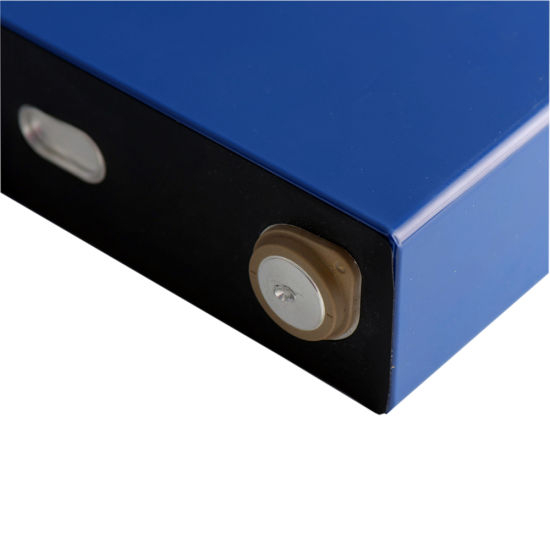

| Organization way | 3.2V100AH LiFePO4 single cell | ||
| Standard Discharging Current | 1C (100A) | ||
| End of Charging Voltage | 3.7V | ||
| End of Discharging Voltage | 2.5V | ||
| Standard Charging Mode | CC/CV | ||
| Max. Continuous Discharging Current | 3C (300A) | ||
| Weight of Single Cell | 2.23kg | ||
| Inner Resistance(Impedance) | ≤ 1mΩ (At 0.2C rate, 2.0V cut-off) | ||
| Battery cell type | LiFepo4 battery for solar panel or solar heating system or electric car battery pack use | ||
| Shipping | DHL, UPS, FEDEX or Sea Shipping or Special line | ||

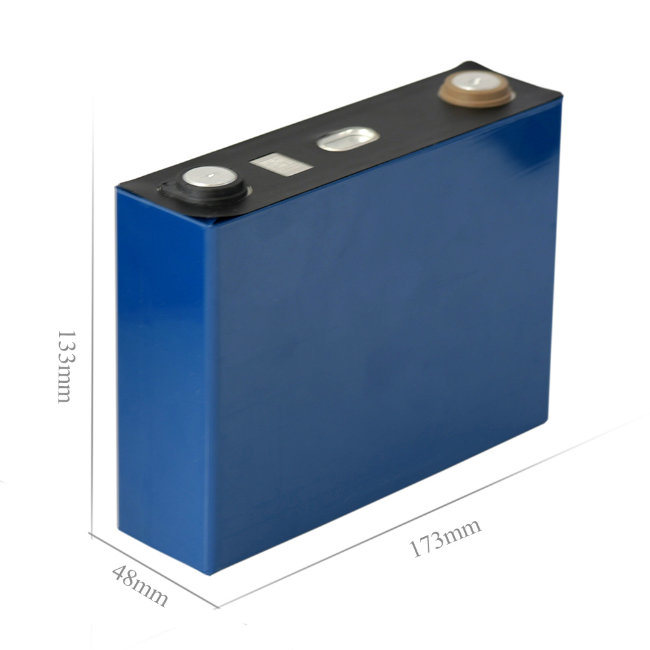

| Dimensions | Length: 173 mm,Width: 133 mm,Thickness:48mm | ||
| Operating Temperature | Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C | ||
| Storage Temperature | Storage Temperature -20°C ~ 60°C | ||
| Cycle Life at 0.2C Discharge,100% DOD≥2000 times (100%DOD till 80% of initial capacity at 0.2C rate, IEC Standard) | |||

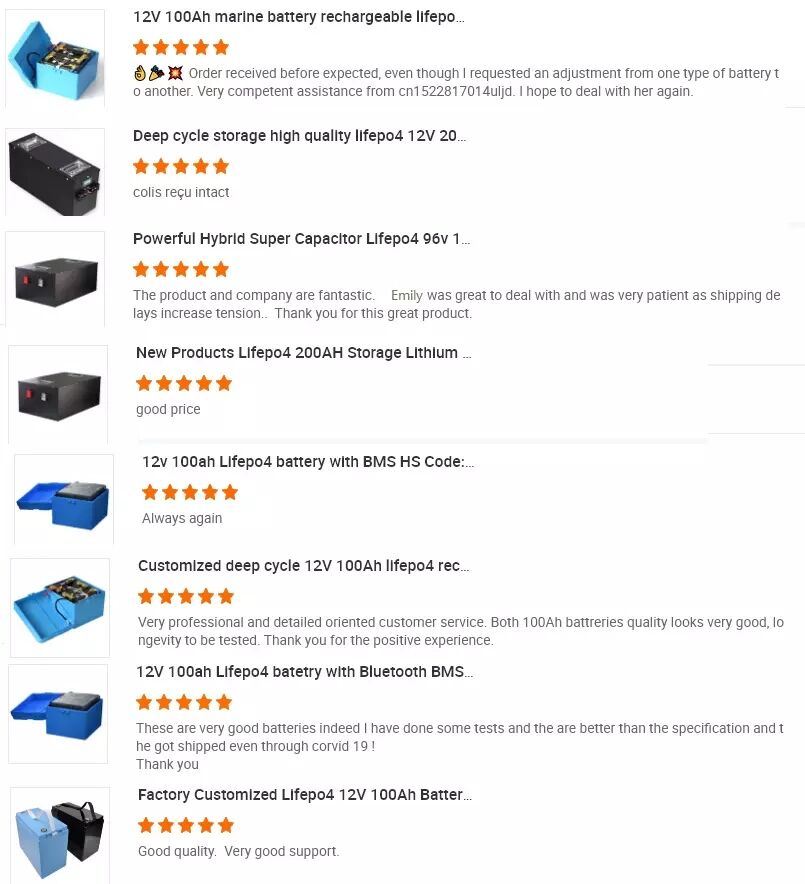

Feedback:
Applications:
Military power
Wind & Solar energy storage
Communication power
Transmission and distribution backup
UPS power supply
Electric Golf Car
Electric forklifts and so on
Warning:
1.Do not throw battery into water or make it wet;
2.Keep the battery away from heat source(like fire or heater);
3.Do not throw the battery into fire or heat the battery;
4.Forbid to hammer to trample the battery;
5.Forbid disassembling the battery in anyway
Packing and shipping:
Packaging: International standard packaging or as customers required
Shipping: a.Sample order:3-10 days by plane
b.Bulk order:15-30 days by sea
Payment: We accept T/T , Paypal, so on.
2. Prompt delivery time and can provide the customized battery solution for you
3. We can help you to track the shipping status until you well received them
4. One by one test before shipment to ensure high quality
5. If you don't have own forwarder agent,we can help you to find agent who can provide the most competitive and best service
6. All of your inquiry or questions will be replied within 24 hours
2-Year-Warranty
We want you to be fully satisfied with every item that you purchase from Delong Energy . Furthermore, we also provide 1year warranty for batteries and if any quality problems, not caused by improper use or man-made,Delong Energy will replace one by one.
Company information:
Our company was founded in 2006, is a clean energy company focused on the development,
manufacturing and marketing of lithium-ion (Li-Ion) include 18650 lithium ion battery,lithium polymer battery,lifepo4 battery and electric vehicle battery.
We can provide you with CE,ROHS,FCC,IEC62133,MSDS and UN38.3 certificates and test reports.
We can ship the batteries by air or by sea.Welcome to join us!
