English
 |
| Quantity: | |
|---|---|
Shenzhen, China
1000PCS/Week
T/T, Paypal, Money Gram
DL-SF4820
20ah
48V
for Electric Ebike Bicycle / Scooters
Li-ion
CE, RoHS, FCC
Fat Ebike Bicycle Spare Parts Battery 48V 20ah
13s8p
20A
18650 Cell, 3.7V 2500mAh
500W, 750W, 1000W , Max 1000W

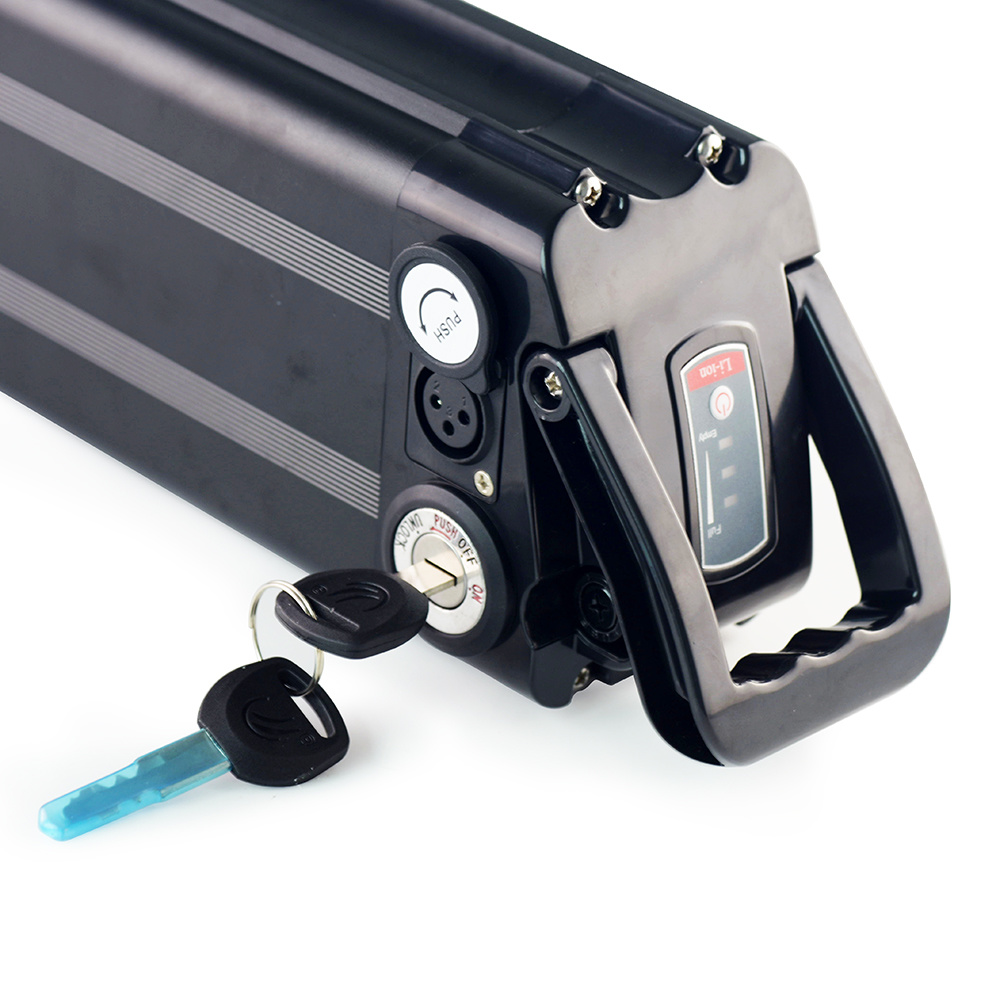

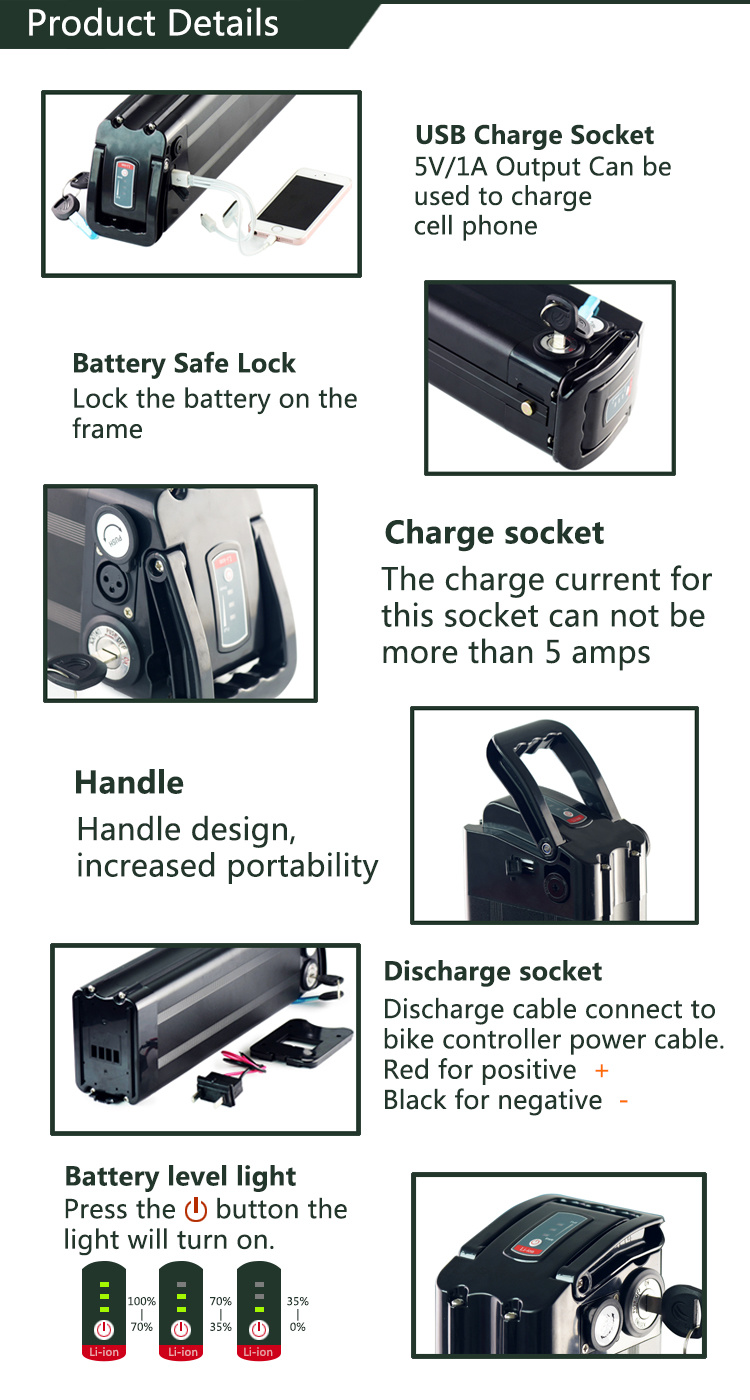

X.L.R Charging Port on The Top

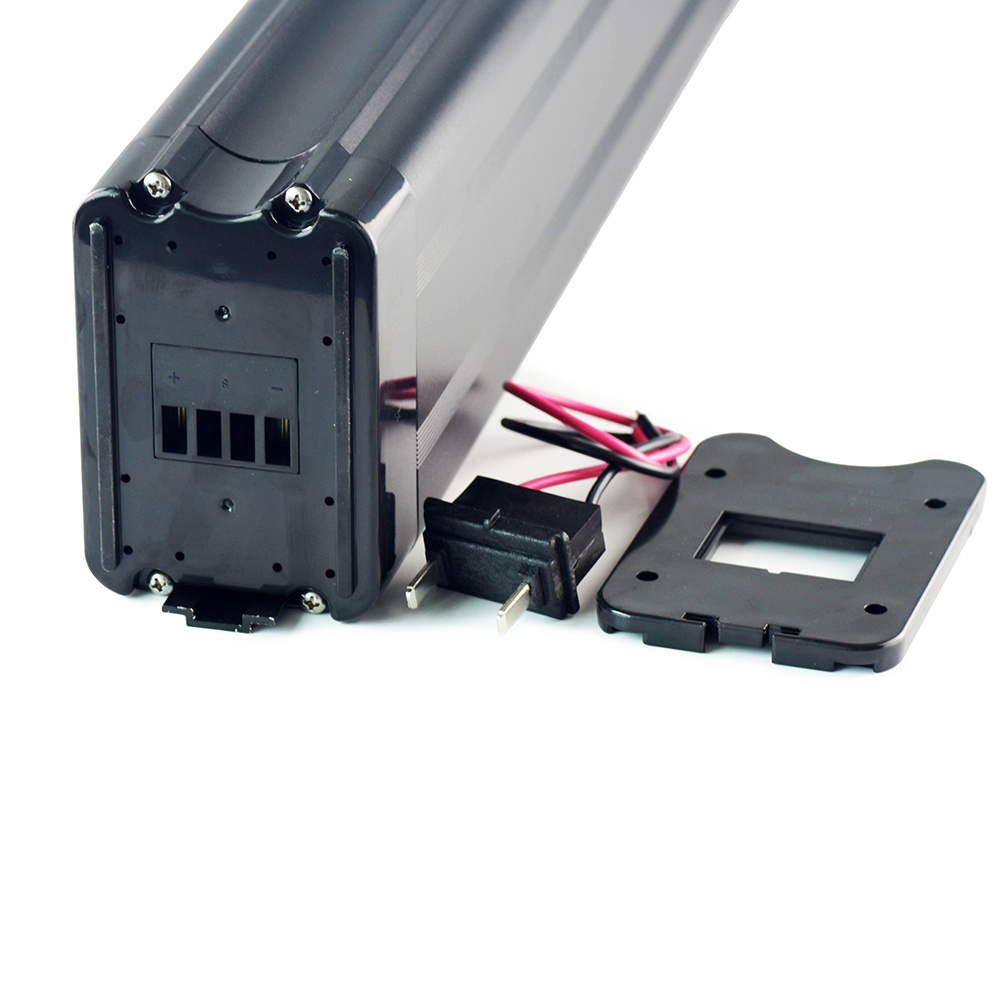

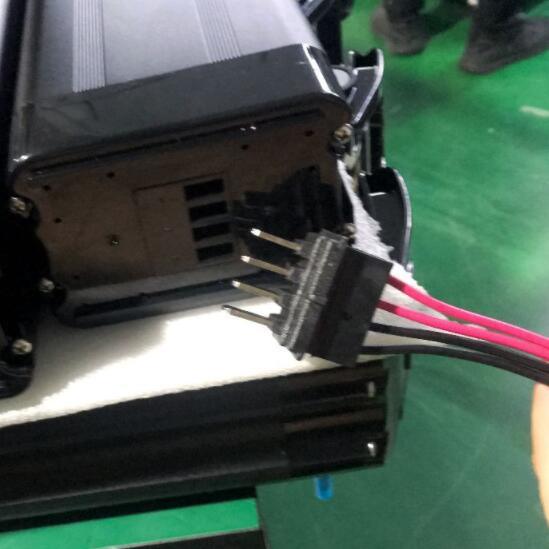

2pin or 4pin Bottom Discharge Options

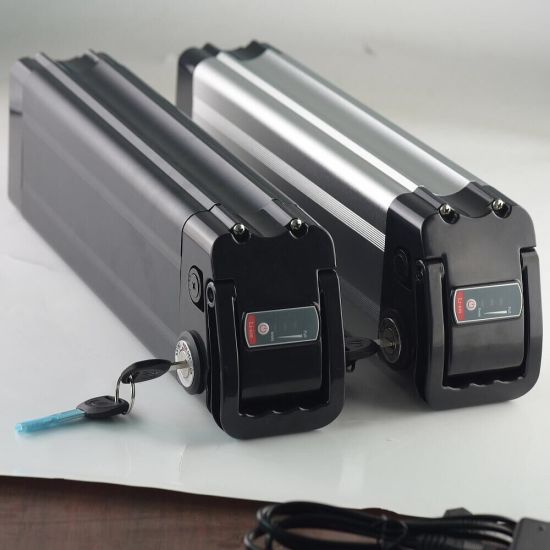

Black / Silver
48V
20ah
DeLong, OEM
Standard Export Package
495*115*75mm
China
8507600090
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
| Model | Ebike Battery pack DL-SF48V20AH | 13S8P | 1000W Motor use |
| Battery material | lithium ion battery | 18650 pack | |
| Typical voltage | 48V | Rated capacity | 20ah |
| Dimensions | 495*115*75mm | Inner impedance | les than 100mΩ |
| Full voltage | 54.6V | Max charge current | 4A |
| Discharge cut-off voltage | 35.75V | Rated dicharge current | 5A |
| Max discharge current | 20A | Charge methods | CC/CV |
| Battery weight | 7.5Kg | Over-current protection current | 20A |
| Cylce life | More than 500-1000 times | Charging temperature | 0-45 degree |
| Ceftified by | CE, MSDS etc. | Discharging temperature | -10-60 degree |
| Expecting driving distance | more than 50KM | Charging port: X.L.R | Discharging port: 2P bottom/4p options |
| Charger Specification | |||
| AC input | 100-240V 50/60HZ | DC Output | 54.6V 2A |
| Size | 148.7*49.86*270mm can be customized | Charging time | around6-7 hours |

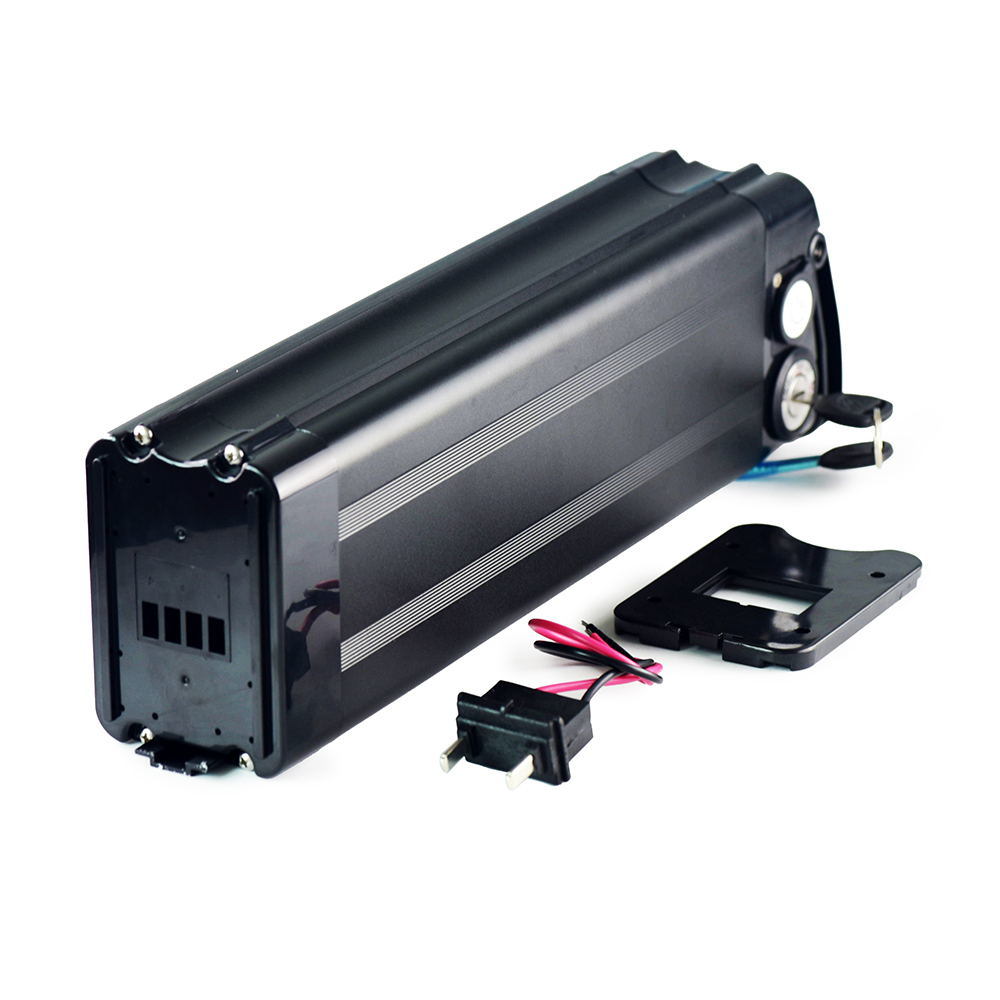

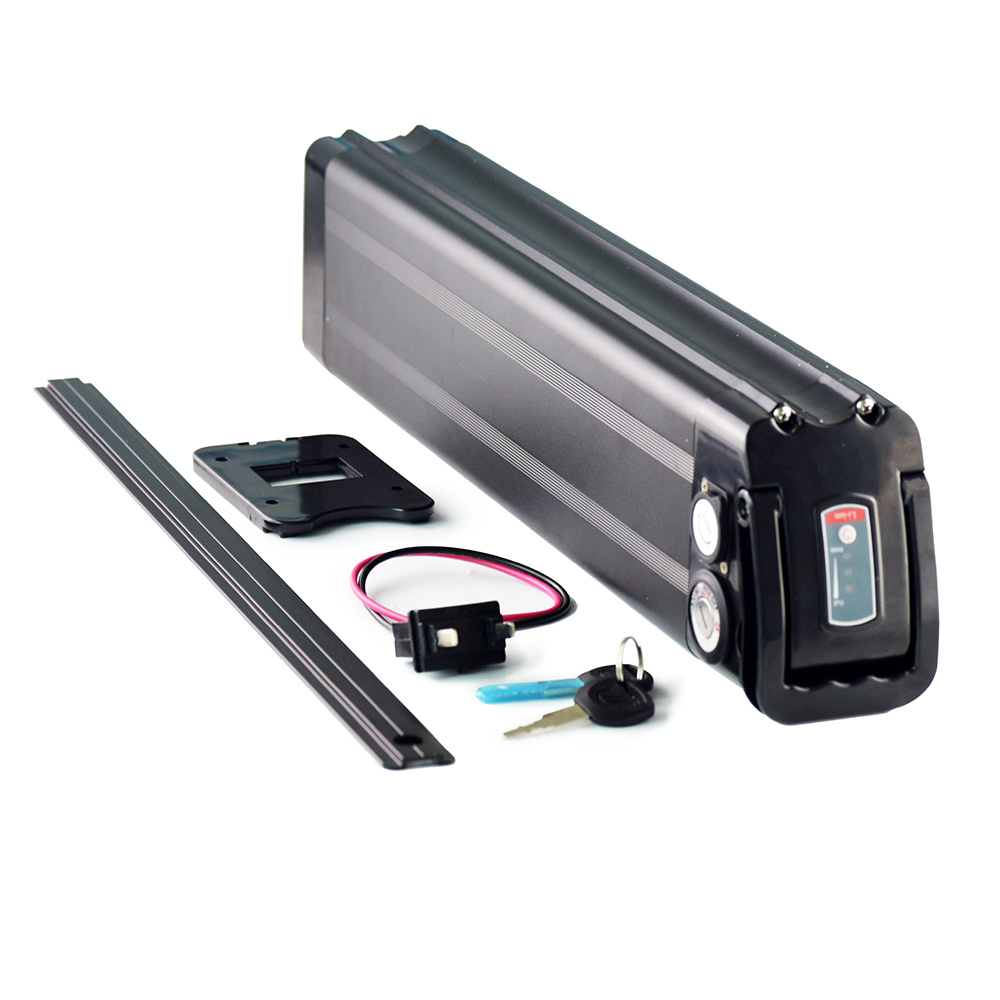

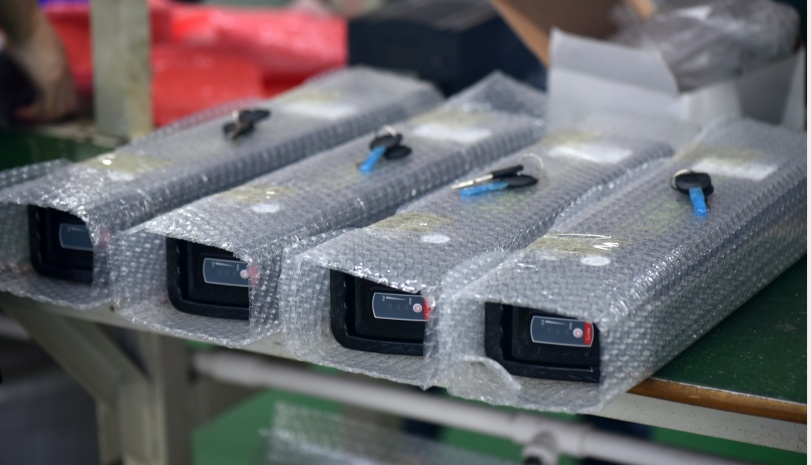

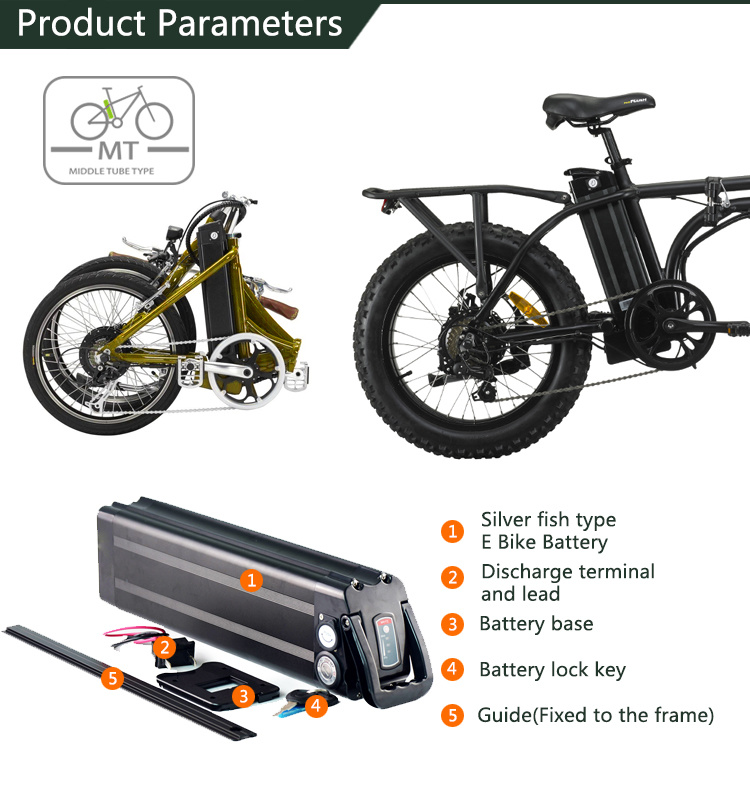

Package
One carton with one battery package with accessories
1. battery 1 pc
2. mountail rail 1 pc
3. battery keys 1 pair
4. bottom case 1 pc
5. Discharging port connector 2P /4P +wire 1 pcs
Custom 1000w /750w/500w 48v lithium ion fish battery 20Ah
1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking
experiment, with acupuncture, smash, drop, and so on.
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 15 days, mass production time needs 20-30 days for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: MOQ, 1-10pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: EXPRESS,Airline and sea shipping also optional. It usually takes 7-15 days FAST LINE / 20-35 days to arrive Slow DDP line.
Q5. How to take care of this battery?
Do not connect the positive and negative terminal directly.
Do not expose the battery under high temperature condition.
Do not disassemble the battery pack without technician's guide.
Keep the battery away from water,salt,acidic.etc.
Keep the battery clean and dry.
Use the compatible charger to charge it.
Charge the battery one time at least per two months.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12-month warranty to our products.

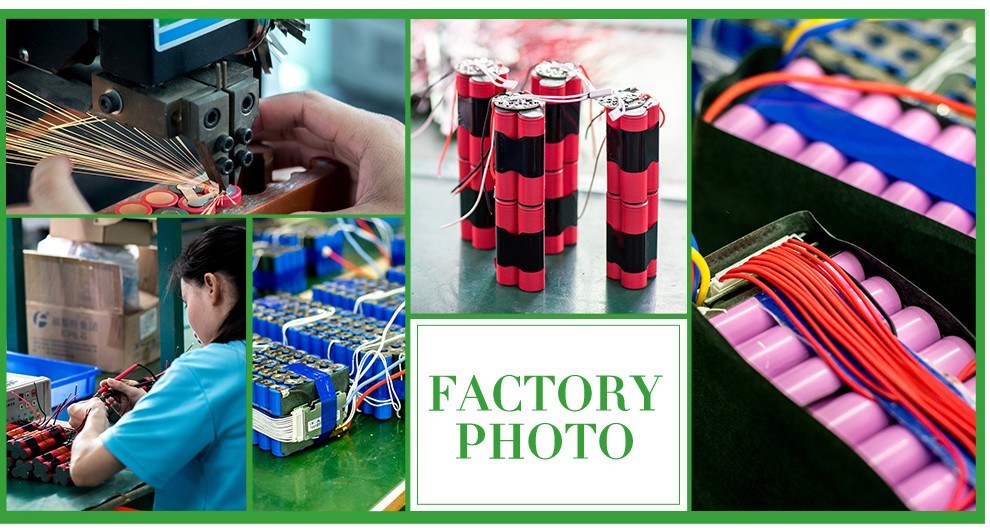

You are always welcome to visit our factory and cooperate with us!
You are very welcome to contact us if you have any questions.
