Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

Quantity:
  • Shenzhen, China
  • 1000PCS/Week
  • T/T, Paypal, Money Gram
  • DL-SF-4820-138P
  • 20ah
  • 48V
  • Remote Control Car, for Ebike
  • Li-ion
  • CE, RoHS, FCC
  • Li Ion 1000W Electric Bike Battery 48V 20ah
  • 13s8p
  • 20A
  • 18650 Cell, 3.7V 2500mAh
  • 500W, 750W, 1000W , Max 1000W
  • X.L.R Charging Port on The Top
  • 2pin or 4pin Bottom Discharge Options
  • Black / Silver
  • 495*115*75mm
  • 48V
  • 20ah
  • DeLong, OEM
  • Standard Export Package
  • 495*115*75mm
  • China
  • 8507200000
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • Medium Discharge Rate
  • Medium
  • Battery
 Li ion Battery  1000w Electric E Bike Battery 48V 20Ah
Li Ion Battery 1000W Electric E Bike Battery 48V 20ah




Specification
48v20ah silver fish bicycle bike battery

Specification
Model Ebike Battery pack
  Battery material lithium ion battery
Typical voltage 48V or customerized Rated capacity  20ah or customerized
Dimensions customerized Inner impedance les than 100mΩ
Full voltage 54.6V Max charge current 4A
Discharge cut-off voltage 35.75V Rated dicharge current 5A
Max discharge current 20A Charge methods  CC/CV
Battery weight  7.5Kg Over-current protection current  20A
Cylce life  More than 500-1000 times Charging temperature  0-45 degree
Ceftified by  CE,UL,ROHS,SGS etc. Discharging temperature -10-60 degree
Expecting driving distance more than 50KM( 350w Motor)  Charging port: X.L.R Discharging port:
2P bottom/4p options
  Charger Specification
AC input  100-240V 50/60HZ DC Output 54.6V 2A
Size 148.7*49.86*270mm can be customized Charging time  around6-7 hours

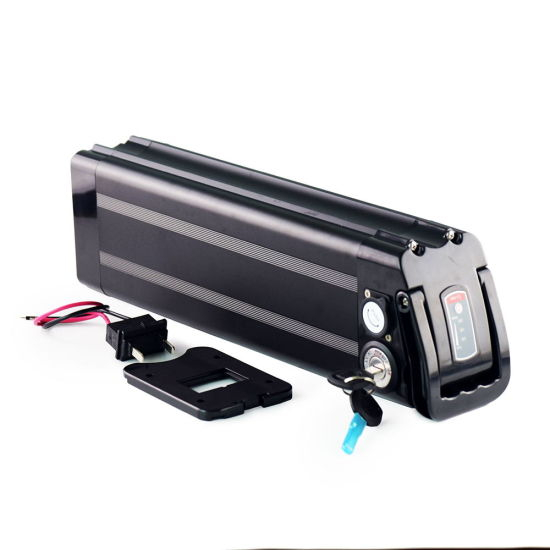

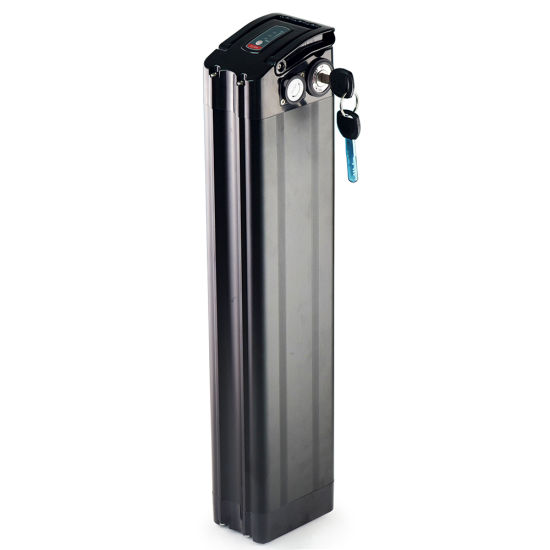

Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

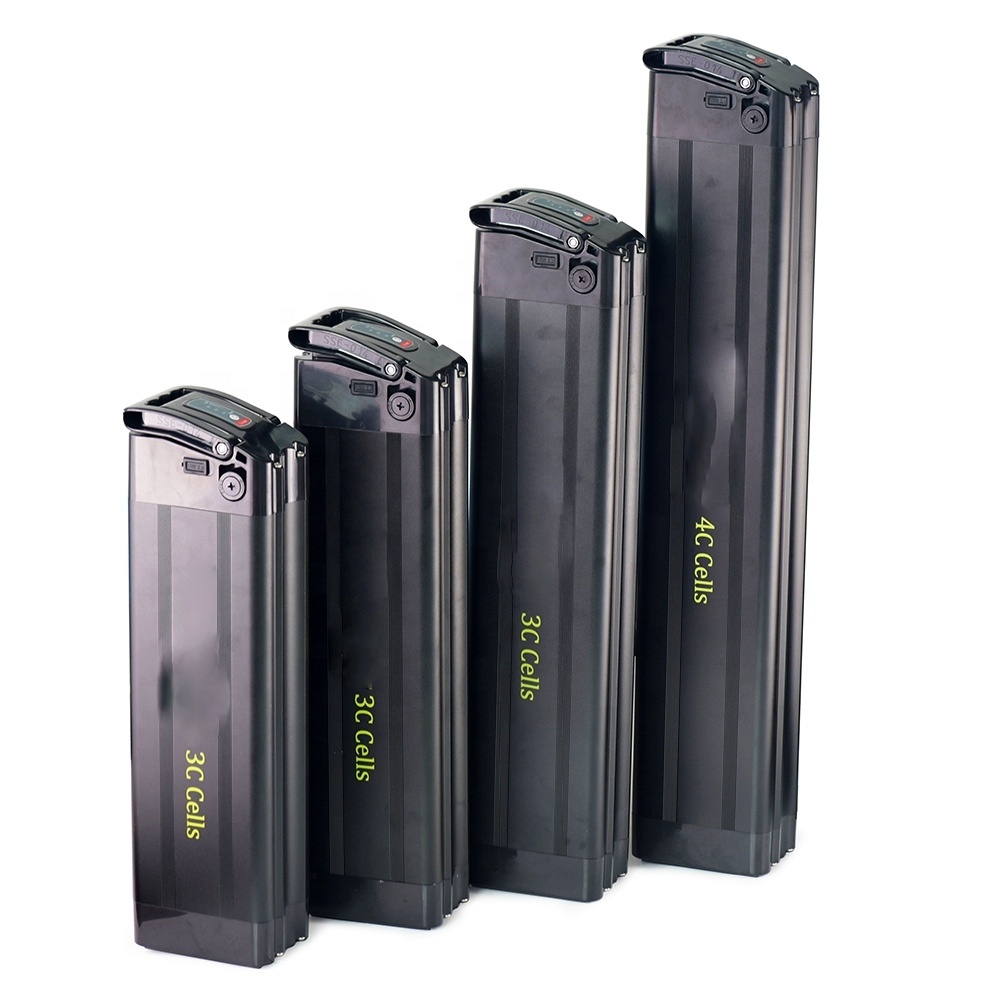

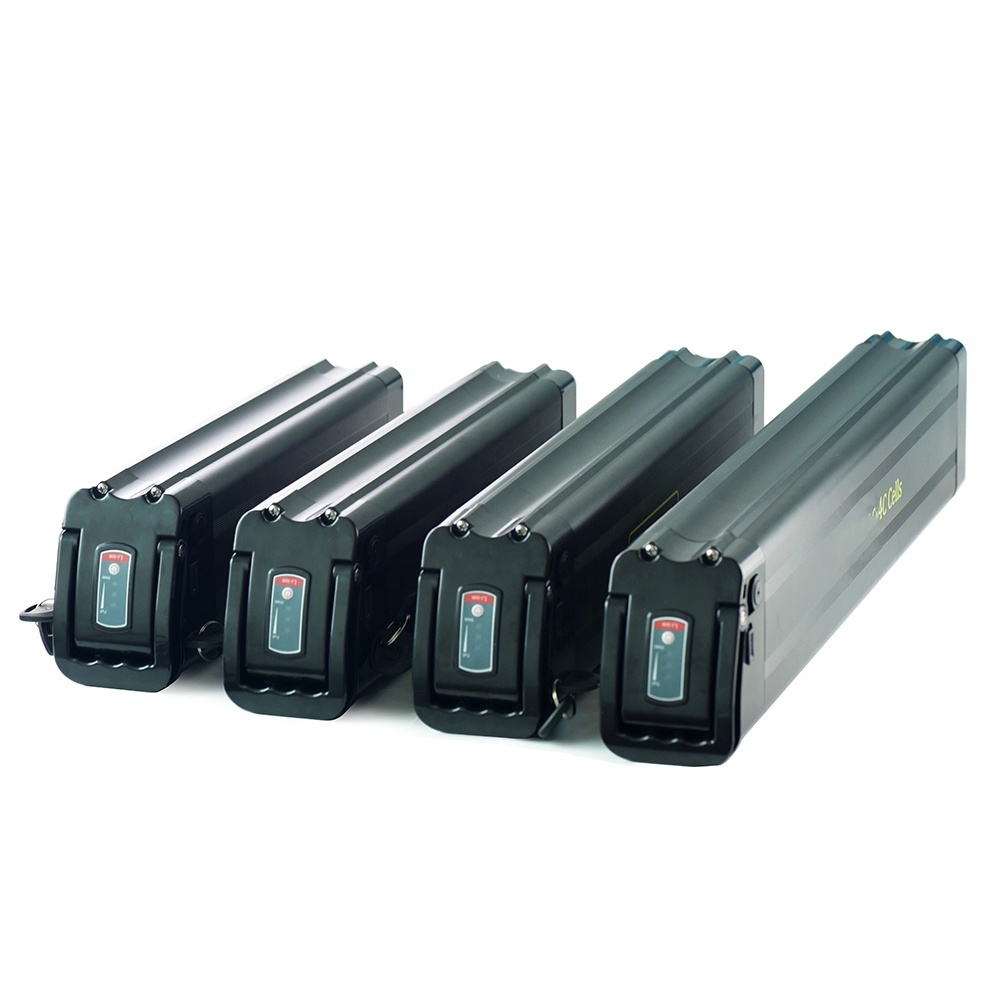

10Ah, 12Ah, 16Ah, 20Ah, 24V, 36V, 48V are available  Customizes shapes, capacity, and voltage are accepted

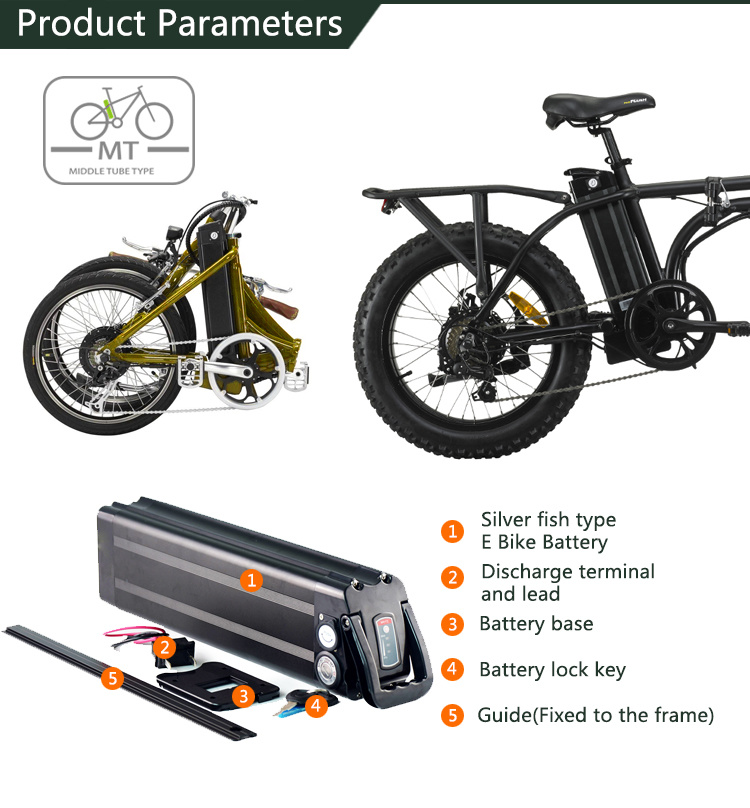

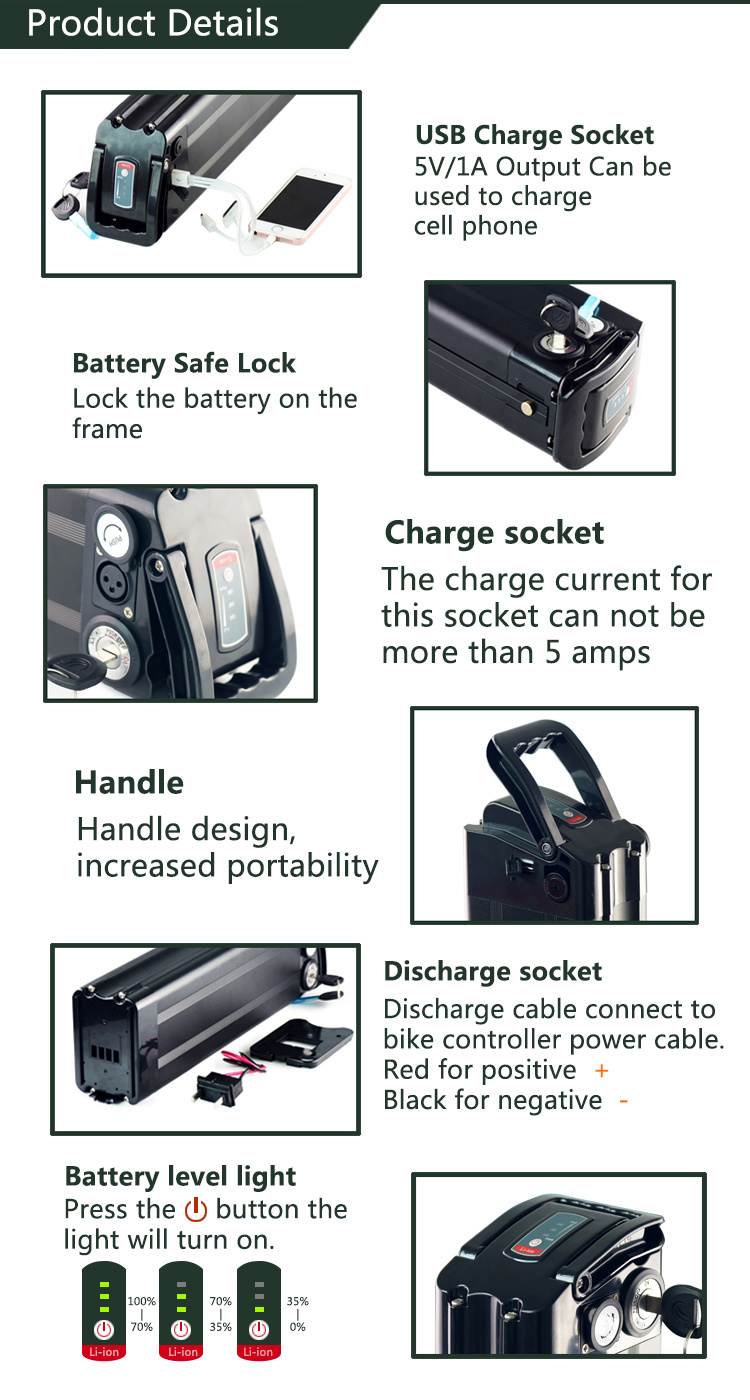

Product Features:

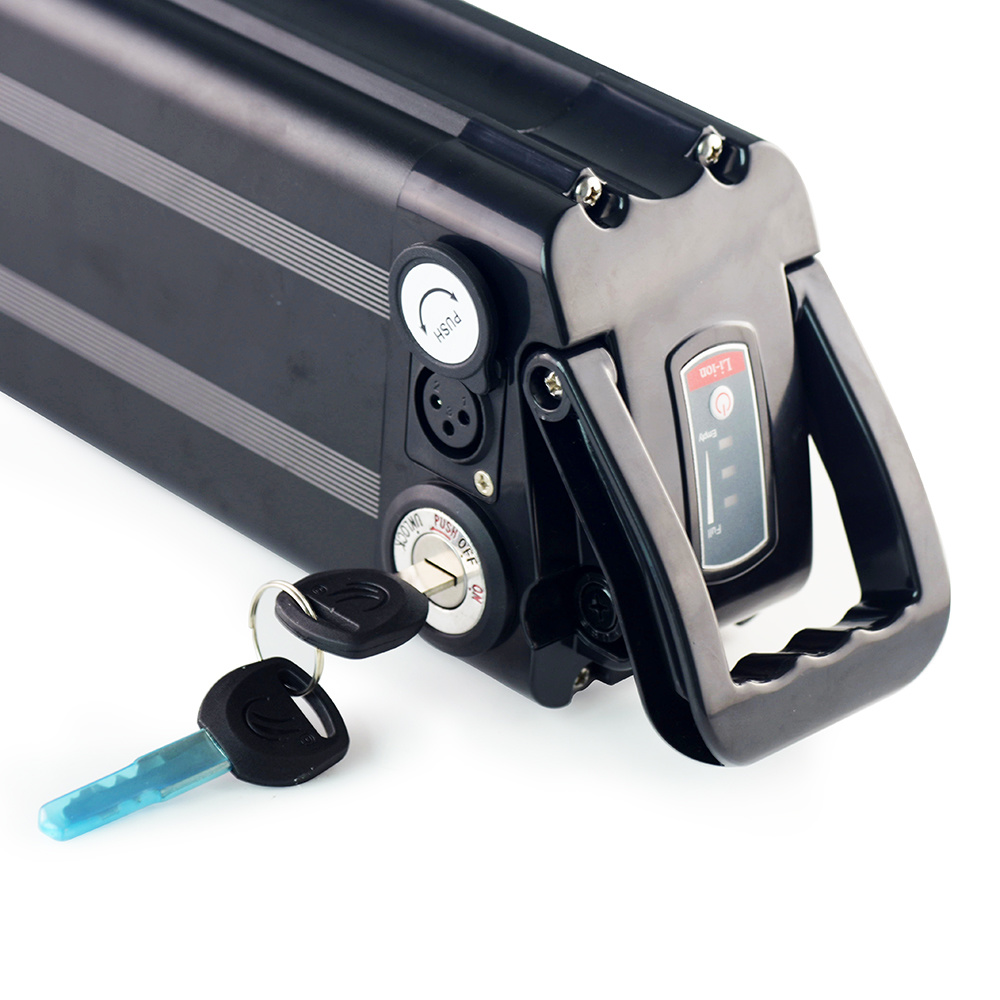

1. X.LR CHARGING TOP PORT
2. 2P DISCHARGING BOTTOM PORT
3. IRON RAIL 1 PCS FOR FIXING USE
4. BOTOOM CASE 1 PCS
5. 4 LED WORKING INDICATORS
6. 48V 20AH  dimenssion: 495*115*75mm
7. Motor suitable use for: 500W /750W/1000W,  Max 1000w.


Li Ion Battery 1000W Electric E Bike Battery 48V 20ah Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

Li Ion Battery 1000W Electric E Bike Battery 48V 20ah
Li Ion Battery 1000W Electric E Bike Battery 48V 20ah


Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

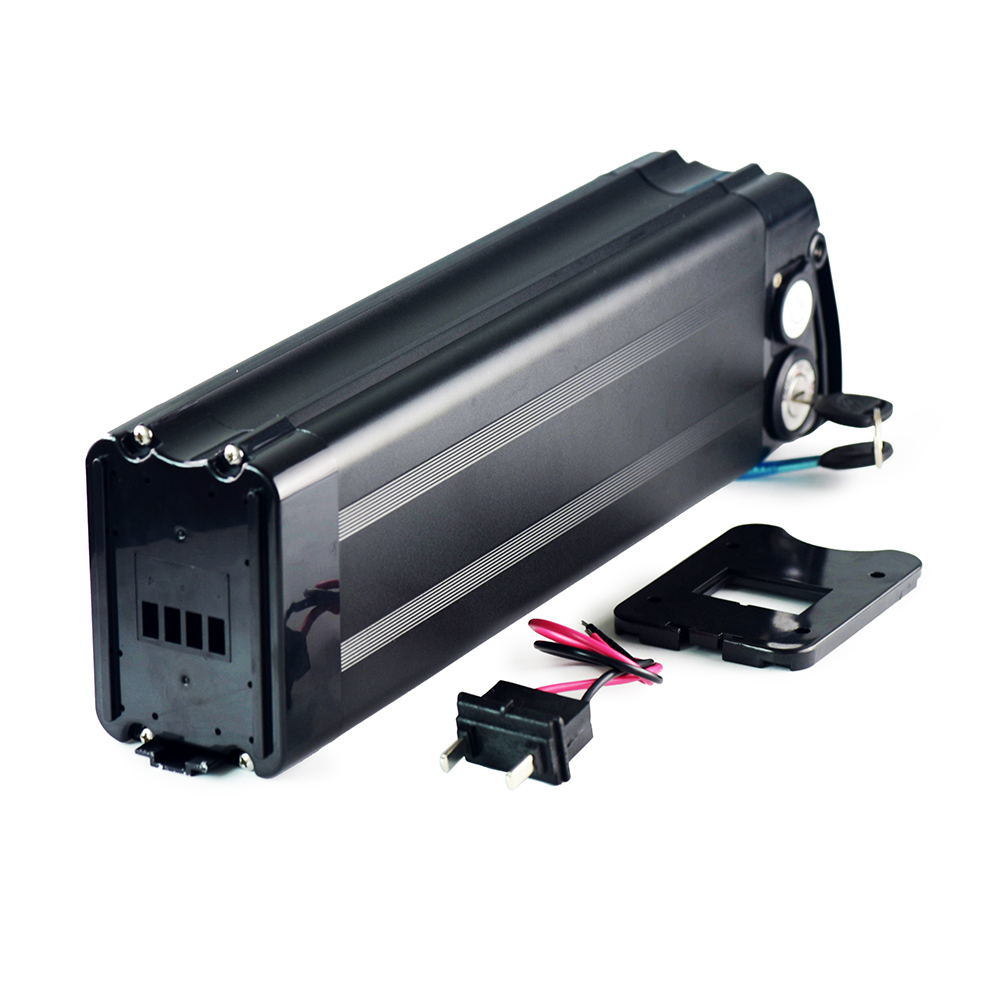

Bottom discharge Options

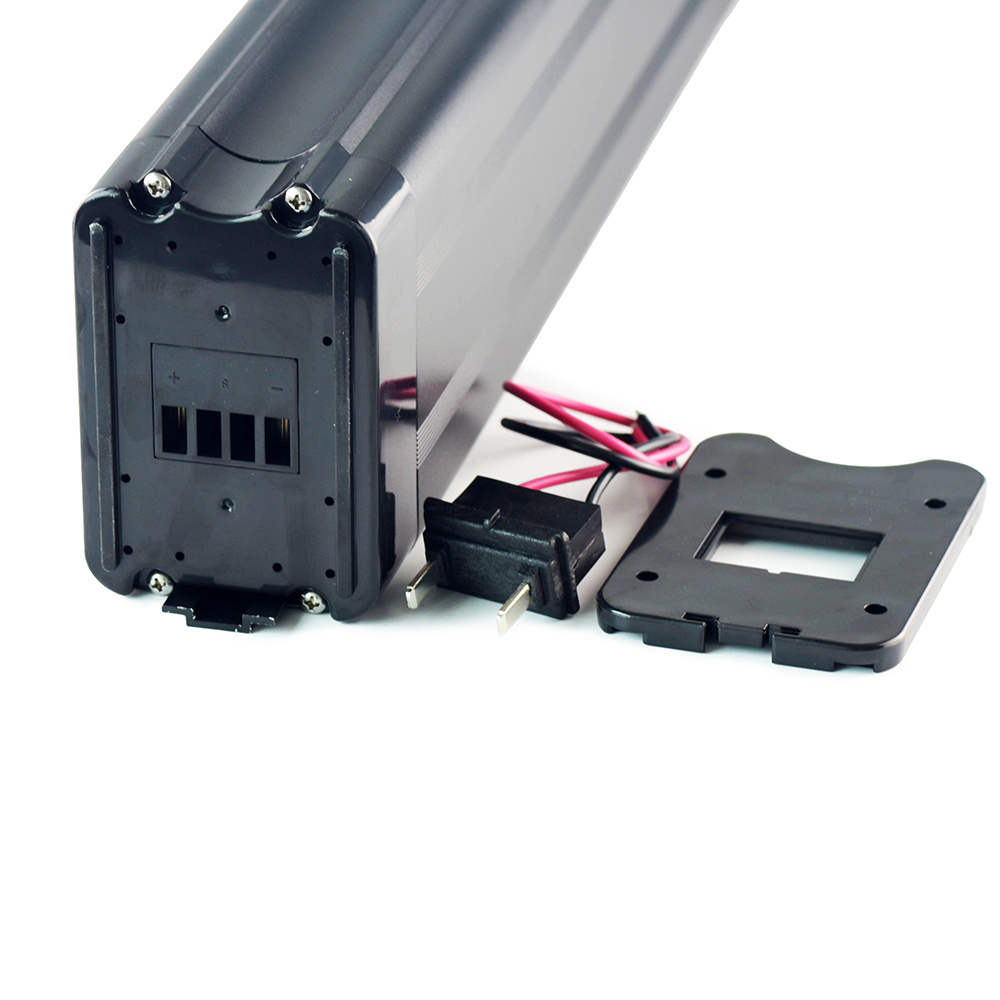

A.  Bottom 2Pin discharge
Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

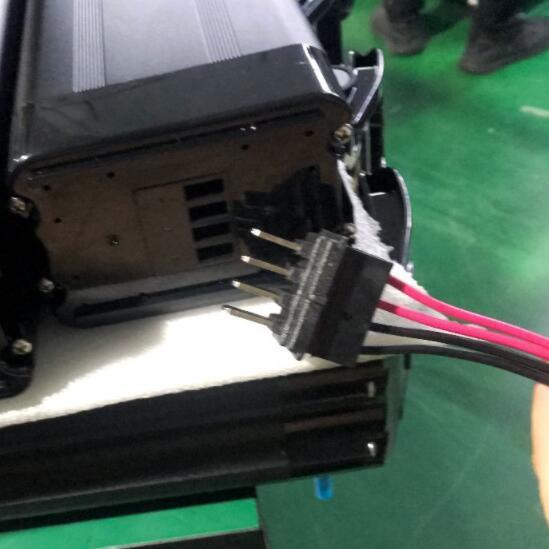

B. Botton 4Pin dicharge
Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

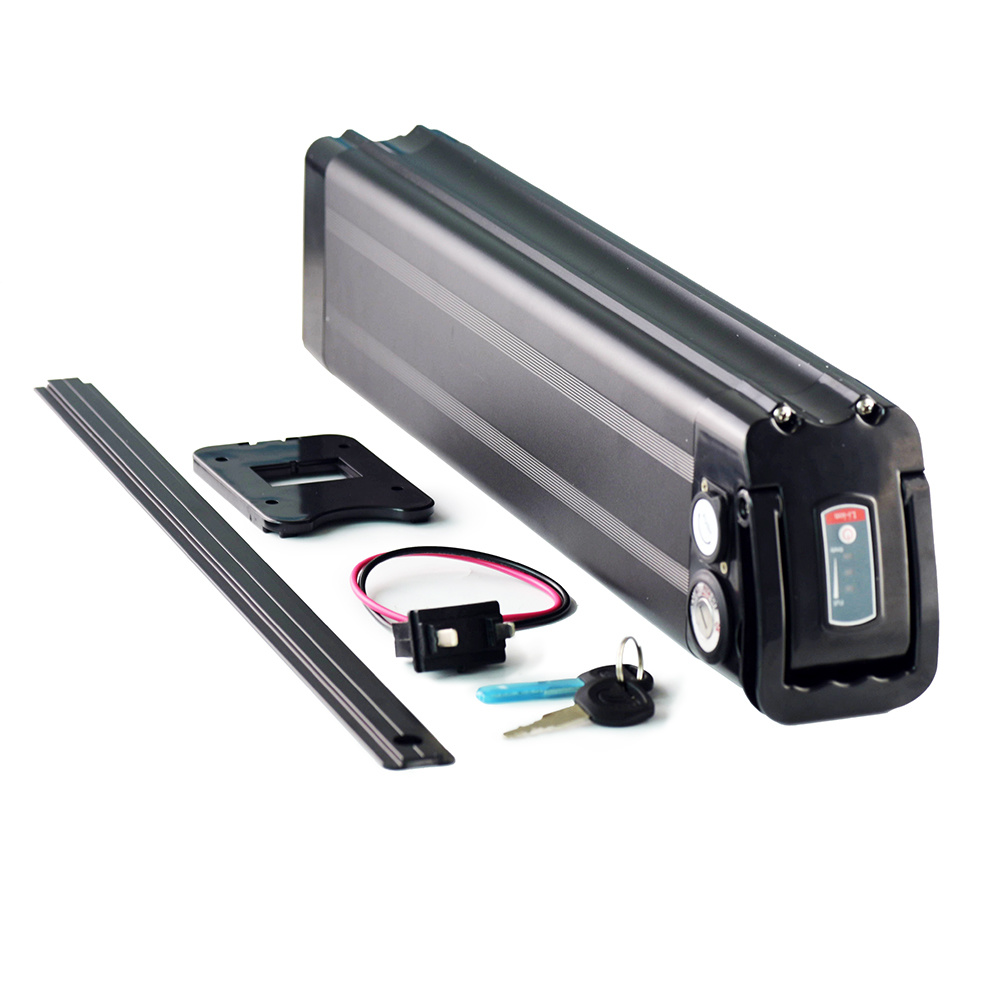

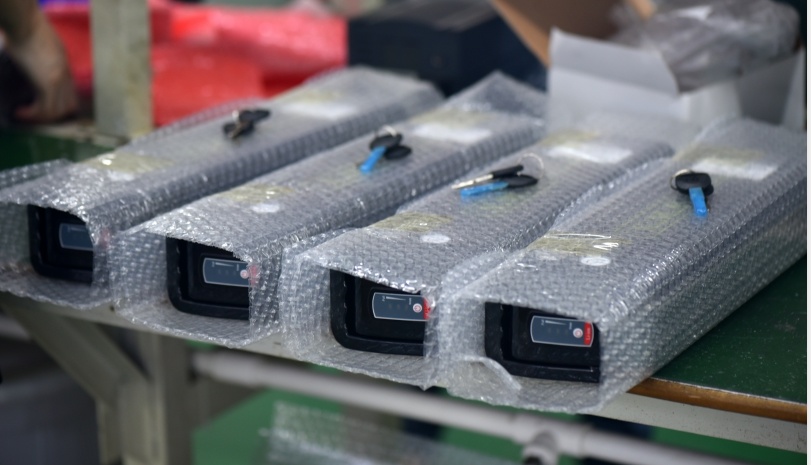

Package

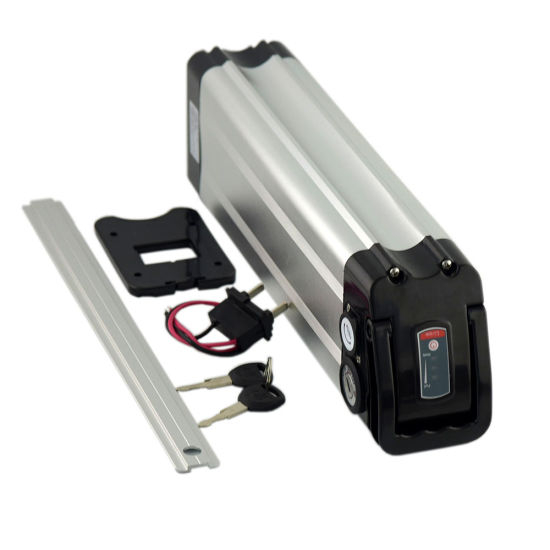

One carton with one battery package with accessories
1. battery 1 pc
2. mountail rail 1 pc
3. battery keys 1 pair
4. bottom case 1 pc
5. Discharging port connector 2P /4P +wire 1 pcs

Custom 1000w /750w/500w 48v lithium ion fish battery 20Ah

Li Ion Battery 1000W Electric E Bike Battery 48V 20ah






Product featurs

1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).

4. Minimal self-discharge, less than 10% monthly.

5. Wide temperature range, operation from :-20°C~+60°C

6. Be charged & discharged at anytime because of non-memory.

7. Environmentally compatible.


8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking

experiment, with acupuncture, smash, drop, and so on.



Packaging Details;  standard export package
Delivery Time;7-15 days

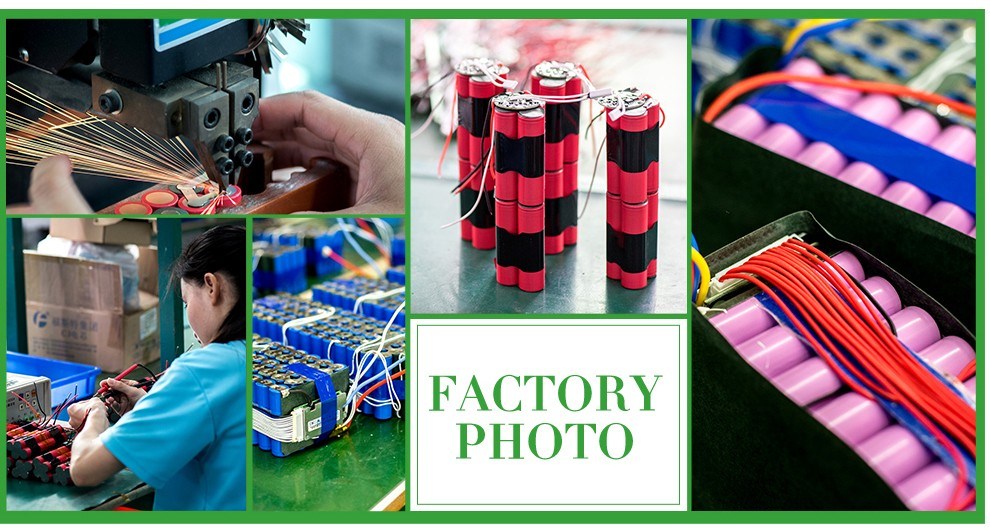

Company Information

Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

Li Ion Battery 1000W Electric E Bike Battery 48V 20ah

F&A

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?


A: Sample needs 15 days, mass production time needs 20-30 days for order quantity.

Q3. Do you have any MOQ limit for sample order?

A: MOQ, 1-10pcs for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: EXPRESS,Airline and sea shipping also optional. It usually takes 7-15 days FAST LINE / 20-35 days to arrive Slow DDP line.


Q5. How to take care of this battery?

Do not connect the positive and negative terminal directly.

Do not expose the battery under high temperature condition.

Do not disassemble the battery pack without technician's guide.

Keep the battery away from water,salt,acidic.etc.

Keep the battery clean and dry.

Use the compatible charger to charge it.

Charge the battery one time at least per two months.


Q6: Do you offer guarantee for the products?

A: Yes, we offer 12-month warranty to our products.

You are always welcome to visit our factory and cooperate with us!
