| Quantity: | |
|---|---|
Shenzhen, China
1000PCS/Week
T/T, Paypal, Money Gram
DEL-SF102
>1000MAH
36V
for Ebike
Li-ion
Ce, RoHS, FCC
DeLong
Standard Export Package
390*110*76.6mm
China
8507200000

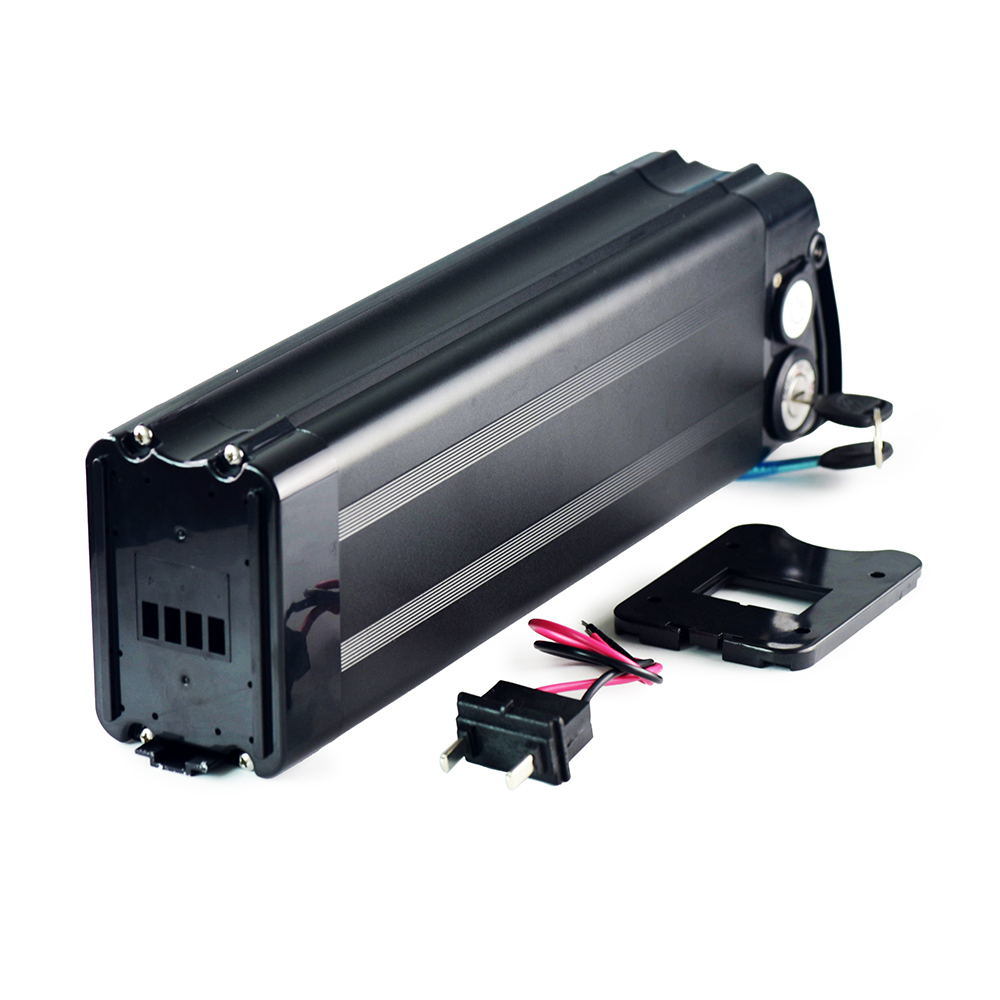

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
Battery Model | 36v 10ah |
| Nominal Capacity (AH) | 10Ah |
| Nominal Voltage (V) | 36V |
| Source Resistance (mΩ) | about 40 |
| Cell Specification | 3.7V 2000mAh |
| Cell Combination | 10S 4P |
| Cell Size | 18650 lithium cell |
| Cell Quantity (parallel*series) | 40pcs |
| Discharge Cutoff Voltage (V) | 30 +/- 1V |
| Charge Cutoff Voltage (V) | 42V |
| Rated Discharge Current (A) | 10A |
| Instantaneous Maximum Discharge Current (A) | 20A |
| Maximum Continuous Discharge Current (A) | 30A |
| Maximum Continuous Charge Current (A) | 5 |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 6 |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 2.5 |
| Charge Temperature Range | -20 - 60 °C |
| Discharge Temperature Range | -20 - 60 °C |
| Battery Size | Length: 385mm Diameter: 110mm |
| Battery Net Weight | 3.25kgs, with package and charger 5.0KGS |
| Battery Gross Weight | 5..00kgs |
1. High operation voltage.2. High energy density. 3. Long cycle life, more than 500 charge/discharge cycles ( 800% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking
experiment, with acupuncture, smash, drop, and so on.
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 15 days, mass production time needs 20-30 days for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: MOQ, 1-10pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: EXPRESS,Airline and sea shipping also optional. It usually takes 3-7 days/ 20-35 days to arrive.
Q5. How to take care of this battery?
Do not connect the positive and negative terminal directly.
Do not expose the battery under high temperature condition.
Do not disassemble the battery pack without technician's guide.
Keep the battery away from water,salt,acidic.etc.
Keep the battery clean and dry.
Use the compatible charger to charge it.
Charge the battery one time at least per two months.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12-month warranty to our products.
You are always welcome to visit our factory and cooperate with us!
You are very welcome to contact us if you have any questions.
