Del-48V20Ah
Li-ion
13 Month
Black,Silver
10ah/12ah/15ah/20ah
Around 500 Times
Delong

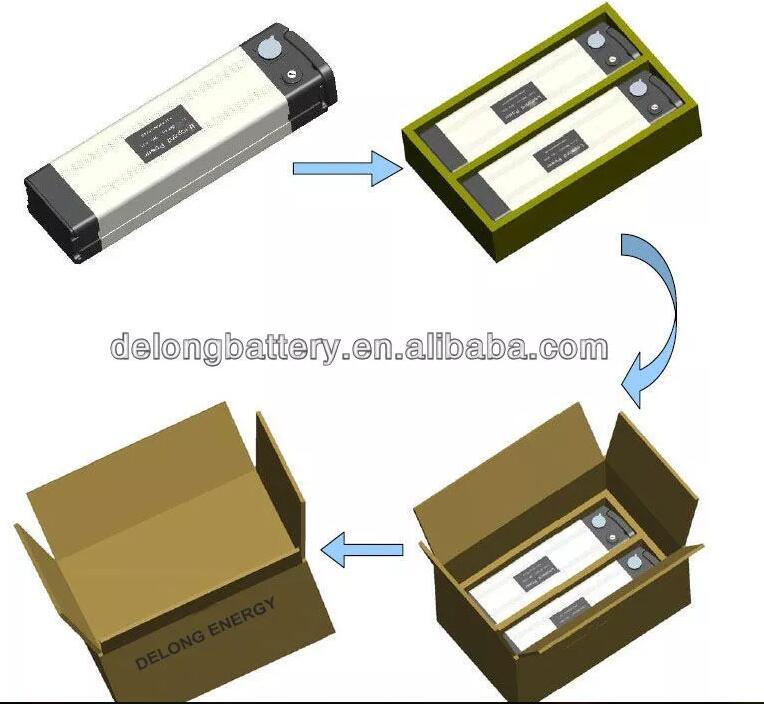

Standard OEM Packing
Weight: 5.5Kg
China
1000W
12V/24V/36V/48V
Lithium Battery
CE, FCC RoHS
E-Bike
12V/24V/36V/48V

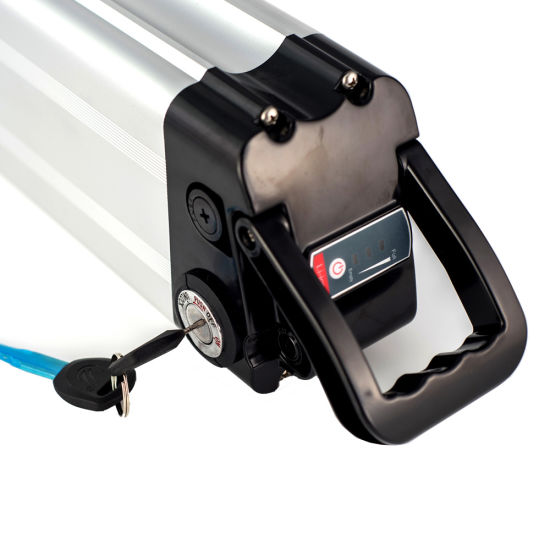

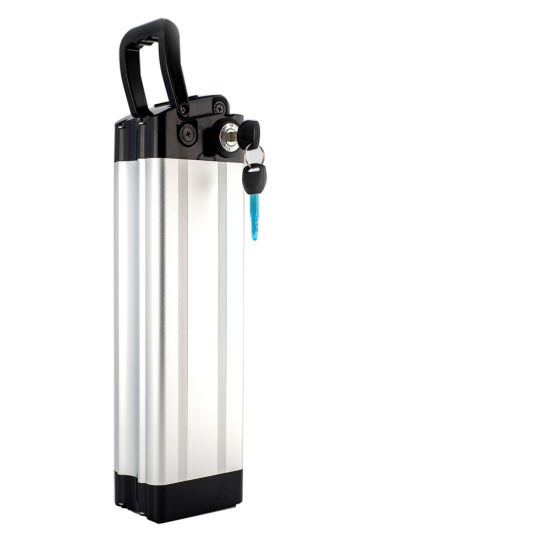

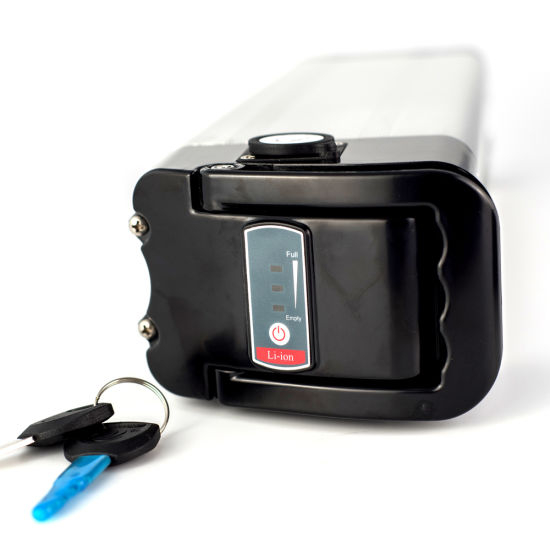

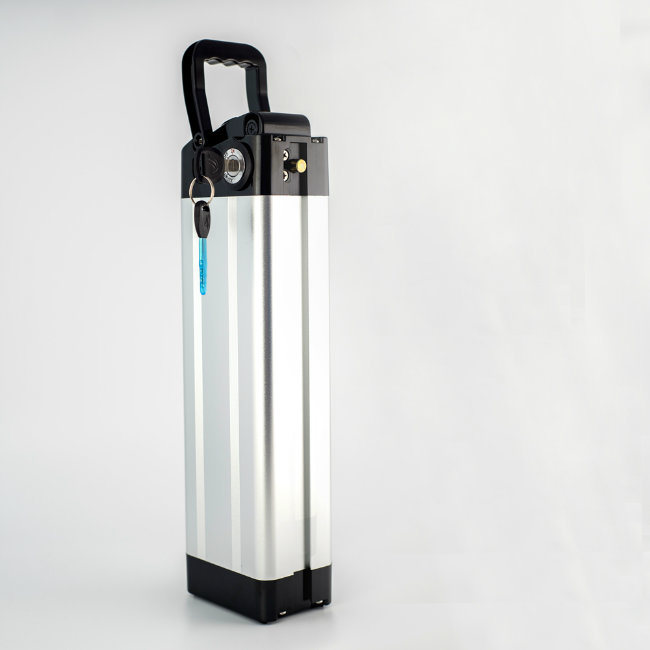

E-bike Battery 48V 20ah Lithium Ion Battery
Recommend to use for 48V 200W, 48V 250W, 48V 350W, 48V 500W, 48V 750W, 48V 1000W Motor.

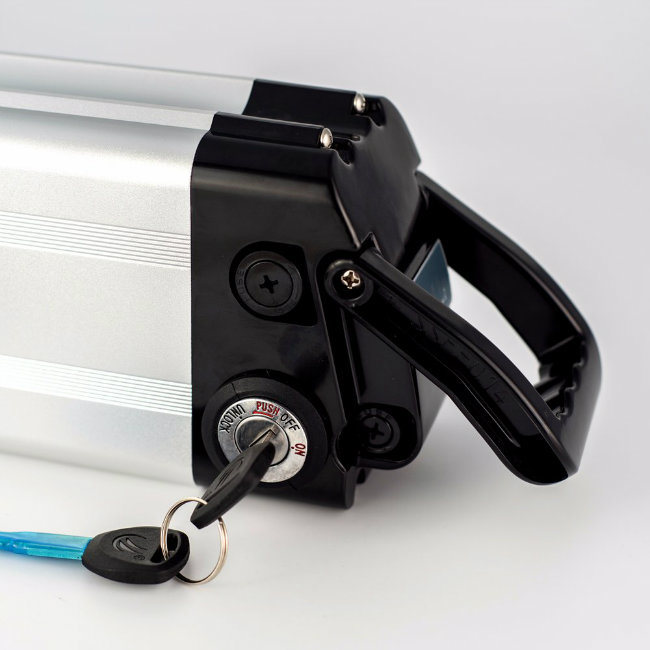

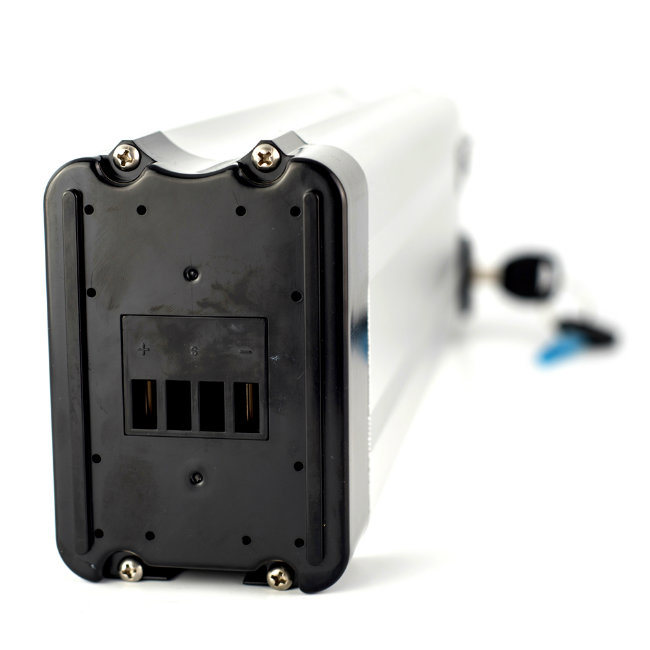

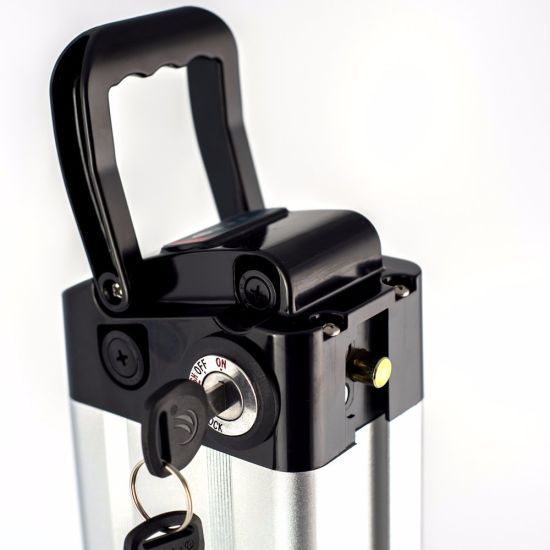

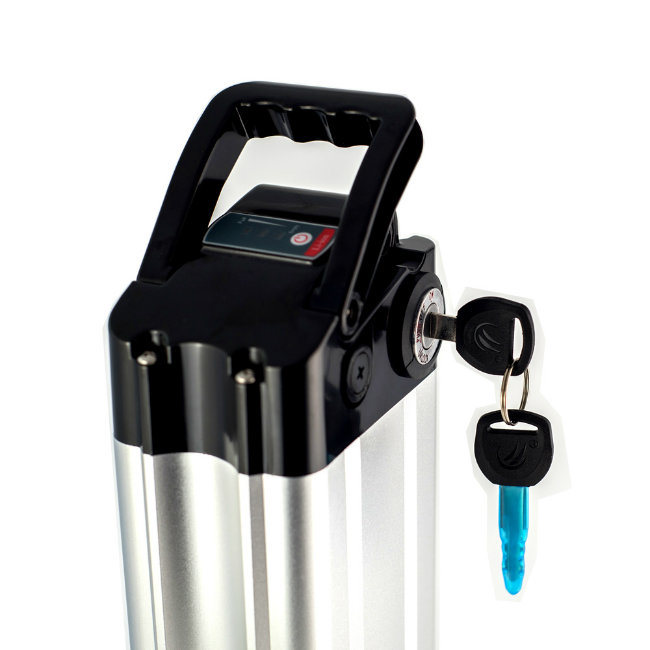

The Battery has fixing plate, It is easy to install it on your rear rack. For example drill holes or with screws, battery will be slide in and locked with key.
Battery Model | 48V 20Ah |
Nominal Capacity (AH) | 20ah |
Nominal Voltage (V) | 48V |
Source Resistance (mΩ) | < 40 |
Cell Specification | 3.7V 4AH |
Cell Combination | 5-parallel 13-series |
Cell Size | Pouch Cell |
Cell Quantity (parallel*series) | 65 |
Discharge Cutoff Voltage (V) | 41+/-1V |
Charge Cutoff Voltage (V) | 54.6V |
Rated Discharge Current (A) | 20A |
Instantaneous Maximum Discharge Current (A) | 40A |
Maximum Continuous Discharge Current (A) | 30A |
Maximum Continuous Charge Current (A) | 5A |
Charge Mode | CC/CV |
Standard Charge Current (A) | 2A |
Charge Time under Standard Charge Current | 10 |
Fast Charge Current (A) | 5A |
Charge Time under Fast Charge Current | 4 |
Charge Temperature Range | -20 - 60 °C |
Discharge Temperature Range | -20 - 60 °C |
Battery Size | 360*149*82mm |
Battery Net Weight | 6.0kgs |
Battery Gross Weight | 7.5kgs |
Features
E-bike Battery 48V 20ah Lithium Ion Battery
Recommend to use for 48V 200W, 48V 250W, 48V 350W, 48V 500W, 48V 750W, 48V 1000W Motor.
The Battery has fixing plate, It is easy to install it on your rear rack. For example drill holes or with screws, battery will be slide in and locked with key.
Battery Model | 48V 20Ah |
Nominal Capacity (AH) | 20ah |
Nominal Voltage (V) | 48V |
Source Resistance (mΩ) | < 40 |
Cell Specification | 3.7V 4AH |
Cell Combination | 5-parallel 13-series |
Cell Size | Pouch Cell |
Cell Quantity (parallel*series) | 65 |
Discharge Cutoff Voltage (V) | 41+/-1V |
Charge Cutoff Voltage (V) | 54.6V |
Rated Discharge Current (A) | 20A |
Instantaneous Maximum Discharge Current (A) | 40A |
Maximum Continuous Discharge Current (A) | 30A |
Maximum Continuous Charge Current (A) | 5A |
Charge Mode | CC/CV |
Standard Charge Current (A) | 2A |
Charge Time under Standard Charge Current | 10 |
Fast Charge Current (A) | 5A |
Charge Time under Fast Charge Current | 4 |
Charge Temperature Range | -20 - 60 °C |
Discharge Temperature Range | -20 - 60 °C |
Battery Size | 360*149*82mm |
Battery Net Weight | 6.0kgs |
Battery Gross Weight | 7.5kgs |
Features
