English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000set/Week
T/T, Western Union, Paypal
DL-6012
8507600090
Battery
Export Carton
395*110*75mm
Delongtop
China

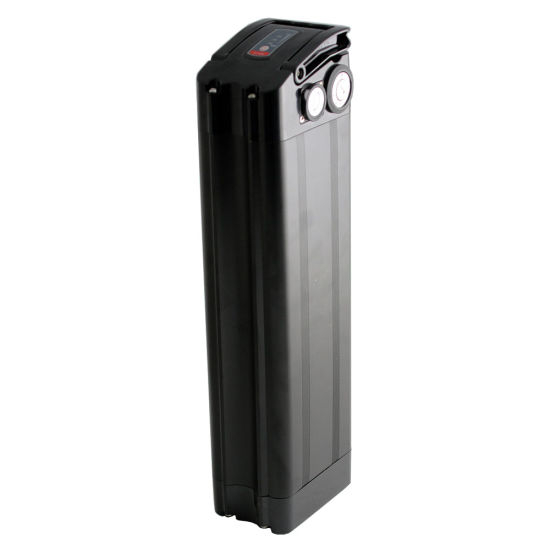

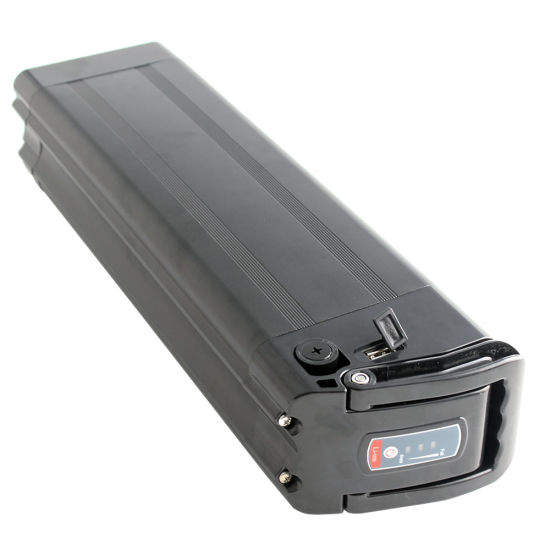

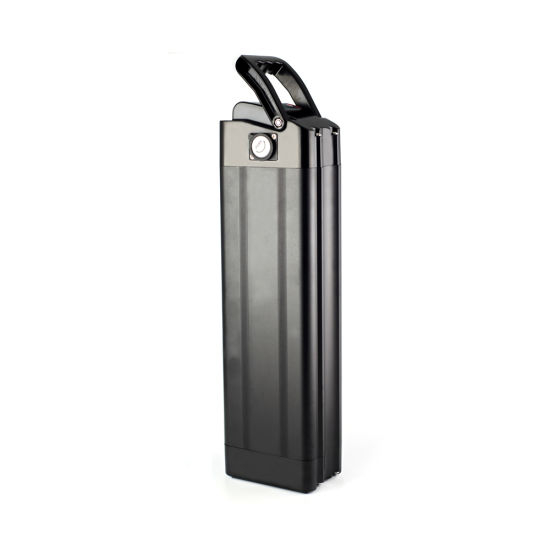

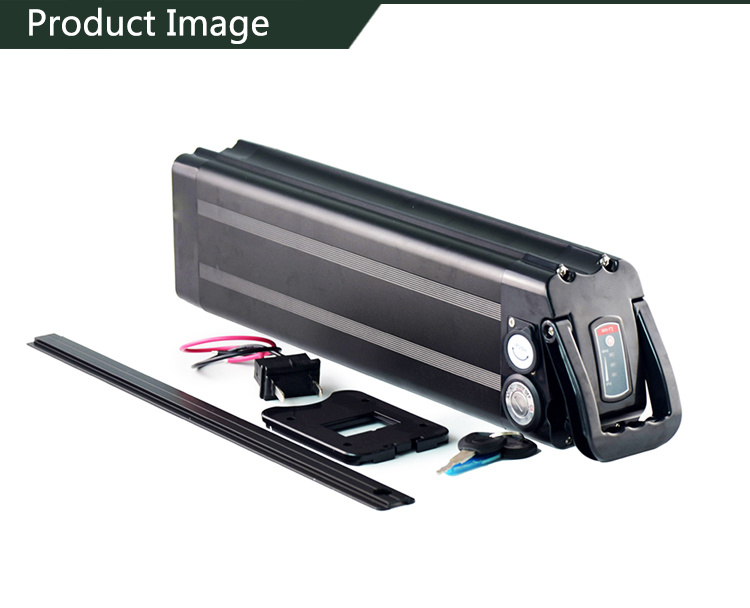

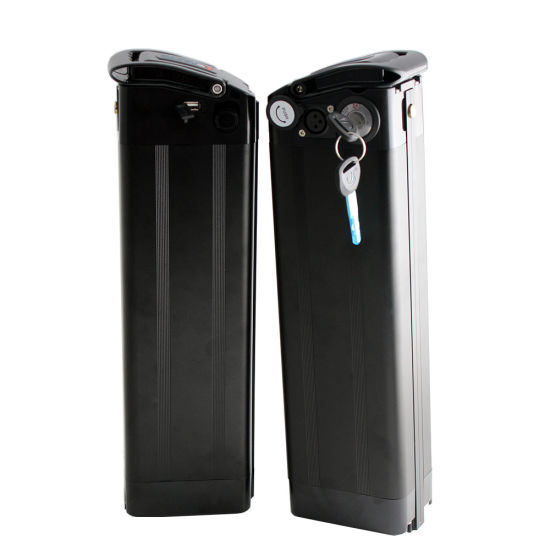

Type | Lithium electric bike Battery | |
1. Basic Characteristics | ||
Weight | ≤7kg | |

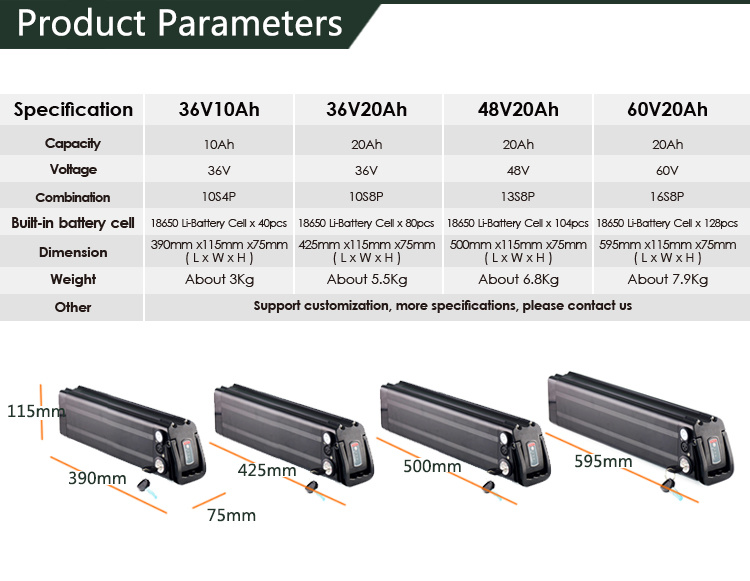

Dimension(D*H) | 390*110*76.6mm or custom | |
Working temperature | Charge Temperature | 0~45°C |
Discharge Temperature | -20~65°C | |
Retention of charge (store in one month) | ≥95% | |
2. Technical Data | ||
Rated Voltage | 36V or 48V | |
Rated Capacity C1 | 10Ah-20Ah | |
Battery Resistance | ≤4 mΩ | |
Charge | Way of Charge | CC/CV(Constant Current;Constant Voltage) |
Standard Charge Current | 2A | |
Max Charge Current | 5A | |
Max Charge Voltage | 54.6V | |
Cell OverCharge Protection Voltage | 54.6V | |
Discharge | Standard Discharge Current | 10A can be customized |
Max Discharge Current | 40A can be customized | |
Discharge Cut-off Voltage | 39V | |
Cell Overdischarge Protection Voltage | 39V | |
Ratio Discharge | 1C | >96%C1 |
2C | >93%C1 | |
3C | >90%C1 | |
Cycle Life | 800 Cycles | |
3. Safety Test | ||
Short Circuit Safety Test | No fire, No explosion | |
Overcharge Safety Test | ||
Crush Safety Test | ||
Needling Safety Test | ||
Extrusion Safety Test | ||
130°C High Temperature Safety Test | ||
Company Information
Shenzhen DeLong Energy Technology Co., Ltd. is a Professional New Energy Supplier in China focusing on the manufacture, research and sale of lithium ion battery product worldwide. It was established in 2006 and becoming the leading player in the new energy field through development. Delong company intergrates the cell manufacturing and offer of power solution in according to different application purpose.Our products are widely applied on digital device battery,high discharge rate battery, powerful electric vehicles battery, low and high temperature lithium ion battery, power storage and back-up battery pack etc.
1. 12 Years professional manufacturering experience.
2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service; or our current models.
4. Fast delivery; Professinal and quality 100% QC inspection.
1:Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
2: Do you provide after-sales serive?
Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
3: Do you accept OEM/ODM?
Yes,it is avaliable.
4:Are you battery real capacity?
All of our battery cells with Grade A,100% new and real capacity.
5: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
