| Quantity: | |
|---|---|
Shenzhen, China
5000PCS Per Week
L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash
DEL-6020
Delong or customized
EPE Pearl Cotton and Thick Cardboard Cartons
395*148*80mm
China
8506500000
Battery
7.5kg
500 Cycles
60V
2500mAh
18650 Battery

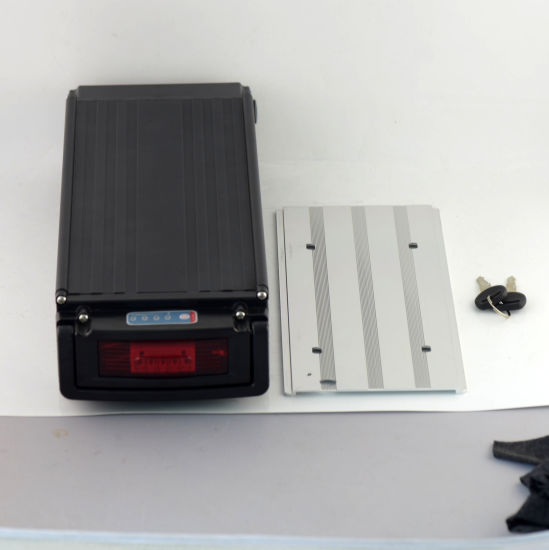

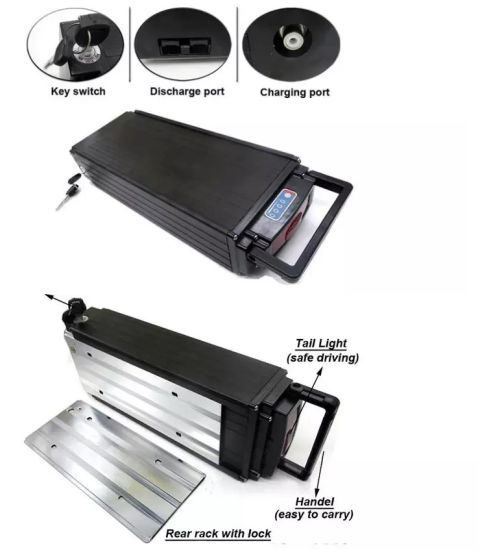

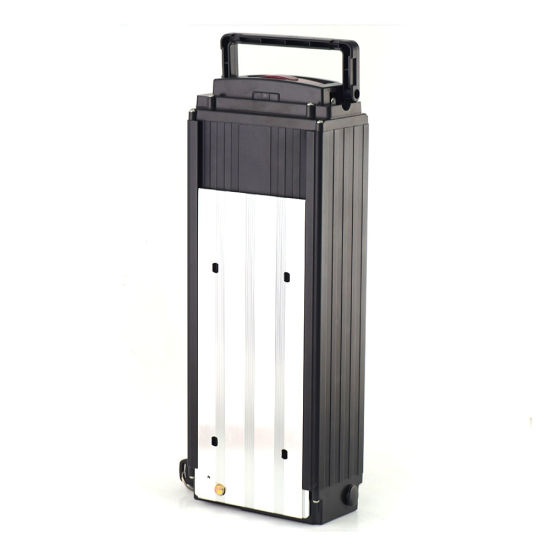

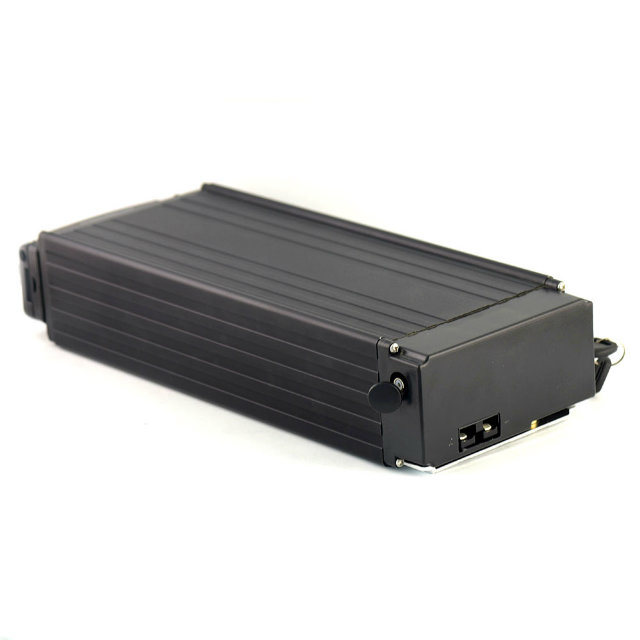

The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
| Battery Model | 60V 20Ah |
| Nominal Capacity (AH) | 20ah |
| Nominal Voltage (V) | 60V |
| Source Resistance (mΩ) | < 40 |
| Cell Specification | 3.7V 2500mAh |
| Cell Combination | 8-paralle 16-series |
| Cell type | 18650 |
| Cell Quantity (parallel*series) | 128 |
| Discharge Cutoff Voltage (V) | 44.8V |
| Charge Cutoff Voltage (V) | 67.2V |
| Rated Discharge Current (A) | 20A |
| Instantaneous Maximum Discharge Current (A) | 40A |
| Maximum Continuous Discharge Current (A) | 30A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 10 |
| Fast Charge Current (A) | 5A |

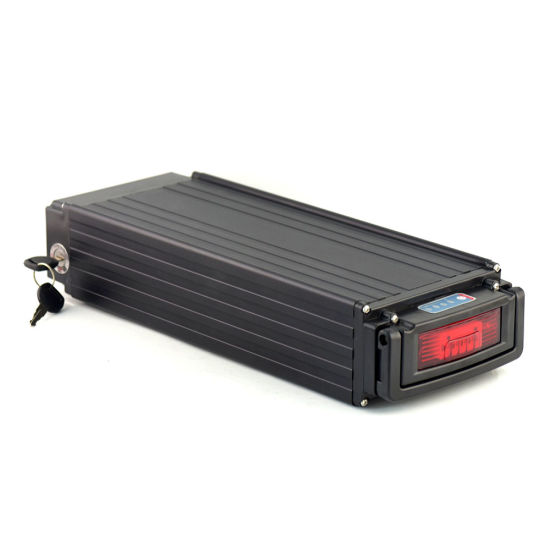

Features of 60V 20Ah rear rack bicycle battery:
1.High energy density
2.Long lifecycle:above 500 times
3.With 5V USB output which can charge for smartphones and other 5V digital products
4.Current of BMS can be customized
5.Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.

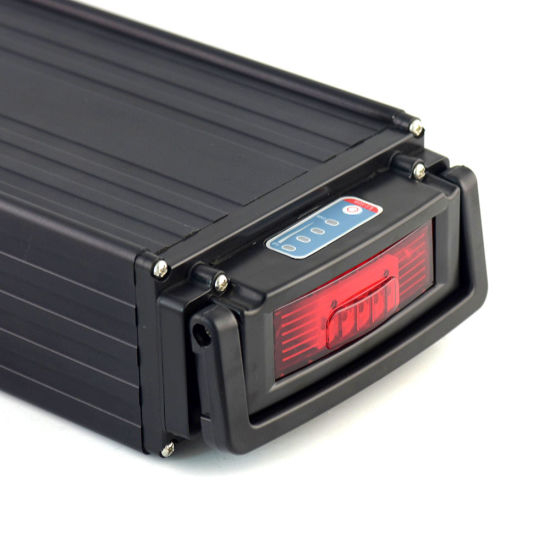

6.Intelligent charge system: voltage of each cell can be detected ,each cell can be protected against overcharge, overvoltage ,short circuit and overheat , and so that battery can be charged balance. The capacity of readout power volume :each battery has 4 LED lights to readout the capacity of the battery.
Packaging:Inner packing with EPE pearl cotton,
outer packing with strong cardboard cartons
or customerized packing
Shipment:The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
