Port:
Shenzhen, China
Production Capacity:
3000PCS/Week
Payment Terms:
T/T, D/P, Western Union, Paypal, Money Gram, Payple or Cash
Installation:
Fixed
Rechargeable:
Chargeable
Product Name:
48V 17.5ah E-Bike Battery Pack
Application:
Electric Bike, Scooter, Motorcycle...
Cycle Life:
800 Times
Battery Type:
Lithium-Ion 18650
Certification:
CE/FCC/RoHS
Weight:
6kg
Color:
Silver, Black or Custom
Protection:
BMS Protection
OEM/Oed:
Welcomed
Warranty:
1 Years
Trademark:
OEM
Transport Package:
PE Bag + Foam Cover + One Double-Deck Corrugated O
Specification:
368*90*112mm
Origin:
China
Type:
Lithium-Ion Batteries
Usage:
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, E-Bike
Nominal Voltage:
36V/48V
Discharge Rate:
Medium Discharge Rate
Shape:
Ebike Battery
Electrolyte:
Li-ion

Product Description

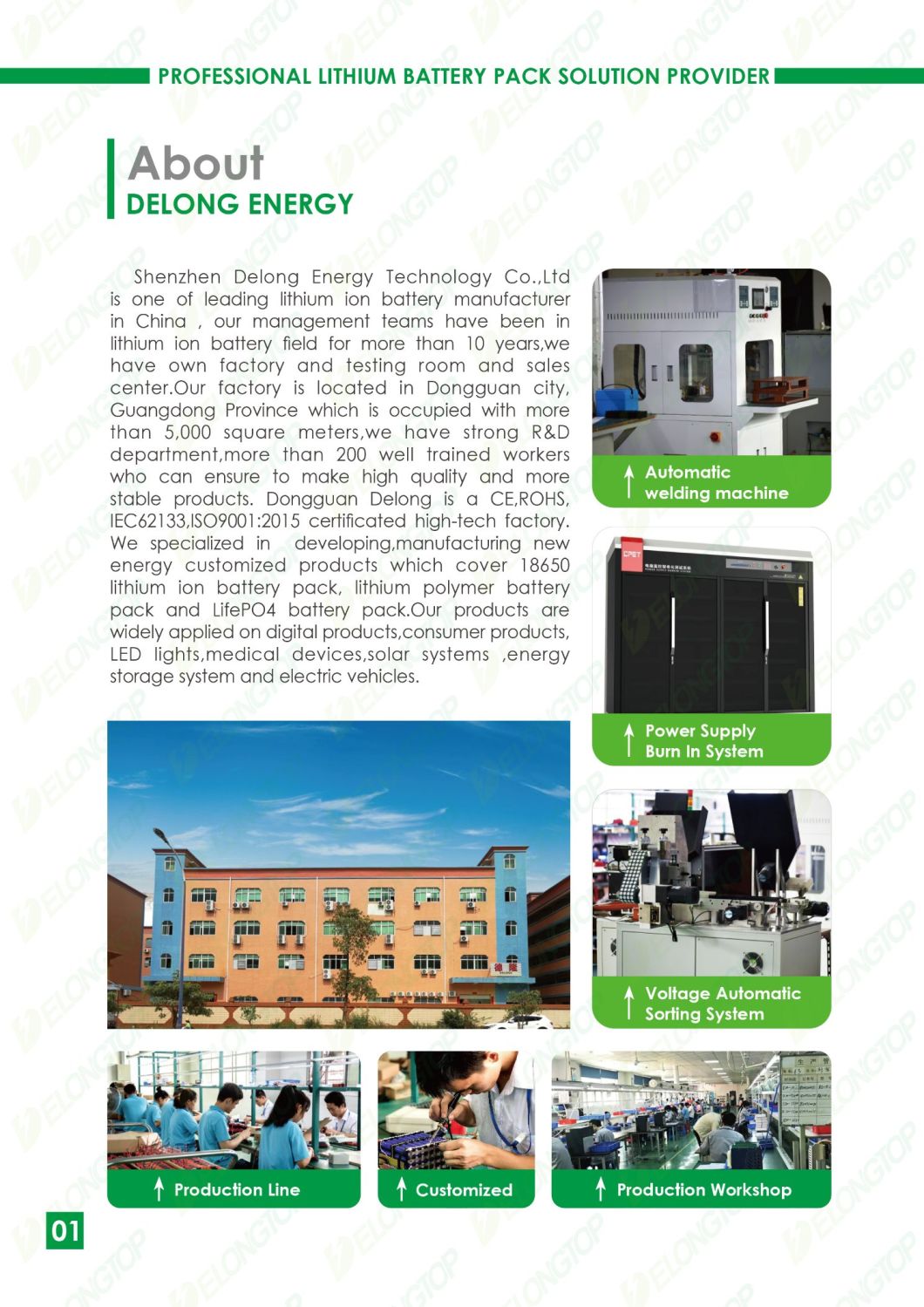

Delong Factory Offer you
1: ORIGINAL FACTORY DIRECT LOWEST PRICE.
2: NICE QUALITY. PASS CERTIFICATION
3: WITHOUT MOQ. SMALL SAMPLE ORDER WELCOME.
4: QUICK SHIPPING WITHIN 7 DAYS.
5: ONLINE PAYMENT
6: FACTORY 3 YEAR WARRANTY, SUPPORT 7 DAYS REFUND.
7: AFTER SALES SERVICES 24 HOURS.

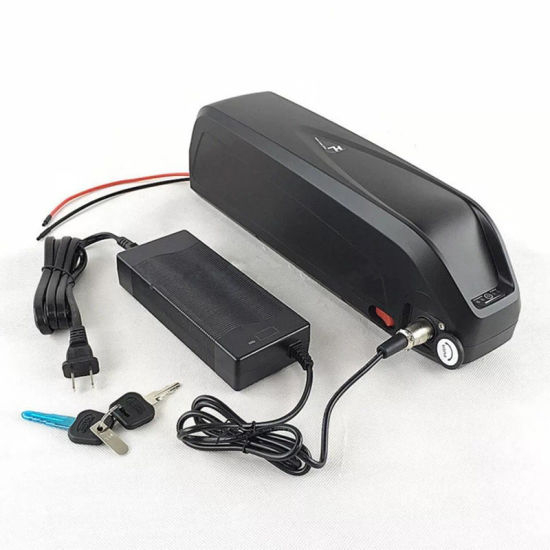

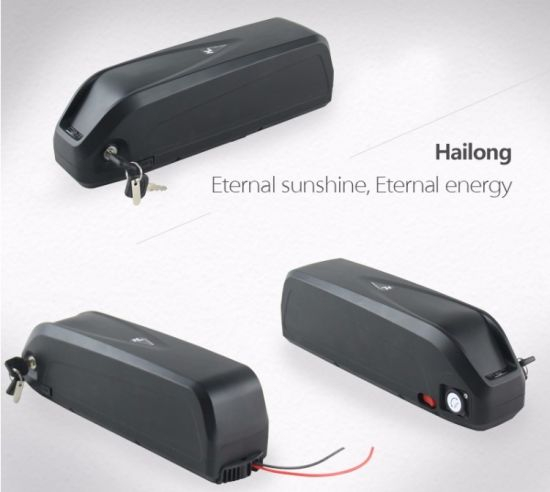

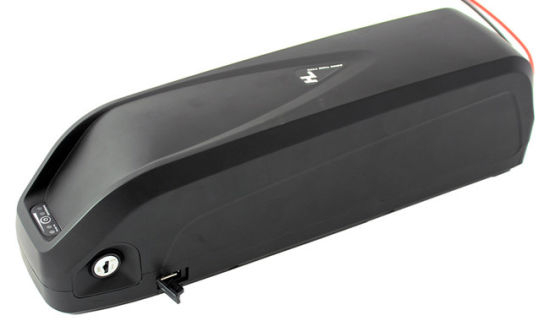

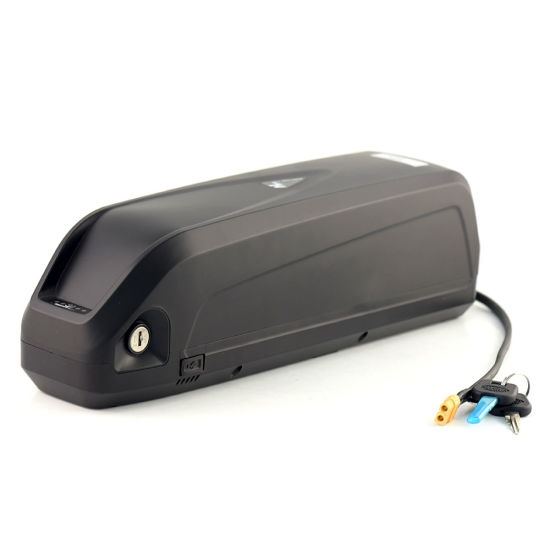

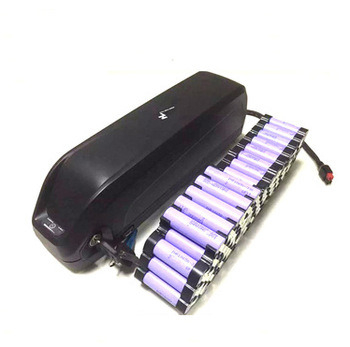

48v Samsung 17.5ah Hailong Electric Bike Lithium Ion Battery Pack For 48v 750W 1000w Electric Bike Scooter

Type		Hailong ebike battery pack 48v 17.5ah
1. Basic Characteristics
Weight		≤6kg
Dimension(D*H)		Samsung cell 3500mAh type 36890112mm
Working temperature	Charge Temperature	0~45°C
Working temperature	Discharge Temperature	-20~65°C
Retention of charge (store in one month)		≥95%
2. Technical Data: Lithium ion battery cell packs 13S8P 104PCS china cells 2500mAh battery cells
Rated Voltage		48V
Rated Capacity C1		17.5Ah
Battery Resistance		≤420mΩ
Charge	Way of Charge	CC/CV(Constant Current;Constant Voltage)
	Standard Charge Current	4A
	Max Charge Current	5A
	Max Charge Voltage	54.6V
	Cell OverCharge Protection Voltage	54.6V
Discharge	Standard Discharge Current	20A can be customized
	Max Discharge Current	30A can be customized
	Discharge Cut-off Voltage	39V
	Cell Overdischarge Protection Voltage	39V
Ratio Discharge	1C	>96%C1
	2C	>93%C1
	3C	>90%C1
Cycle Life		more than 1000 Cycles

18650 li ion battery Hailong lithium battery pack of Features

* Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection
fuctions .
* With at least More than 800times cycle life
* It can run well under different temperature environment condition
* No memory effects.

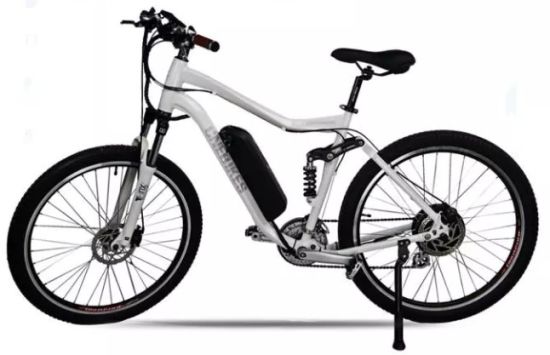

* Suitable for electric bicycle ,electric bike etc .
* Full capacity battery, 100% quality testing
* Long cycle life and high energy density
* Capacity, resistance, Voltage, platform time consistency is good
* Factory price and fast delivery
* Light weight, small size

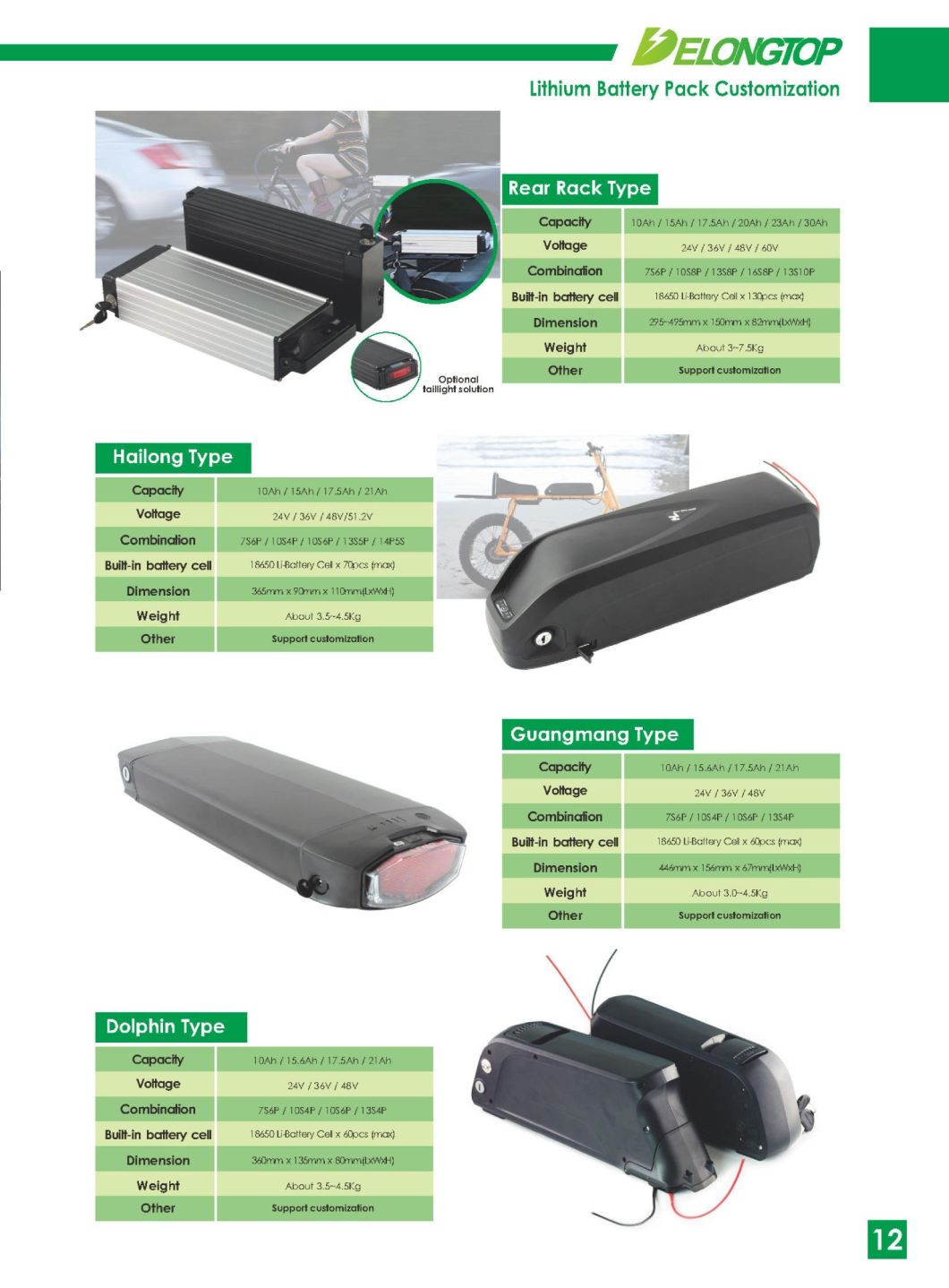

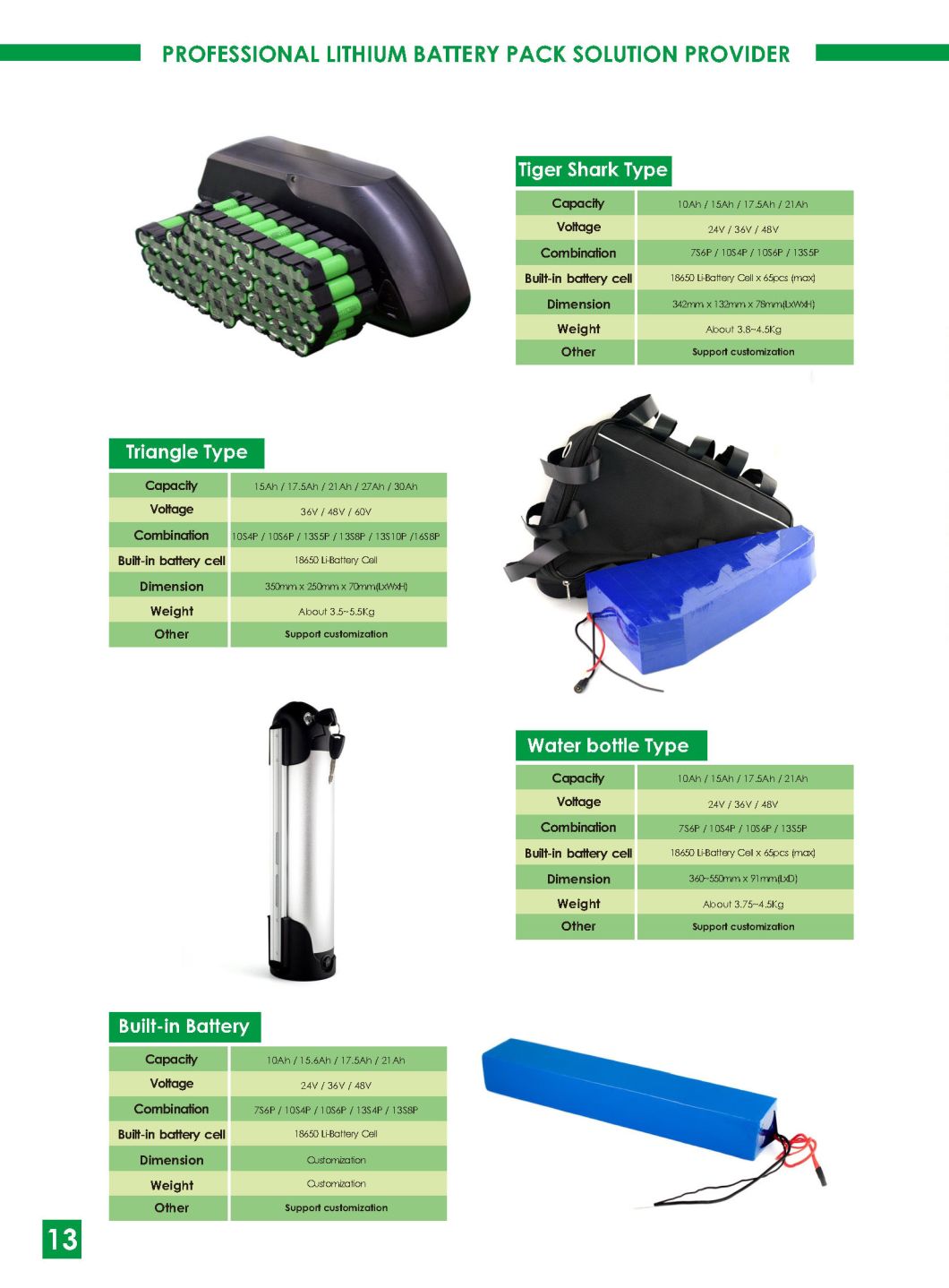

we support a variety of voltage, capacity, battery size and case material and connector customized services according to your requirement

^Voltage	^Capacity	^Dimensions	^Weight	^{Max Constant Discharge Current}	^{Charge voltage}	^{Discharge cut off voltage}	^Charger	^{Package weight}
^24v	^10Ah	^36890112	^2.4kg	^15A	^29.4v	^19.6v	^29.4v2A	^3.9kg
^24v	^13Ah	^36890112	^2.8kg	^15A	^29.4v	^19.6v	^29.4v2A	^4.3kg
^24v	^15Ah	^36890112	^3.3kg	^15A	^29.4v	^19.6v	^29.4v2A	^4.8kg
^24v	^20Ah	^36890112	^3.8kg	^15A	^29.4v	^19.6v	^29.4v2A	^5.3kg
^24v	^25Ah	^36890112	^4.9kg	^15A	^29.4v	^19.6v	^29.4v3A	^6.4kg
^36V	^10Ah	^36890112	^3.0kg	^20A	^42v	^28v	^42v2A	^4.5kg
^36V	^13Ah	^36890112	^3.5kg	^20A	^42v	^28v	^42v2A	^5kg
^36V	^15Ah	^36890112	^4.0kg	^20A	^42v	^28v	^42v2A	^5.5kg
^36V	^18Ah	^36890112	^4.9kg	^20A	^42v	^28v	^42v2A	^6.4kg
^36V	^20Ah	^36890112	^5.5kg	^20A	^42v	^28v	^42v2A	^7kg
^48V	^10Ah	^36890112	^3.7kg	^30A	^54.6v	^36.4v	^54.6v2A	^5.2kg
^48V	^13Ah	^36890112	^4.3kg	^30A	^54.6v	^36.4v	^54.6v2A	^5.8kg
^48V	^15Ah	^36890112	^5.3kg	^30A	^54.6v	^36.4v	^54.6v2A	^6.8kg
^48V	^17.5Ah	^36890112	^6.1kg	^30A	^54.6v	^36.4v	^54.6v2A	^7.6kg
