| Quantity: | |
|---|---|
Shenzhen, China
1500/Wk
T/T, Paypal
Del-691468
40ah
48V
for Electric Vehicle,E-Scooter,E-Bike,Electric Car
Li-ion
RoHS, Ce, FCC,etc
DelongTop
Standard Export Package
690*140*68mm
Guangdong, China
8507600090
Lithium-Polymer Battery Pack
Series Connection
Chargeable
Medium Discharge Rate
690*140*68mm or Customized
Battery
Model | 48V40Ah | |
Cell | 3.7V | |
Size : D×W×H mm | 690*140*68 | |
Nominal Voltage | 48V | |
Nominal Capacity | 40Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage | 54.6V | |
End of charge Current | 200mA | |
End of discharge Voltage | 45V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 5A | |
Nominal Discharge Current | 40A | |
Max. Pluse Discharge Current | 80A/10S | |
Weight | ≤11.5Kg | |
Operating Temp. | Charge | 0~45ºC |
| Discharge | -10~55ºC |
Storage Temp.(60-80% SOC Storage) | -10~45ºC | |
Capacity@1C rate 0.2C | ≥ 40Ah | |
Cycle Life | 500 times(Cycle @RT, 1C rate,100%D\OD) | |
Applications:
Telephone switchboard, electric equipment and power instruments
UPS, emergency application and medical devices
Power transmission and transformer station and accident lighting
Fire fighting, safety device and alarm monitoring
Automatic office system
Radio communication system
Emergency lighting and car/ship starting system
Portable electric appliances and mining system
Traffic and navigation signal lamp
Solar energy: solar street lights, solar LED lights

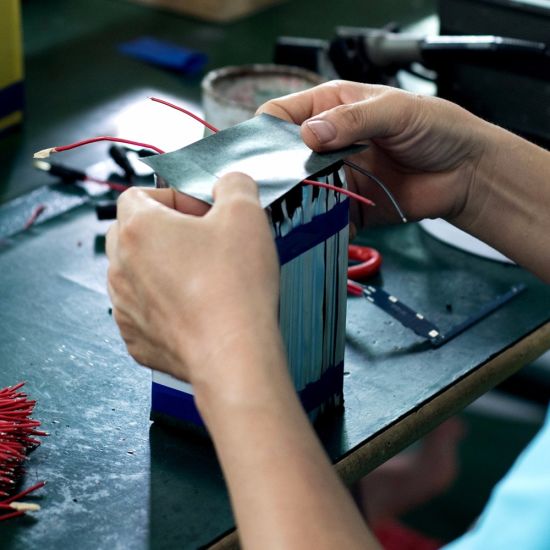

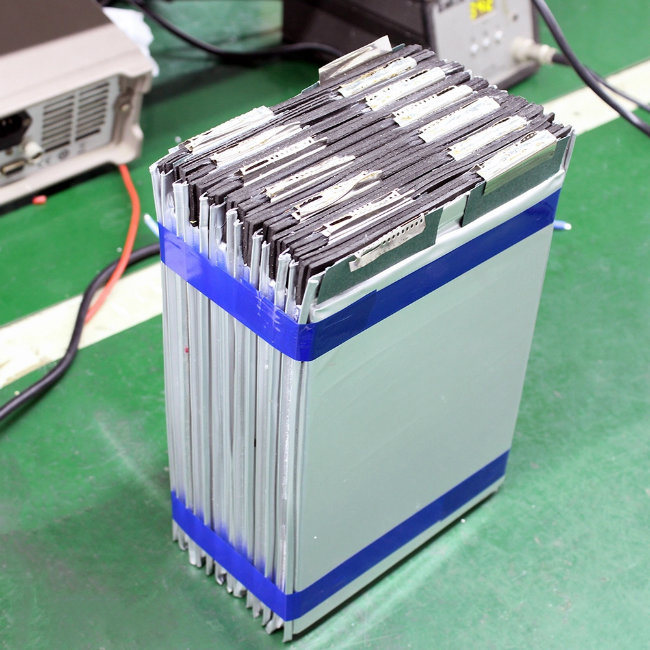

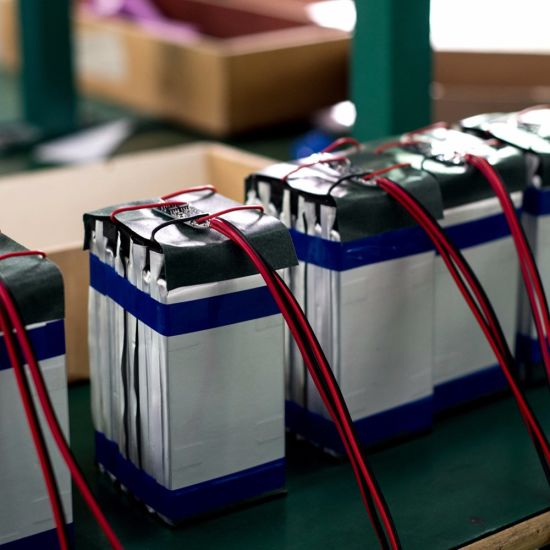

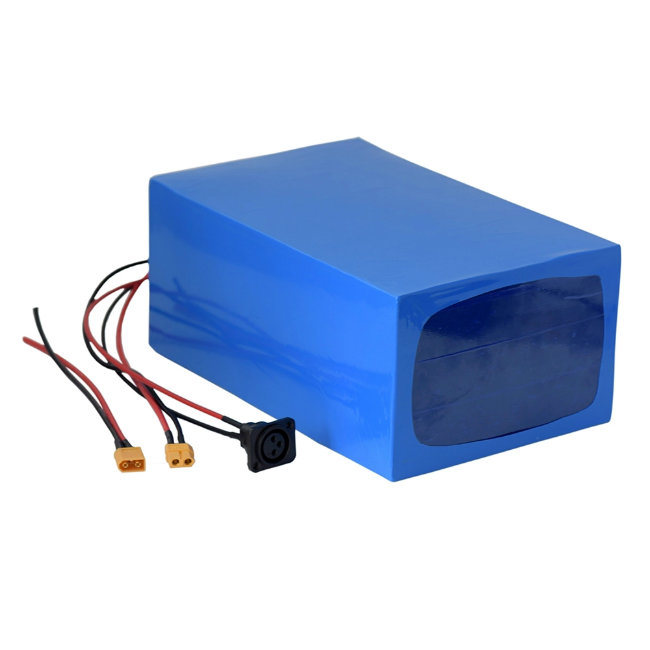

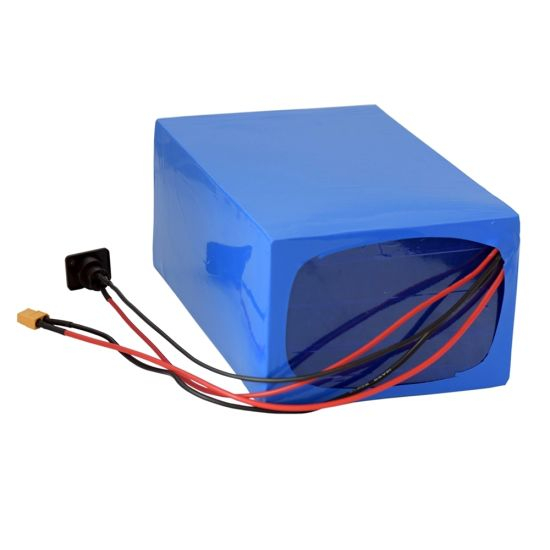

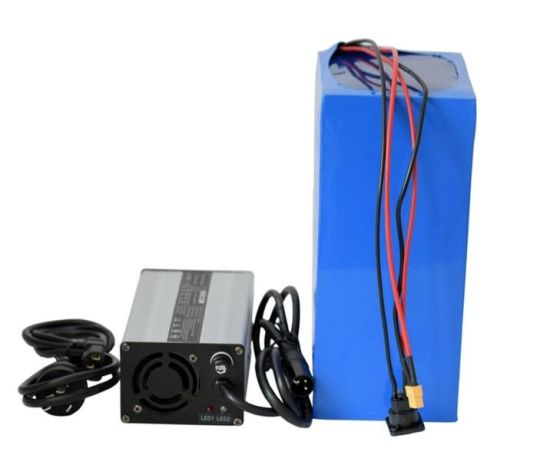

Details image
What is the shipping way?
1. Ship by EXPRESS door to door.
2. Ship to your airport.
3. Ship to your sea port.
Take the most cost-effective way based on your quantity or do as you request.

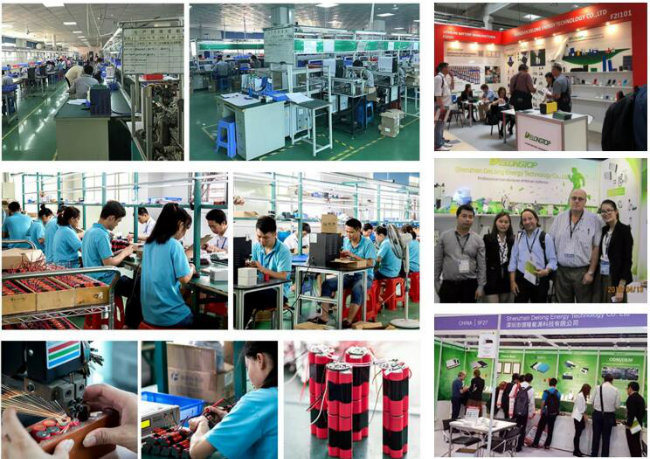

About Us
Certifications
