English
 |
| Quantity: | |
|---|---|
Shenzhen, China
3000PCS/Week
L/C, T/T, Western Union, Paypal
DEL-4810
10ah
48V
E-Bike
Li-ion
12V/24V/36V/48V
10ah/12ah/15ah
Lithium Battery
12 Months
Around 500 Times
5.5kg
Black,Silver
Accept
FCC/Ce/RoHS
DELONGTOP
Standard Export Package
5.5kg
Guangdong
Lithium-Ion Battery Pack
13s4p
Chargeable
Medium Discharge Rate
Customerized
Battery
Product Specification:
Battery Model | 48V 10Ah |
| Nominal Capacity (AH) | 10ah |
| Nominal Voltage (V) | 48V |
| Source Resistance (mΩ) | < 40 |
| Cell Specification | 3.7V 4AH |
| Cell Combination | 4-parallel 13-series |
| Cell Size | Pouch Cell |
| Cell Quantity (parallel*series) | 52 |
| Discharge Cutoff Voltage (V) | 41+/-1V |
| Charge Cutoff Voltage (V) | 54.6V |
| Rated Discharge Current (A) | 20A |
| Instantaneous Maximum Discharge Current (A) | 40A |
| Maximum Continuous Discharge Current (A) | 30A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 10 |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 4 |
| Charge Temperature Range | -20 - 60 °C |
| Discharge Temperature Range | -20 - 60 °C |
| Battery Size | 360*149*82mm |
| Battery Net Weight | 6.0kgs |
| Battery Gross Weight | 7.5kgs |
We provide costomized service!
OEM and ODM welcome!
Advantages:
1. High energy density
2. High working voltage for single battery cells
3. Pollution-free
4. Long cycle life
5. No memory effect
6. Capacity, resistance, Voltage, platform time consistency is good
7. With short-circuit production function, safe and reliable
8. High quality but with lower price
9. Good consistency, low self discharge
10. Light weight, small size
Applications:
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment

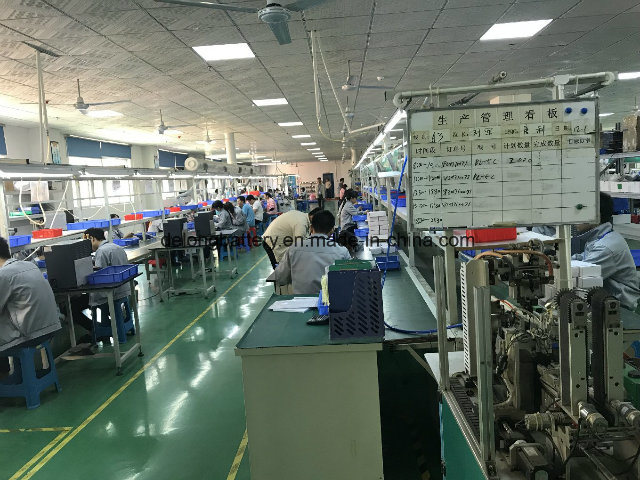

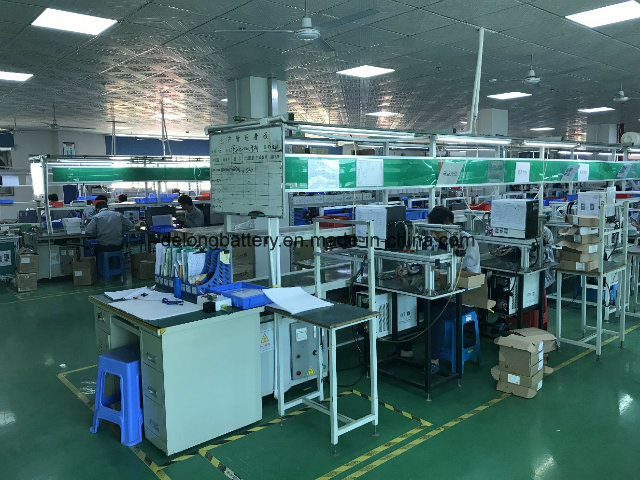

Factory View
