English
 |
| Quantity: | |
|---|---|
Shenzhen, China
5000PCS Per Week
L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash
DL-4810
18650 Battery
Delong or customized
EPE Pearl Cotton and Thick Cardboard Cartons
367*90*111mm
China
8506500000
Battery
4kg
500 Cycles
Electric Bicycle
48V
2500mAh
Recommend to use for 48V 200W, 48V 250W, 48V 350W, 48V 500W, 48V 750W, 48V 1000W Motor.

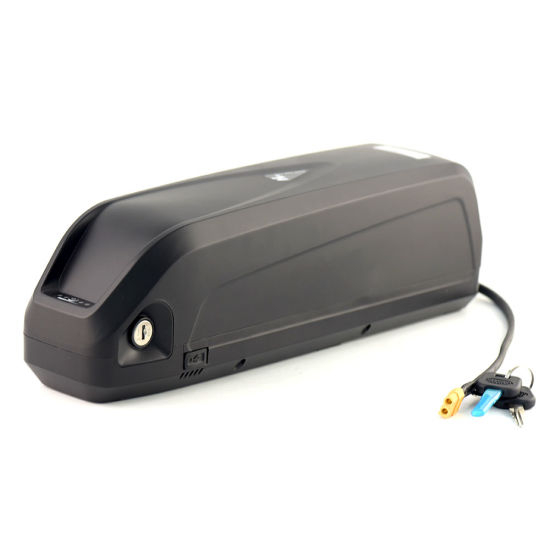

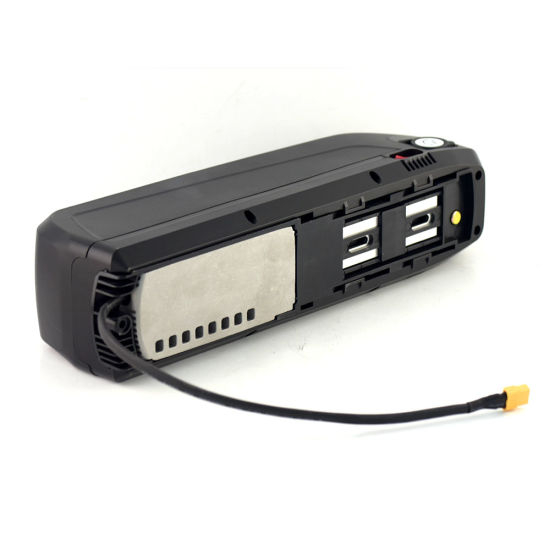

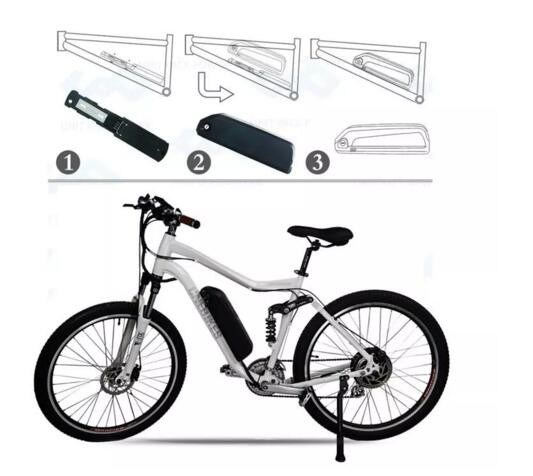

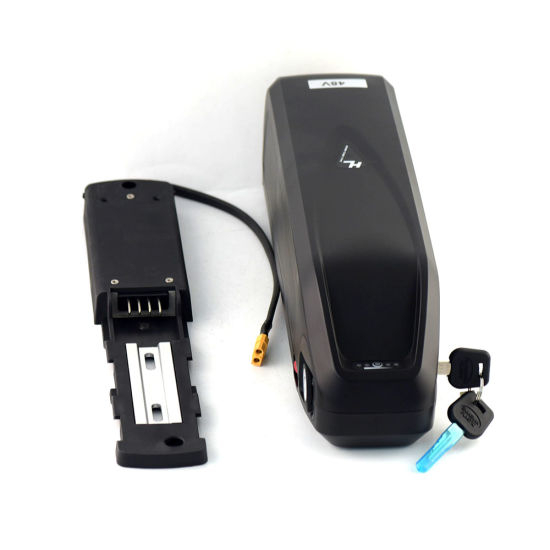

The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
| Model | DL-4810 |
| Nominal voltage | 48V |
| Charge voltage | 54.6V |
| Nominal capacity | 10Ah |

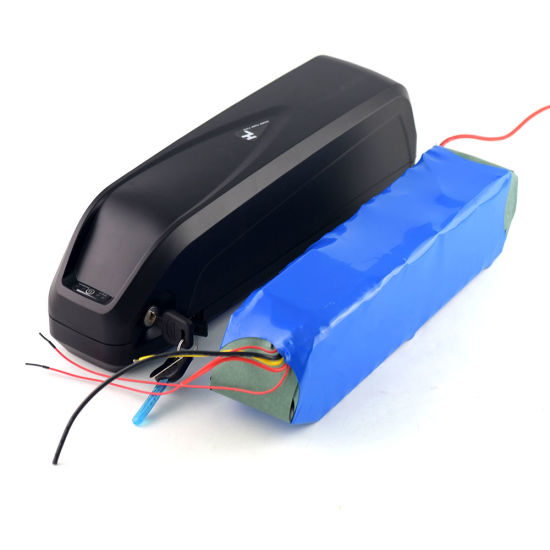

| Battery configation | 13S4P(13 series,4 parallel) |
| Standard charge current | 4A |
| Continuous discharge current | 20-25A |
| Discharge cut off voltage | 36.4V |
| Net weight | 4kg |
| Case dimension | 367*90*111mm |
| Cycle life | 500 times |
| Warranty | 1 year |
| BMS function | over-charge,over-discharge,over-current,short circuit |
| Fit motors | 350W,400W,500W,750W,1000W |
| Charge temperature | 0 ~ 45°C |
| Discharge temperature | -20 ~ 60°C) |
| Available colors | black |
Features of 48V 10Ah Hailong downtube ebike battery:
1.High energy density
2.Long lifecycle:above 500 times

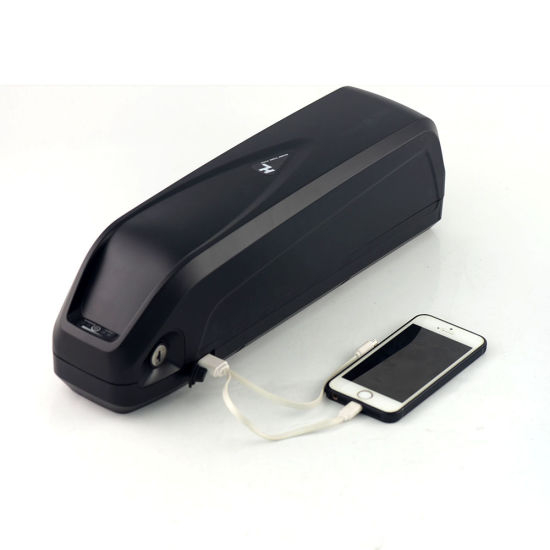

3.With 5V USB output which can charge for smartphones and other 5V digital products
4.Current of BMS can be customized
5.Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
6.Intelligent charge system: voltage of each cell can be detected ,each cell can be protected against overcharge, overvoltage ,short circuit and overheat , and so that battery can be charged balance. The capacity of readout power volume :each battery has 4 LED lights to readout the capacity of the battery.

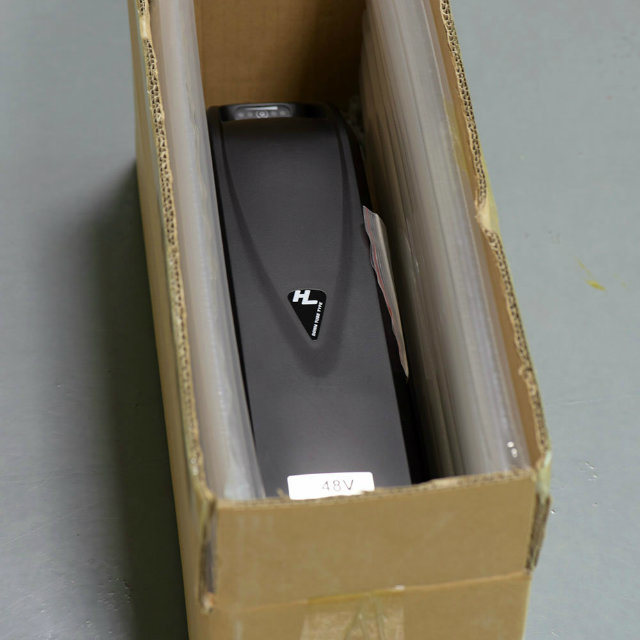

Packaging:Inner packing with EPE pearl cotton,
outer packing with strong cardboard cartons
or customerized packing
Shipment:Recommend to use for 48V 200W, 48V 250W, 48V 350W, 48V 500W, 48V 750W, 48V 1000W Motor.
The Battery has fixing plate, if you want to install it on your rear rack, it is very easy, you just need to fix the plate on your rear rack, for example drill holes or with screws, battery will be slide in and locked with key.
| Model | DL-4810 |
| Nominal voltage | 48V |
| Charge voltage | 54.6V |
| Nominal capacity | 10Ah |
| Battery configation | 13S4P(13 series,4 parallel) |
| Standard charge current | 4A |
| Continuous discharge current | 20-25A |
| Discharge cut off voltage | 36.4V |
| Net weight | 4kg |
| Case dimension | 367*90*111mm |
| Cycle life | 500 times |
| Warranty | 1 year |
| BMS function | over-charge,over-discharge,over-current,short circuit |
| Fit motors | 350W,400W,500W,750W,1000W |
| Charge temperature | 0 ~ 45°C |
| Discharge temperature | -20 ~ 60°C) |
| Available colors | black |
Features of 48V 10Ah Hailong downtube ebike battery:
1.High energy density
2.Long lifecycle:above 500 times
3.With 5V USB output which can charge for smartphones and other 5V digital products
4.Current of BMS can be customized
5.Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
6.Intelligent charge system: voltage of each cell can be detected ,each cell can be protected against overcharge, overvoltage ,short circuit and overheat , and so that battery can be charged balance. The capacity of readout power volume :each battery has 4 LED lights to readout the capacity of the battery.
Packaging:Inner packing with EPE pearl cotton,
outer packing with strong cardboard cartons
or customerized packing
Shipment:
