English
 |
| Quantity: | |
|---|---|
Shenzhen, China
20, 000 Pieces/Month
T/T, Paypal
DEL-36V10AH
10ah
36V
Electric Bike/Vehicle
Li-ion

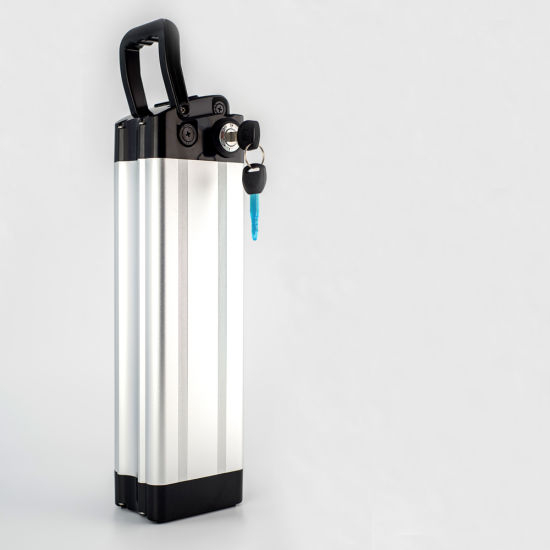

36V 10ah Silver Fish Type E-Bike Battery Pack
DELONGTOP
Standard Export Package
lithium ion battery
China
8507600010
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Customized
Chargers
36V 10AH Silver Fish Type Electrick Bike Battery Pack
Specification:
Battery Model | 36V 10Ah |
| Nominal Capacity (AH) | 10ah |
| Nominal Voltage (V) | 36V |
| Source Resistance (mΩ) | < 40 |
| Cell Specification | 3.7V 2500mAh |
| Cell Combination | 4-paralle 10-series |
| Cell Size | 18*65 |
| Cell Quantity (parallel*series) | 40 |
| Charge current | 2.5A |
| Charge Cutoff Voltage (V) | 42V |
| Rated Discharge Current (A) | 15A |
| Charge input voltage | 110 ~ 240V |
| Working current | 30A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 8 |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 3 |
| Charge Temperature Range | -20 - 60 °C |
| Discharge Temperature Range | -20 - 60 °C |
| Battery Size | Customized |

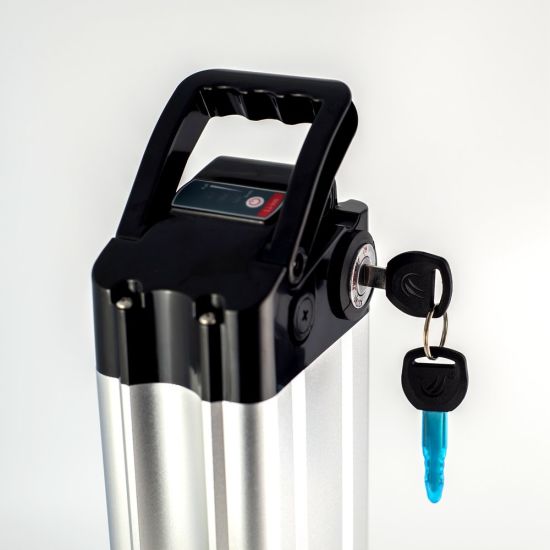

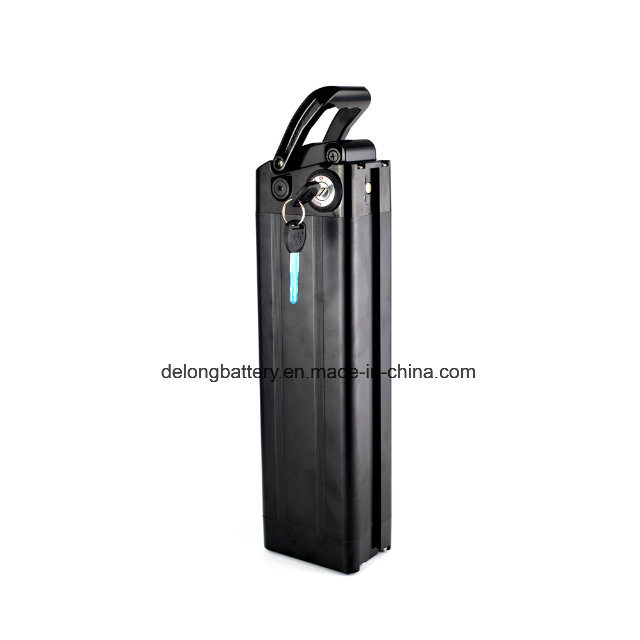

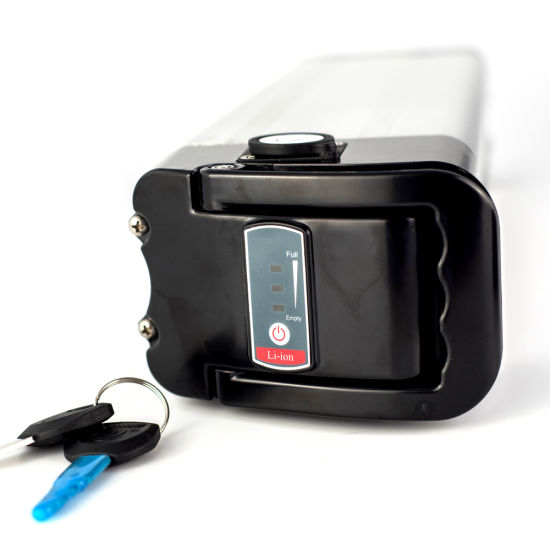

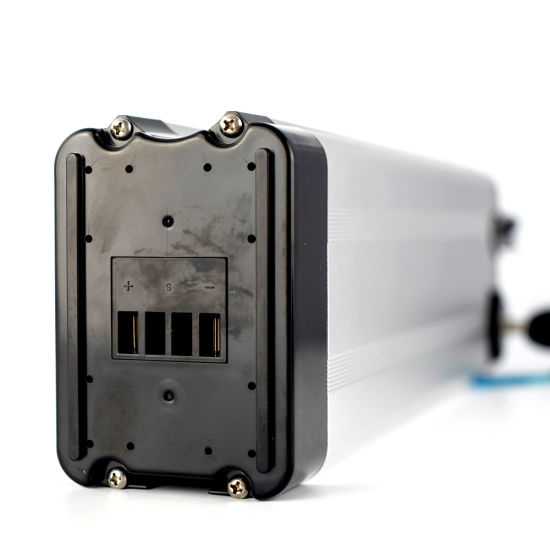

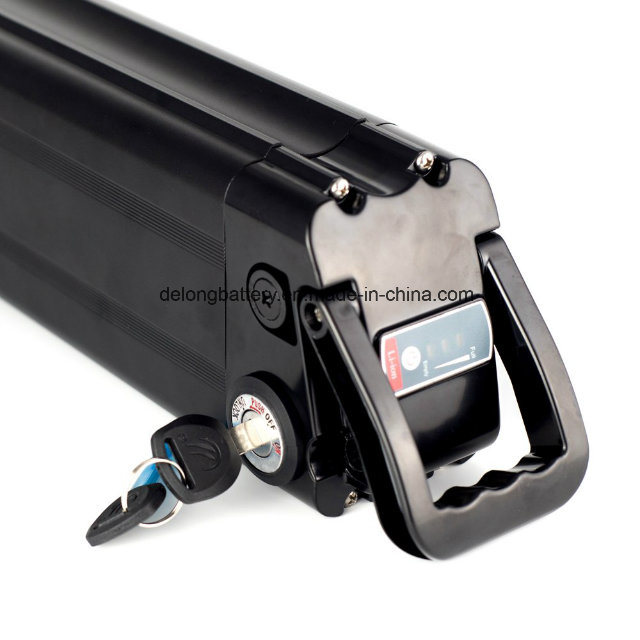

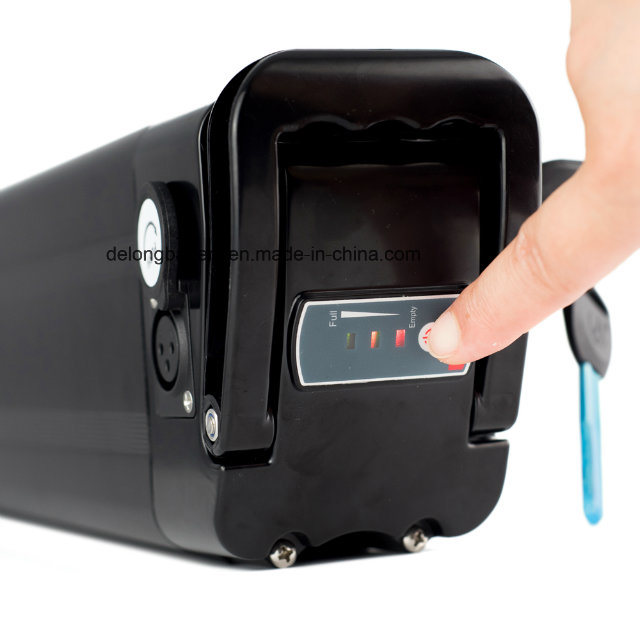

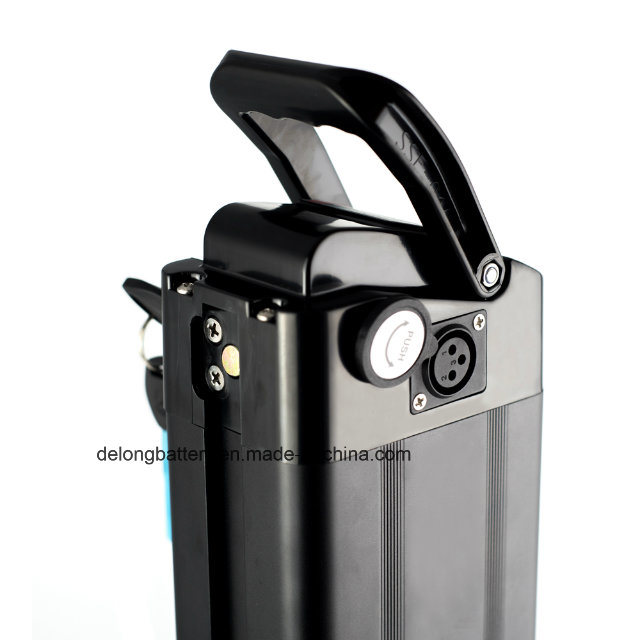

Product show:
Inner Circuit Board
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring
single string of cells. Also it enables every battery pack to obtain independent balancing function
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Advantages
1.OEM&ODM manufacturer with various designs.
2.Reliable quality, competitive price, fast delivery, excellent service.
3.Solid package, stable shipment, 100% testing and inspection before shipping to ensure the quality.
4. Meets CE, ROHS, UN38.3, MSDS etc certification standard.

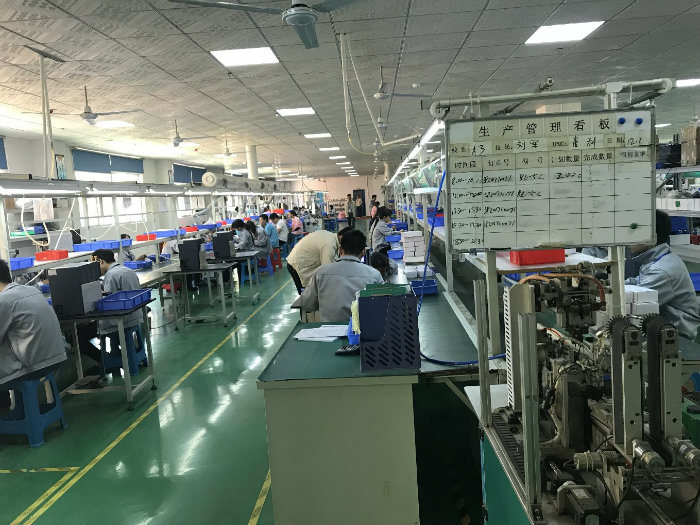

Company Information:
Delong Energy Technologgy Co.,LTD is a modern enterprise, which specialized in new products researched and development, sales and trade. Delong Energy Tech has 2 business line, one is for finished product, another area is semi-finshed product.
And the main products includes: Power Bank, Li-ion battey cell and pack , Li-polymer cell and pack etc.
Contact
Please contact us freely call us at +86-15818563390. Iris always here and will do best to help you.
