3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy

Quantity:
  • Shenzhen, China
  • 10000set/Week
  • T/T, Western Union, Paypal
  • DL-3260
  • 50ah-60ah
  • 3.2V
  • Remote Control Boat, Remote Control Plane, Remote Control Car, Electric Bike
  • Li-ion
  • >2000 Times
  • 3 Years
  • T/T,Paypal
  • OEM
  • Export Carton
  • 183*148*28mm
  • China
  • Lithium-Ion Battery Pack
  • Series and Parallel
  • Chargeable
  • Medium Discharge Rate
  • Medium
  • Battery

3.2v 60ah lifepo4 battery specification:

Voltage (nominal,V)

3.2V

Cell Dimensions (mm)

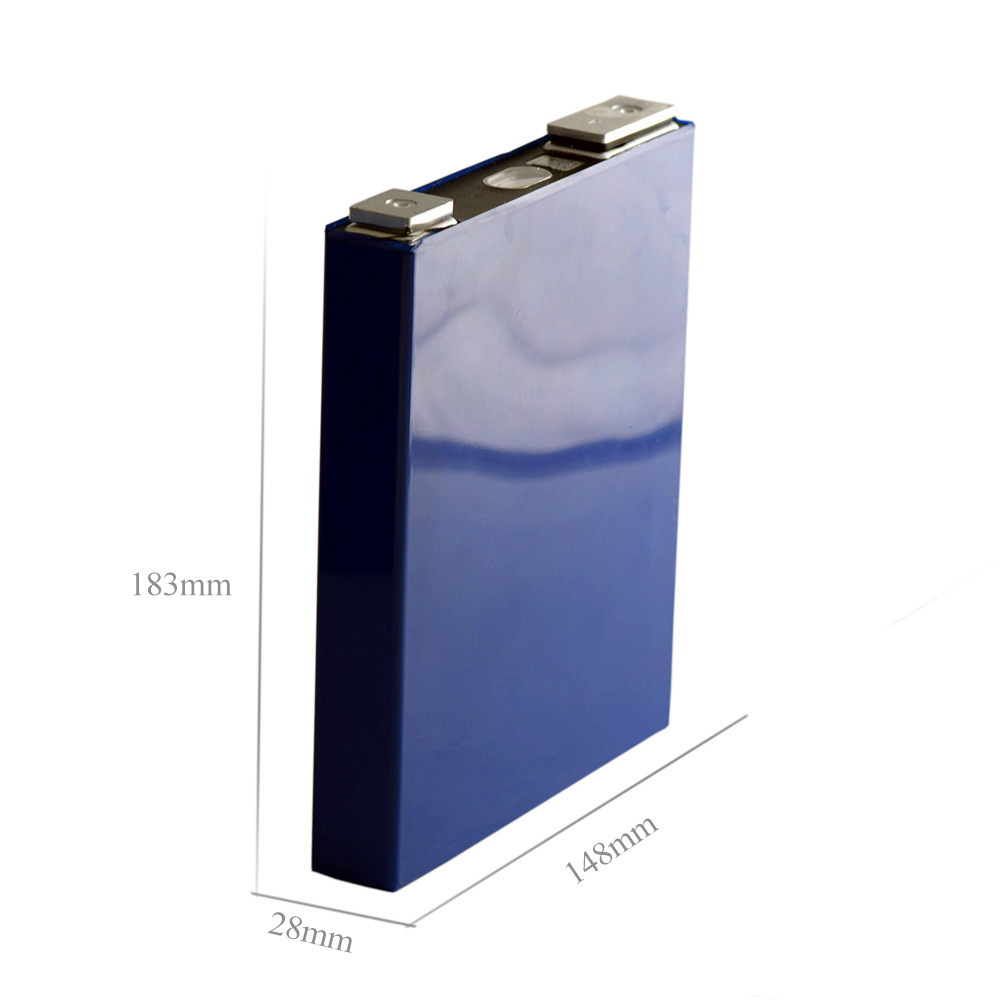

Length: 183mm,Width:148mm,Thickness: 28mm

Cell Weight (g)

1.6Kg

Cell Capacity (nominal/minimum, Ah)

60Ah

Internal Impedance (1kHz AC typical, m-)

≤ 1mΩ (At 0.2C rate, 2.0V cut-off)

Cycle Life at 0.2C Discharge, 100% DOD

≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

Operating Temperature

Charging:0°C ~ 45°C;Discharging: -20°C ~ 60°C(The cell surface temperature cannot exceed 70°C)


Storage Temperature

Temperature: -10°C ~ +35°C;Humidity:65%±20%RH(optimal store temperature of 23 ± 5°C for long term storage)

Applications:

Electric Propelling Applications

♦ Engine Starting Battery

♦ Commercial Bus and Transit:

   E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,

   E-truck, E-sweeper, Floor cleaner, E-walker etc.

♦ Intellectual Robots

♦ Power tools: electric drills, toys



Energy Storage

♦ Solar-Wind Power System

♦ City Grid (On/Off)



Back-up System and UPS

♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment



Other Applications

♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy

3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy
3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy






Company Information

Shenzhen DeLong Energy Technology Co., Ltd. is a Professional New Energy Supplier in China focusing on the manufacture, research and sale of lithium ion battery product worldwide. It was established in 2006 and becoming the leading player in the new energy field through development. Delong company intergrates the cell manufacturing and offer of power solution in according to different application purpose.Our products are widely applied on digital device battery,high discharge rate battery, powerful electric vehicles battery, low and high temperature lithium ion battery, power storage and back-up battery pack etc.

3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy

3.2V 60ah Lithium LiFePO4 Prismatis Cell for Solar System Storage Energy

Our Services

1. 12 Years professional manufacturering experience.

2. Your inquiry related to our products or price will be replied within 24 hours.
3. One-stop OEM & ODM service;  or our current models.
4. Fast delivery;  Professinal and quality 100% QC inspection.

FAQ

1:Can I have samples to test? And what is lead time for sample order?
   Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

2: Do you provide after-sales serive?
   Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.

3: Do you accept OEM/ODM?
   Yes,it is avaliable.

4:Are you battery real capacity?

   All of our battery cells with Grade A,100% new and real capacity.

5: What kind of certificates do you have?
   We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
