English
 |
| Quantity: | |
|---|---|
Shenzhen, China
10000PCS/Week
T/T, Paypal
DL-LFPA123
70*161*227mm
RoHS, CE, FCC,IEC62133
USA,UK,EU,etc
Recyclable
3.2V 20ah
LiFePO4
Ce,RoHS,FCC
495g
DELONGTOP
Standard Export Package
LiFePo4
China
8507600090
Li-Polymer Battery
Electric Charger
Standard Battery
3.2V
Simple Charger
3.2V

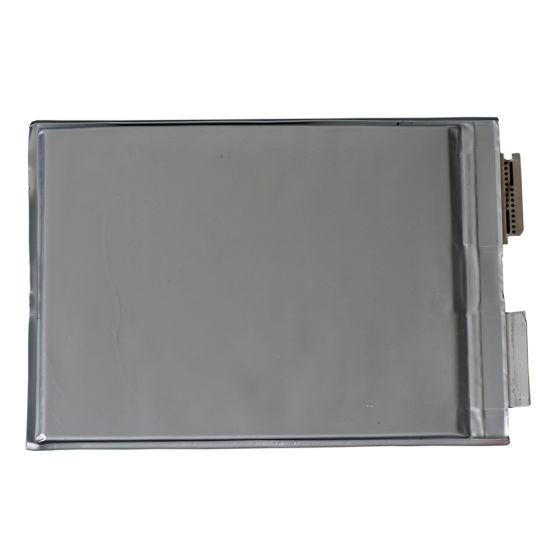

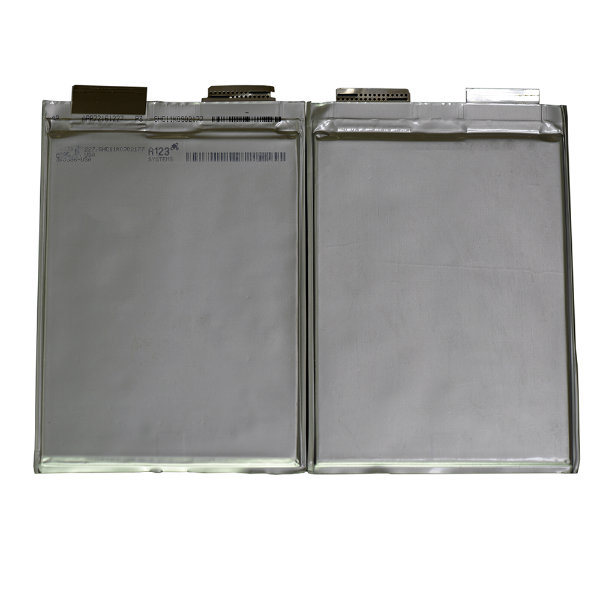

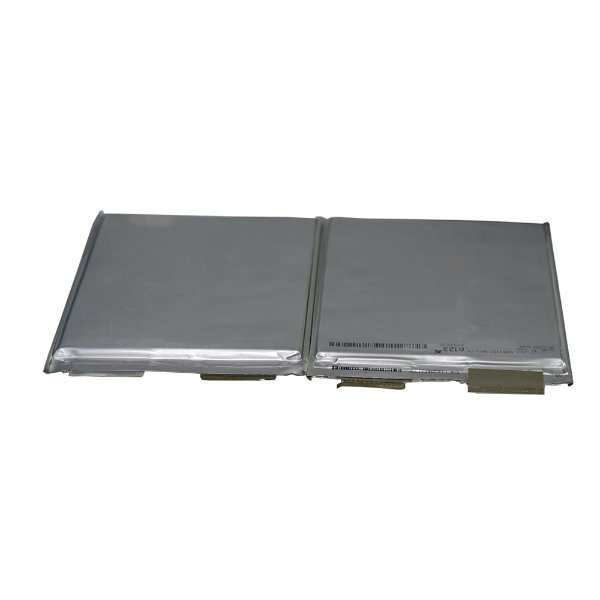

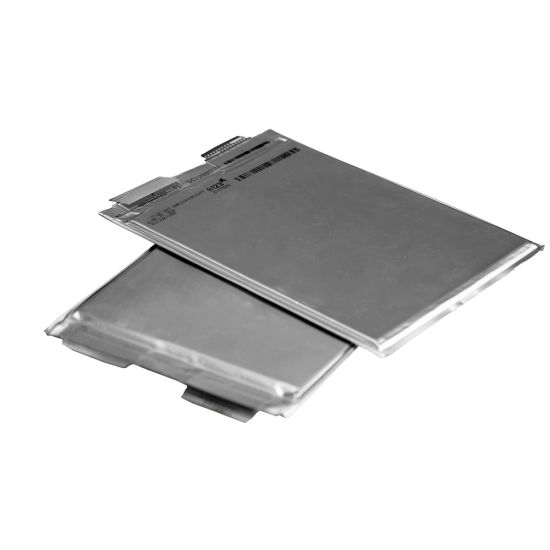

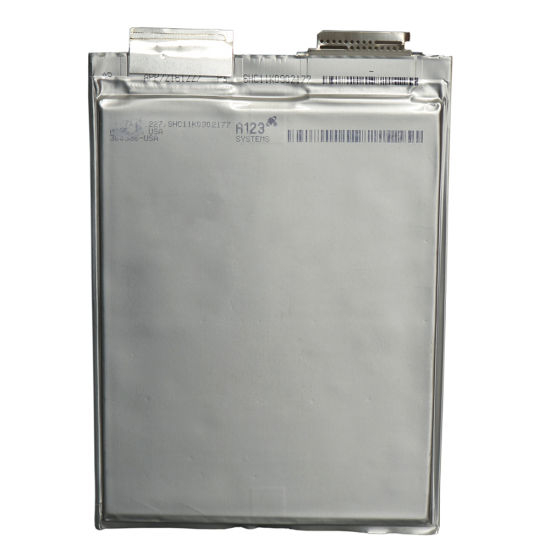

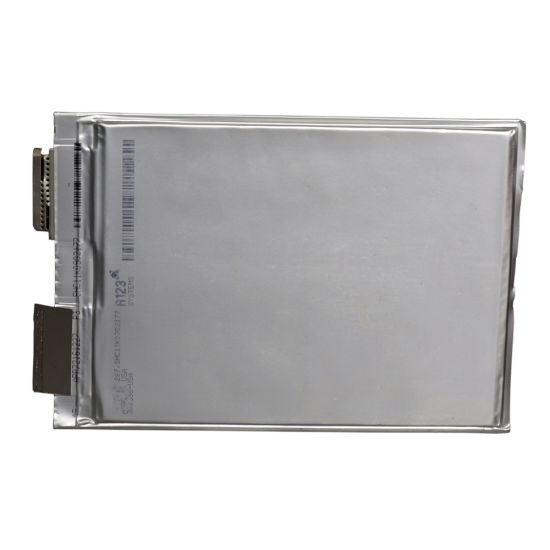

3.2V 20Ah Rechargeable Lifepo4 Lithium Polymer Battery Cell
Product Parameters
No. | Items | Specifications |
1 | Nominal Voltage | 3.2V |
2 | Nominal Capacity | 19.6Ah |
3 | Standard Charge Current | 0.2C-0.5C |
4 | Max. Charge Current | 5C |
5 | Continuous Discharge current | 30C |
6 | Peak Discharge Current | 60C |
7 | Charge Cut-off Voltage | 3.9V |
8 | Discharge Cut-off Voltage | 2.0V |
9 | Inner Resistance (Impedance) | ≤2mΩ |
10 | Weight | 495g |
11 | Dimensions | Length:227 mm Width:160 mm Thickness: 7.25 mm |
12 | Operating Temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C) |
13 | Storage Temperature/Humidity | Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 23 ± 5°C for long term storage) |
14 | Cycle Life | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
Product Applications
1.Single cell 3.2v 20Ah,high energy density,high capacity
2.Green product, long standby time, one year wrranty, excellent safety performance.
3.Short circuit testing passed, overcharge testing passed
4.Best sale service and good price
5.High capacity, high level platform, long working hours, long cycle life,
6.Application : widely used in
1)Communication device: communication base station, handheld road test instruments, portable communication tester, portable radio station
2)Medical instruments: monitor, electrocardiogram machine, portable type-B ultrasonic, defibrillator, breathing machine
3)Industrial instrument:water quality testing meter, geotechnical tester, laser orientation instrument car arrester
4)Electric tools: handheld electric drill, moped, golf carts
Customized Project
Package
Payment and Shipping
1) We accept Paypal,T/T,Western Union or L/C .
2) Full order timeline about 7-10 working days after payment or deposit conform.
3) Shipping: DHL,Fedex TNT(only to certain area).
4) Tracking Number will be provided
After-sale services
1) One years warranty
2) Rapid replacement of defective until you are satisfied
3) Reply you within 24hours
4) Any non-intentional damage will be repaired free of charge
Why choose lithium ion battery?
Lithium ion is the battery technology of today.
Do you want to be the fasted or best performing?
Do you want to save energy or burn less fuel?
Do you want your investment to last longest?
Do you want to be'out there' longest without getting anxious about your energy?
Then lithium ion is your choice of batteries.
A few of its outstanding featuers:
Space and weight savings up to 70%
Longer lifespan of traditional batteries
Extremely fast charging and discharging.
High efficiency,not wasting energy.
Safe operation.
